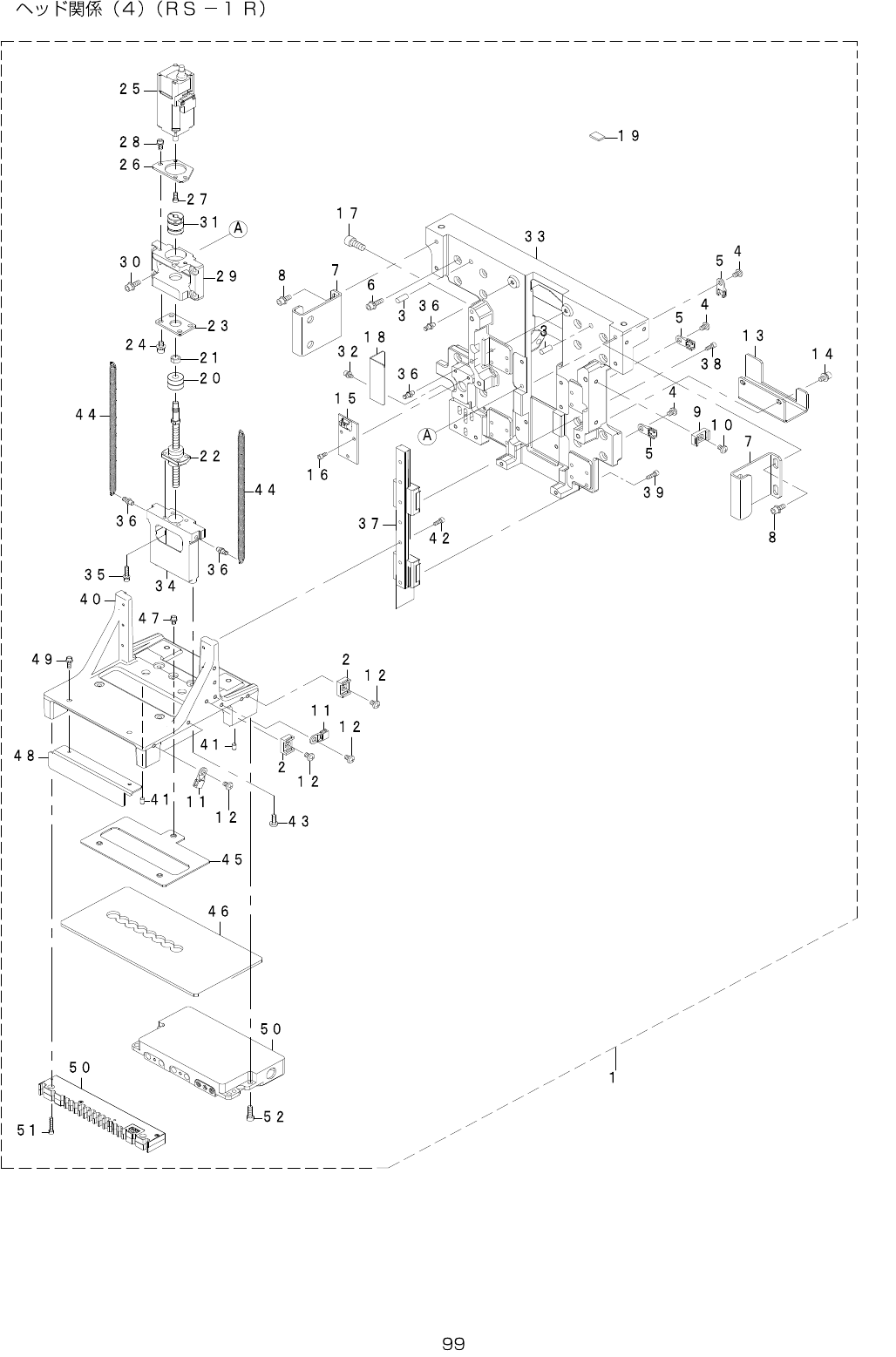

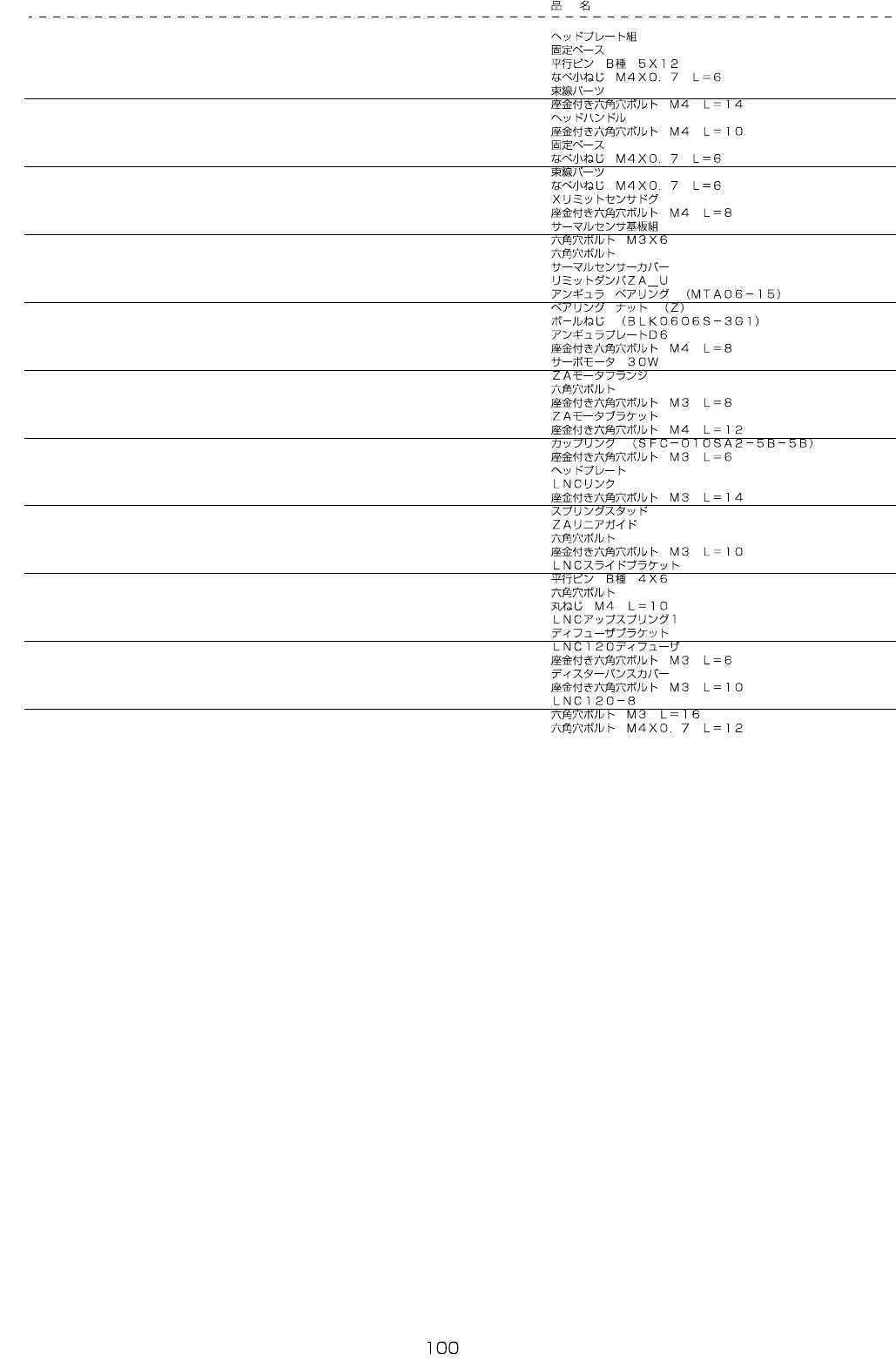

50.HEADCOMPONENTS(4)(RS-1R)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 402-17392 HEAD_PLATE_ASSY 1
2 HX-0029400-00 FIXEDBASE (3)
3 PH-0500122-C0 PARALLELPINTYPEB5X12 (2)
4 SM-4040601-SC SCREWM4X0.7L=6 (3)
5 HX-0034400-00 FIXEDBASE (3)
6 SL-6041492-TN SCREWM4L=14 (16)
7 400-47317 HEAD_HANDLE (2)
8 SL-6041092-TN SCREWM4L=10 (4)
9 HX-0029400-00 FIXEDBASE (2)
10 SM-4040601-SC SCREWM4X0.7L=6 (2)
11 HX-0034400-00 FIXEDBASE (3)
12 SM-4040601-SC SCREWM4X0.7L=6 (6)
13 402-09518 X_LIMIT_SENSOR_DOG (1)
14 SL-6040892-TN SCREWM4L=8 (2)
15 401-28883 THERMALSENSORPCBASM (1)
16 SM-6030602-TN SCREWM3X6 (3)
17 SM-6061402-TN SCREW (4)
18 401-82930 THERMAL_SENSOR_COVER (1)
19 401-82884 LIMIT_DAMPER_ZA_U (2)
20 EZ-4454738-01 BEARING(MTA06-15)ANGULAR (1)
21 EZ-4463629-01 NUT(Z)BEARING (1)
22 EZ-4454740-01 SCREW(BLK0606S-3G1)BALL (1)
23 401-82918 ANGULAR_PLATE_D6 (1)
24 SL-6040892-TN SCREWM4L=8 (4)
25 401-87431 SERVOMOTOR30W (1)
26 401-82919 ZA_MOTOR_FRANGE (1)
27 SM-6030802-TN SCREW (2)
28 SL-6030892-TN SCREWM3L=8 (2)
29 401-82914 ZA_MOTOR_BRACKET (1)
30 SL-6041292-TN SCREWM4L=12 (4)
31 EZ-4454741-01 COUPLING(SFC-010SA2-5B-5B) (1)
32 SL-6030692-TN SCREWM3L=6 (2)
33 401-94741 HEAD_PLATE (1)
34 401-94743 LNC_LINK (1)
35 SL-6031492-TN SCREWM3L=14 (4)
36 401-82922 SPRING_STUD (4)
37 401-94753 ZA_LINEAR_GUIDE (2)
38 SM-6030802-TN SCREW (8)
39 SM-6031002-TN SCREWM3L=10 (8)
40 401-94745 LNC_SLIDE_BRACKET (1)
41 PH-0400062-C0 PARALLELPINTYPEB4X6 (2)
42 SM-6030802-TN SCREW (6)
43 SM-3041052-TN SCREWM4L=10 (2)
44 401-82925 LNC_UP_SPRING1 (2)
45 401-82926 DIFFUSER_BR (1)
46 401-82927 LNC120_DIFFUSER (1)
47 SL-6030692-TN SCREWM3L=6 (3)
48 401-82928 DISTURBANCE_COVER (1)
49 SL-6031092-TN SCREWM3L=10 (2)
50 401-82791 LNC120-8 (1)
51 SM-6031602-TN SCREWM3L=16 (2)
52 SM-6041202-TN SCREWM4X0.7L=12 (4)
- -

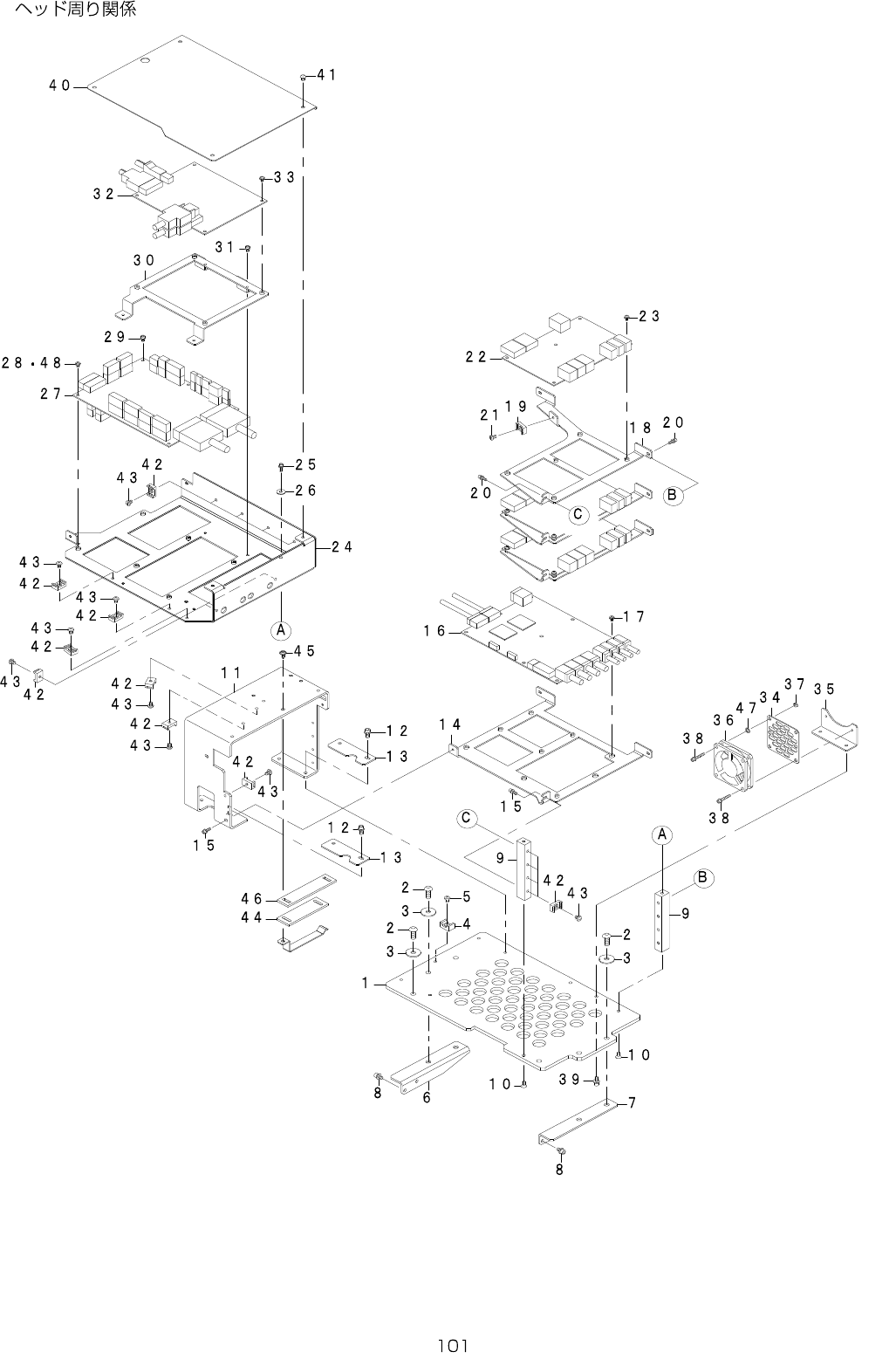

51.HEADRELATEDCOMPONENTS
