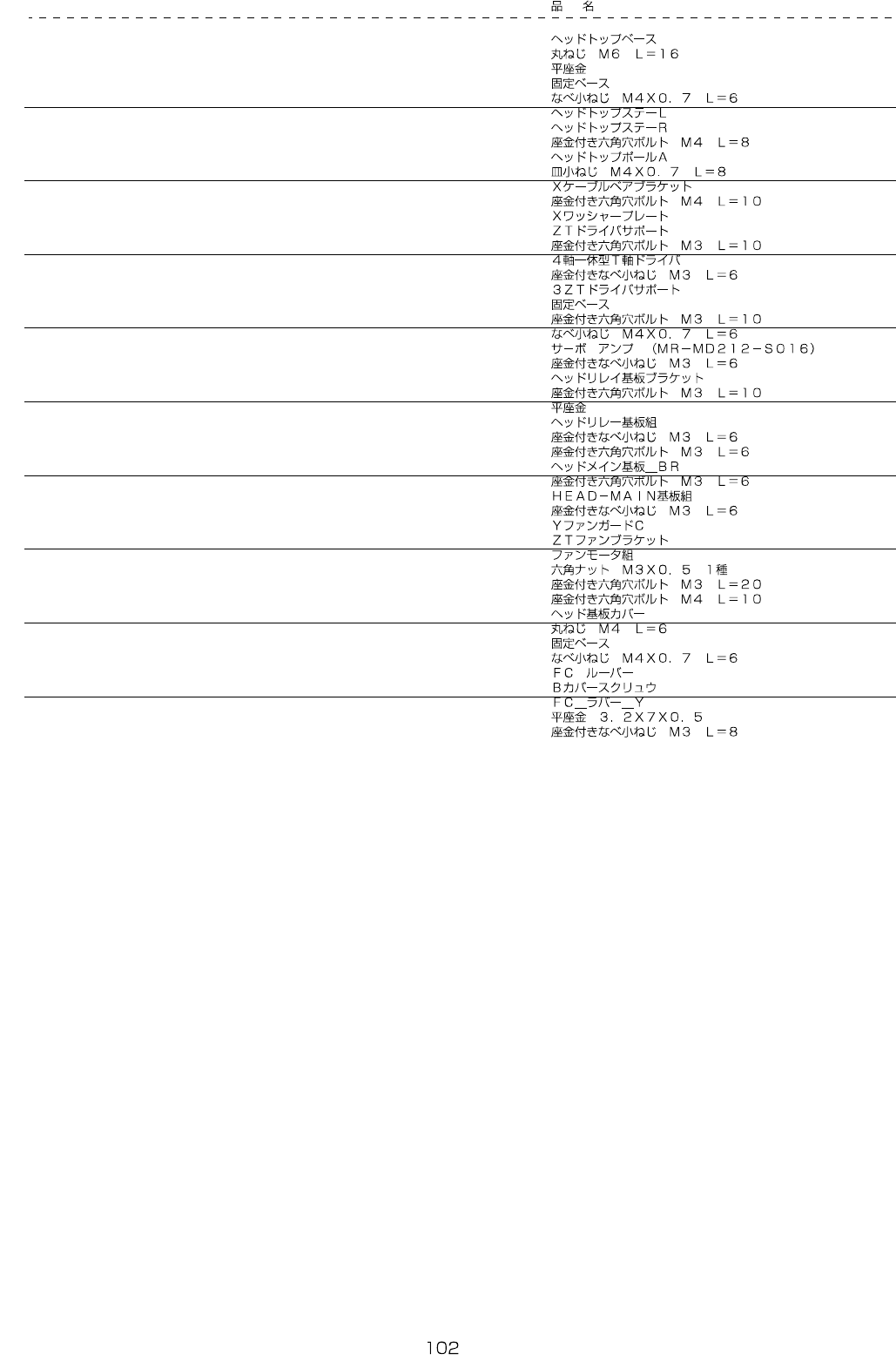

51.HEADRELATEDCOMPONENTS

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-82785 HEAD_TOP_BASE 1

2 SM-3061652-TN SCREWM6L=16 6

3 WP-0651646-SC WASHER 6

4 HX-0029400-00 FIXEDBASE 1

5 SM-4040601-SC SCREWM4X0.7L=6 1

6 401-82782 HEAD_TOP_STAY_L 1

7 401-82784 HEAD_TOP_STAY_R 1

8 SL-6040892-TN SCREWM4L=8 4

9 401-82786 HEAD_TOP_POLE_A 2

10 SM-1040801-SC SCREWM4X0.7L=8 2

11 401-82787 X_CABLE_BEAR_BR 1

12 SL-6041092-TN SCREWM4L=10 4

13 402-10345 X_WASHER_PLATE 2

14 401-82788 ZT_DRIVER_SUPPORT 1

15 SL-6031092-TN SCREWM3L=10 4

16 401-29650 4AXISINTEGRALTYPETAXISDRIVER 1

17 SL-4030691-SC SCREWM3L=6 9

18 401-82789 3ZT_DRIVER_SUPPORT 3

19 HX-0029400-00 FIXEDBASE 3

20 SL-6031092-TN SCREWM3L=10 12

21 SM-4040601-SC SCREWM4X0.7L=6 3

22 EZ-1492148-11 AMPLIFIERSERVO 3

23 SL-4030691-SC SCREWM3L=6 15

24 401-82790 HEAD_RELAY_PCB_BR 1

25 SL-6031092-TN SCREWM3L=10 4

26 WP-0431005-SP PLAINWASHER 2

27 401-28874 HEADRELAYPCBASM 1

28 SL-4030691-SC SCREWM3L=6 4

29 SL-6030692-TN SCREWM3L=6 1

30 401-94425 HEAD_MAIN_PCB_BR 1

31 SL-6030692-TN SCREWM3L=6 4

32 402-11644 HEAD-MAINPCBASM 1

33 SL-4030691-SC SCREWM3L=6 4

34 400-66152 Y_FAN_GUARD_C 1

35 401-82794 ZT_FAN_BR 1

36 402-08413 FANMOTORASM 1

37 NM-6030001-SC NUTM3X0.5TYPE1 2

38 SL-6032092-TN SCREWM3L=20 4

39 SL-6041092-TN SCREWM4L=10 2

40 401-82795 HEAD_PCB_COVER 1

41 SM-3040652-TN SCREWM4L=6 4

42 HX-0029400-00 FIXEDBASE 16

43 SM-4040601-SC SCREWM4X0.7L=6 16

44 L153E-321-000 FCRUBBER 1

45 400-81751 B_COVER_SCREW 1

46 400-98052 FC_RUBBER_Y 1

47 WP-0320501-SC WASHERM3 4

48 SL-4030891-SC SCREWM3L=8 1

- -

52.OCCCOMPONENTS
