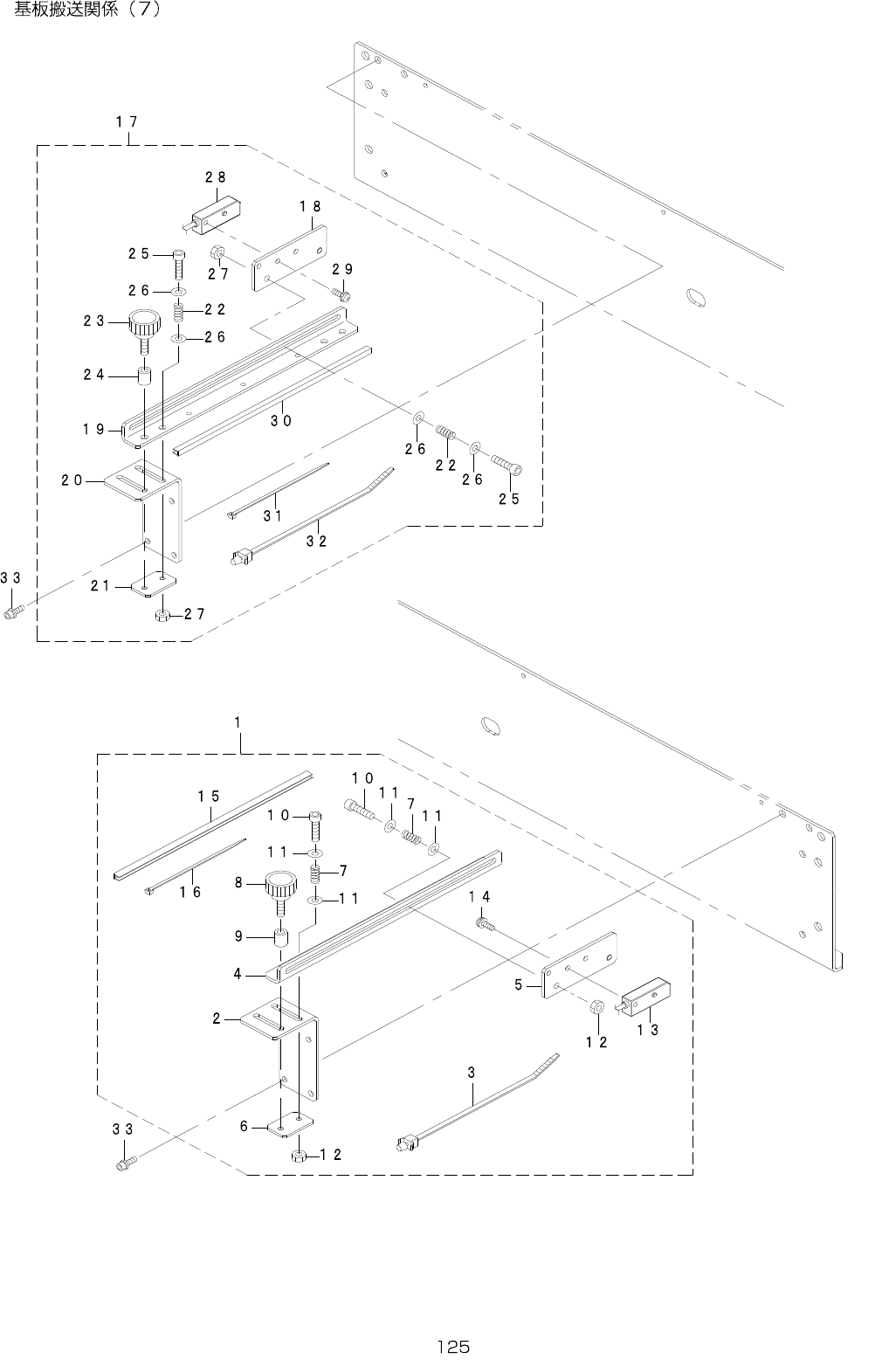

63.PWBCONVEYORCOMPONENTS(7)

- -

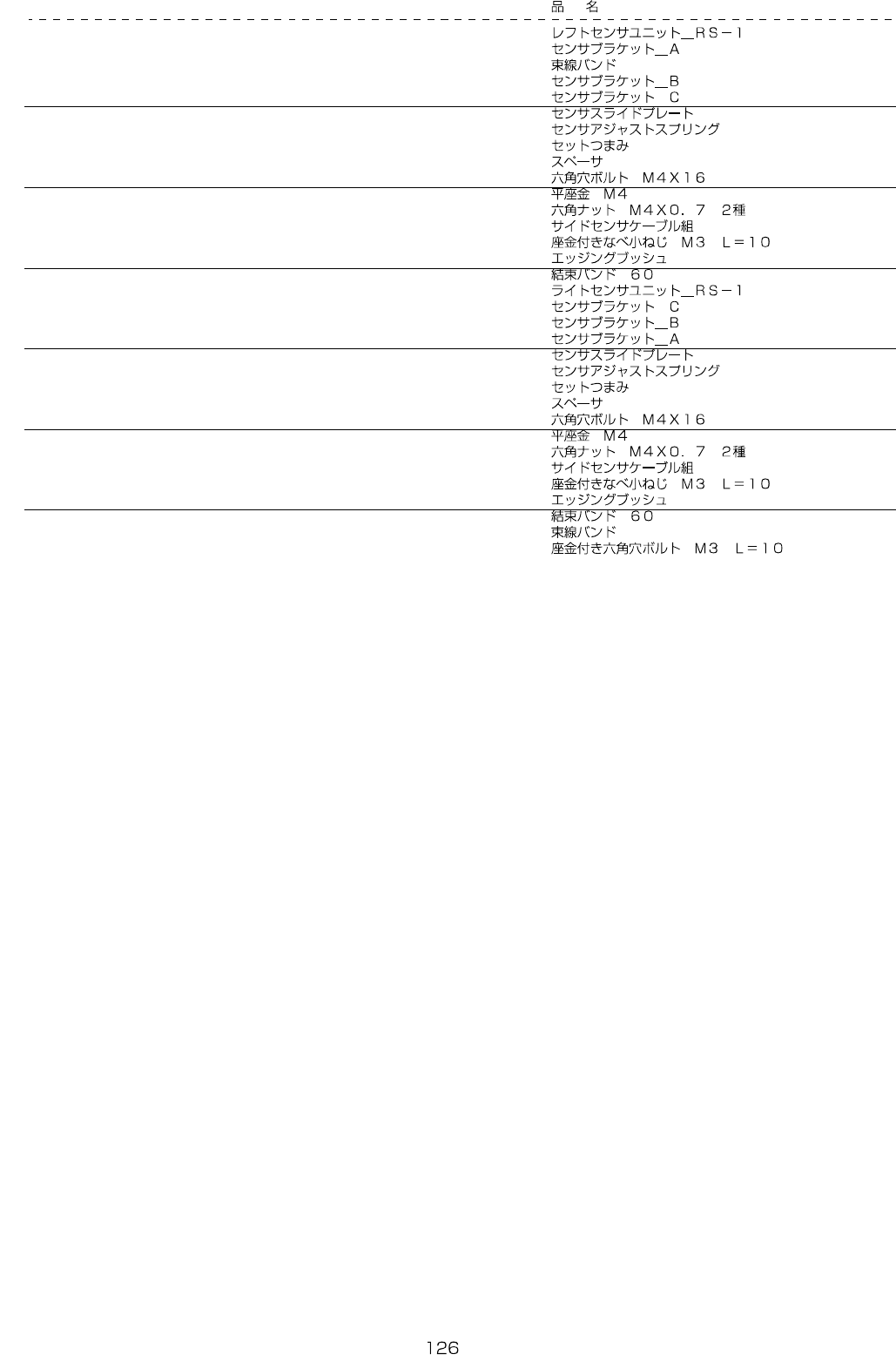

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-88588 LEFTSENSORUNIT_RS-1 1

2 401-46990 SENSOR_BR_A (1)

3 HX-0044000-00 CABLEBAND (1)

4 401-46991 SENSOR_BR_B (1)

5 400-01079 SENSORBRAKETC (1)

6 400-01076 SENSORSLIDEPLATE (1)

7 400-00912 SENSORADJUSTSPRING (3)

8 G6518-880-000 SETPICK-UP (1)

9 400-58815 SPACER (1)

10 SM-6041602-TN SCREWM4X16 (3)

11 WP-0430801-SC WASHERM4 (6)

12 NM-6040002-SE NUTM4X0.7 (3)

13 401-29046 SIDESENSORCABLEASM (1)

14 SL-4031091-SC SCREWM3L=10 (2)

15 HX-0036700-0A GROMMET (0.16)

16 EA-9500B00-00 CABLEBAND (5)

17 401-88589 RIGHTSENSORUNIT_RS-1 1

18 400-01079 SENSORBRAKETC (1)

19 401-46991 SENSOR_BR_B (1)

20 401-46990 SENSOR_BR_A (1)

21 400-01076 SENSORSLIDEPLATE (1)

22 400-00912 SENSORADJUSTSPRING (3)

23 G6518-880-000 SETPICK-UP (1)

24 400-58815 SPACER (1)

25 SM-6041602-TN SCREWM4X16 (3)

26 WP-0430801-SC WASHERM4 (6)

27 NM-6040002-SE NUTM4X0.7 (3)

28 401-29046 SIDESENSORCABLEASM (1)

29 SL-4031091-SC SCREWM3L=10 (1)

30 HX-0036700-0A GROMMET (0.16)

31 EA-9500B00-00 CABLEBAND (5)

32 HX-0044000-00 CABLEBAND (1)

33 SL-6031092-TN SCREWM3L=10 4

- -

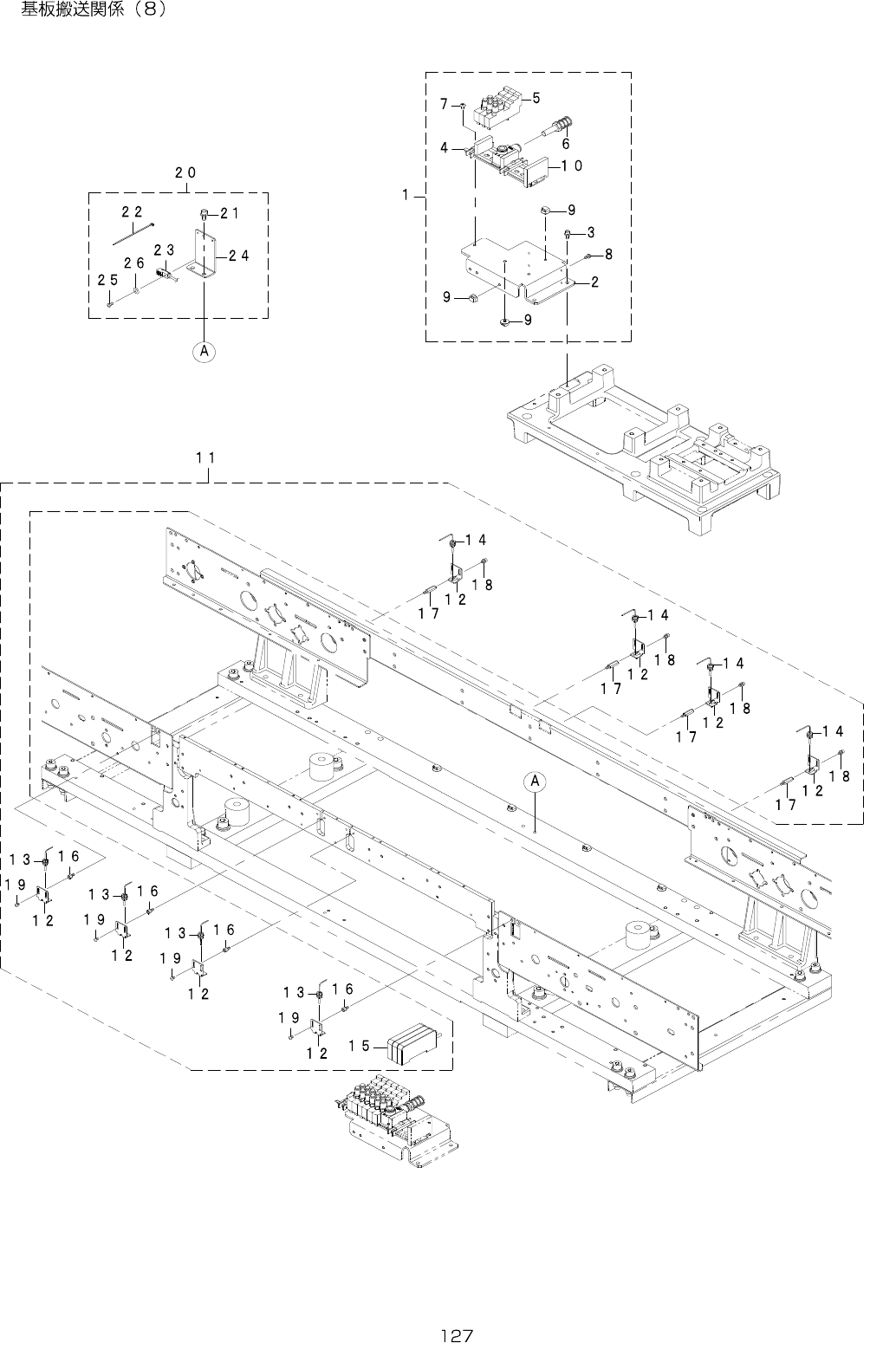

64.PWBCONVEYORCOMPONENTS(8)
