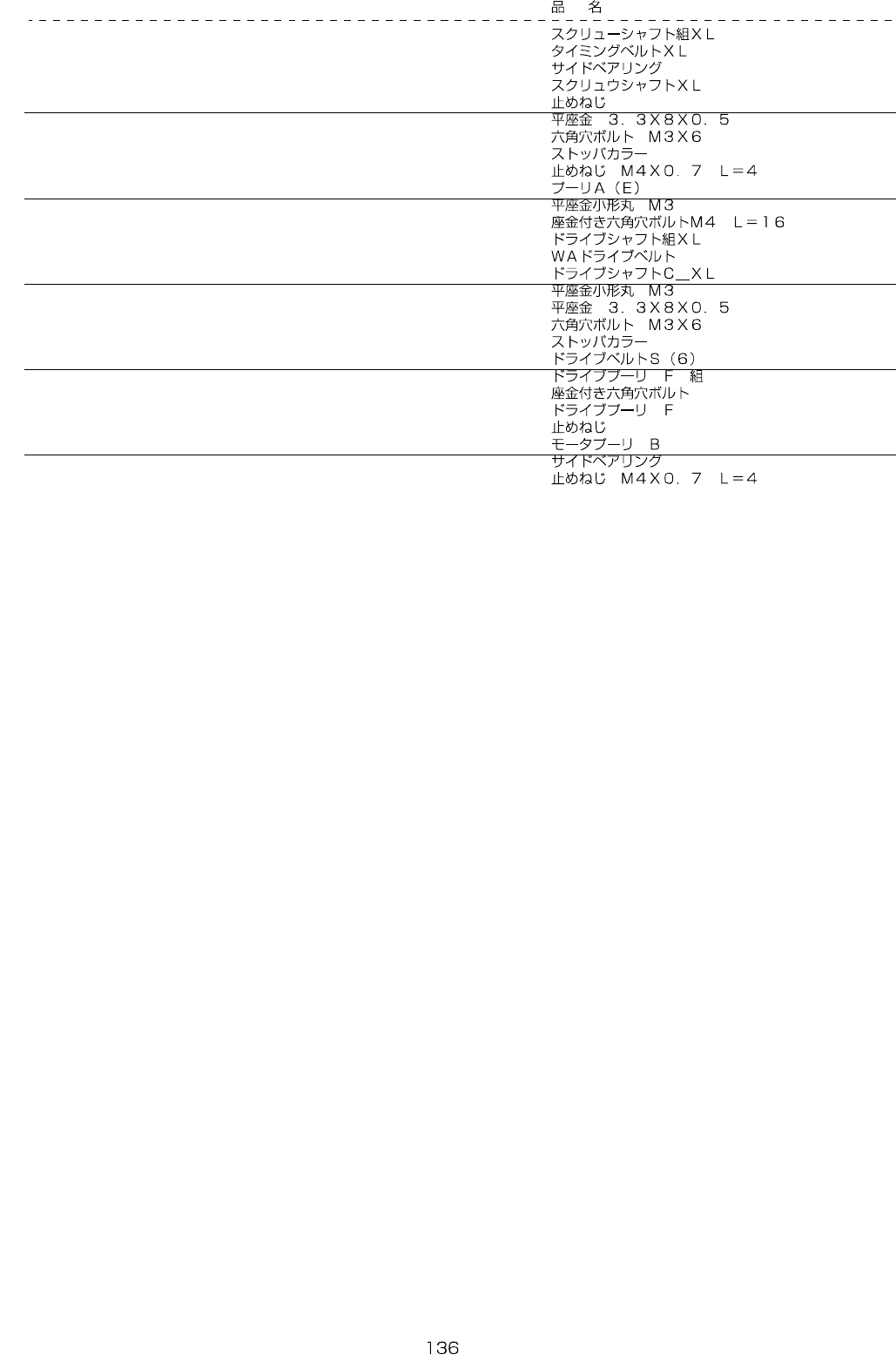

- - 69. PWBCONVE YORCOMPONENTS(13 )(TYPEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-15464 SCREW_SHAFT_ASM_XL 1

2 402-15090 TIMING_BELT_XL (1)

3 SB-1080002-00 SIDEBEARING (4)

4 400-97730 SCREW_SHAFT_XL (2)

5 SM-8040602-TP SCREWM4X0.7L=6 (4)

6 WP-0330516-SC WASHER3.3X8X0.5 (4)

7 SM-6030602-TN SCREWM3X6 (4)

8 E2141-721-000 STOPPERCOLLAR (2)

9 SM-8040402-TP SCREWM4X0.7L=4 (4)

10 E4085-725-000 PULLEYA(E) (2)

11 WP-0320500-SF WASHER3.2X7X0.5 (8)

12 SL-6041692-TN SCREWM4L=16 (8)

13 402-15465 DRIVESHAFTASM_XL 1

14 401-07806 WA_DRIVE_BELT (2)

15 400-98132 DRIVE_SHAFT_C_XL (4)

16 WP-0320500-SF WASHER3.2X7X0.5 (16)

17 WP-0330516-SC WASHER3.3X8X0.5 (8)

18 SM-6030602-TN SCREWM3X6 (8)

19 E2141-721-000 STOPPERCOLLAR (4)

20 400-46033 DRIVEBELTS(6) (2)

21 400-00849 DRIVEPULLEYFASM (4)

22 SL-6031642-TN SCREW (3)

23 400-00850 DRIVEPULLEYF (1)

24 SM-8040602-TP SCREWM4X0.7L=6 (2)

25 400-00851 MOTORPULLEYB (1)

26 SB-1080002-00 SIDEBEARING (8)

27 SM-8040402-TP SCREWM4X0.7L=4 (8)

- -

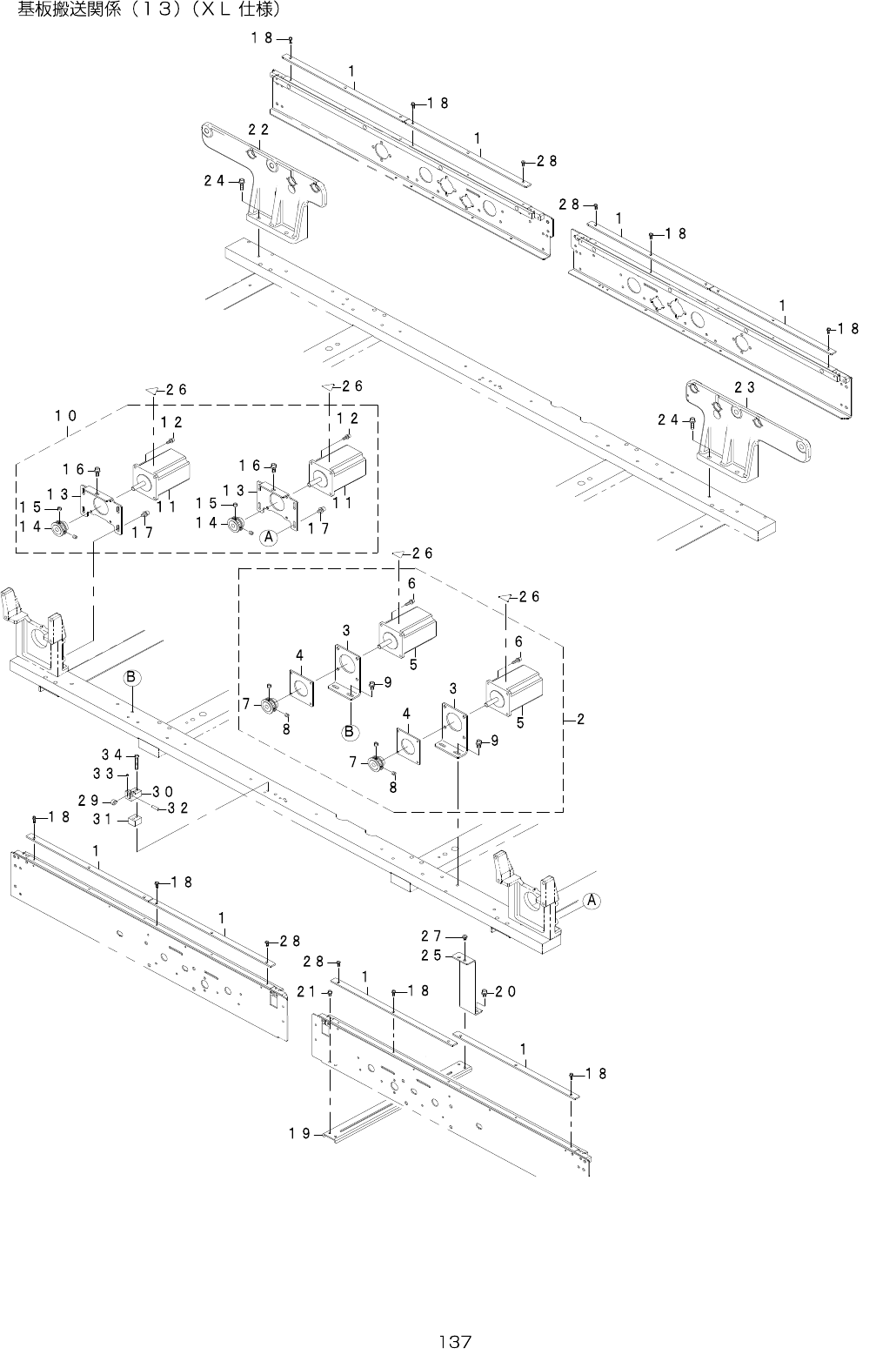

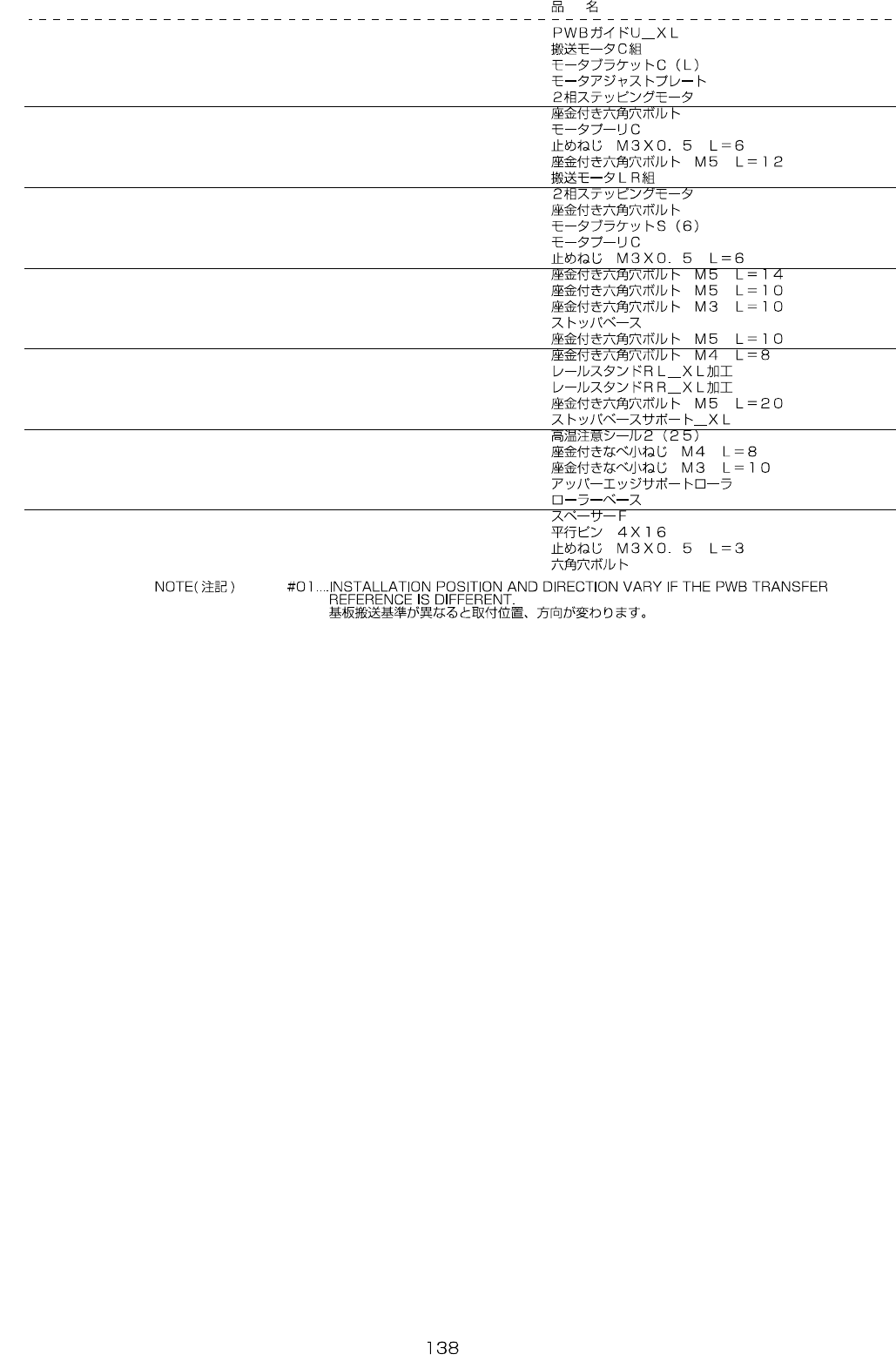

69.PWBCONVEYORCOMPONENTS(13)(TYPEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-15079 PWB_GUIDE_U_XL 8

2 401-83561 CONVEYOR_MOTOR_C_ASM 1

3 400-01009 MOTORBRAKETC(L) (2)

4 400-00869 MOTORADJUSTPLATE (2)

5 401-58136 2PHASESTEPPINGMOTOR (2)

6 SL-6041642-TN SCREW (8)

7 400-00870 MOTORPULLEYC (2)

8 SM-8030602-TP SCREWM3X0.5L=6 (4)

9 SL-6051292-TN SCREWM5L=12 (4)

10 401-83562 CONVEYOR_MOTOR_LR_ASM 1

11 401-58136 2PHASESTEPPINGMOTOR (2)

12 SL-6041242-TN BOLT (8)

13 400-46034 MOTORBRACKETS(6) (2)

14 400-00870 MOTORPULLEYC (2)

15 SM-8030602-TP SCREWM3X0.5L=6 (4)

16 SL-6051492-TN SCREWM5L=14 (2)

17 SL-6051092-TN SCREWM5L=10 (8)

18 SL-6031092-TN SCREWM3L=10 20

19

#01

401-83037 STOPPER_BASE 1

20

#01

SL-6051092-TN SCREWM5L=10 2

21

#01

SL-6040892-TN SCREWM4L=8 2

22 402-15071 RAIL_STAND_RL_XL_PROCESSING 1

23 402-15072 RAIL_STAND_RR_XL_PROCESSING 1

24 SL-6052092-TN SCREWM5L=20 4

25

#01

402-15080 STOPPER_BASE_SUPPORT_XL 1

26 CM-3003000-02 LABEL2(25) 4

27

#01

SL-4040891-SC SCREWM4X8 2

28 SL-4031091-SC SCREWM3L=10 4

29 401-86607 UPPER_EDGE_SUPPORT_ROLLER 1

30 401-86608 ROLLER_BASE 1

31 401-86609 SPACER_F 1

32 401-93605 PARALLEL_PIN_D4X16 1

33 SM-8030302-TP SCREWM3X0.5L=3 2

34 SM-6043002-TN SCREW 2
