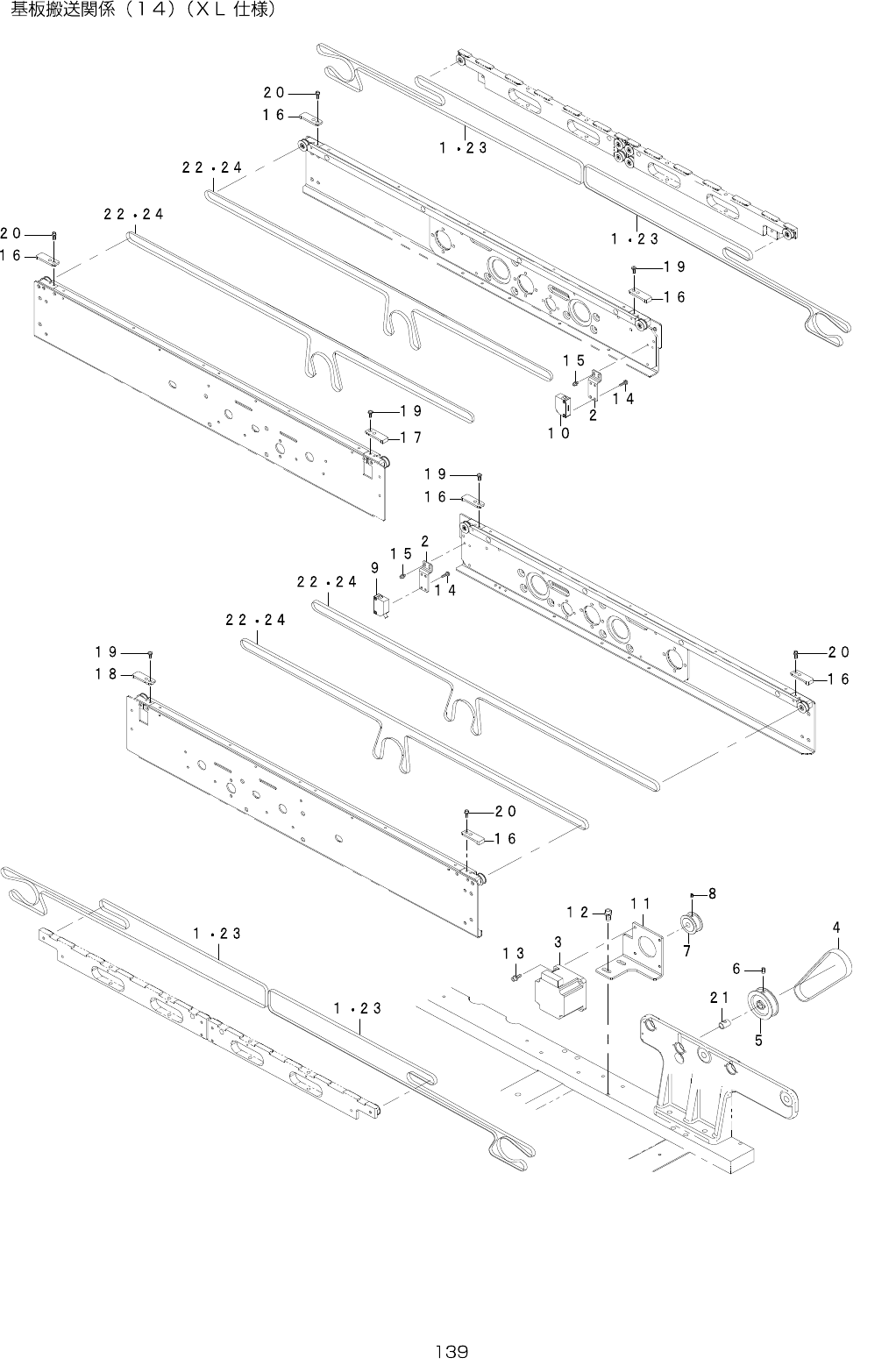

70.PWBCONVEYORCOMPONENTS(14)(TYPEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

#01

400-73709 CONVEYOR_BELT_150 4

2 402-01092 SENSOR_BR_AWC2 2

3 401-99998 STEPPINGMOTOR 1

4 401-99981 TIMING_BELT_AWC 1

5 GAW-02121000 PULLEY 1

6 SM-8050812-TP SCREWM5X8 2

7 401-52119 PULLEY(F)TIMING 1

8 SM-8030612-TP SETSCREW 2

9 401-61237 BUPINRECEIVESENSASM 1

10 401-61236 BUPINEMISSIONSENSASM 1

11 401-99980 AWC_MOTOR_BR 1

12 SL-6051492-TN SCREWM5L=14 2

13 SL-6041242-TN BOLT 4

14 SL-4031291-SC SCREWM3X12 4

15 SL-6030892-TN SCREWM3L=8 4

16 E2046-725-000 PWBINNER 6

17 401-83031 PWB_INNER_SL 1

18 401-83034 PWB_INNER_SR 1

19 SL-4031091-SC SCREWM3L=10 8

20 SL-6031092-TN SCREW 8

21 401-99982 COLLAR_8_10 1

#01

401-13952 CONVEYOR_BELT_C_M 4

#02

402-15581 CONVEYOR_BELT_S_XL_ESD 4

#02

402-15582 CONVEYOR_BELT_C_XL_ESD 4

- -

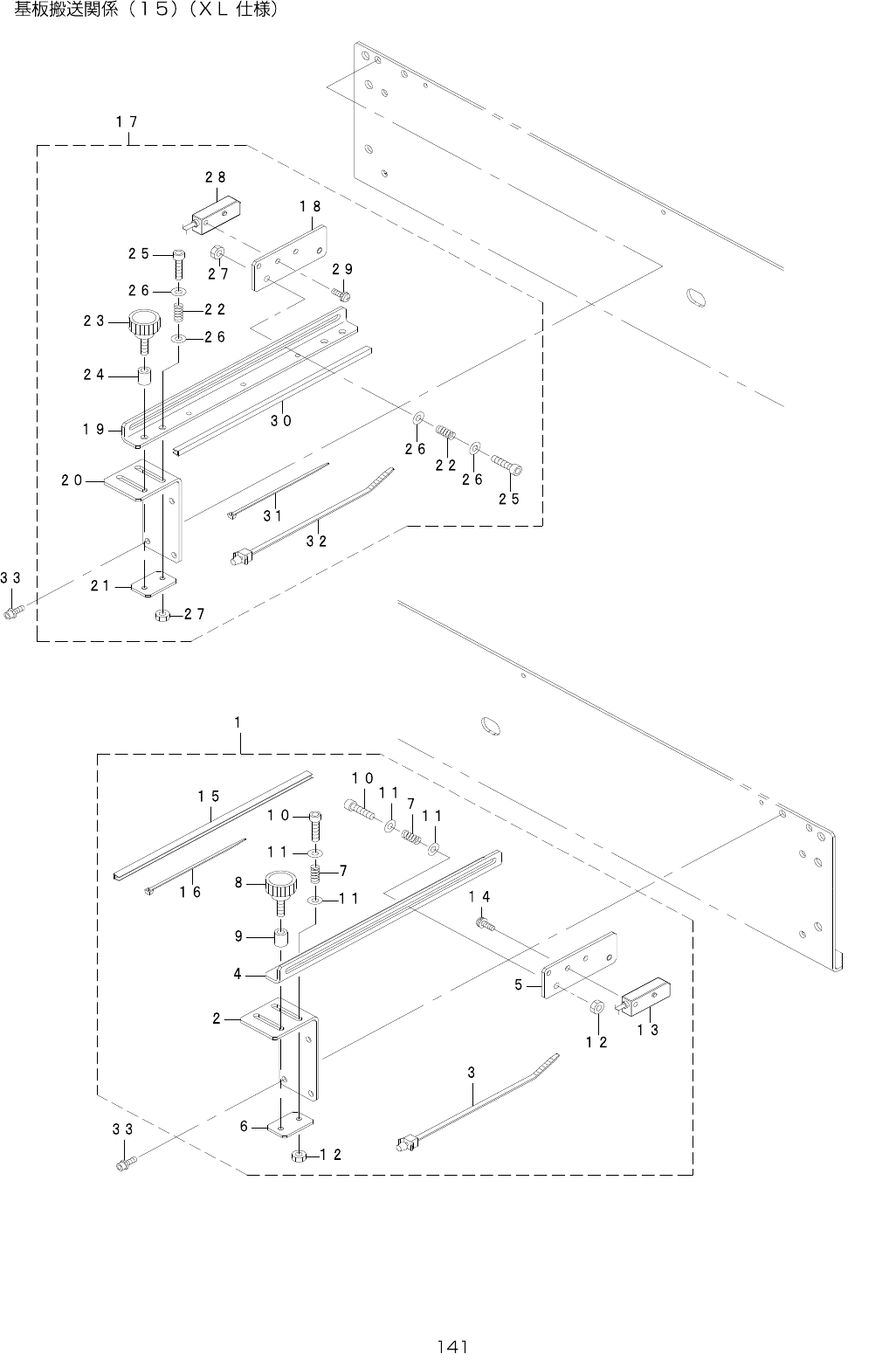

71.PWBCONVEYORCOMPONENTS(15)(TYPEXL)
