RS-1_RS-1-XL_RS-1R-Rev20 - 第148页

- - 71. PWBCONVE YORCOMPONENTS(15 )(TYPEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1

#01

400-73709 CONVEYOR_BELT_150 4

2 402-01092 SENSOR_BR_AWC2 2

3 401-99998 STEPPINGMOTOR 1

4 401-99981 TIMING_BELT_AWC 1

5 GAW-02121000 PULLEY 1

6 SM-8050812-TP SCREWM5X8 2

7 401-52119 PULLEY(F)TIMING 1

8 SM-8030612-TP SETSCREW 2

9 401-61237 BUPINRECEIVESENSASM 1

10 401-61236 BUPINEMISSIONSENSASM 1

11 401-99980 AWC_MOTOR_BR 1

12 SL-6051492-TN SCREWM5L=14 2

13 SL-6041242-TN BOLT 4

14 SL-4031291-SC SCREWM3X12 4

15 SL-6030892-TN SCREWM3L=8 4

16 E2046-725-000 PWBINNER 6

17 401-83031 PWB_INNER_SL 1

18 401-83034 PWB_INNER_SR 1

19 SL-4031091-SC SCREWM3L=10 8

20 SL-6031092-TN SCREW 8

21 401-99982 COLLAR_8_10 1

22

#01

401-13952 CONVEYOR_BELT_C_M 4

23

#02

402-15581 CONVEYOR_BELT_S_XL_ESD 4

24

#02

402-15582 CONVEYOR_BELT_C_XL_ESD 4

- -

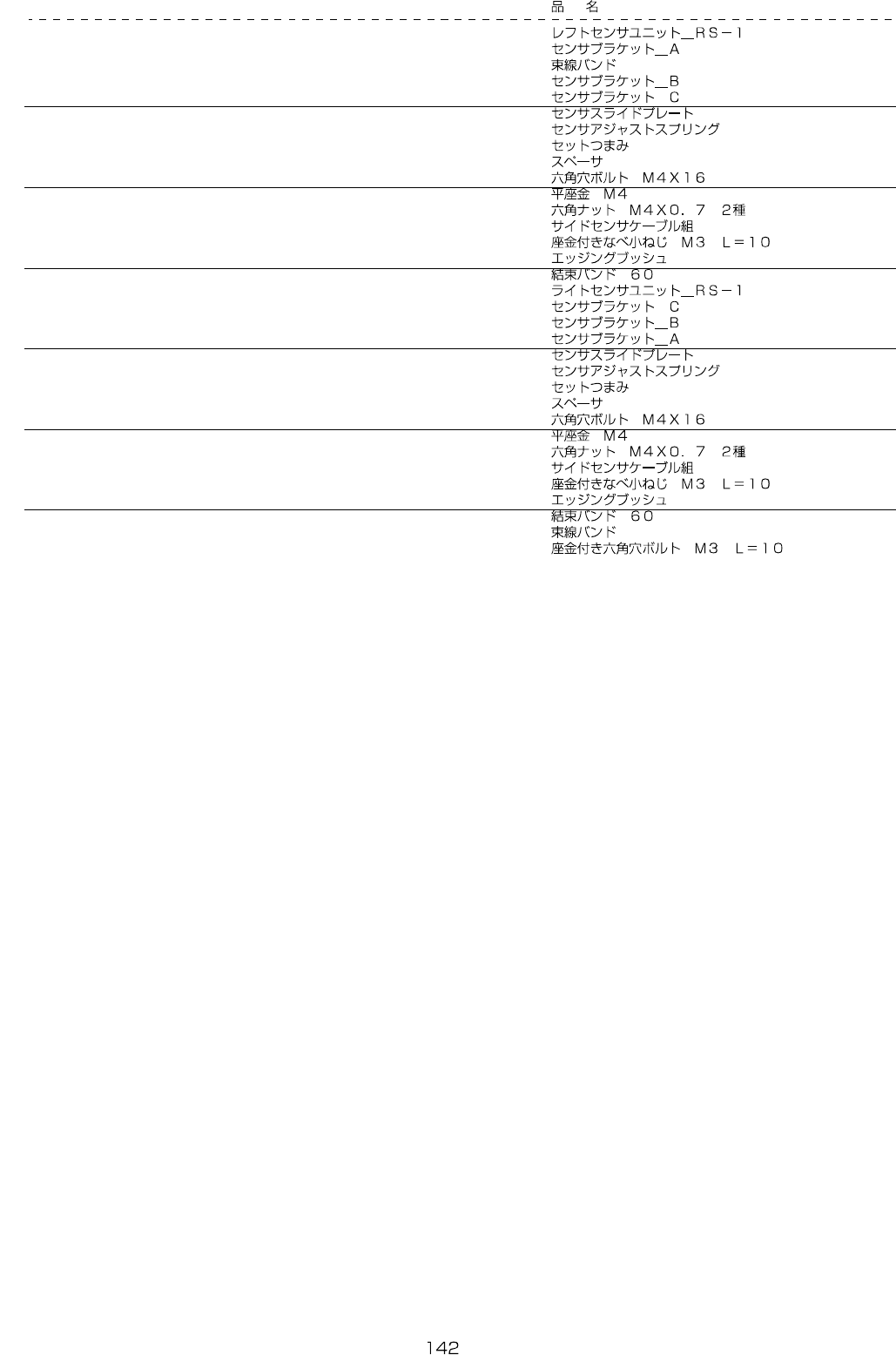

71.PWBCONVEYORCOMPONENTS(15)(TYPEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-88588 LEFTSENSORUNIT_RS-1 1

2 401-46990 SENSOR_BR_A (1)

3 HX-0044000-00 CABLEBAND (1)

4 401-46991 SENSOR_BR_B (1)

5 400-01079 SENSORBRAKETC (1)

6 400-01076 SENSORSLIDEPLATE (1)

7 400-00912 SENSORADJUSTSPRING (3)

8 G6518-880-000 SETPICK-UP (1)

9 400-58815 SPACER (1)

10 SM-6041602-TN SCREWM4X16 (3)

11 WP-0430801-SC WASHERM4 (6)

12 NM-6040002-SE NUTM4X0.7 (3)

13 401-29046 SIDESENSORCABLEASM (1)

14 SL-4031091-SC SCREWM3L=10 (2)

15 HX-0036700-0A GROMMET (0.16)

16 EA-9500B00-00 CABLEBAND (5)

17 401-88589 RIGHTSENSORUNIT_RS-1 1

18 400-01079 SENSORBRAKETC (1)

19 401-46991 SENSOR_BR_B (1)

20 401-46990 SENSOR_BR_A (1)

21 400-01076 SENSORSLIDEPLATE (1)

22 400-00912 SENSORADJUSTSPRING (3)

23 G6518-880-000 SETPICK-UP (1)

24 400-58815 SPACER (1)

25 SM-6041602-TN SCREWM4X16 (3)

26 WP-0430801-SC WASHERM4 (6)

27 NM-6040002-SE NUTM4X0.7 (3)

28 401-29046 SIDESENSORCABLEASM (1)

29 SL-4031091-SC SCREWM3L=10 (1)

30 HX-0036700-0A GROMMET (0.16)

31 EA-9500B00-00 CABLEBAND (5)

32 HX-0044000-00 CABLEBAND (1)

33 SL-6031092-TN SCREWM3L=10 4
