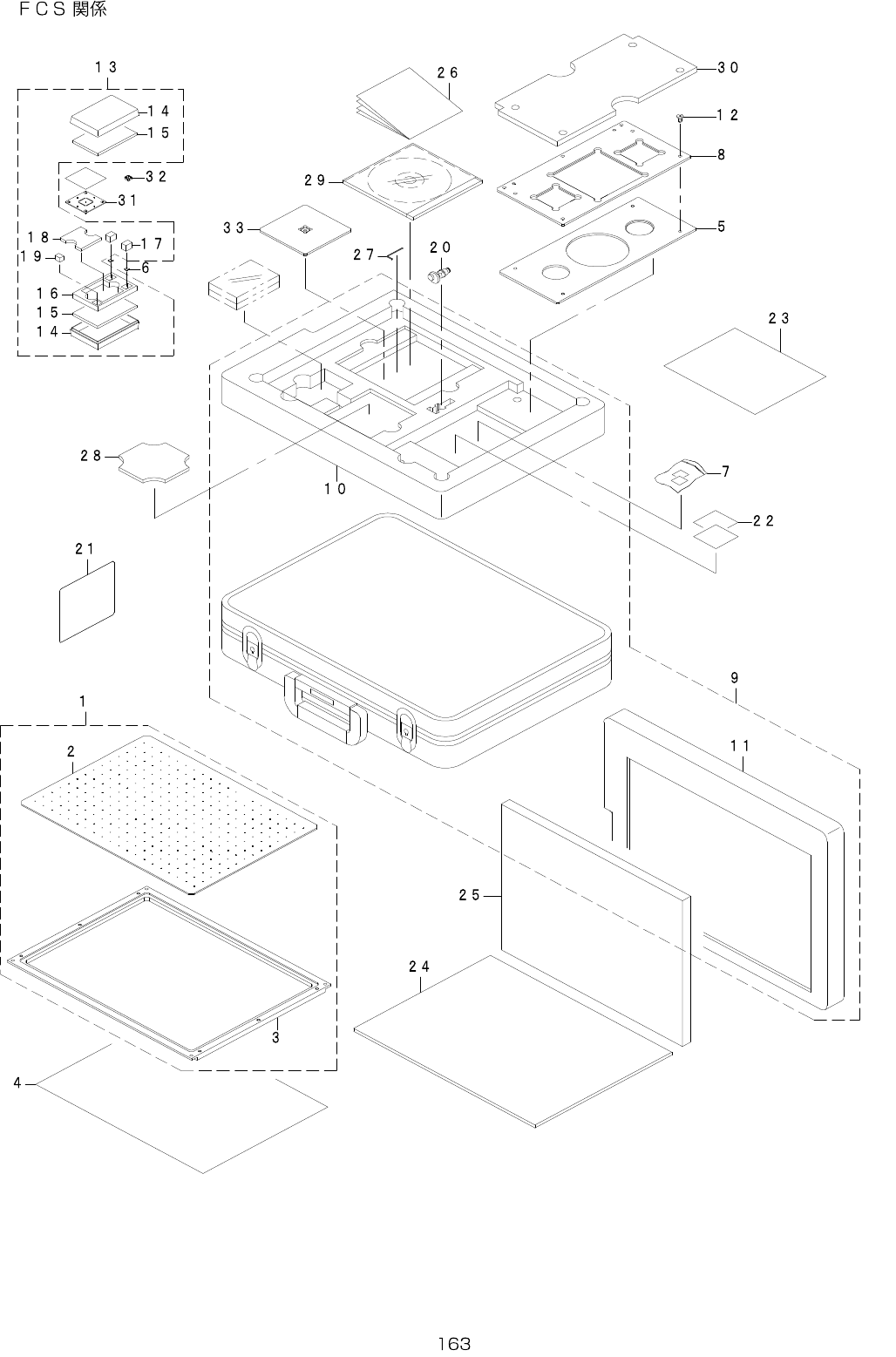

82.FCSCOMPONENTS

- -

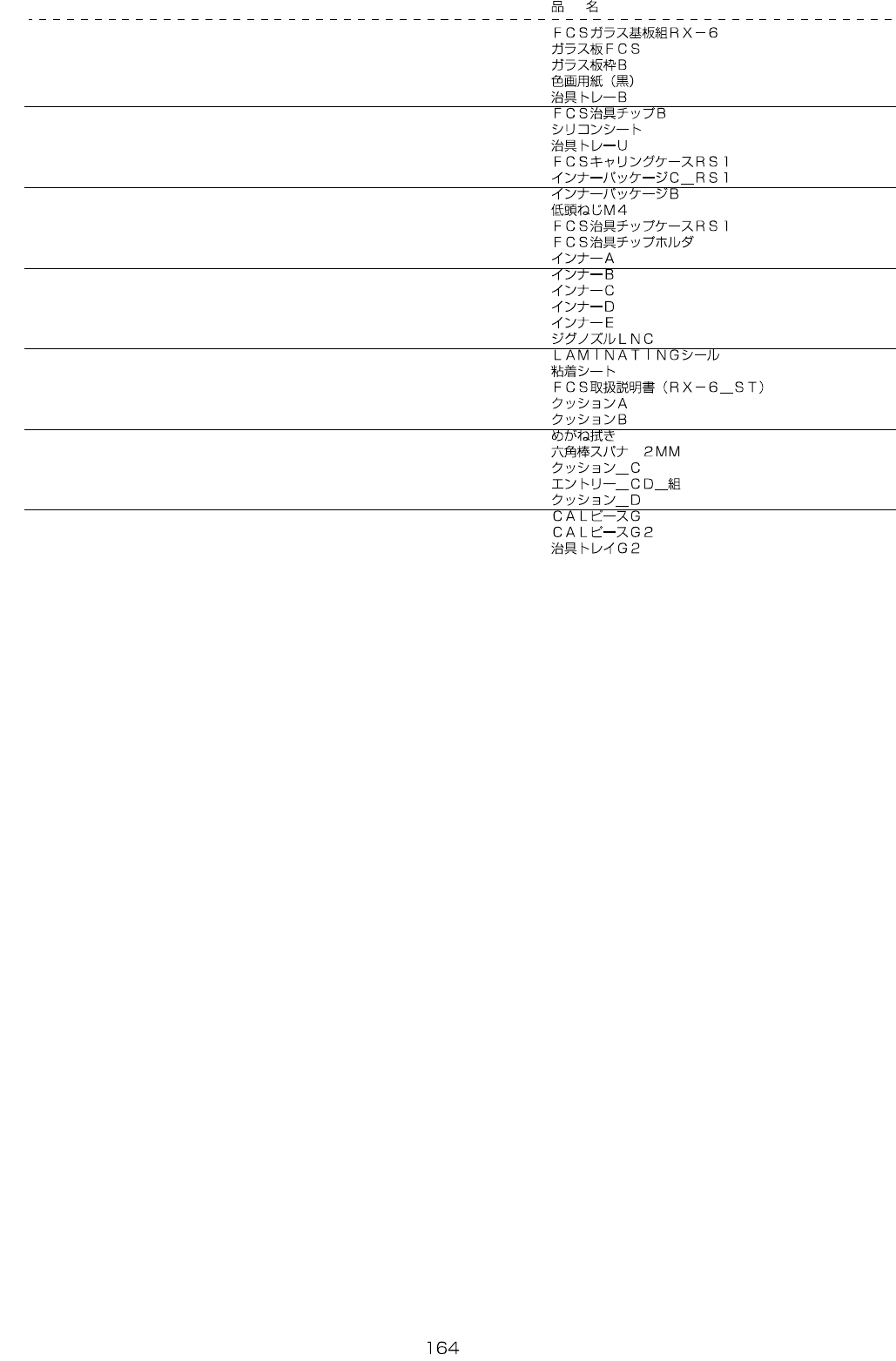

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-28130 FCS_GLASS_PWB_ASM_RX-6 1

2 401-28131 GLASS_PLATE_FCS (1)

3 401-28132 GLASS_PLATE_FRAME_B (1)

4 400-27196 DRAWINGPAPER 1

5 401-28142 JIG_TRAY_B 1

6 400-20304 FCSJIGCHIPB 2

7 400-27147 SILICONSHEET 2

8 401-28143 JIG_TRAY_U 1

9 401-87595 FCS_CARRYING_CASE_RS1 1

10 401-87596 INNER_PACKAGE_C_RS1 (1)

11 400-66811 INNERPACKAGEB (1)

12 401-28154 LOW_HEAD_SCREW_M4 7

13 401-87704 FCS_JIG_CHIP_CASE_RS1 1

14 400-27312 FCSJIGCHIPHOLDER (1)

15 400-27313 INNERA (2)

16 401-87597 INNER_B (1)

17 400-27315 INNERC (2)

18 400-27410 INNERD (1)

19 401-87598 INNER_E (1)

20 401-85344 JIG_NOZZLE_LNC 1

21 401-11970 LAMINATING_SEAL 1

22 401-28134 ADHESIVE_SHEET 48

23 401-33122 FCSINSTRUCTIONMANUAL(RX-6_ST) 1

24 400-66812 CUSHIONA 1

25 400-66813 CUSHIONB 1

26 400-27235 TRAYSEE 1

27 J1066-000-00B HEXAGONALWRENCHKEY(2MM) 1

28 401-32594 CUSHION_C 1

29 401-33186 ENTRY_CD_ASM 1

30 401-32599 CUSHION_D 1

31 400-11453 CALPIECEG 1

32 401-87434 CAL_PIECE_G2 1

33 401-87435 JIG_TRAY_G2 1

- -

83.TRAYHOLDERCOMPONENTS
