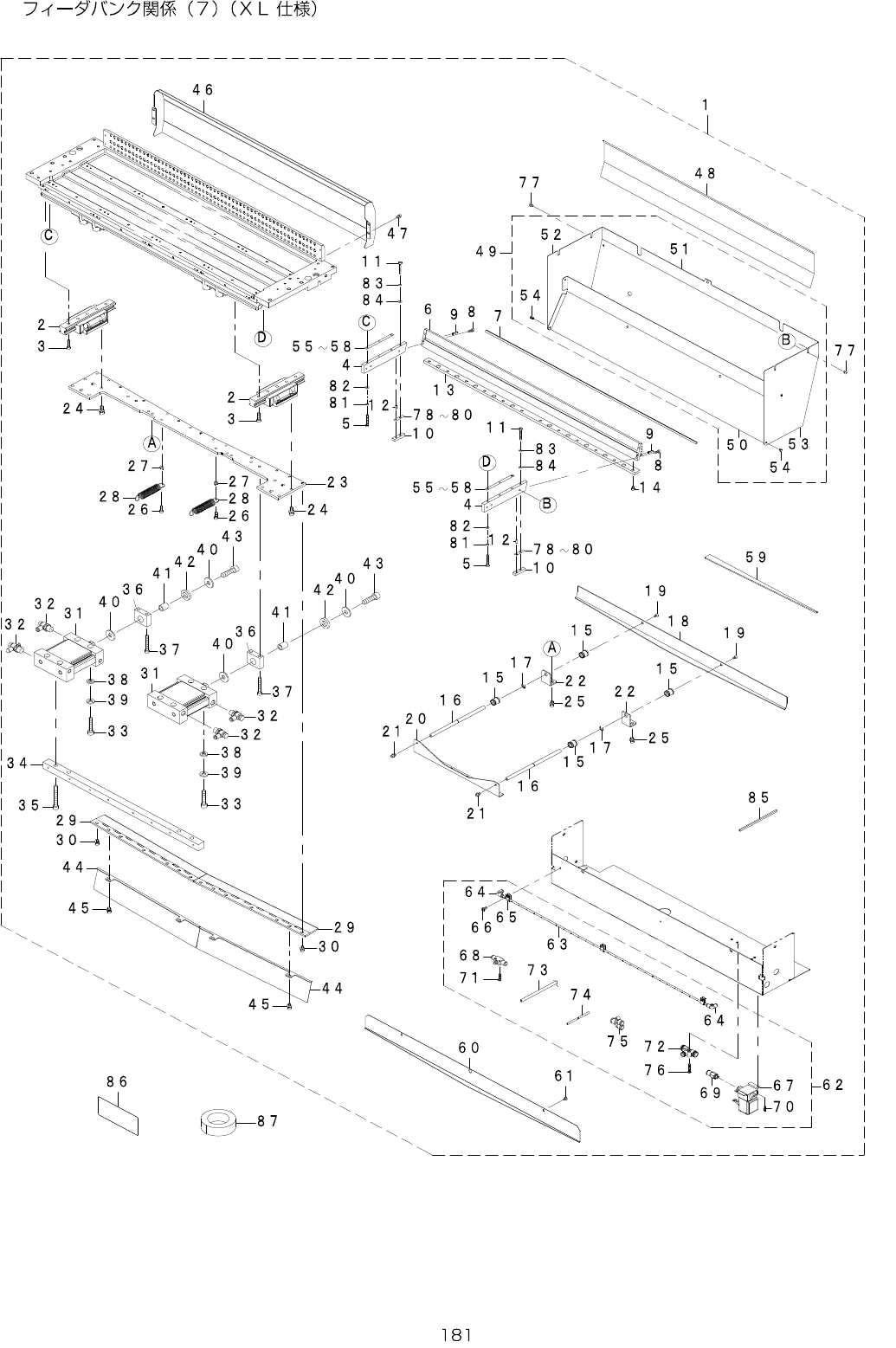

90.FEEDERBANKCOMPONENTS(6)(TYPEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-69473 BANKIDPCB(RF)ASM 1

2 401-89202 BANK_BASE_R 1

3 PH-0600120-C0 PARALLELPINTYPEB6X12 4

4 EZ-4453564-01 PLUGTAPERSCREW 1

5 E2602-721-000 BANKLOCATEBUSHA 2

6 WP-0430800-SC WASHERM4 13

7 E5721-729-000 LABEL 1

8 SL-6051092-TN SCREWM5L=10 1

9 402-62622 CLAMP_BLOCK_14R 4

10 SM-6041602-TN SCREWM4X16 12

11 402-65941 DOWEL_PIN_D3_L10 8

#01

401-67530 GUIDE_RAIL 4

13 SM-3041052-TN SCREWM4L=10 24

14 E2609-721-000 BANKLOCATEPINA 1

15 WP-0841601-SC WASHERM8 1

16 WS-0820002-KN SPRINGWASHERM8 1

17 NM-6080003-SC NUTM8X1.25TYPE3 1

18 E2610-721-000 BANKLOCATEPINB 1

19 WP-0841601-SC WASHERM8 1

20 WS-0820002-KN SPRINGWASHERM8 1

21 NM-6080003-SC NUTM8X1.25TYPE3 1

22 401-83200 POSITIONING_PLATE 1

23 402-65941 DOWEL_PIN_D3_L10 2

24 SM-6041602-TN SCREWM4X16 13

25 401-83142 MARK_STAND 2

26 E2505-729-0A0 MARKASM. 2

27 E2601-725-000 MARK (1)

28 E2505-729-000 MARKBASE (1)

29 SL-6041292-TN SCREWM4L=12 4

30 SL-6052092-TN SCREWM5L=20 4

31 401-83176 CAN_CONNECTOR_BR 1

32 401-82051 CONNECTOR_BIND 112

33 SL-6051292-TN SCREWM5L=12 4

34 402-09115 BANK_PLATE_L 1

35 WS-0410002-KN SPRINGWASHERM4 13

36 400-94723 TOROLLEY_COV_BR 1

37 SL-6061092-TN SCREWM6L=10 2

38 402-09116 BANK_PLATE_R 1

39 401-11974 RIVET_1661-0410 2

40 400-94723 TOROLLEY_COV_BR 1

41 SL-6061092-TN SCREWM6L=10 2

42 HX-0070600-0A MOUNTBASE 2

43 HX-0005500-0N RUBBERBUSHING 7

44 401-83151 T_SAFETY_COVER_BR 2

45 SL-6040892-TN SCREWM4L=8 6

46 401-83194 TROLLEY_SAFETY_COVER_L 1

47 SL-6040892-TN SCREWM4L=8 4

48 401-88175 TROLLEY_SAFETY_COVER_R 1

49 SL-6040892-TN SCREWM4L=8 4

50 401-83154 REGULATION_BAR_RS 1

51 SL-6040892-TN SCREWM4L=8 4

52 HX-0070600-00 MOUNTBASE 3

53 SM-3040652-TN SCREWM4L=6 2

54 HX-0070600-00 MOUNTBASE 4

55 SM-6101602-TP SCREWM10L=16 2

56 WP-1052001-SC WASHER10 2

57 401-96173 BANK_PCB_BASE 2

58 HX-0070600-0A MOUNTBASE 8

59 HX-0070600-0A MOUNTBASE 2

60 HX-0070600-00 MOUNTBASE 2

61 SM-0040601-SC SCREWM4X0.7L=6 4

62 SL-4030681-SC SCREWM3L=6 18

63 SL-6061292-TN SCREW 2

64 SL-4850591-SC SCREWM2.5L=5 4

65 EA-9500B01-00 CABLEBAND 20

66 401-96257 BANK_PCB_COVER 1

67 SL-6040892-TN SCREWM4L=8 4

68 400-93977 5PORT_SOLENOID_VALVE 1

69 PJ-3010852-01 HALFUNION8XR1/4 2

70 PJ-3040852-01 ELBOWUNION8XPT1/4 1

71 401-83168 DIFFERENTDIAMETER_T 2

72 SL-6040892-TN SCREWM4L=8 2

73 PX-0551040-00 SILENCER 2

74 BT-0600400-EC URETHANETUBEBLUE6X4 2

75 BT-0800501-EA URETHANETUBEBLUE8X5 2

#02

401-83208 GUIDE_RAIL_R 4

77 401-83783 ELECBANKL-SIDEPCBASM 1

78 401-83784 ELECBANKR-SIDEPCBASM 1

79 401-84971 POSITION_LAVEL_56 2

80 401-83203 BANK_CONNECTOR_A_BR 1

81 HX-0070600-0A MOUNTBASE 1

82 EA-9500B02-00 CABLEBAND 2

- -

91.FEEDERBANKCOMPONENTS(7)(TYPEXL)
