RS-1_RS-1-XL_RS-1R-Rev20 - 第203页

- - REF.NO NOTE PARTNO DESCRIPTION Qty 1 402-15498 TROLLEY_FRAME_ASM 1 2 402-151 59 TROLLEY_ASM (1) 3 402-151 50 TROLLEY_BOT TOM_VE_XL (1) 4 402-151 51 TROLLEY_UPPER_XL (1) 5 SL-6102042-TN SCREWM10L=…

- -

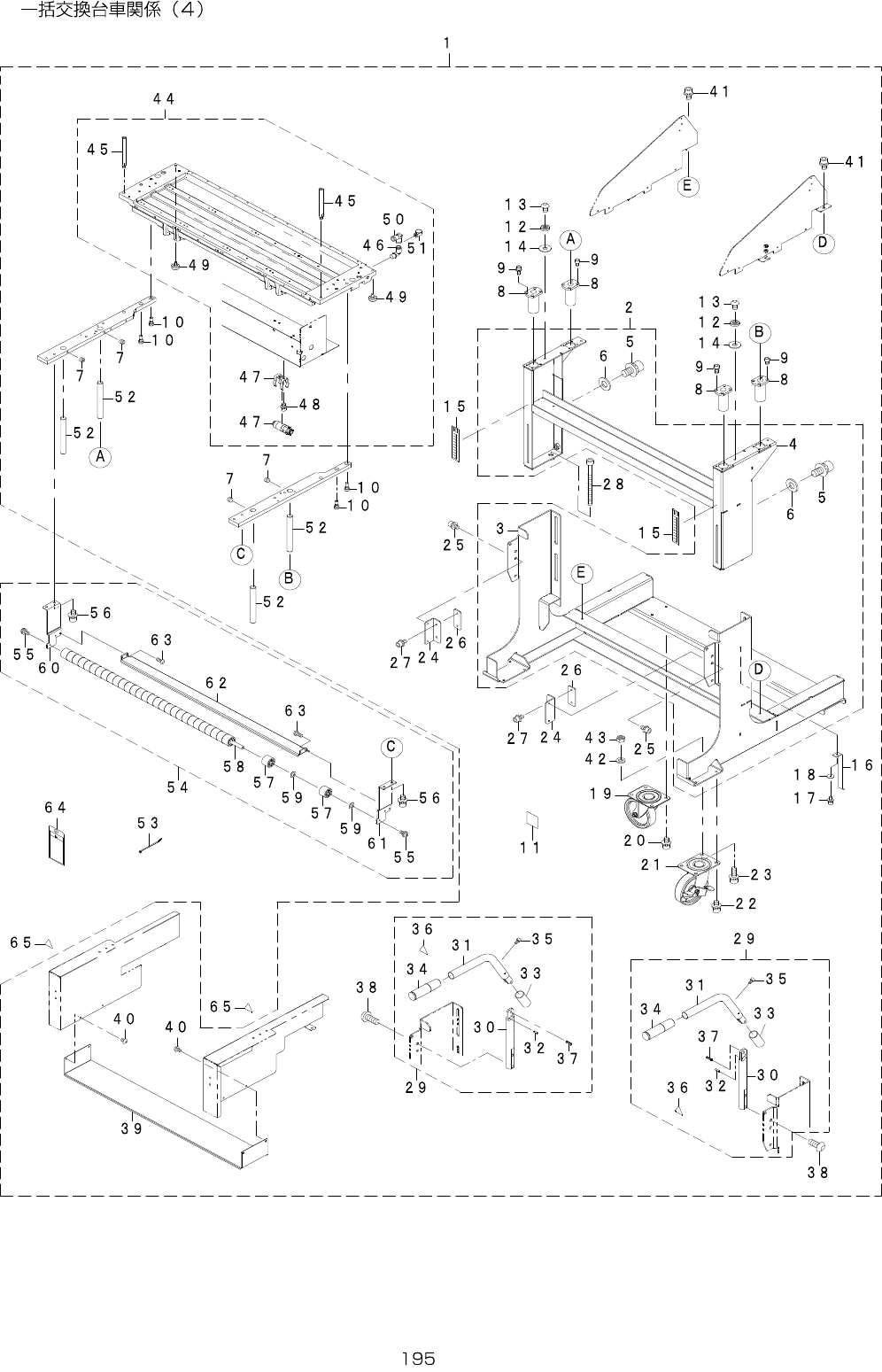

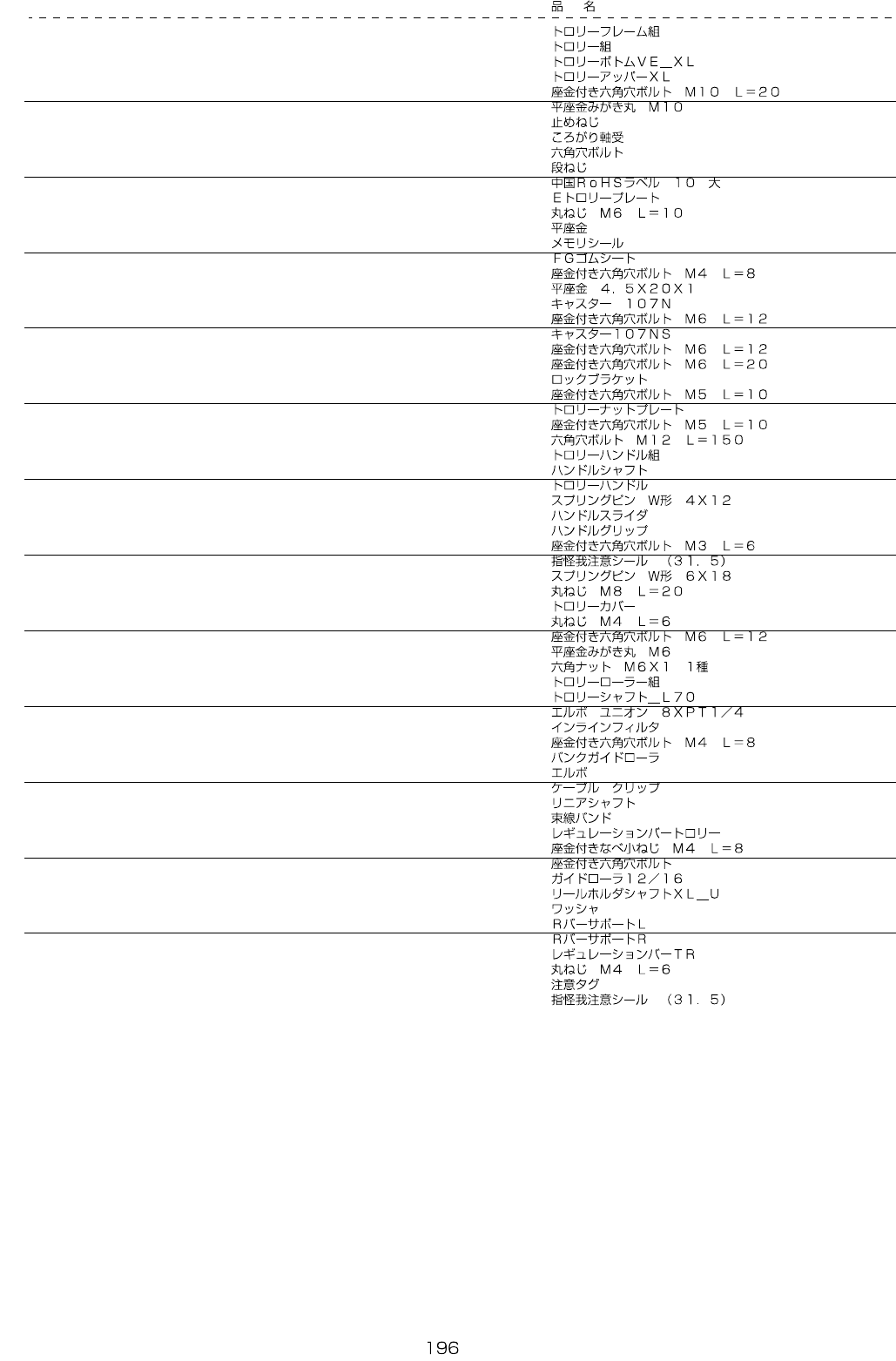

98.REPLACINGOVERALLCHANGERTRUCKCOMPONENTS(4)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-15498 TROLLEY_FRAME_ASM 1

2 402-15159 TROLLEY_ASM (1)

3 402-15150 TROLLEY_BOTTOM_VE_XL (1)

4 402-15151 TROLLEY_UPPER_XL (1)

5 SL-6102042-TN SCREWM10L=20 (4)

6 WP-1052001-SC WASHER10 (4)

7 SM-8060552-TP SCREWM6L=5 (4)

8 SB-8160005-C0 BEARING (4)

9 SM-6040602-TN SCREW (16)

10 400-01734 SCREW (4)

11 CM-6005001-03 CHINAROHSLABEL10L (1)

12 400-89239 E_TROLLEY_PLATE (4)

13 SM-3061052-TN SCREWM6L=10 (4)

14 WP-0621036-SP WASHER (4)

15 400-01730 SCALEMARKSSEAL (2)

16 400-23476 FGGUMSHEET (1)

17 SL-6040892-TN SCREWM4L=8 (1)

18 WP-0451016-SP WASHER4.5X20X1 (1)

19 400-94859 CASTER_107N (2)

20 SL-6061292-TN SCREWM6L=12 (8)

21 402-15139 CASTER_107NS (2)

22 SL-6061292-TN SCREWM6L=12 (6)

23 SL-6062092-TN SCREWM6L=20 (2)

24 402-15110 LOCK_BRACKET (2)

25 SL-6051092-TN SCREWM5L=10 (4)

26 402-15111 TROLLEY_NUT_PLATE (2)

27 SL-6051092-TN SCREWM5L=10 (4)

28 SM-6125052-TR SCREWM12L=150 (2)

29 401-87617 TROLLEY_HANDLE_ASM (2)

30 401-87629 HANDLE_SHAFT (1)

31 401-87628 TROLLEY_HANDLE (1)

32 PS-0400122-KP SPRINGPINTYPEW4X12 (3)

33 E2635-729-000 HANDLESLIDER (1)

34 E2641-729-000 HANDLECLIP (1)

35 SL-6030642-TN SCREWM3L=6 (2)

36 CM-3002000-03 FINGERINJURYCAUTIONLABEL(31.5) (1)

37 PS-0600182-KP SPRINGPINTYPEW6X18 (1)

38 SM-3082052-TN SCREWM8L=20 (4)

39 402-15112 TROLLEY_COVER (1)

40 SM-3040652-TN SCREWM4L=6 (4)

41 SL-6061292-TN SCREWM6L=12 (2)

42 WP-0641601-SC WASHERM6 (2)

43 NM-6060001-SC NUTM6X1TYPE1 (2)

44 401-87649 TROLLEY_ROLLER_ASM (1)

45 400-94881 TROLLEY_SHAFT_L70 (2)

46 PJ-3040852-01 ELBOWUNION8XPT1/4 (1)

47 401-83167 ZFC75-B (1)

48 SL-6040892-TN SCREWM4L=8 (2)

49 E2732-721-000 BANKGUIDEROLLER (2)

50 PJ-3040800-02 ELBOWUNION (1)

51 HX-0015000-0H CABLECLAMP (1)

52 401-28047 LINEAR_SHAFT (4)

53 HX-0067400-00 CABLEBAND 5

54 402-15497 REGULATTION_BAR_TRO 1

55 SL-4040891-SC SCREWM4X8 (2)

56 SL-6061292-TN SCREW (4)

57 E3602-706-000 GUIDEROLLER12/16 (31)

58 402-15115 REEL_HOLDER_SH_XL_U (1)

59 402-15116 WASHER (30)

60 402-15113 R_BAR_SUPPORT_L (1)

61 402-15114 R_BAR_SUPPORT_R (1)

62 402-15117 REGULATION_BAR_TR (1)

63 SM-3040652-TN SCREWM4L=6 (4)

64 400-87186 CAUTION_TAG 4

65 CM-3002000-03 FINGERINJURYCAUTIONLABEL(31.5) 2

- -

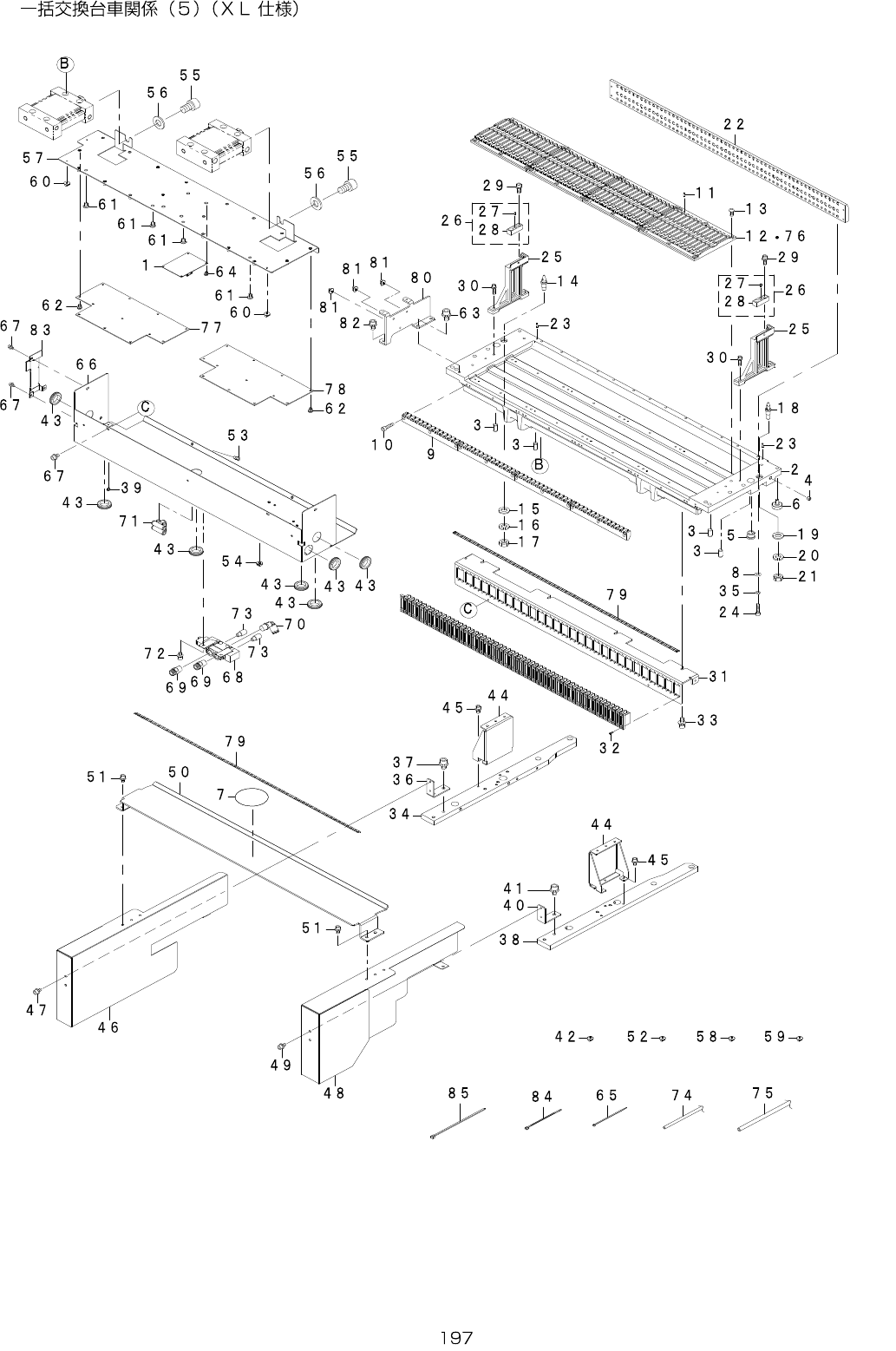

99.REPLACINGOVERALLCHANGERTRUCKCOMPONENTS(5)(TYPEXL)
