- - 99. REPLACING OVERALLCHANGERTRU CKCOMPONENTS (5)(TYPEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-15498 TROLLEY_FRAME_ASM 1

2 402-15159 TROLLEY_ASM (1)

3 402-15150 TROLLEY_BOTTOM_VE_XL (1)

4 402-15151 TROLLEY_UPPER_XL (1)

5 SL-6102042-TN SCREWM10L=20 (4)

6 WP-1052001-SC WASHER10 (4)

7 SM-8060552-TP SCREWM6L=5 (4)

8 SB-8160005-C0 BEARING (4)

9 SM-6040602-TN SCREW (16)

10 400-01734 SCREW (4)

11 CM-6005001-03 CHINAROHSLABEL10L (1)

12 400-89239 E_TROLLEY_PLATE (4)

13 SM-3061052-TN SCREWM6L=10 (4)

14 WP-0621036-SP WASHER (4)

15 400-01730 SCALEMARKSSEAL (2)

16 400-23476 FGGUMSHEET (1)

17 SL-6040892-TN SCREWM4L=8 (1)

18 WP-0451016-SP WASHER4.5X20X1 (1)

19 400-94859 CASTER_107N (2)

20 SL-6061292-TN SCREWM6L=12 (8)

21 402-15139 CASTER_107NS (2)

22 SL-6061292-TN SCREWM6L=12 (6)

23 SL-6062092-TN SCREWM6L=20 (2)

24 402-15110 LOCK_BRACKET (2)

25 SL-6051092-TN SCREWM5L=10 (4)

26 402-15111 TROLLEY_NUT_PLATE (2)

27 SL-6051092-TN SCREWM5L=10 (4)

28 SM-6125052-TR SCREWM12L=150 (2)

29 401-87617 TROLLEY_HANDLE_ASM (2)

30 401-87629 HANDLE_SHAFT (1)

31 401-87628 TROLLEY_HANDLE (1)

32 PS-0400122-KP SPRINGPINTYPEW4X12 (3)

33 E2635-729-000 HANDLESLIDER (1)

34 E2641-729-000 HANDLECLIP (1)

35 SL-6030642-TN SCREWM3L=6 (2)

36 CM-3002000-03 FINGERINJURYCAUTIONLABEL(31.5) (1)

37 PS-0600182-KP SPRINGPINTYPEW6X18 (1)

38 SM-3082052-TN SCREWM8L=20 (4)

39 402-15112 TROLLEY_COVER (1)

40 SM-3040652-TN SCREWM4L=6 (4)

41 SL-6061292-TN SCREWM6L=12 (2)

42 WP-0641601-SC WASHERM6 (2)

43 NM-6060001-SC NUTM6X1TYPE1 (2)

44 401-87649 TROLLEY_ROLLER_ASM (1)

45 400-94881 TROLLEY_SHAFT_L70 (2)

46 PJ-3040852-01 ELBOWUNION8XPT1/4 (1)

47 401-83167 ZFC75-B (1)

48 SL-6040892-TN SCREWM4L=8 (2)

49 E2732-721-000 BANKGUIDEROLLER (2)

50 PJ-3040800-02 ELBOWUNION (1)

51 HX-0015000-0H CABLECLAMP (1)

52 401-28047 LINEAR_SHAFT (4)

53 HX-0067400-00 CABLEBAND 5

54 402-15497 REGULATTION_BAR_TRO 1

55 SL-4040891-SC SCREWM4X8 (2)

56 SL-6061292-TN SCREW (4)

57 E3602-706-000 GUIDEROLLER12/16 (31)

58 402-15115 REEL_HOLDER_SH_XL_U (1)

59 402-15116 WASHER (30)

60 402-15113 R_BAR_SUPPORT_L (1)

61 402-15114 R_BAR_SUPPORT_R (1)

62 402-15117 REGULATION_BAR_TR (1)

63 SM-3040652-TN SCREWM4L=6 (4)

64 400-87186 CAUTION_TAG 4

65 CM-3002000-03 FINGERINJURYCAUTIONLABEL(31.5) 2

- -

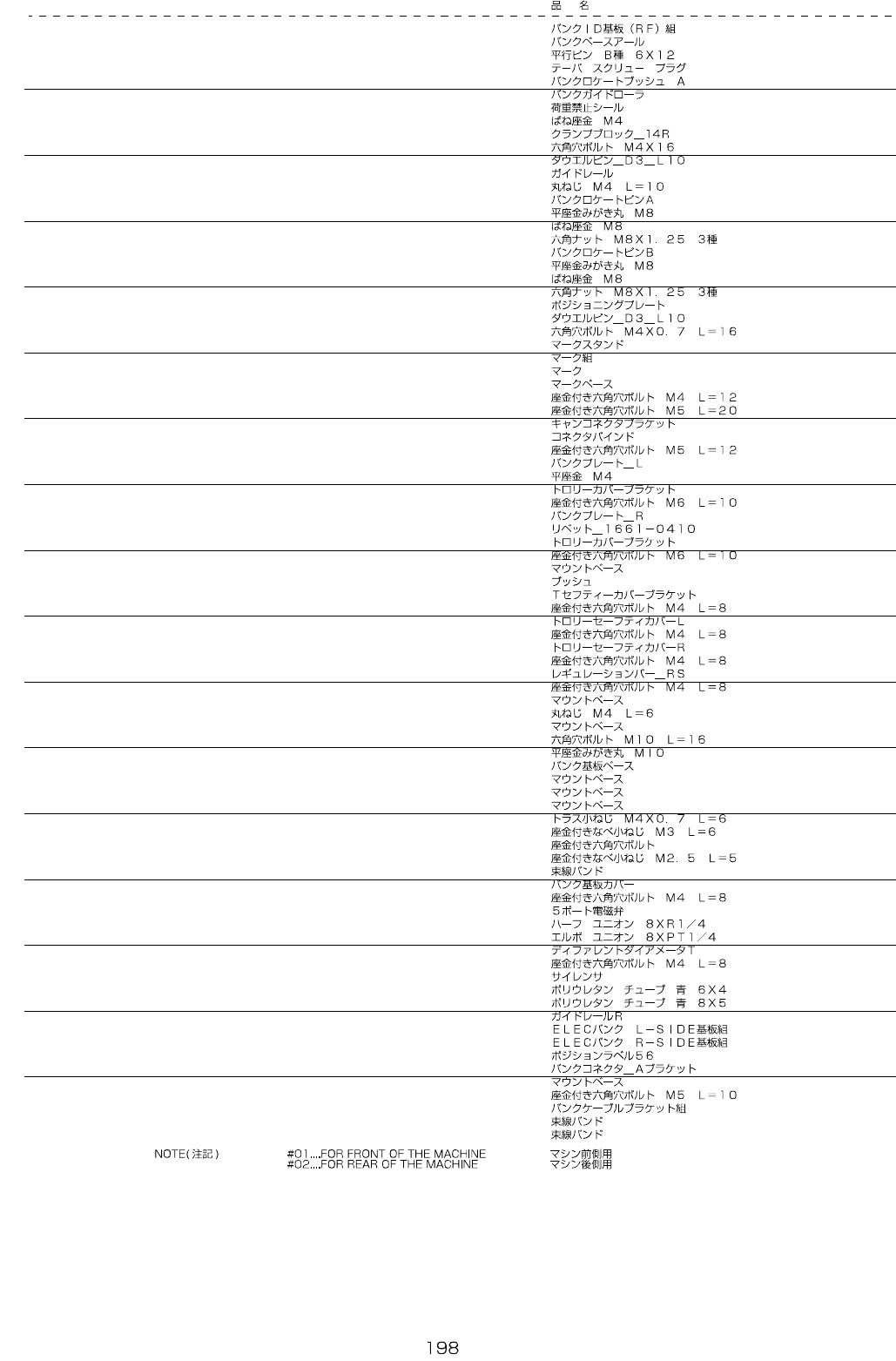

99.REPLACINGOVERALLCHANGERTRUCKCOMPONENTS(5)(TYPEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-69473 BANKIDPCB(RF)ASM 1

2 401-89202 BANK_BASE_R 1

3 PH-0600120-C0 PARALLELPINTYPEB6X12 4

4 EZ-4453564-01 PLUGTAPERSCREW 1

5 E2602-721-000 BANKLOCATEBUSHA 2

6 E2732-721-000 BANKGUIDEROLLER 2

7 E5721-729-000 LABEL 1

8 WS-0410002-KN SPRINGWASHERM4 13

9 402-62622 CLAMP_BLOCK_14R 4

10 SM-6041602-TN SCREWM4X16 12

11 402-65941 DOWEL_PIN_D3_L10 8

#01

401-67530 GUIDE_RAIL 4

13 SM-3041052-TN SCREWM4L=10 24

14 E2609-721-000 BANKLOCATEPINA 1

15 WP-0841601-SC WASHERM8 1

16 WS-0820002-KN SPRINGWASHERM8 1

17 NM-6080003-SC NUTM8X1.25TYPE3 1

18 E2610-721-000 BANKLOCATEPINB 1

19 WP-0841601-SC WASHERM8 1

20 WS-0820002-KN SPRINGWASHERM8 1

21 NM-6080003-SC NUTM8X1.25TYPE3 1

22 401-83200 POSITIONING_PLATE 1

23 402-65941 DOWEL_PIN_D3_L10 2

24 SM-6041602-TN SCREWM4X16 13

25 401-83142 MARK_STAND 2

26 E2505-729-0A0 MARKASM. 2

27 E2601-725-000 MARK (1)

28 E2505-729-000 MARKBASE (1)

29 SL-6041292-TN SCREWM4L=12 4

30 SL-6052092-TN SCREWM5L=20 4

31 401-83176 CAN_CONNECTOR_BR 1

32 401-82051 CONNECTOR_BIND 112

33 SL-6051292-TN SCREWM5L=12 4

34 402-09115 BANK_PLATE_L 1

35 WP-0430801-SC WASHERM4 13

36 400-94723 TOROLLEY_COV_BR 1

37 SL-6061092-TN SCREWM6L=10 2

38 402-09116 BANK_PLATE_R 1

39 401-11974 RIVET_1661-0410 2

40 400-94723 TOROLLEY_COV_BR 1

41 SL-6061092-TN SCREWM6L=10 2

42 HX-0070600-0A MOUNTBASE 2

43 HX-0005500-0N RUBBERBUSHING 7

44 401-83151 T_SAFETY_COVER_BR 2

45 SL-6040892-TN SCREWM4L=8 6

46 401-83194 TROLLEY_SAFETY_COVER_L 1

47 SL-6040892-TN SCREWM4L=8 4

48 401-88175 TROLLEY_SAFETY_COVER_R 1

49 SL-6040892-TN SCREWM4L=8 4

50 401-83154 REGULATION_BAR_RS 1

51 SL-6040892-TN SCREWM4L=8 4

52 HX-0070600-00 MOUNTBASE 3

53 SM-3040652-TN SCREWM4L=6 2

54 HX-0070600-00 MOUNTBASE 4

55 SM-6101602-TP SCREWM10L=16 2

56 WP-1052001-SC WASHER10 2

57 401-96173 BANK_PCB_BASE 2

58 HX-0070600-0A MOUNTBASE 8

59 HX-0070600-0A MOUNTBASE 2

60 HX-0070600-00 MOUNTBASE 2

61 SM-0040601-SC SCREWM4X0.7L=6 4

62 SL-4030681-SC SCREWM3L=6 18

63 SL-6061292-TN SCREW 2

64 SL-4850591-SC SCREWM2.5L=5 4

65 EA-9500B01-00 CABLEBAND 25

66 401-96257 BANK_PCB_COVER 1

67 SL-6040892-TN SCREWM4L=8 6

68 400-93977 5PORT_SOLENOID_VALVE 1

69 PJ-3010852-01 HALFUNION8XR1/4 2

70 PJ-3040852-01 ELBOWUNION8XPT1/4 1

71 401-83168 DIFFERENTDIAMETER_T 2

72 SL-6040892-TN SCREWM4L=8 2

73 PX-0551040-00 SILENCER 2

74 BT-0600400-EC URETHANETUBEBLUE6X4 2

75 BT-0800501-EA URETHANETUBEBLUE8X5 2

#02

401-83208 GUIDE_RAIL_R 4

77 401-83783 ELECBANKL-SIDEPCBASM 1

78 401-83784 ELECBANKR-SIDEPCBASM 1

79 401-84971 POSITION_LAVEL_56 2

80 401-83203 BANK_CONNECTOR_A_BR 1

81 HX-0070600-0A MOUNTBASE 1

82 SL-6051092-TN SCREWM5L=10 1

83 402-50134 BANK_CABLE_BR_ASM 1

84 EA-9500B01-00 CABLEBAND 13

85 EA-9500B02-00 CABLEBAND 3
