- - 100.REPLACING OVERALLCHANGER TRUCKCOMPONE NTS(6)(TY PEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-69473 BANKIDPCB(RF)ASM 1

2 401-89202 BANK_BASE_R 1

3 PH-0600120-C0 PARALLELPINTYPEB6X12 4

4 EZ-4453564-01 PLUGTAPERSCREW 1

5 E2602-721-000 BANKLOCATEBUSHA 2

6 E2732-721-000 BANKGUIDEROLLER 2

7 E5721-729-000 LABEL 1

8 WS-0410002-KN SPRINGWASHERM4 13

9 402-62622 CLAMP_BLOCK_14R 4

10 SM-6041602-TN SCREWM4X16 12

11 402-65941 DOWEL_PIN_D3_L10 8

#01

401-67530 GUIDE_RAIL 4

13 SM-3041052-TN SCREWM4L=10 24

14 E2609-721-000 BANKLOCATEPINA 1

15 WP-0841601-SC WASHERM8 1

16 WS-0820002-KN SPRINGWASHERM8 1

17 NM-6080003-SC NUTM8X1.25TYPE3 1

18 E2610-721-000 BANKLOCATEPINB 1

19 WP-0841601-SC WASHERM8 1

20 WS-0820002-KN SPRINGWASHERM8 1

21 NM-6080003-SC NUTM8X1.25TYPE3 1

22 401-83200 POSITIONING_PLATE 1

23 402-65941 DOWEL_PIN_D3_L10 2

24 SM-6041602-TN SCREWM4X16 13

25 401-83142 MARK_STAND 2

26 E2505-729-0A0 MARKASM. 2

27 E2601-725-000 MARK (1)

28 E2505-729-000 MARKBASE (1)

29 SL-6041292-TN SCREWM4L=12 4

30 SL-6052092-TN SCREWM5L=20 4

31 401-83176 CAN_CONNECTOR_BR 1

32 401-82051 CONNECTOR_BIND 112

33 SL-6051292-TN SCREWM5L=12 4

34 402-09115 BANK_PLATE_L 1

35 WP-0430801-SC WASHERM4 13

36 400-94723 TOROLLEY_COV_BR 1

37 SL-6061092-TN SCREWM6L=10 2

38 402-09116 BANK_PLATE_R 1

39 401-11974 RIVET_1661-0410 2

40 400-94723 TOROLLEY_COV_BR 1

41 SL-6061092-TN SCREWM6L=10 2

42 HX-0070600-0A MOUNTBASE 2

43 HX-0005500-0N RUBBERBUSHING 7

44 401-83151 T_SAFETY_COVER_BR 2

45 SL-6040892-TN SCREWM4L=8 6

46 401-83194 TROLLEY_SAFETY_COVER_L 1

47 SL-6040892-TN SCREWM4L=8 4

48 401-88175 TROLLEY_SAFETY_COVER_R 1

49 SL-6040892-TN SCREWM4L=8 4

50 401-83154 REGULATION_BAR_RS 1

51 SL-6040892-TN SCREWM4L=8 4

52 HX-0070600-00 MOUNTBASE 3

53 SM-3040652-TN SCREWM4L=6 2

54 HX-0070600-00 MOUNTBASE 4

55 SM-6101602-TP SCREWM10L=16 2

56 WP-1052001-SC WASHER10 2

57 401-96173 BANK_PCB_BASE 2

58 HX-0070600-0A MOUNTBASE 8

59 HX-0070600-0A MOUNTBASE 2

60 HX-0070600-00 MOUNTBASE 2

61 SM-0040601-SC SCREWM4X0.7L=6 4

62 SL-4030681-SC SCREWM3L=6 18

63 SL-6061292-TN SCREW 2

64 SL-4850591-SC SCREWM2.5L=5 4

65 EA-9500B01-00 CABLEBAND 25

66 401-96257 BANK_PCB_COVER 1

67 SL-6040892-TN SCREWM4L=8 6

68 400-93977 5PORT_SOLENOID_VALVE 1

69 PJ-3010852-01 HALFUNION8XR1/4 2

70 PJ-3040852-01 ELBOWUNION8XPT1/4 1

71 401-83168 DIFFERENTDIAMETER_T 2

72 SL-6040892-TN SCREWM4L=8 2

73 PX-0551040-00 SILENCER 2

74 BT-0600400-EC URETHANETUBEBLUE6X4 2

75 BT-0800501-EA URETHANETUBEBLUE8X5 2

#02

401-83208 GUIDE_RAIL_R 4

77 401-83783 ELECBANKL-SIDEPCBASM 1

78 401-83784 ELECBANKR-SIDEPCBASM 1

79 401-84971 POSITION_LAVEL_56 2

80 401-83203 BANK_CONNECTOR_A_BR 1

81 HX-0070600-0A MOUNTBASE 1

82 SL-6051092-TN SCREWM5L=10 1

83 402-50134 BANK_CABLE_BR_ASM 1

84 EA-9500B01-00 CABLEBAND 13

85 EA-9500B02-00 CABLEBAND 3

- -

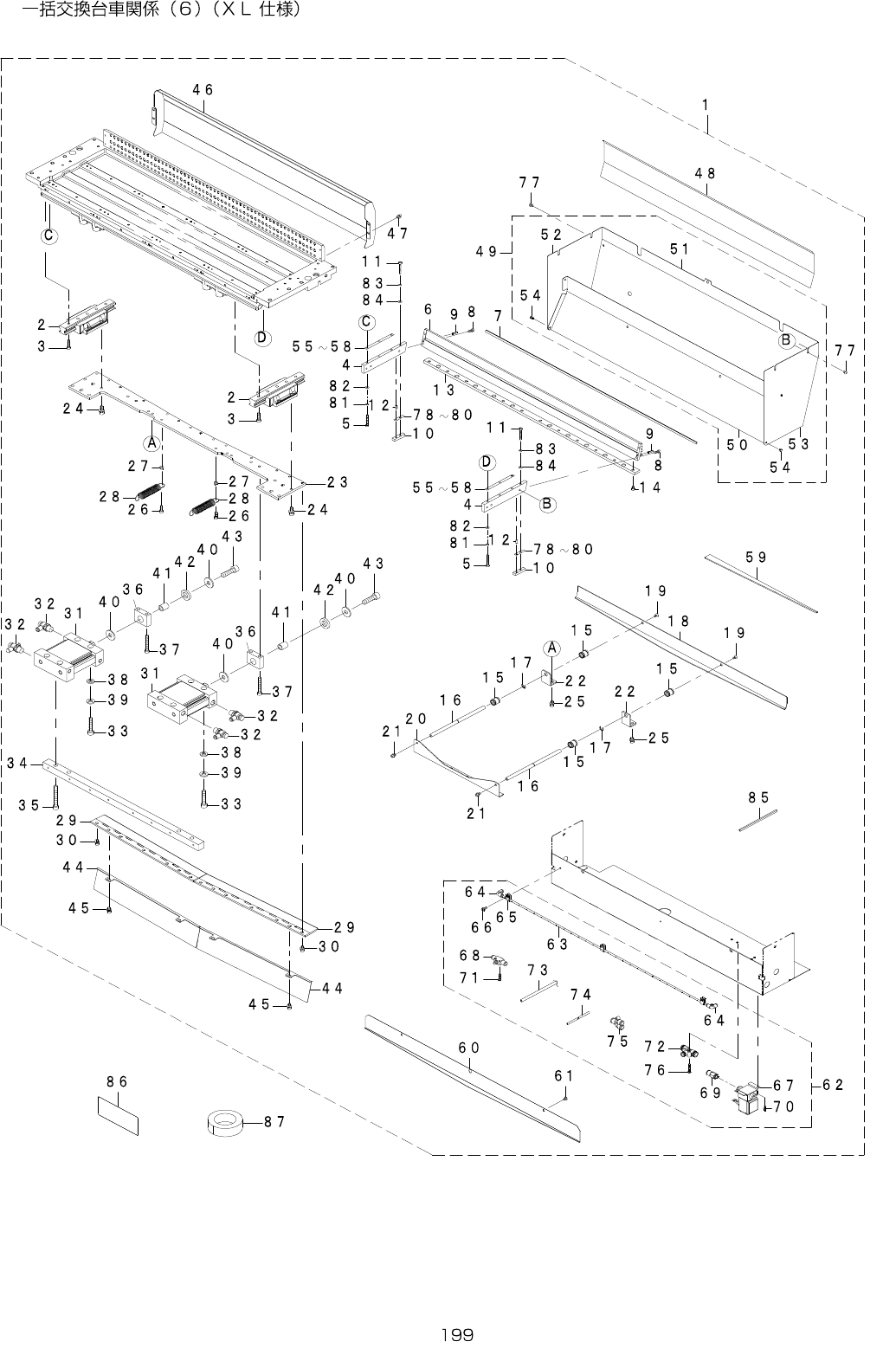

100.REPLACINGOVERALLCHANGERTRUCKCOMPONENTS(6)(TYPEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-83608 CUTTER_ASM 1

2 402-55583 LM_GUIDE (2)

3 SM-6052002-TN SCREW (10)

4 401-83189 EDGE_BASE_SIDE (2)

5 SM-6043002-TN SCREW (6)

6 401-90272 UPPER_EDGE_BASE2 (1)

7 401-86284 BRUSH_B (1)

8 SL-6041242-TN SCREWM4L=12 (4)

9 PS-0300162-KH SPRINGPIN3X16 (2)

10 401-83183 GUIDE_SLOPE (2)

11 SM-6043002-TN SCREW (2)

12 PH-0300104-S0 PARALLELPINTYPEB3X10 (2)

13 401-91507 UPPER_EDGE (1)

14 SM-6040602-TN SCREW (12)

15 SB-7080002-00 BEARING (4)

16 401-89663 HOLD_SHAFT (2)

17 RE-0600000-K0 E-RING6 (2)

18 401-83127 HOLD_PLATE (1)

19 SM-1040852-TP DISHSCREW (2)

20 401-83128 SPRING_PLATE (1)

21 SL-6040892-TN SCREWM4L=8 (2)

22 401-89662 PUSHER_STOP_PLATE (2)

23 401-83181 SLIDE_BASE (1)

24 SL-6061692-TN BOLT (11)

25 SL-6051092-TN SCREWM5L=10 (4)

26 SM-6051402-TN SCREWM5L=14 (2)

27 NM-6050001-SC NUTM5X0.8TYPE1 (2)

28 401-83131 PUSHER_SPRRING_R (2)

29 401-89727 LOWER_EDGE (2)

30 SL-6051092-TN SCREWM5L=10 (10)

31 401-83133 MDUB50-45DZ (2)

32 PC-0152030-00 SPEEDCONTROLLER (4)

33 SM-6084002-TN SCREWM8L=40 (4)

34 401-83134 CYLINDER_SUPPORT_BLOCK (1)

35 SM-6086002-TN SCREW (4)

36 401-83201 CONNECTION_BLOCK (2)

37 SM-6064502-TP SCREWM6L=45 (4)

38 WS-0610002-KN SPRINGWASHERM6 (4)

39 WP-0641601-SC WASHERM6 (4)

40 401-83136 WASHER (4)

41 401-83137 COLLAR (2)

42 401-83138 SLIDE_SPACER (2)

43 SM-6103552-TP SCREWM10L=35 (2)

44 401-89728 COVER_LOWER_EDGE (2)

45 SL-6051092-TN SCREWM5L=10 (4)

46 401-85337 SHOOT_A (1)

47 SL-6040892-TN SCREWM4L=8 (4)

48 401-85335 TAPE_GUIDE_PLATE (1)

49 402-16357 COVER_CUTTER_ASM (1)

50 401-90274 COVER_CUTTER_FRONT (1)

51 401-90275 COVER_CUTTER_REAR (1)

52 401-90276 COVER_CUTTER_L (1)

53 401-90277 COVER_CUTTER_R (1)

54 401-11974 RIVET_1661-0410 (1)

55 401-86289 SHIM_B_T20 (8)

56 401-86290 SHIM_B_T40 (8)

57 401-86291 SHIM_B_T100 (4)

58 401-86292 SHIM_B_T200 (2)

59 401-86606 FELT_CUSHION_A (2)

60 401-90273 FELT_SUPPORT2 (1)

61 SM-0040601-SC SCREWM4X0.7L=6 (2)

62 401-86216 COOLING_PIPE_ASM (1)

63 401-86217 COOLING_PIPE (1)

64 PJ-3040400-01 QUICKPIPEJOINTELBOW (2)

65 HX-0015000-0A CABLECLAMP (3)

66 SL-4041291-SC SCREWM4L=12 (3)

67 401-98338 AIRBLOWSVCABLEASM (1)

68 PC-0124010-00 SPEEDCONTROLLER (1)

69 EZ-4447053-11 UNION(KQ2H06-M5N)HALF (1)

70 SL-6030892-TN SCREWM3L=8 (3)

71 SL-4031891-SC SCREWM3L=18 (2)

72 PJ-3050600-08 REDUCERTEES (1)

73 BT-0600400-EC URETHANETUBEBLUE6X4 (0.1)

74 BT-0400251-EA URETHANETUBEBLUE4X2.5 (2)

75 PJ-3080400-06 UNIONY (1)

76 SL-4032591-SC SCREWM3X25 (1)

77 SM-3040652-TN SCREWM4L=6 (4)

78 401-83186 SHIM_T100 (4)

79 401-83187 SHIM_T40 (8)

80 401-83188 SHIM_T20 (10)

81 WS-0410002-KN SPRINGWASHERM4 (6)

82 WP-0430800-SC WASHERM4 (6)

83 WS-0410002-KN SPRINGWASHERM4 (2)

84 WP-0430800-SC WASHERM4 (2)

85 HX-0067100-00 GROMMET (0.7)

86 400-92716 TAPECUTTERDANGERLABEL 1

87 400-01490 TAPE 0.34
