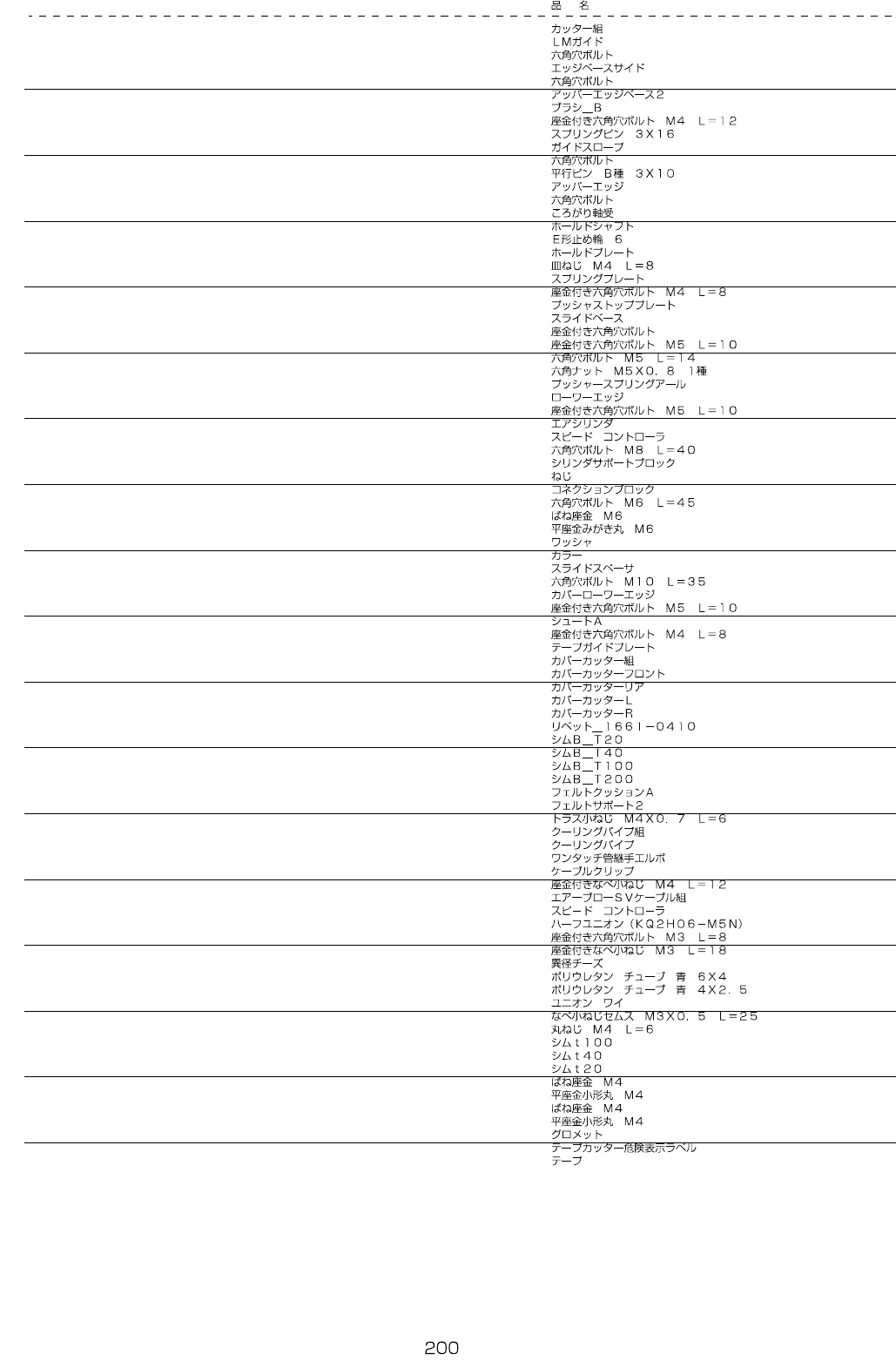

- - 101.REPLACING OVERALLCHANGER TRUCKCOMPONE NTS(7)(TY PEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-83608 CUTTER_ASM 1

2 402-55583 LM_GUIDE (2)

3 SM-6052002-TN SCREW (10)

4 401-83189 EDGE_BASE_SIDE (2)

5 SM-6043002-TN SCREW (6)

6 401-90272 UPPER_EDGE_BASE2 (1)

7 401-86284 BRUSH_B (1)

8 SL-6041242-TN SCREWM4L=12 (4)

9 PS-0300162-KH SPRINGPIN3X16 (2)

10 401-83183 GUIDE_SLOPE (2)

11 SM-6043002-TN SCREW (2)

12 PH-0300104-S0 PARALLELPINTYPEB3X10 (2)

13 401-91507 UPPER_EDGE (1)

14 SM-6040602-TN SCREW (12)

15 SB-7080002-00 BEARING (4)

16 401-89663 HOLD_SHAFT (2)

17 RE-0600000-K0 E-RING6 (2)

18 401-83127 HOLD_PLATE (1)

19 SM-1040852-TP DISHSCREW (2)

20 401-83128 SPRING_PLATE (1)

21 SL-6040892-TN SCREWM4L=8 (2)

22 401-89662 PUSHER_STOP_PLATE (2)

23 401-83181 SLIDE_BASE (1)

24 SL-6061692-TN BOLT (11)

25 SL-6051092-TN SCREWM5L=10 (4)

26 SM-6051402-TN SCREWM5L=14 (2)

27 NM-6050001-SC NUTM5X0.8TYPE1 (2)

28 401-83131 PUSHER_SPRRING_R (2)

29 401-89727 LOWER_EDGE (2)

30 SL-6051092-TN SCREWM5L=10 (10)

31 401-83133 MDUB50-45DZ (2)

32 PC-0152030-00 SPEEDCONTROLLER (4)

33 SM-6084002-TN SCREWM8L=40 (4)

34 401-83134 CYLINDER_SUPPORT_BLOCK (1)

35 SM-6086002-TN SCREW (4)

36 401-83201 CONNECTION_BLOCK (2)

37 SM-6064502-TP SCREWM6L=45 (4)

38 WS-0610002-KN SPRINGWASHERM6 (4)

39 WP-0641601-SC WASHERM6 (4)

40 401-83136 WASHER (4)

41 401-83137 COLLAR (2)

42 401-83138 SLIDE_SPACER (2)

43 SM-6103552-TP SCREWM10L=35 (2)

44 401-89728 COVER_LOWER_EDGE (2)

45 SL-6051092-TN SCREWM5L=10 (4)

46 401-85337 SHOOT_A (1)

47 SL-6040892-TN SCREWM4L=8 (4)

48 401-85335 TAPE_GUIDE_PLATE (1)

49 402-16357 COVER_CUTTER_ASM (1)

50 401-90274 COVER_CUTTER_FRONT (1)

51 401-90275 COVER_CUTTER_REAR (1)

52 401-90276 COVER_CUTTER_L (1)

53 401-90277 COVER_CUTTER_R (1)

54 401-11974 RIVET_1661-0410 (1)

55 401-86289 SHIM_B_T20 (8)

56 401-86290 SHIM_B_T40 (8)

57 401-86291 SHIM_B_T100 (4)

58 401-86292 SHIM_B_T200 (2)

59 401-86606 FELT_CUSHION_A (2)

60 401-90273 FELT_SUPPORT2 (1)

61 SM-0040601-SC SCREWM4X0.7L=6 (2)

62 401-86216 COOLING_PIPE_ASM (1)

63 401-86217 COOLING_PIPE (1)

64 PJ-3040400-01 QUICKPIPEJOINTELBOW (2)

65 HX-0015000-0A CABLECLAMP (3)

66 SL-4041291-SC SCREWM4L=12 (3)

67 401-98338 AIRBLOWSVCABLEASM (1)

68 PC-0124010-00 SPEEDCONTROLLER (1)

69 EZ-4447053-11 UNION(KQ2H06-M5N)HALF (1)

70 SL-6030892-TN SCREWM3L=8 (3)

71 SL-4031891-SC SCREWM3L=18 (2)

72 PJ-3050600-08 REDUCERTEES (1)

73 BT-0600400-EC URETHANETUBEBLUE6X4 (0.1)

74 BT-0400251-EA URETHANETUBEBLUE4X2.5 (2)

75 PJ-3080400-06 UNIONY (1)

76 SL-4032591-SC SCREWM3X25 (1)

77 SM-3040652-TN SCREWM4L=6 (4)

78 401-83186 SHIM_T100 (4)

79 401-83187 SHIM_T40 (8)

80 401-83188 SHIM_T20 (10)

81 WS-0410002-KN SPRINGWASHERM4 (6)

82 WP-0430800-SC WASHERM4 (6)

83 WS-0410002-KN SPRINGWASHERM4 (2)

84 WP-0430800-SC WASHERM4 (2)

85 HX-0067100-00 GROMMET (0.7)

86 400-92716 TAPECUTTERDANGERLABEL 1

87 400-01490 TAPE 0.34

- -

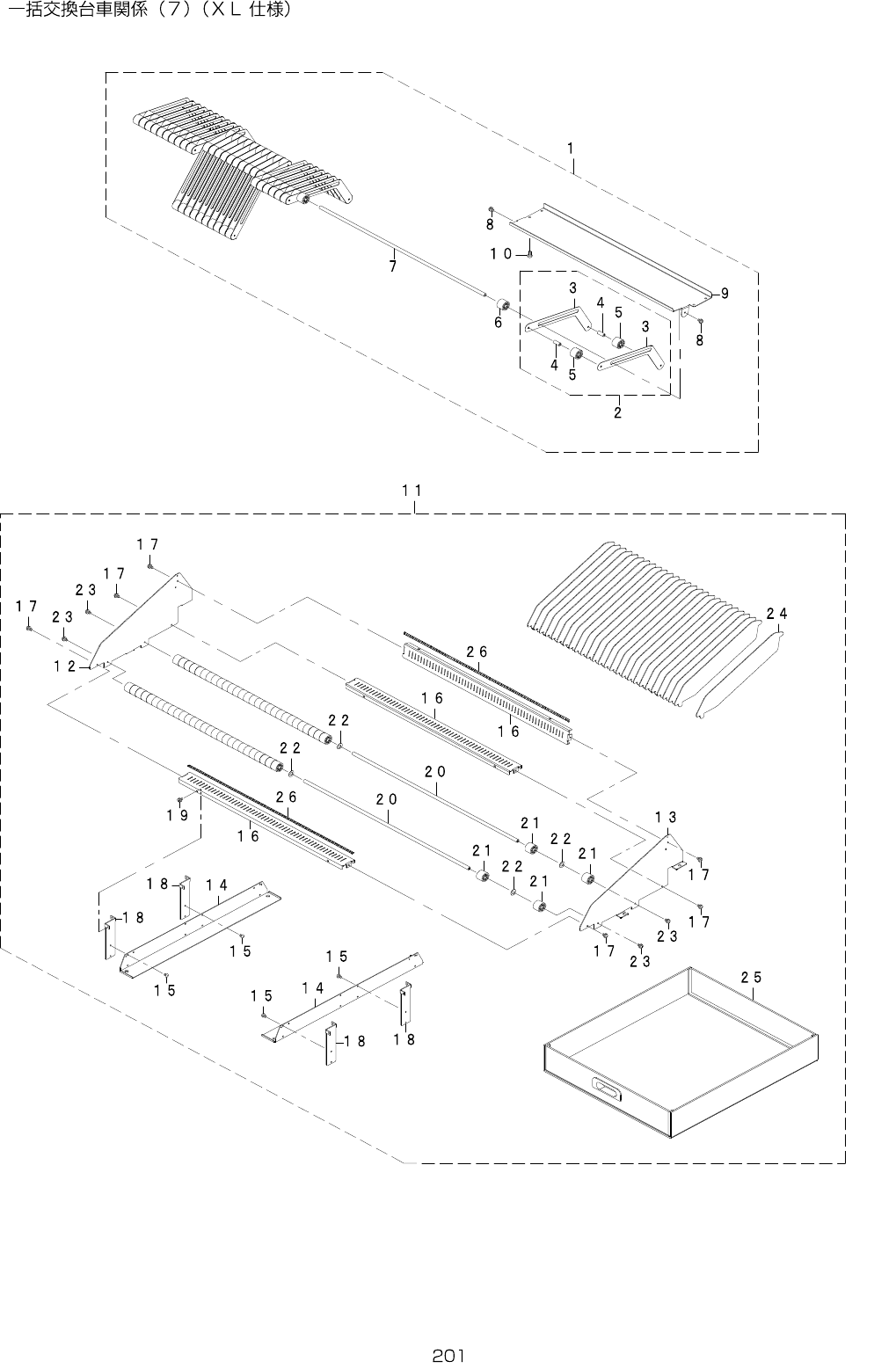

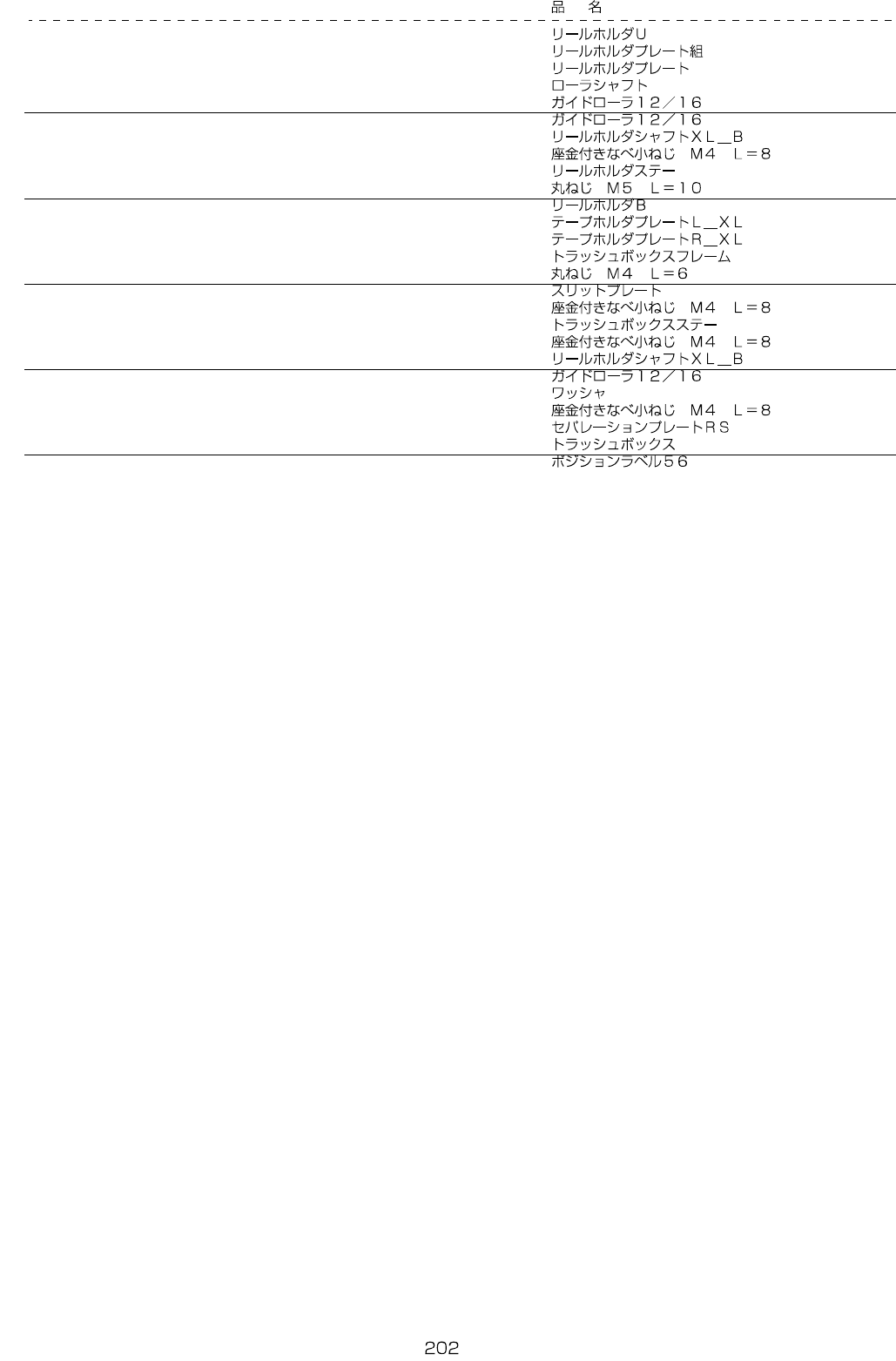

101.REPLACINGOVERALLCHANGERTRUCKCOMPONENTS(7)(TYPEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-15491 REEL_HOLDER_U 1

2 402-15492 REEL_HOLDER_PLATE_ASM (28)

3 402-15120 REEL_HOLDER_PLATE (2)

4 402-15133 ROLLER_SHAFT (2)

5 E3602-706-000 GUIDEROLLER12/16 (2)

6 E3602-706-000 GUIDEROLLER12/16 (28)

7 402-15119 REEL_HOLDER_SH_XL_B (1)

8 SL-4040891-SC SCREWM4X8 (2)

9 402-15118 REEL_HOLDER_STAY (1)

10 SM-3051052-TN SCREWM5L=10 (4)

11 402-15493 REEL_HOLDER_B 1

12 402-15121 TAPE_HOLDER_PL_L_XL (1)

13 402-15122 TAPE_HOLDER_PL_R_XL (1)

14 402-15137 T_BOX_FRAME (2)

15 SM-3040652-TN SCREWM4L=6 (8)

16 402-15134 SLIT_PLATE (3)

17 SL-4040891-SC SCREWM4X8 (6)

18 402-15136 T_BOX_STAY (4)

19 SL-4040891-SC SCREWM4X8 (8)

20 402-15119 REEL_HOLDER_SH_XL_B (2)

21 E3602-706-000 GUIDEROLLER12/16 (60)

22 402-15116 WASHER (20)

23 SL-4040891-SC SCREWM4X8 (4)

24 402-15135 SEPARATION_PLATE_RS (27)

25 401-85550 TRASH_BOX (1)

26 401-84971 POSITION_LAVEL_56 (2)
