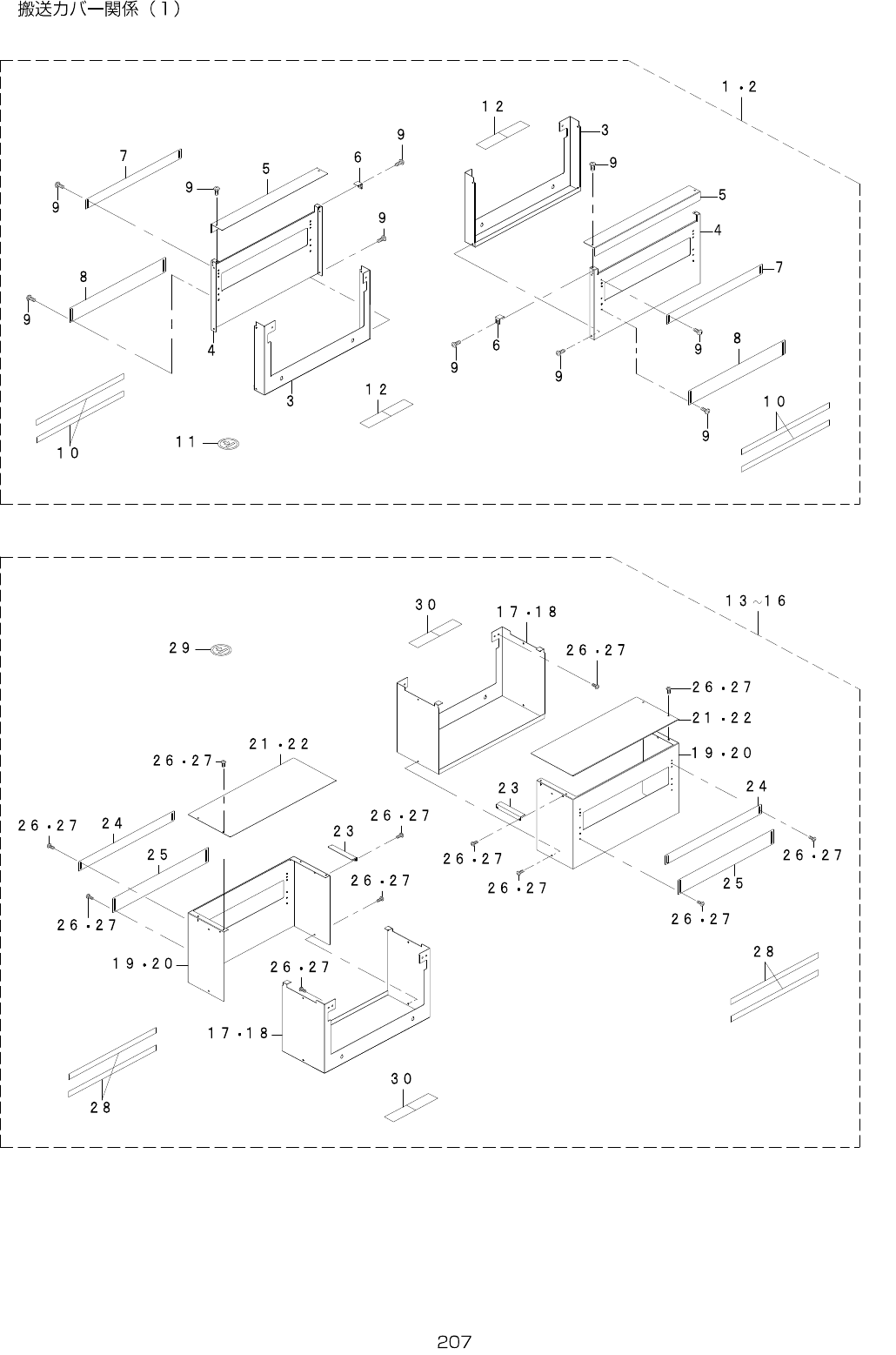

104.CONVEYORCOVERCOMPONENTS(1)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1
#01
401-47271 CONVEYOR_COVER_M_ASM 1
2
#02
401-47272 CONVEYOR_COVER_L_ASM 1
3 401-47167 CONVEYOR_COVER_L (2)
4 401-47168 CONVEYOR_SIDE_COVER_L (2)
5 401-47169 CONVEYOR_UPPER_COVER_L (2)
6 401-47170 CONVEYOR_COVER_STOPPER (2)
7 400-01484 CONVEYORSHUTTERU(L,EN) (2)
8 400-01485 CONVEYORSHUTTERB(L,EN) (2)
9 SM-0040601-SC SCREWM4X0.7L=6 (38)
10 400-01490 TAPE (3)
11 E5721-729-000 LABEL (2)
12 E1143-721-000 WOOLENCLOTHPAPER (4)
13
#03
401-87792 CONVEYOR_COVER_EX_150L_ASM 1
14
#04
401-87793 CONVEYOR_COVER_EX_150R_ASM 1
15
#05
401-87794 CONVEYOR_COVER_EX_250L_ASM 1
16
#06
401-87795 CONVEYOR_COVER_EX_250R_ASM 1
17
#07
401-47189 CONVEYOR_COVER_L_200 (2)
18
#08
401-86619 CONVEYOR_COVER_L_300 (2)
19
#07
401-47190 CONVEYOR_SIDE_COVER_L_200 (2)
20
#08
401-86620 CONVEYOR_SIDE_COVER_L_300 (2)
21
#07
401-47191 CONVEYOR_UPPER_COVER_L_200 (2)
22
#08
401-86621 CONVEYOR_UPPER_COVER_L_300 (2)
23 401-47192 CONVEYOR_COVER_STOPPER_200 (2)
24 400-01484 CONVEYORSHUTTERU(L,EN) (2)
25 400-01485 CONVEYORSHUTTERB(L,EN) (2)
26
#07
SM-0040601-SC SCREWM4X0.7L=6 (40)
27
#08
SM-0040601-SC SCREWM4X0.7L=6 (38)
28 400-01490 TAPE (2.8)
29 E5721-729-000 LABEL (2)
30 E1143-721-000 WOOLENCLOTHPAPER (4)
- -
105.CONVEYORCOVERCOMPONENTS(2)(TYPEXL)
