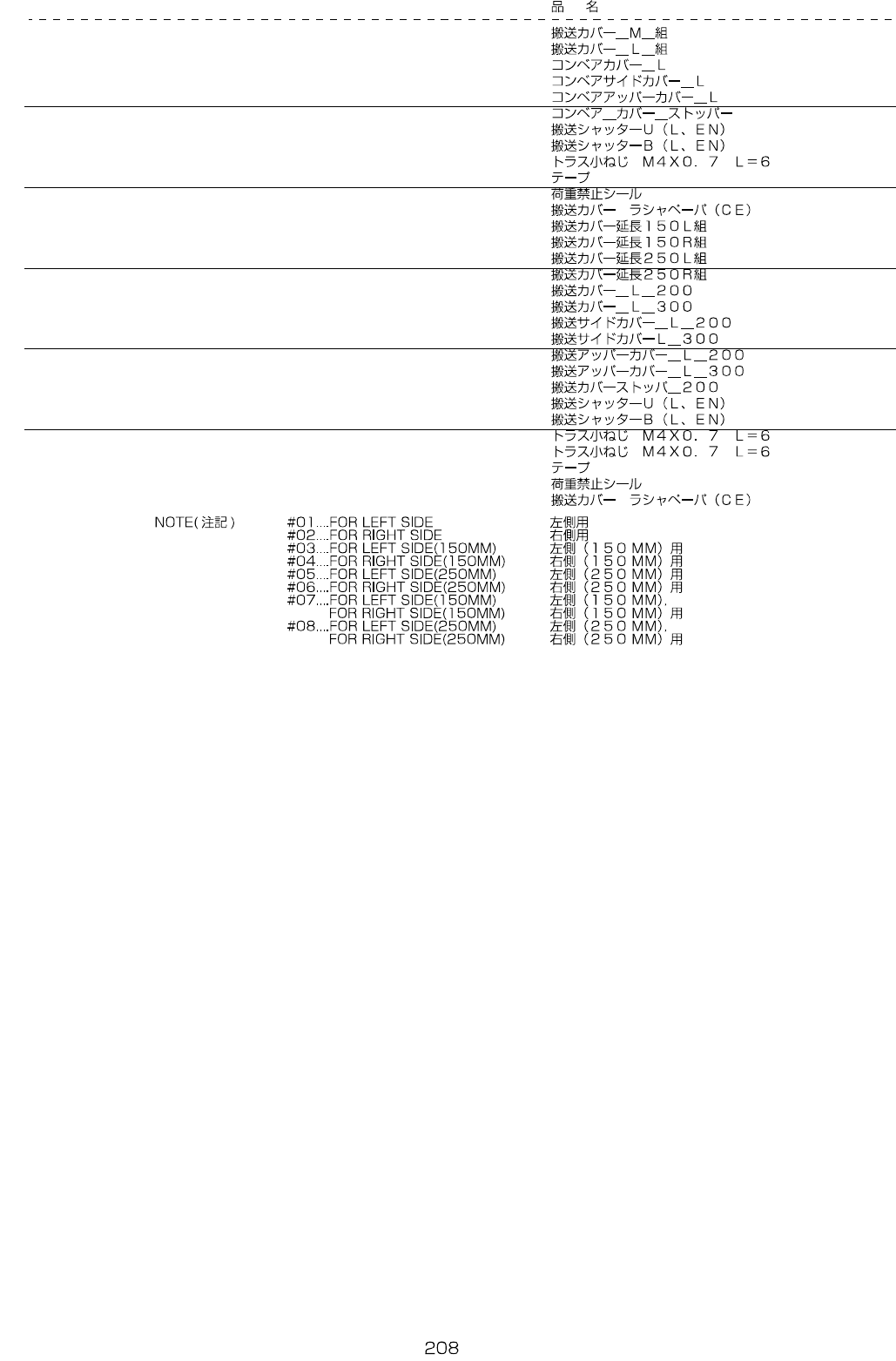

- - 105.CONVEYOR COVERCOMPONENTS(2 )(TYPEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1

#01

401-47271 CONVEYOR_COVER_M_ASM 1

2

#02

401-47272 CONVEYOR_COVER_L_ASM 1

3 401-47167 CONVEYOR_COVER_L (2)

4 401-47168 CONVEYOR_SIDE_COVER_L (2)

5 401-47169 CONVEYOR_UPPER_COVER_L (2)

6 401-47170 CONVEYOR_COVER_STOPPER (2)

7 400-01484 CONVEYORSHUTTERU(L,EN) (2)

8 400-01485 CONVEYORSHUTTERB(L,EN) (2)

9 SM-0040601-SC SCREWM4X0.7L=6 (38)

10 400-01490 TAPE (3)

11 E5721-729-000 LABEL (2)

12 E1143-721-000 WOOLENCLOTHPAPER (4)

13

#03

401-87792 CONVEYOR_COVER_EX_150L_ASM 1

14

#04

401-87793 CONVEYOR_COVER_EX_150R_ASM 1

15

#05

401-87794 CONVEYOR_COVER_EX_250L_ASM 1

16

#06

401-87795 CONVEYOR_COVER_EX_250R_ASM 1

17

#07

401-47189 CONVEYOR_COVER_L_200 (2)

18

#08

401-86619 CONVEYOR_COVER_L_300 (2)

19

#07

401-47190 CONVEYOR_SIDE_COVER_L_200 (2)

20

#08

401-86620 CONVEYOR_SIDE_COVER_L_300 (2)

21

#07

401-47191 CONVEYOR_UPPER_COVER_L_200 (2)

22

#08

401-86621 CONVEYOR_UPPER_COVER_L_300 (2)

23 401-47192 CONVEYOR_COVER_STOPPER_200 (2)

24 400-01484 CONVEYORSHUTTERU(L,EN) (2)

25 400-01485 CONVEYORSHUTTERB(L,EN) (2)

26

#07

SM-0040601-SC SCREWM4X0.7L=6 (40)

27

#08

SM-0040601-SC SCREWM4X0.7L=6 (38)

28 400-01490 TAPE (2.8)

29 E5721-729-000 LABEL (2)

30 E1143-721-000 WOOLENCLOTHPAPER (4)

- -

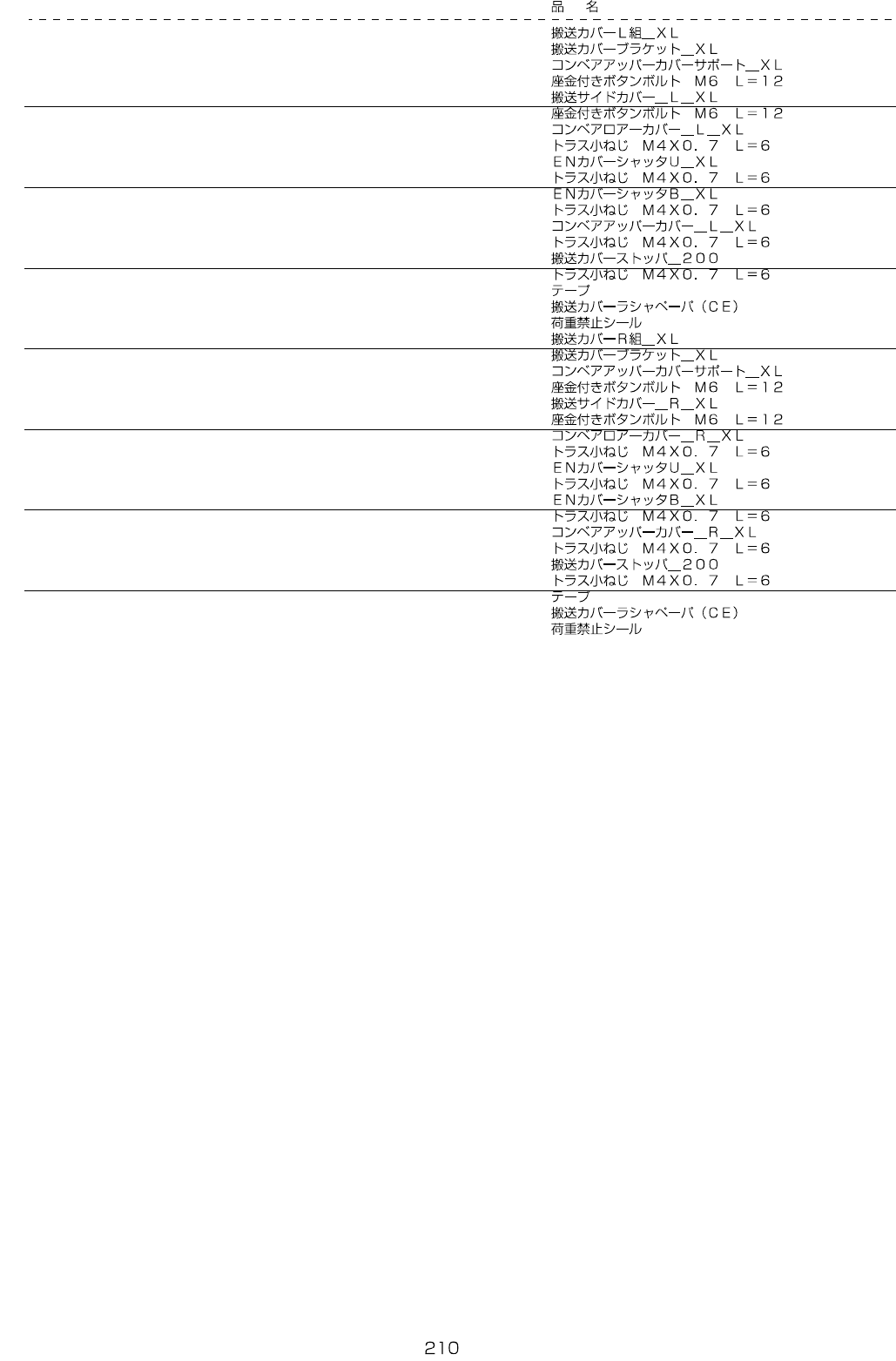

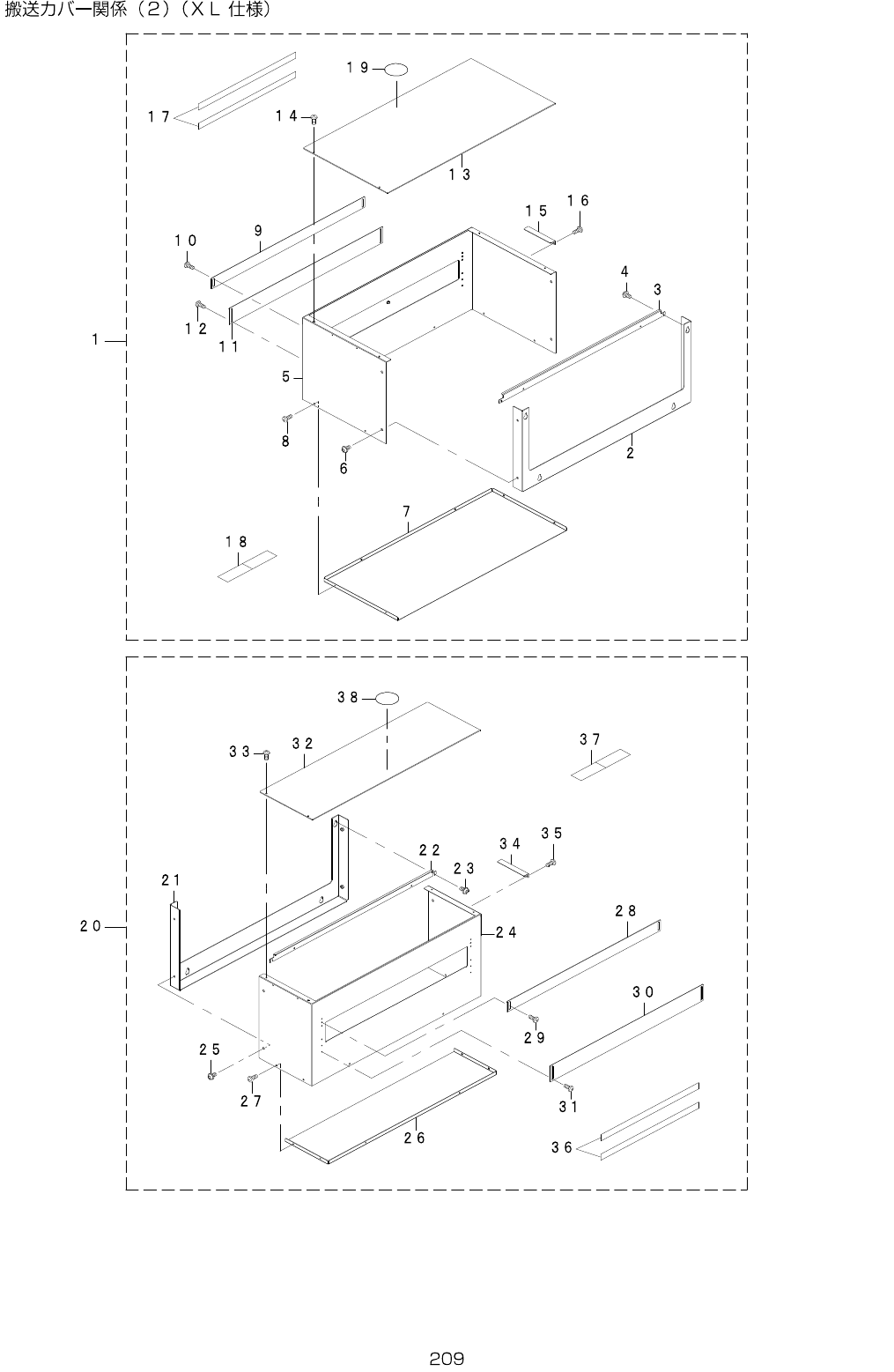

105.CONVEYORCOVERCOMPONENTS(2)(TYPEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-15559 CONVEYOR_COVER_L_ASM_XL 1

2 402-15125 CONV_COVER_BR_XL (1)

3 402-15132 CONV_UPPER_COVER_SUPPORT_XL (1)

4 SL-3061232-TN SCREWM6L=12 (4)

5 402-15126 CONV_SIDE_COVER_L_XL (1)

6 SL-3061232-TN SCREWM6L=12 (4)

7 402-15128 CONV_LOWER_COVER_L_XL (1)

8 SM-0040601-SC SCREWM4X0.7L=6 (6)

9 400-92186 EN_COVER_SHUTTER_U_XL (1)

10 SM-0040601-SC SCREWM4X0.7L=6 (4)

11 400-92187 EN_COVER_SHUTTER_B_XL (1)

12 SM-0040601-SC SCREWM4X0.7L=6 (4)

13 402-15130 CONV_UPPER_COVER_L_XL (1)

14 SM-0040601-SC SCREWM4X0.7L=6 (2)

15 401-47192 CONVEYOR_COVER_STOPPER_200 (1)

16 SM-0040601-SC SCREWM4X0.7L=6 (2)

17 400-01490 TAPE (1.5)

18 E1143-721-000 WOOLENCLOTHPAPER (2)

19 E5721-729-000 LABEL (1)

20 402-15560 CONVEYOR_COVER_R_ASM_XL 1

21 402-15125 CONV_COVER_BR_XL (1)

22 402-15132 CONV_UPPER_COVER_SUPPORT_XL (1)

23 SL-3061232-TN SCREWM6L=12 (4)

24 402-15127 CONV_SIDE_COVER_R_XL (1)

25 SL-3061232-TN SCREWM6L=12 (4)

26 402-15129 CONV_LOWER_COVER_R_XL (1)

27 SM-0040601-SC SCREWM4X0.7L=6 (6)

28 400-92186 EN_COVER_SHUTTER_U_XL (1)

29 SM-0040601-SC SCREWM4X0.7L=6 (4)

30 400-92187 EN_COVER_SHUTTER_B_XL (1)

31 SM-0040601-SC SCREWM4X0.7L=6 (4)

32 402-15131 CONV_UPPER_COVER_R_XL (1)

33 SM-0040601-SC SCREWM4X0.7L=6 (2)

34 401-47192 CONVEYOR_COVER_STOPPER_200 (1)

35 SM-0040601-SC SCREWM4X0.7L=6 (2)

36 400-01490 TAPE (1.5)

37 E1143-721-000 WOOLENCLOTHPAPER (2)

38 E5721-729-000 LABEL (1)
