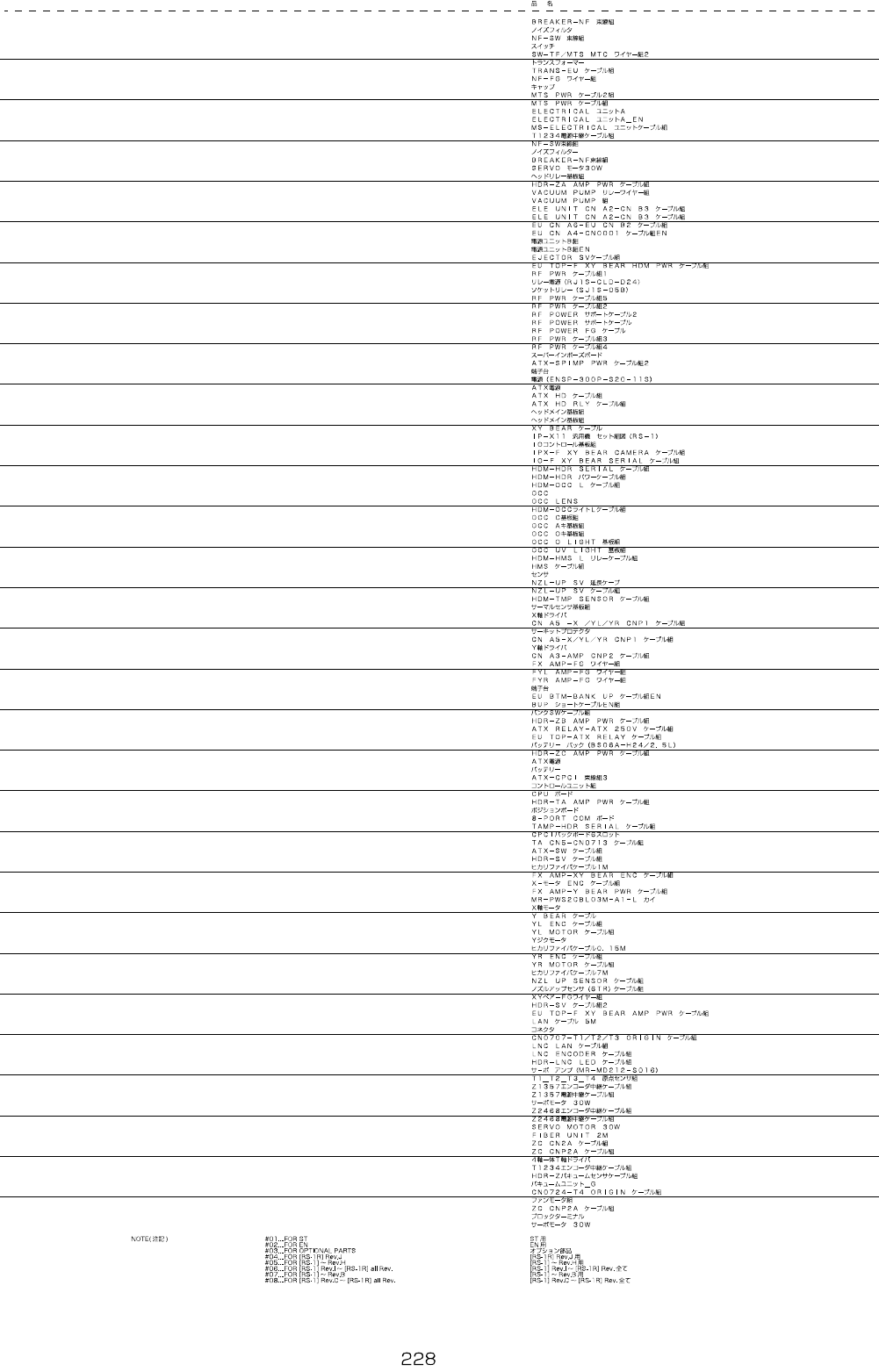

- - 115.SYSTEMDIAGRAM(2 )

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-86993 BREAKER-NFWIREASM 1

2 HN-0040100-00 NOISEFILTER 1

3 401-86994 NF-SWWIREASM 1

4 401-88712 SWITCH 1

5 401-96242 SW-TF/MTSMTCWIREASM2 1

6 401-91280 TRANSFORMER 1

7 401-83414 TRANS-EUCABLEASM 1

8 401-28954 NF-FGWIREASM 1

#02

HK-0429900-7A CAP 2

10 401-94687 MTSPWRCABLE2ASM 1

11 401-83500 MTSPWRCABLEASM 1

#01

402-00913 ELECTRICALUNITA 1

#02

402-00914 ELECTRICALUNITAEN 1

14 401-82231 MS-ELECTRICALUNITCABLEASM 1

#08

401-90514 T1234POWERRELAYCABLEASM 4

16 401-86996 NF-SWWIREASM 1

17 401-91282 NOISEFILTER 1

18 401-86992 BREAKER-NFWIREASM 1

#07

401-36335 SERVOMOTOR30W 4

20 402-22386 HEADRELAYPCBASM 1

21 401-82252 HDR-ZAAMPPWRCABLEASM 1

#03

401-82264 VA CUUMPUMPRELAYWIREASM 1

#03

401-29244 VACUUMPUMPASM 1

#03

401-82214 ELEUNITCNA2-CNB3CABLEASM 1

25 402-01638 ELEUNITCNA2-CNB3CABLEASM 1

26 401-82232 EUCNA6-EUCNB2CABLEASM 1

#02

401-88159 EUCNA4-CN0001CABLEASM(EN) 1

#01

401-83536 POWERSUPPLYUNITBASM 1

#02

401-87824 POWERSUPPLYUNITBASM_EN 1

30 402-01639 EJECTORSVCABLEASM 1

31 401-82240 EUTOP-FXYBEARHDMPWRCABLEASM 1

32 401-98672 RFPWRCABLEASM1 1

33 EZ-1755690-11 RELAYPOWER(RJ1S-CLD-D24) 1

34 EZ-1755691-11 SOCKETRELAY(SJ1S-05B) 1

#03

401-98897 RFPWRCABLEASM5 1

36 401-98673 RFPWRCABLEASM2 1

37 402-71213 RFPOWERSUPPORTCABLE2 1

38 402-24877 RFPOWERSUPPORTCABLE 1

39 402-24878 RFPOWERFGCABLE 1

40 401-98674 RFPWRCABLEASM3 1

#03

401-98896 RFPWRCABLEASM4 1

42 401-97864 SUPERIMPOSEBO ARD 1

43 401-82271 ATX-SPIMPPWRCABLEASM2 1

44 HK-0693500-10 BLOCKTERMINAL 1

45 EZ-1468979-11 POWER(ENSP-300P-S20-11S) 1

#04

401-46346 ATXPSU 1

#04

402-62696 ATXHDCABLEASM 1

#04

402-62697 ATXHDRLYCABLE ASM 1

#05

402-22393 HEADMAINPCBASM 1

#06

401-28873 HEADMAINPCBASM 1

51 401-82272 XYBEARCABLE 1

52 401-90921 IP-X1 1SETGENASM(RS-1) 1

53 401-28871 IOCONTROLPCBASM 1

54 401-82238 IPX-FXYBEARCAMERACABLEASM 1

55 401-82239 IO-FXYBEARSERIALCABLEASM 1

56 401-82241 HDM-HDRSERIALCABLEASM 1

57 401-29105 HDM-HDRPWRCABLEASM 1

58 401-29102 HDM-OCCLCABLEASM 1

59 401-29639 OCC 1

60 402-22648 OCC LENS 1

61 401-29273 HDM-OCCLIGHTLCABLEASM 1

62 401-28879 OCC CPCBASM 1

63 401-28878 OCC APCBASM 1

#05

401-28880 OCCOPCBASM 1

#06

402-09932 OCCOLIGHTPCBASM 1

66 402-09934 OCCUVLIGHTPCBASM 1

67 401-29106 HDM-HMSLRELAYCABLEASM 1

68 401-29108 HMSCABLEASM 1

69 HD-0030600-00 SENSOR 1

70 401-85429 NZL-UPSVEXTENSIONCABLEASM 1

71 401-83349 NZL-UPSVCABLEASM 1

72 401-86318 HDM-TMPSENSORCABLEASM 1

73 401-28883 THERMALSENSORPCBASM 1

74 401-29652 XAXISDRIVER 1

#02

401-88160 CNA5-X/YL/YRCNP1CABLEASM 1

#02

HA-0065100-0A CIRCUITPROTECTOR 3

#01

401-82229 CNA5-X/YL/YRCNP1CA BLEASM 1

78 401-29654 YAXISDRIVER 2

79 401-82230 CNA3-AMPCNP2CABLEASM 1

80 401-82256 FXAMP-FGWIREASM 1

81 401-82257 FYLAMP-FGWIREASM 1

82 401-82258 FYRAMP-FGWIREASM 1

83 HK-0693500-10 BLOCKTERMINAL 2

#02

401-88158 EUBTM-BANKUPCABLEASM(EN) 1

#02

400-02344 BUPSHORTWIRE(EN)ASM 2

#03

400-02287 BA NKSWCABLEASSY 2

87 401-82253 HDR-ZBAMPPWRCABLEASM 1

88 401-86497 ATXRELAY-ATX250VCABLEASM 1

89 401-82255 EUTOP-ATXRELAYCABLEASM 1

90 EZ-1756647-11 BATTERYPACK(BS06A-H24/2.5L) 1

91 401-82254 HDR-ZCAMPPWRCABLEASM 1

#04

401-46346 ATXPSU 1

#04

401-46347 BATTERY 1

94 401-72724 ATX-CPCIWIREASM3 1

95 401-83537 CTRL_UNIT_ASM 1

96 401-23242 CPUBOARD 1

97 401-82222 HDR-TAAMPPWRCABLEASM 1

98 401-96265 POSITIONBOARD 1

99 401-35433 8-PORTCOMBOARD 1

100 402-33910 TAMP-HDRSERIALCABLEASM 1

101 401-72512 CPCIBACKBOARD6SLOT 1

102 401-82215 TACN5-CN0713CABLEASM 1

103 401-82233 ATX-SWCABLEASM 1

104 401-82251 HDR-SVCABLEASM 1

105 401-29627 OPTICALFIBERCABLE1M 1

106 401-82237 FXAMP-XYBEARENCCABLEASM 1

107 401-29148 X-MOTORENCCABLEASM 1

108 401-82234 FXAMP-YBEARPWRCABLEASM 1

109 400-44546 XMTRPWRCABLE 1

110 401-29653 XAXISMOTOR 1

111 401-82273 YBEARCABLE 1

112 400-45401 YLENCCA BLEASM 1

113 401-82269 YLMOTORCABLEASM 1

114 401-46348 YAXISSERVOMOTOR 2

115 401-29628 OPTICALFIBERCABLE0.15M 5

116 400-45403 YRENCCABLEASM 1

117 401-82270 YRMOTORCABLEASM 1

118 400-48070 OPTICALFIBERCABLE7M 1

119 402-11151 NZLUPSENSORCABLEASM 1

120 401-33003 NZLUPSENSOR6TRCABLEASM 1

121 401-33060 XYBEARAMPPWR-FGWIREASM 1

122 401-82220 HDR-SVCABLEASM2 1

123 401-82243 EUTOP-FXYBEARAMPPWRCABLEASM 1

124 401-36338 LANCABLE5M 1

125 HK-0849200-80 CONNECTOR 2

126 401-82558 CN0707-T1/T2/T3ORIGINCABLEASM 1

127 401-82216 LNCLANCABLEASM 1

128 401-82217 LNCENCODERCABLEASM 1

129 401-82218 HDR-LNCLEDCABLEASM 1

130 EZ-1492148-11 AMPLIFIERSERVO 3

131 401-94684 T1_T2_T3_T4ORIGINSENSORASM 4

132

#08

401-90511 Z1357ENCODERRELAYCABLEASM 4

133

#08

401-90510 Z1357POWERRELAYCABLEASM 4

134

#08

401-87431 SERVOMOTOR30W 13

135

#08

401-90513 Z2468ENCODERRELAYCABLEASM 4

136

#08

401-90512 Z2468POWERRELAYCABLEASM 4

137

#07

401-36334 SERVOMOTOR30W 8

138 401-83385 FIBERUNIT2M 4

139

#07

401-82565 ZCCN2ACABLEASM 1

140

#07

401-82563 ZCCNP2ACABLEASM 1

141 401-29650 4AXISINTEGRALTYPETAXISDRIVER 1

142

#08

401-90515 T1234ENCODERRELAYCABLEASM 4

143 401-89336 HDR-ZVACSENSORCABLEASM 1

144 402-23084 VACUUM_UNIT_G 1

145 401-82559 CN0724-T4ORIGINCABLEASM 1

146 402-08413 FANMOTO RASM 1

147

#08

401-82563 ZCCNP2ACABLEASM 1

148 401-82382 BLOCKTERMINAL 1

149

#07

401-87431 SERVOMOTOR30W 1

- -

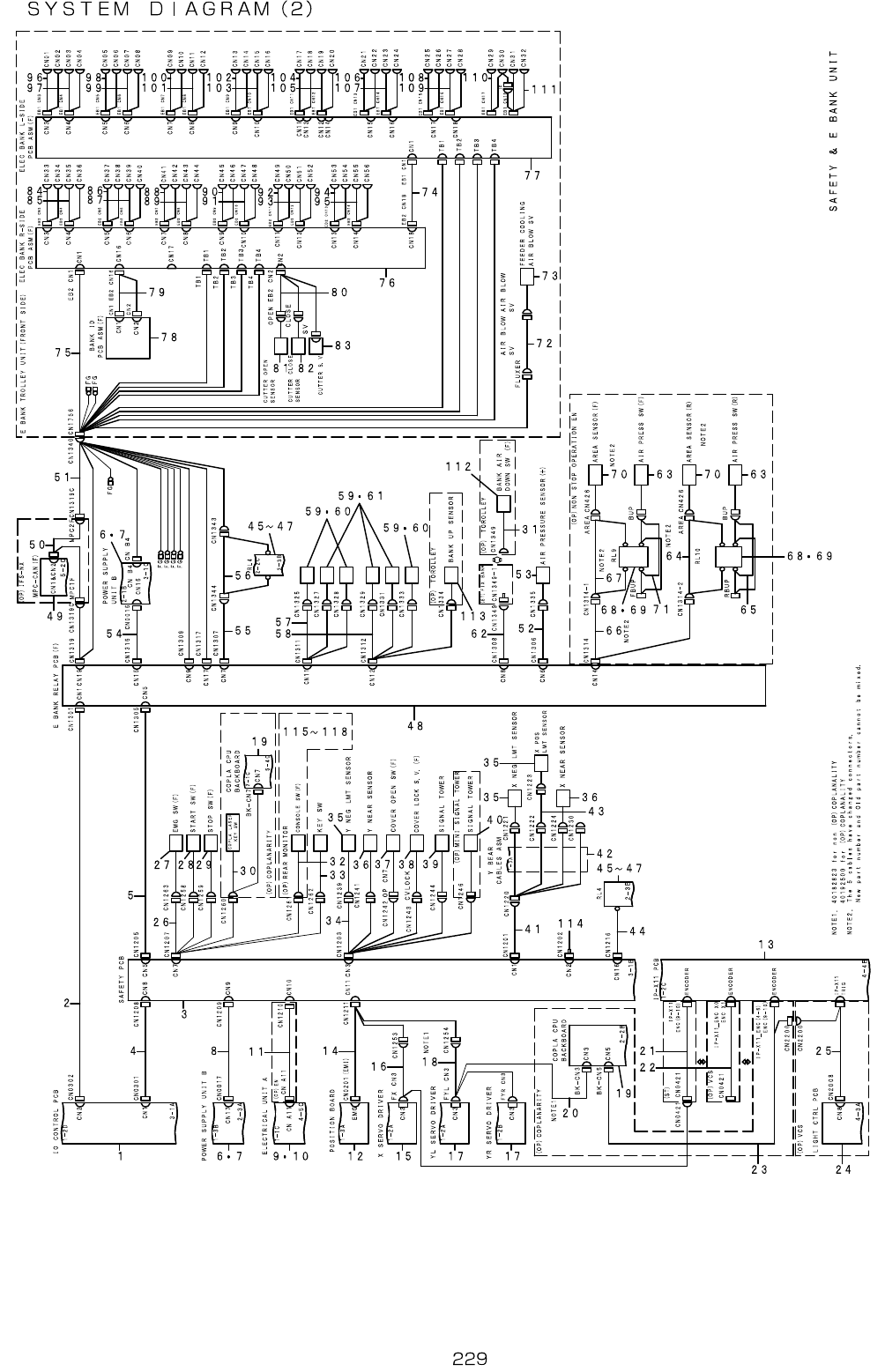

115.SYSTEMDIAGRAM(2)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-28871 IOCONTROLPCBASM 1

2 401-82247 IO-FBKRSERIALCABLEASM 1

3 401-28872 SAFETYPCBASM 1

4 401-29320 IO-SFSERIALCABLEASM 1

5 401-86309 FBKR-SFCABLEASM 1

#01

401-83536 POWERSUPPLYUNITBASM 1

#02

401-87824 POWERSUPPLYUNITBASM_EN 1

8 401-29011 EUTOP-SFPWRCABLEASM 1

#01

402-00913 ELECTRICALUNITA 1

#02

402-00914 ELECTRICALUNITAEN 1

#02

401-88157 EUBOTTOM-SFENCABLEASM 1

12 401-96265 POSITIONBOARD 1

13 401-90921 IP-X11SETGENASM(RS-1) 1

14 401-82224 SF-XYAMPRELAYCABLEASM 1

15 401-29652 XAXISDRIVER 1

16 401-33006 SFRELAY-FXAMPCABLEASM 1

17 401-29654 YAXISDRIVER 2

18 401-82823 SFRELAY-FYLAMPCABLEASM 1

#03

401-32990 COPLACPUBACKBOARDPCBASM 1

#03

401-92500 RELAY-YLAMPCABLEASMCOPLA 1

21 401-82225 IPXXENCRELAYCABLEASM 1

#03

401-90012 IPXX-ENCRELAYCABLEASM 1

#03

401-33044 IPXX-AXISENCCABLEASM 1

#03

401-32991 LIGHTCONTROLPCBASM 1

#03

401-90013 CAMERATRIGCABLEASM 1

26 401-29020 SF-OPSWRELAYWIREASM 1

27 401-29025 EMGSWCABLEASM 1

28 401-90601 STARTSWCABLEASM 1

29 401-90602 STOPSWCABLEASM 1

#03

401-94688 LASERCTRLCABLEASM 1

#03

401-29069 BKR-BANKAIRSWCABLEASM 1

#03

401-29023 CONSOLESWCABLEASM 1

33 401-90603 KEYSWCABLEASM 1

34 401-82244 SF-YFTOPSENSORRELAYCABLEASM 1

35 401-65028 XYLMTSENSORASM 3

36 401-29002 NEARSENSORCABLEASM 2

37 400-02254 COVEROPENSWCABLEASM 1

38 401-46405 COVERLOCKSVASM 1

39 401-29009 SIGNALTOWERCABLEASM 1

#03

401-29010 MINISIGNALTOWERCABLEASM(OP) 1

41 401-82249 SF-FXYBEARCABLEASM 1

42 401-82273 YBEARCABLE 1

43 401-29001 XLMTRELAYCABLEASM 1

44 401-86333 CUTTERSAFETYCABLEASM 1

45 HB-0018100-00 RELAY 1

46 HB-0004800-10 RELAY 1

47 HB-0002100-10 RELAYHOLOERPYC-A1 1

48 401-28876 EBANKRELAYPCBASM 1

#03

401-69048 MPC-CAN 1

#03

401-87771 MPCCABLEASM(RS-1) 1

51 401-82227 EBKR-OUTLOADERSERIALCABLEASM 1

52 401-82260 FBKR-AIR(P)RELAYCABLEASM 1

53 401-29071 AIR(P)SENSORCABLEASM 1

54 401-90364 FBKR-EUTOPPWRCABLEASM 1

55 401-84380 CN1307/1407-CN1344/1444CABLEASM 1

56 401-84106 CN1343/1344-RL4_5/9CABLEASM 1

57 401-85779 BKR-FDFLOATECABLEASM 1

58 401-82265 BKR-FDFLOATLEFTECABLEASM 1

#04

401-86919 SEPARATESENSORASM 6

#05

401-54796 SEPARATESENSORRECEIVERASM 3

#05

401-54797 SEPARATESENSOREMISSIONASM 3

62 401-82818 BKR-BANKAIRSWRELAYCABLEASM 1

#03

E9816-729-HA0 SWRELAYCABLEASM 2

#03

402-53400 AREASENSORRELAYCABLE2ASM 1

#03

401-94855 RBUPPRESSUERSWITCHASM 1

#03

402-53406 CN1314-1/2CABLEASM 1

#03

402-53399 AREASENSORRELAYCABLEASM 1

#03

HB-0015400-00 RELAY 2

#03

HB-0015400-10 RELAY 2

#03

402-53398 REFLEXARRAYSENSORASM 2

#03

401-94854 FBUPPRESSUERSWITCHASM 1

72 401-98339 FEEDERAIRBLOWCABLEASM 1

73 401-98338 AIRBLOWSVCABLEASM 1

74 401-82210 CANJAMPERCABLEASM 1

75 401-82228 EBANKSERIALCABLEASM 1

76 401-83784 ELECBANKR-SIDEPCBASM 1

77 401-83783 ELECBANKL-SIDEPCBASM 1

78 401-69473 BANKIDPCB(RF)ASM 1

79 401-82213 BANKCABLE(IFS-NX)ASM 1

80 401-82212 EBANKPCB-ECUTTERIFCABLEASM 1

81 400-84835 CUTOPENSENSASM 1

82 400-84839 CUTCLOSESENSASM 1

83 400-84836 CUTSVCABLEASM 1

84 402-43227 BANKCABLE(33_34-EB2CN3)ASM 1

85 402-43228 BANKCABLE(35_36-EB2CN4)ASM 1

86 402-43229 BANKCABLE(37_38-EB2CN5)ASM 1

87 402-43230 BANKCABLE(39_40-EB2CN6)ASM 1

88 402-43231 BANKCABLE(41_42-EB2CN7)ASM 1

89 402-43232 BANKCABLE(43_44-EB2CN8)ASM 1

90 402-43233 BANKCABLE(45_46-EB2CN9)ASM 1

91 402-43234 BANKCABLE(47_48-EB2CN10)ASM 1

92 402-43235 BANKCABLE(49_50-EB2CN11)ASM 1

93 402-43236 BANKCABLE(51_52-EB2CN12)ASM 1

94 402-43237 BANKCABLE(53_54-EB2CN13)ASM 1

95 402-43238 BANKCABLE(55_56-EB2CN14)ASM 1

96 402-43211 BANKCABLE(1_2-EB1CN3)ASM 1

97 402-43212 BANKCABLE(3_4-EB1CN4)ASM 1

98 402-43213 BANKCABLE(5_6-EB1CN5)ASM 1

99 402-43214 BANKCABLE(7_8-EB1CN6)ASM 1

100 402-43215 BANKCABLE(9_10-EB1CN7)ASM 1

101 402-43216 BANKCABLE(11_12-EB1CN8)ASM 1

102 402-43217 BANKCABLE(13_14-EB1CN9)ASM 1

103 402-43218 BANKCABLE(15_16-EB1CN10)ASM 1

104 402-43219 BANKCABLE(17_18-EB1CN11)ASM 1

105 402-43220 BANKCABLE(19_20-EB1CN12)ASM 1

106 402-43221 BANKCABLE(21_22-EB1CN13)ASM 1

107 402-43222 BANKCABLE(23_24-EB1CN14)ASM 1

108 402-43223 BANKCABLE(25_26-EB1CN15)ASM 1

109 402-43224 BANKCABLE(27_28-EB1CN16)ASM 1

110 402-43225 BANKCABLE(29_30-EB1CN17)ASM 1

111 402-43226 BANKCABLE(31_32-EB1CN18)ASM 1

112

#03

PV-0151250-00 MANUALVALVE 1

113

#03

401-29070 BANKUPSENSORCABLEASM 1

114 401-82223 CN1202SHORTWIREASM 1

115

#03

HA-0055200-40 SWITCH 1

116

#03

HA-0055200-30 SWITCH 1

117

#03

HA-0055200-1C SWITCH 1

118

#03

HA-0053400-70 SWITCH 1
