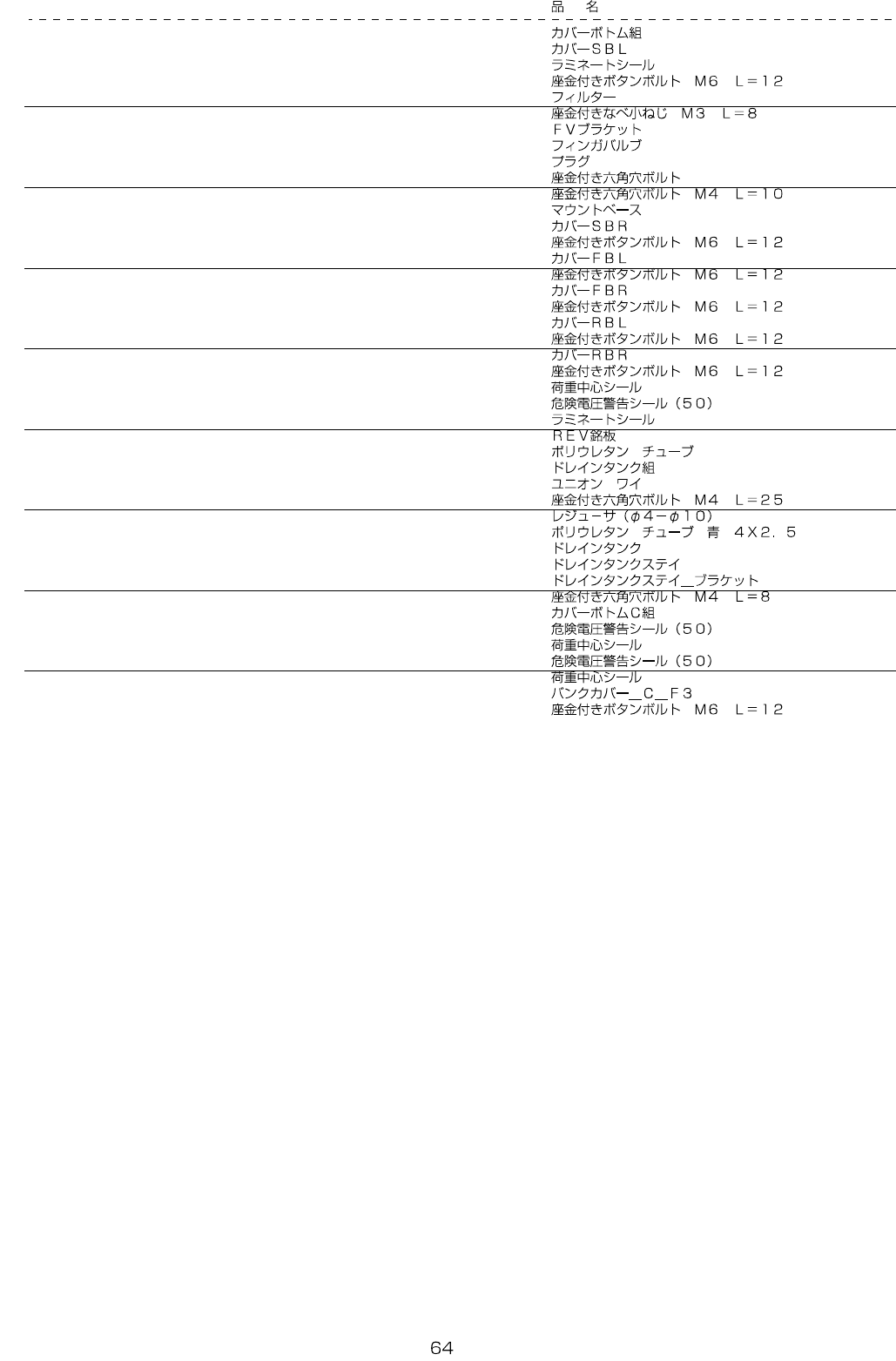

- - 33. COVERCOMPONENTS (15)(TYPEXL )

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-18347 COVER_BOTTOM_ASM 1

2 401-47105 COVER_SBL (1)

3 401-11970 LAMINATING_SEAL (1)

4 SL-3061232-TN SCREWM6L=12 (6)

5 HM-0010100-10 FILTER (2)

6 SL-4030891-SC SCREWM3L=8 (4)

7 400-00550 FVBRACKET (1)

8 PV-0152120-00 FINGERVALVE (1)

9 PJ-0252000-03 PLUG (1)

10 SL-6032542-TN SCREW (2)

11 SL-6041092-TN SCREWM4L=10 (2)

12 HX-0070600-0A MOUNTBASE (2)

13 401-47107 COVER_SBR (1)

14 SL-3061232-TN SCREWM6L=12 (5)

15 401-47082 COVER_FBL (1)

16 SL-3061232-TN SCREWM6L=12 (4)

17 401-47083 COVER_FBR (1)

18 SL-3061232-TN SCREWM6L=12 (4)

19 401-87352 COVER_RBL (1)

20 SL-3061232-TN SCREWM6L=12 (4)

21 401-87353 COVER_RBR (1)

22 SL-3061232-TN SCREWM6L=12 (4)

23 168-70206 GRAVITYSEAL (2)

24 CM-3001000-04 DANGERLABEL(50) (3)

25 401-81150 LAMINATING_SEAL (1)

26 E9635-455-000 REVISIONSEAL (1)

27 BT-1000651-EB POLYURETHANETUBE (1.7)

28 400-93785 ASM_DRAIN_TANK (1)

29 PJ-3081000-01 UNIONY (1)

30 SL-6042592-TN SCREWM4L=25 (1)

31 PJ-3090400-03 REDUCER4-10 (1)

32 BT-0400251-EA URETHANETUBEBLUE4X2.5 (0.16)

33 400-16815 DRAINTANK (1)

34 400-16814 DRAINTANKSTAY (1)

35 400-93721 DT_STAY_BR (1)

36 SL-6040892-TN SCREWM4L=8 (4)

37 402-22173 COVER_BOTTOM_C_ASM (1)

38 CM-3001000-04 DANGERLABEL(50) (1)

39 168-70206 GRAVITYSEAL (1)

40 CM-3001000-04 DANGERLABEL(50) (1)

41 168-70206 GRAVITYSEAL (1)

42 402-22165 BANK_COVER_C_F3 (2)

43 SL-3061232-TN SCREWM6L=12 (8)

- -

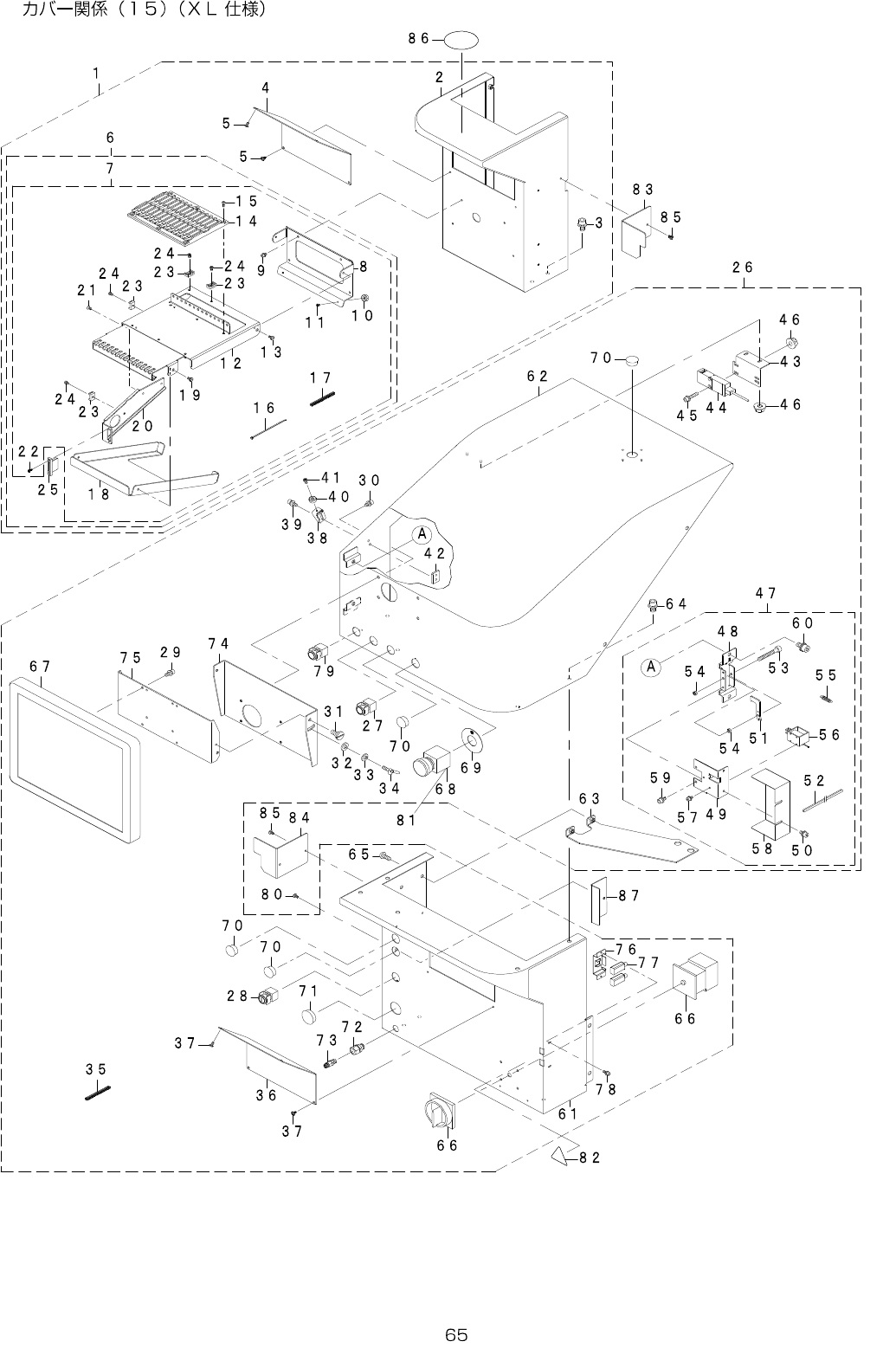

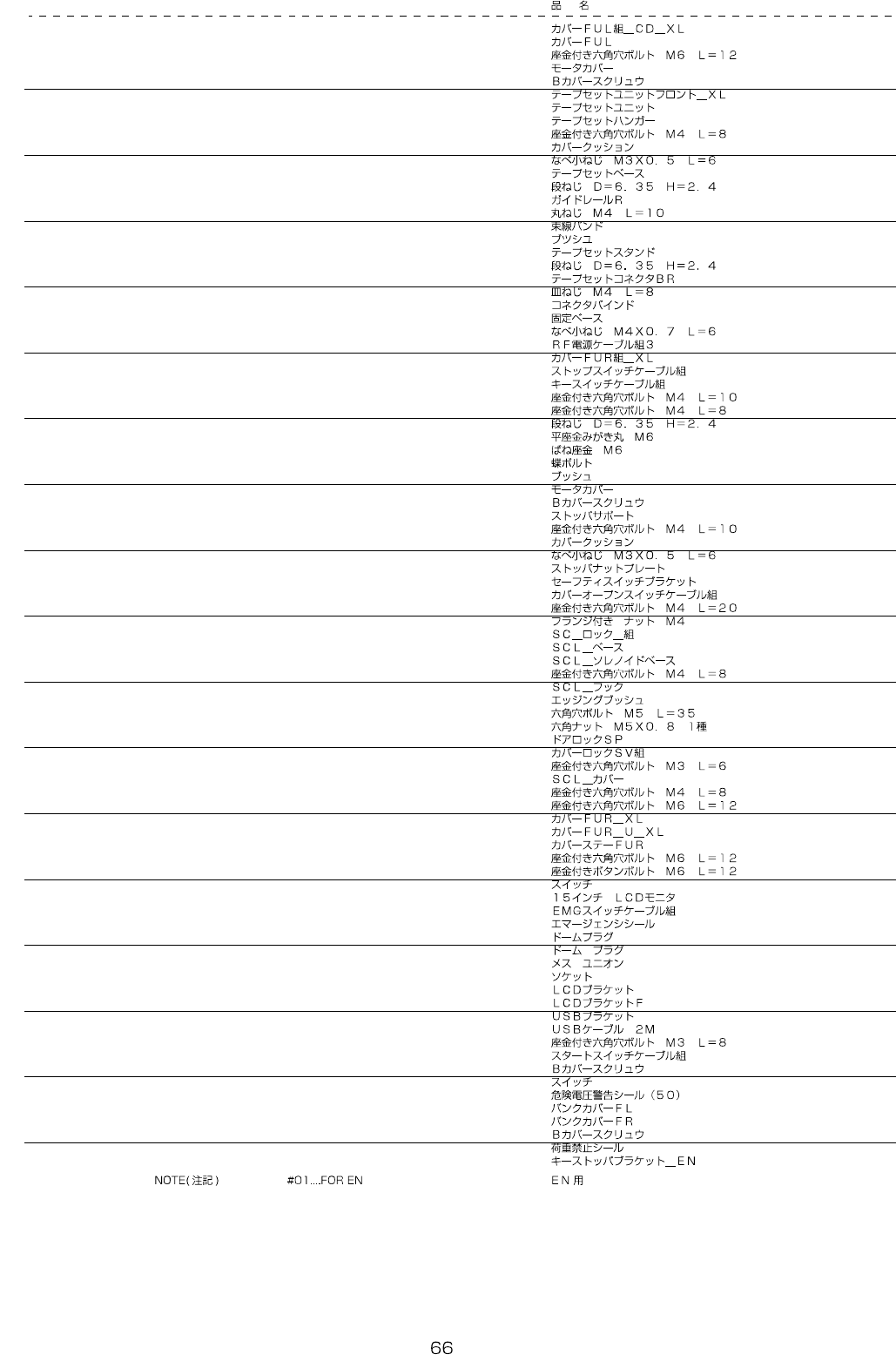

33.COVERCOMPONENTS(15)(TYPEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-15700 COVER_FUL_ASM_CD_XL 1

2 401-96677 COVER_FUL (1)

3 SL-6061292-TN SCREWM6L=12 (4)

4 401-83443 MOTOR_COVER (1)

5 400-81751 B_COVER_SCREW (4)

6 402-15701 TAPE_SET_UNIT_FRONT_XL (1)

7 401-97768 TAPE_SET_UNIT (1)

8 401-97769 TAPE_SET_HANGER (1)

9 SL-6040892-TN SCREWM4L=8 (4)

10 400-49671 COVERCUSHION (2)

11 SM-4030601-SC SCREWM3X0.5L=6 (2)

12 402-55573 TAPE_SET_BASE (1)

13 SD-0640246-SP SHOULDERSCREWD=6.35H=2.4 (2)

14 401-83208 GUIDE_RAIL_R (1)

15 SM-3041052-TN SCREWM4L=10 (6)

16 EA-9500B01-00 CABLEBAND (4)

17 E5348-033-100 GROMMET (0.2)

18 401-97771 TAPE_SET_STAND (1)

19 SD-0640246-SP SHOULDERSCREWD=6.35H=2.4 (2)

20 401-97772 TAPE_SET_CONNECTOR_BR (1)

21 SM-1040852-TP DISHSCREW (2)

22 401-82051 CONNECTOR_BIND (2)

23 HX-0029400-00 FIXEDBASE (4)

24 SM-4040601-SC SCREWM4X0.7L=6 (4)

25 401-98674 RFPWRCABLEASM3 (1)

26 402-15441 COVER_FUR_ASM_XL 1

27 401-90602 STOPSWCABLEASM (1)

28 401-90603 KEYSWCABLEASM (1)

29 SL-6041092-TN SCREWM4L=10 (4)

30 SL-6040892-TN SCREWM4L=8 (4)

31 SD-0640246-SP SHOULDERSCREWD=6.35H=2.4 (2)

32 WP-0641601-SC WASHERM6 (1)

33 WS-0610002-KN SPRINGWASHERM6 (1)

34 161-87007 WINGBOLT (1)

35 E5348-033-100 GROMMET (0.16)

36 401-83443 MOTOR_COVER (1)

37 400-81751 B_COVER_SCREW (4)

38 400-01464 STOPPERSUPPORT (1)

39 SL-6041092-TN SCREWM4L=10 (2)

40 400-49671 COVERCUSHION (1)

41 SM-4030601-SC SCREWM3X0.5L=6 (1)

42 401-47221 STOPPER_NUT_PLATE (1)

43 400-01453 SAFETYSWITCHBRACKET (1)

44 400-02254 COVEROPENSWCABLEASM (1)

45 SL-6042042-TN SCREWM4L=20 (2)

46 NM-3040520-SF FLANGENUTM4 (4)

47 401-47273 SC_LOCK_ASM (1)

48 401-11821 SCL_BASE (1)

49 401-47117 SCL_SOLENOID_BASE (1)

50 SL-6040892-TN SCREWM4L=8 (2)

51 401-47118 SCL_HOOK (1)

52 HX-0036700-0A GROMMET (0.02)

53 SM-6053502-TN SCREWM5L=35 (1)

54 NM-6050001-SC NUTM5X0.8TYPE1 (2)

55 401-47119 DOOR_LOCK_SP (1)

56 401-46405 COVERLOCKSVASM (1)

57 SL-6030692-TN SCREWM3L=6 (4)

58 401-11824 SCL_COVER (1)

59 SL-6040892-TN SCREWM4L=8 (2)

60 SL-6061292-TN SCREWM6L=12 (2)

61 402-15066 COVER_FUR_XL (1)

62 402-15065 COVER_FUR_U_XL (1)

63 401-83472 COVER_STAY_FUR (1)

64 SL-6061292-TN SCREWM6L=12 (9)

65 SL-3061232-TN SCREWM6L=12 (4)

66 401-88712 SWITCH (1)

67 401-58158 15INCHLCDMONITOR (1)

68 401-29025 EMGSWCABLEASM (1)

69 401-26708 EMERGENCY_SEAL (1)

70 HX-0032600-0A GROMMET (4)

71 HX-0032600-0M GROMMET (1)

72 PJ-3010651-06 FEMALEUNION (1)

73 E2904-700-000 SOCKET (1)

74 401-83444 LCD_BRACKET (1)

75 400-47170 LCD_BRACKET_F (1)

76 400-46640 USBBRACKET (1)

77 401-22816 USBCABLE2M (2)

78 SL-6030892-TN SCREWM3L=8 (2)

79 401-90601 STARTSWCABLEASM (1)

#01

400-81751 B_COVER_SCREW 1

#01

HA-0062600-10 SWITCH 1

82 CM-3001000-04 DANGERLABEL(50) 1

83 401-86066 BANK_COVER_FL 1

84 401-86067 BANK_COVER_FR 1

85 400-81751 B_COVER_SCREW 4

86 E5721-729-000 LABEL 1

#01

401-87827 KEY_STOPPER_BR_EN 1
