Vision Teach Station 5.x.x User Manual 7 Software
05/2019 Edition 7.2 Software upgrade
55
7.2.1 Software required
You will need the Installation Package Vision Teach Station Collection R19-1,
(item no: 00117257-xx) for the upgrade to Vision Teach Station version 5.x.x.
All software belonging to the release is available on the ASM Software Collection USB Medium,
item no. [00117884-xx]. This USB stick contains all basic product packages of the release.
Additionally, the individual software packages (*.iso files) contain the relevant software documents
(Installation Manuals, Software Version Descriptions, User Guides etc.).
7.2.2 License for the local SIPLACE Pro server as of V7.0
In order to operate Vision Teach Station offline, you will need a valid license for the SIPLACE Pro
server on the VTS computer.
The license management for line software products has been overworked in the SIPLACE Pro 7.0
version. The VTS computer is configured as license manager server and is delivered with a test
license. If this license expires, you will have to generate a host bound license key with your factory
license via the ASM License web portal. Instructions can be found in the "Installation_Manual_
ASM_OIB_License_Manager.pdf" document. This document is available on the ASM Support
Media in the <<Siplace Installation\ASM License Manager\V2.x>> directory. If you do not have
any factory license for the current SIPLACE Pro version by this time, you can create a test license
that is valid for three months via this portal as well.
If the Vision Teach Station is operated in SIPLACE LAN and you work with databases on other
SIPLACE Pro computers, you will need no license for the local SIPLACE Pro server.
7.2.3 Removing the old version
Uninstall SIPLACE Pro in the Control Panel under "Add & Remove Programs" (see the
"SIPLACE Pro Installation Manual" on the "SIPLACE Pro Application" setup CD in the
"Documentation" directory).
7
Uninstall the vision teach station software from the Start menu.
7 Software Vision Teach Station 5.x.x User Manual
7.2 Software upgrade 05/2019 Edition
56
7.2.4 Installing the new version
7.2.4.1 Installing the "ASM Support Media"
Open the "ASM Support Media" *.iso file and run the AUTORUN.CMD file.
Select the "Requirements" button under "Analysis and Administration" and follow the instruc-
tions.
In the "Select product profiles" window, select the
"Siplace Pro
> Siplace Pro x.x > SIPLACE Pro x.x Server" product.

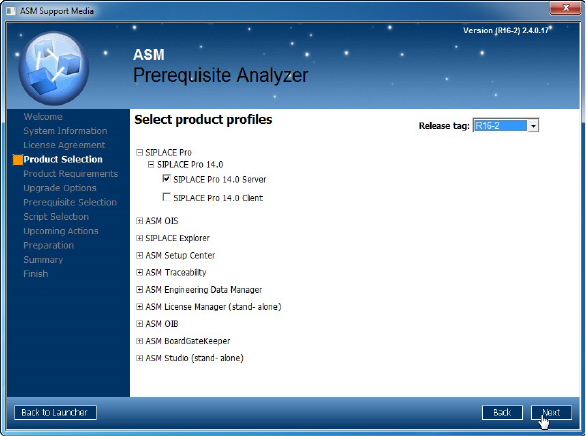

Fig. 7.2 - 1 Product choice für SIPLACE Pro x.x
7
If an SQL database already exists, the "Choose Upgrade Options" dialog box will be opened.
Select the update to the existing SQL version.
Let the "Server" option be selected in the "License Manager" window and click on "OK".
A restart might be required. 7
Click on "OK" or "Next" several times until the wizard exits. In the last step the wizard performs
the restart. After the subsequent run-up, the wizard continues installing.
Permit a restart after installation.
Vision Teach Station 5.x.x User Manual 7 Software
05/2019 Edition 7.2 Software upgrade
57
7.2.4.2 Installing the "SIPLACE Pro Application"
PLEASE NOTE: Please ensure that you have a valid license key at your fingertips. During the
installation you will be prompted to enter this key. 7
Install SIPLACE Pro as described in the "SIPLACE Pro Installation Manual" item no:
00198631-xx.
Select the "SIPLACE Pro" product from the "Packages and Features" window.
7

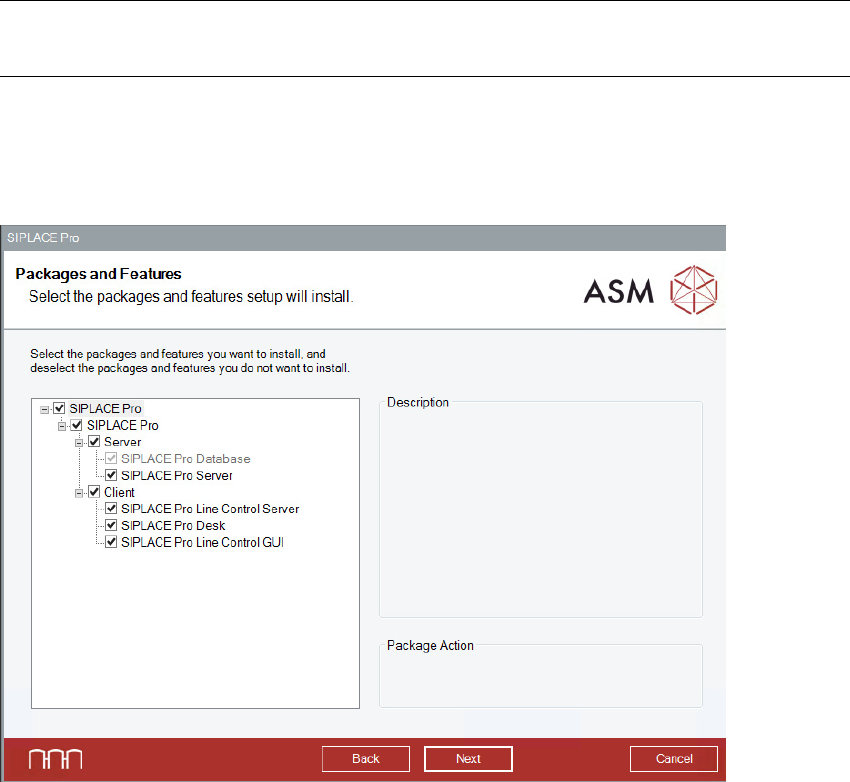

Fig. 7.2 - 2 Installing SIPLACE Pro - Selecting packages and features
When the License Manager is opened, import your license key via the "File" - "Import License
Key" menu item. For this you need the following password:
User ID: Administrator
Password: Siplace.1
7
Restart the computer after installation.
