7 Software Vision Teach Station 5.x.x User Manual 7.2 Software upgrade 05/2019 Edition 58 7.2.4.3 Installing the "SIPLACE Pro Languages" Installation of the language package is optional. If you want to install …
Vision Teach Station 5.x.x User Manual 7 Software
05/2019 Edition 7.2 Software upgrade
57
7.2.4.2 Installing the "SIPLACE Pro Application"
PLEASE NOTE: Please ensure that you have a valid license key at your fingertips. During the
installation you will be prompted to enter this key. 7
Install SIPLACE Pro as described in the "SIPLACE Pro Installation Manual" item no:
00198631-xx.
Select the "SIPLACE Pro" product from the "Packages and Features" window.
7
Fig. 7.2 - 2 Installing SIPLACE Pro - Selecting packages and features
When the License Manager is opened, import your license key via the "File" - "Import License
Key" menu item. For this you need the following password:
User ID: Administrator
Password: Siplace.1
7
Restart the computer after installation.
7 Software Vision Teach Station 5.x.x User Manual
7.2 Software upgrade 05/2019 Edition
58
7.2.4.3 Installing the "SIPLACE Pro Languages"
Installation of the language package is optional. If you want to install it, you must do this before
you install the Vision Teach Station software.
Follow the instructions in the "SIPLACE Pro Installation Manual".
7.2.4.4 Installing the "Software Vision Teach Station"
Run the "InstallAll.bat" script file. Follow the instructions. Restart the computer at the end of the
installation.
The script installs the following components:
Tab. 7.2 - 2 Script components of theVisionTeachStation software
7
Component Directory
CAN drivers \SvTeachStation\CAN\Setup.exe
SIPLACE Vision .\SvTeachStation\SiplaceVision\SiplaceVision.msi
SIPLACE Vision Teach
Station
.\SvTeachStation\SvTeachStation\Setup.exe
Vision Teach Station 5.x.x User Manual 7 Software
05/2019 Edition 7.3 Licensing
59
7.3 Licensing
As of the 5.0.2 version, the SIPLACE Vision Teach Station is available as a pure licensed soft-
ware product. 7
A "Vision Teach Station" license is required in the ASM License Manager for operation. The
ASM License Manager has to run on the same computer as the SIPLACE Vision Teach
Station software. 7

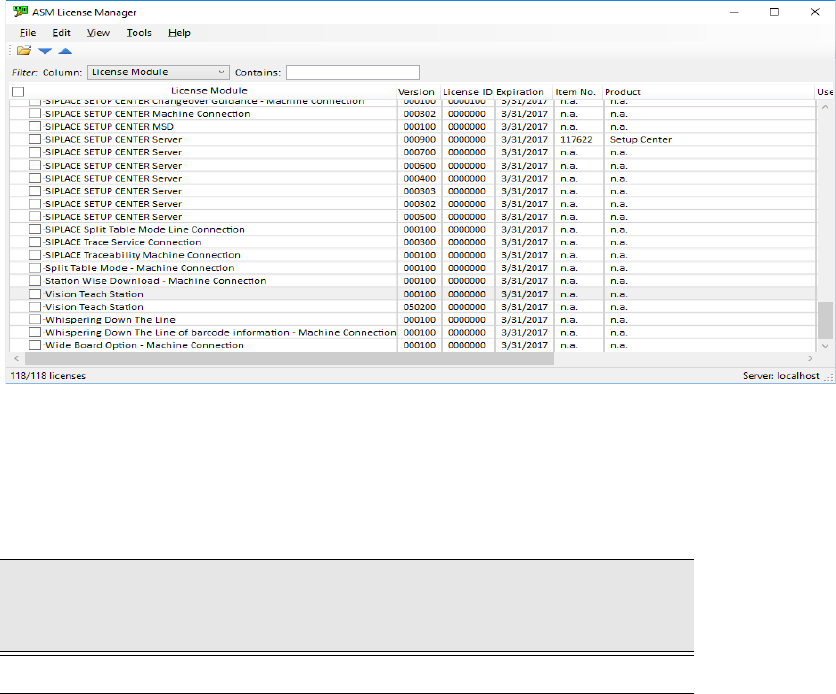

Fig. 7.3 - 3 License entry for the SIPLACE Vision Teach Station in the ASM License Manager
The SIPLACE Vision Teach Station can be ordered as a licensed software product with the
following data:
Tab. 7.3 - 3 Vision Teach Station with software license
Software
Vision Teach Station with
software license
Software package required
V5.x.x
SIPLACE Vision Teach Suite V5.x, item no. 00711258-xx
