AV131部品表(1) - 第106页
挿入ﾕﾆｯﾄ部( 1) INSERTION U NIT SECT.(1) 6 F10871-10-000 -AB_03-1 M87
PART NAME
REMARKS
Q'TY
5
挿入ﾍｯﾄﾞ部(5)
INSERTION HEAD SECT.(5)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
2022 108710902203
PIN ﾋ
ﾟﾝ
2
023 1087109023
SPRING ﾊﾞﾈ
4
024 108710902403
HOOK ﾌｯｸ
2025 1087109025
PIN ﾋﾟﾝ
1027 101770905503
BALL SCREW ﾎﾞ
ｰﾙﾈｼﾞ
1
028 101770905302
SLIDER ｽﾗｲﾀﾞ
1
029 101635701601
COLLAR ｶﾗｰ
1037 1087109037
PLATE ﾌ
ﾟﾚｰﾄ
1038 102460903701
PIN ﾋ
ﾟﾝ
1
041 1087109041
FRAME ﾌﾚｰﾑ
1043 N210071457AA
BRACKET ﾌﾞﾗｹｯﾄ
1044 1087109044
DOG FOR SENSOR ｾﾝｻﾄ
ﾞｸﾞ
1
047 1017709050
BLOCK ﾌﾞﾛｯｸ
1
049 108710904901
LEVER ﾚﾊﾞｰ
1052 104130906602
BUSHING ﾌﾞｯｼｭ
(MSMD5AZPJA) S
1
A013
N610052036AA
MOTOR ﾓｰﾀ
CF6R-A
2
N001
N531CF6RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
6,STEEL,P.C
2
N004
XUB6FP
RETAINING RING C-TYPE,SHAFT C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
PANADAC921SA1
3
N006
N310P921SA1
SENSOR ｾﾝｻ
F606ZZ
6
N012
KXF020KAA00
BALL BEARING ﾎﾞｰﾙ ﾍ
ﾞｱﾘﾝｸﾞ
NART10R-040010
1
N015
N531NART-016
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ
R-TW2040
2
N017
N560RTW2040
WASHER ｻﾞｶﾞﾈ
SFC-010WD-4.5B-8B
1
N028
N644SFC0-199
COUPLING ｶｯﾌ
ﾟﾘﾝｸﾞ
M6,SUS301,2-TYPE,S45C
1
N029
N510034069AA
LOCK-NUT ﾛｯｸﾅｯﾄ
87LFZB6-8
4
N041
N510024741AA
BUSHING ﾌﾞｯｼｭ
M86
FN610052012AA_00-5
挿入ﾕﾆｯﾄ部(1)
INSERTION UNIT SECT.(1)
6
F10871-10-000-AB_03-1
M87
PART NAME
REMARKS
Q'TY
6

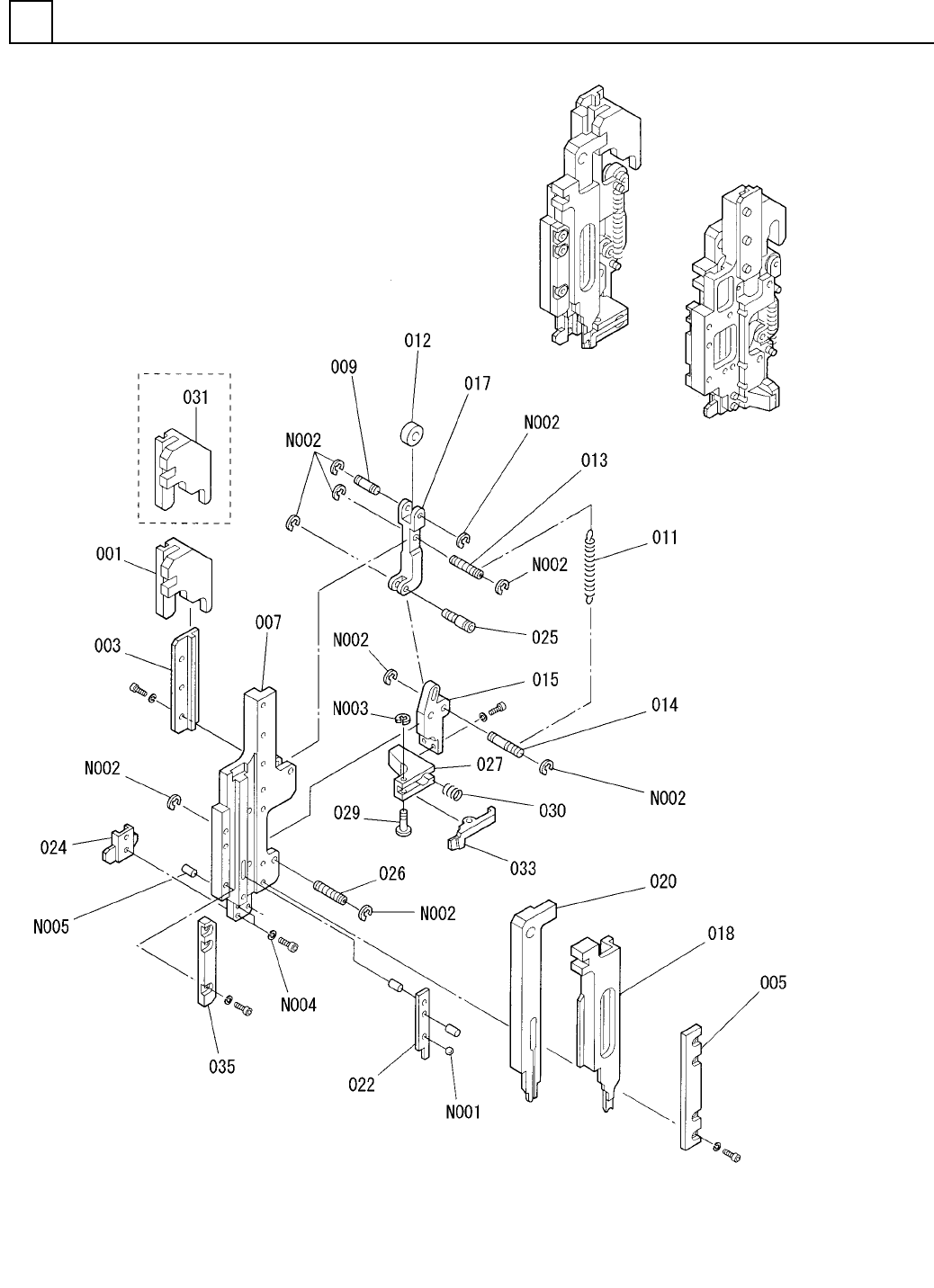

挿入ﾕﾆｯﾄ部(1)
INSERTION UNIT SECT.(1)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1 1087110000
INSERTION UNIT ｿｳﾆｭｳﾕﾆｯﾄ
1
001 102031200508
CAM(SLIDE) ｶﾑ(ｽﾗｲﾄﾞ)
1
003 102031203702
GUIDE ｶﾞｲﾄﾞ
1005 102031201302
PLATE(GUIDE) ﾌﾟﾚｰﾄ(ｶﾞｲﾄﾞ)
1007 N210044349AA
BASE(GUIDE) ﾍﾞ
ｰｽ(ｶﾞｲﾄﾞ)
1
009 1020312007
PIN ﾋﾟﾝ
1
011 N210065404AA
SPRING ﾊﾞﾈ
1012 1020312022
ROLLER ﾛｰﾗ
1013 1083510012
PIN ﾋ
ﾟﾝ
1
014 1020312024
PIN ﾋﾟﾝ
1015 108351000401
BLOCK(L) ﾌﾞﾛｯｸ(L)
1017 1083510010
LEVER ﾚﾊ
ﾞｰ
1
018 N210044353AA
PUSHER ﾌﾟｯｼｬ
1
020 1087110020
GUIDE ｶﾞｲﾄﾞ
1022 104131002202
CUTTER(LEFT) ｶｯﾀｰ(LEFT)
1024 N210044348AA
CUTTER(FIXED) ｶｯﾀｰ
(ｺﾃｲ)
1
025 1083510014
PIN ﾋﾟﾝ
1
026 1083510015
PIN ﾋﾟﾝ
1027 1041310028
BRACKET ﾌﾞﾗｹｯﾄ
1029 1020719803
PIN ﾋ
ﾟﾝ
1
030 1045418014
SPRING ﾊﾞﾈ
1
031 1020312050
CAM(SLIDE) ｶﾑ(ｽﾗｲﾄﾞ)
1033 N210028285AA
BENDING DIE ﾍﾞﾝﾃ
ﾞｨﾝｸﾞﾀﾞｲ
1035 104131003701
PLATE(GUIDE) ﾌﾟﾚｰﾄ(
ｶﾞｲﾄﾞ)
D3
1
N001
N506D3
STEEL BALL ｺｳｷｭｳ
3,STEEL,P.C
9
N002
XUC3FP
RETAINING RING E-TYPE E ｶﾞﾀﾄﾒﾜ
1.5,STEEL,P.C
1
N003
XUC15FP
RETAINING RING E-TYPE E
ｶﾞﾀﾄﾒﾜ
M3
2
N004
N986YYYY-186
WASHER ｻﾞｶﾞﾈ
2X5,m6A,STEEL
1
N005
XPJ2A5FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
M88
F10871-10-000-AB_03-1
