9. For Head #2 ~ Head #6, perform calibration in the same manner as it was
performed for Head #1.

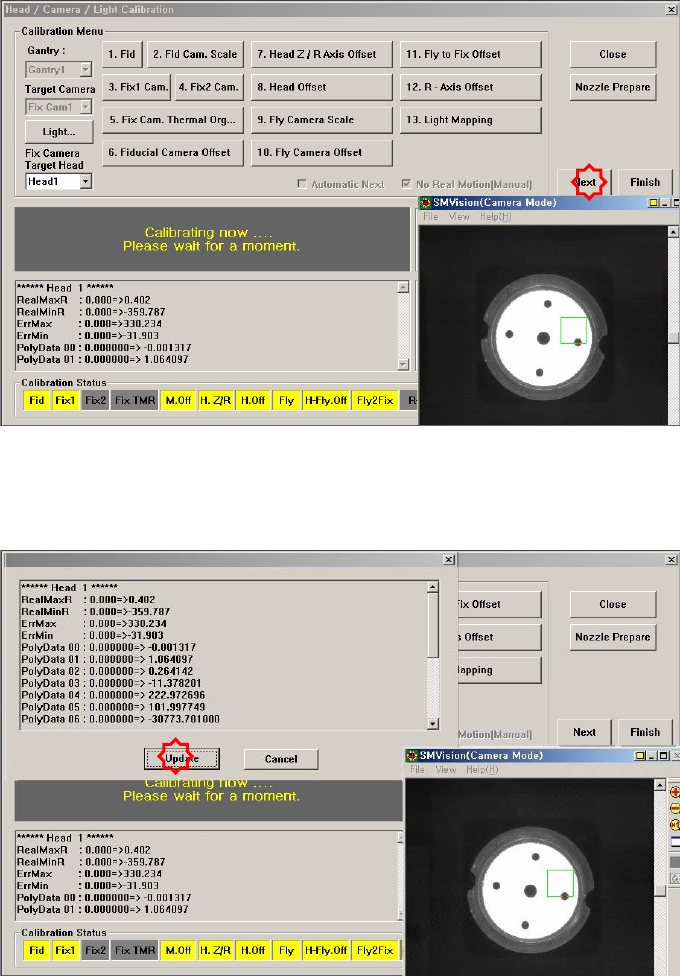

10. If the calibration procedure is completed for all heads normally, the result is
displayed as shown in the following figure.
The measurement result can be confirmed in the R Axis dialog box.
The reference values for the calibration of the R-Axis Offset is as follows.
Real Max(Min): The Max.(Min.) offset between command value and
calibration value
Head1~Head6 : -0.500 ~ 0.500(deg)
Err Max(Min) The Max.(Min.) offset between compensation value and
calibration value
Head1~Head6 : -0.200 ~ 0.200(deg)
"Memo
1.2.10.9. Light Mapping
Calibrate the brightness of the illumination for the fly camera and fix camera. In
order to perform this calibration, insert the LightFly or LightFix nozzle into the No.
1 nozzle of the ANC.
Caution
Since the nozzle for the SM32x model is not compatible to
the one for the light mapping used for the SM32x model,
do not use it for this machine.
<Select Camera> combo box
Since the fiducial camera does not apply light mapping, select the camera to be
calibrated.
Repeat the same action for all fly cameras and Fix Camera.
Light Level Group
Sets the brightness by light level.
<Level> Column
Dislays 16 steps of lighting.
<Side> Column
à For the fly camera, input the side illumination value within the range
of 256 values.
à For the fix camera, input the side illumination value within the range
of 4096 values.
<Outer> Column
à For the fly camera, input the side illumination value within the stage of
256 values.
à For the fix camera, input the side illumination value within the stage of
Light Level
group
