Electric Device ① BRAC KET 조립 SCREW M4*8 으 로 2 개 소 체결 ② CONV EYO R BOAR D 체결 SCRE W M3*6 으로 6 개소 체결 우측면 후면 후면 우측부 ③ Feed er IO BOAR D 체 결 SCRE W M3*6 으로 2 개소체 결 SUPP ORT M3*3 0 4개소 체 결 ④ Feed er IO Exte nti on BOAR D 체 결…
Electric Device
3. In order to remove the feeder control board, unscrew the bolts (6 sets) of the
internal covers at the left and right sides of the machine in the following figure
by using a screw driver with a ‘+’ shaped tip and remove the covers.
4. Remove the connector connected to the corresponding board.
부착 위치 - 전면기준
①
BRACKETT 조립
SCREW
M4*8으로 2개소체결
②
BOARD 체결
SUPPORT
SCREW
M3*6으로 체결
M3*6
2개소 M4*8 "I" 마킹
Feeder Control Board Location
2sets
Marking “I”
Location of Board
Secure the Board
With Screw(M3-6 sets)
Secure the Bracket
With Screw(M4-2sets)
Electric Device
①
BRACKET 조립
SCREW
M4*8으로 2개소 체결
② CONVEYOR BOARD 체결
SCREW M3*6으로 6개소 체결
우측면 후면
후면 우측부
③ Feeder IO BOARD 체결
SCREW M3*6으로 2개소체결
SUPPORT M3*30 4개소 체결
④ Feeder IO ExtentionBOARD 체결
SCREW M3*6으로 4개소체결
M3*6
M3*30
2개소 M4*8 "I" 마킹
②보드부착- SCREW
M3*6으로 4개소체결
M3*6
5. Unscrew the fixing screws to remove the corresponding board by using the
screw driver and replace it.
6. The assembling is performed in the reverse order of disassembling.
Conveyor Sub I/F Board
CAN CONVEYOR BOARD FEEDER CONTROL BOARD
At the Right of the
Rea
r
1. Assemble the Bracket
By Using Screws(M4-2sets)
2. Assemble the Conveyor Board
By Using Screws(M3-6sets)
3. Secure the I/O Board
By Using Screws(M3-2sets)
And Supports(M3- 4 sets)
4. Secure the I/O Extension Board
By Using Screws(M3-4sets)
M4-8mm 2sets
Marking “I”
Assemble the Board by using screws(M3-4sets)
Electric Device
7. Turn on the main switch on the front side of the machine and perform
operation test relating to the corresponding board to check if it operates
properly.
3.5.5. Rear Lower Part

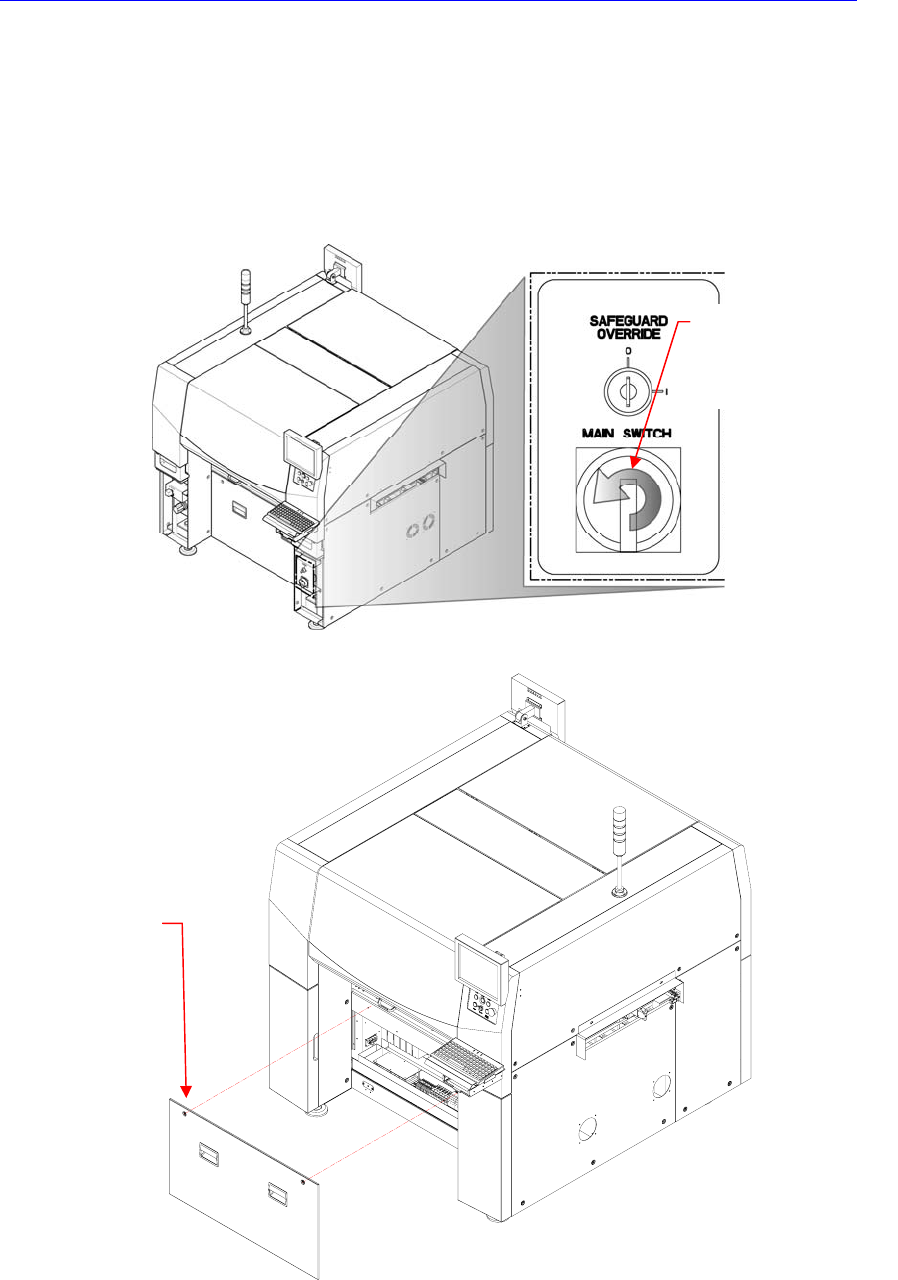

1. Turn Off the PC in normal way. Then turn off the main switch on the front side
of the machine.
2. Remove the rear cover of the machine by using the screw driver.
Direction in which the
main switch is turned
off (counterclockwise)
Cover bolt positions (2
places)
