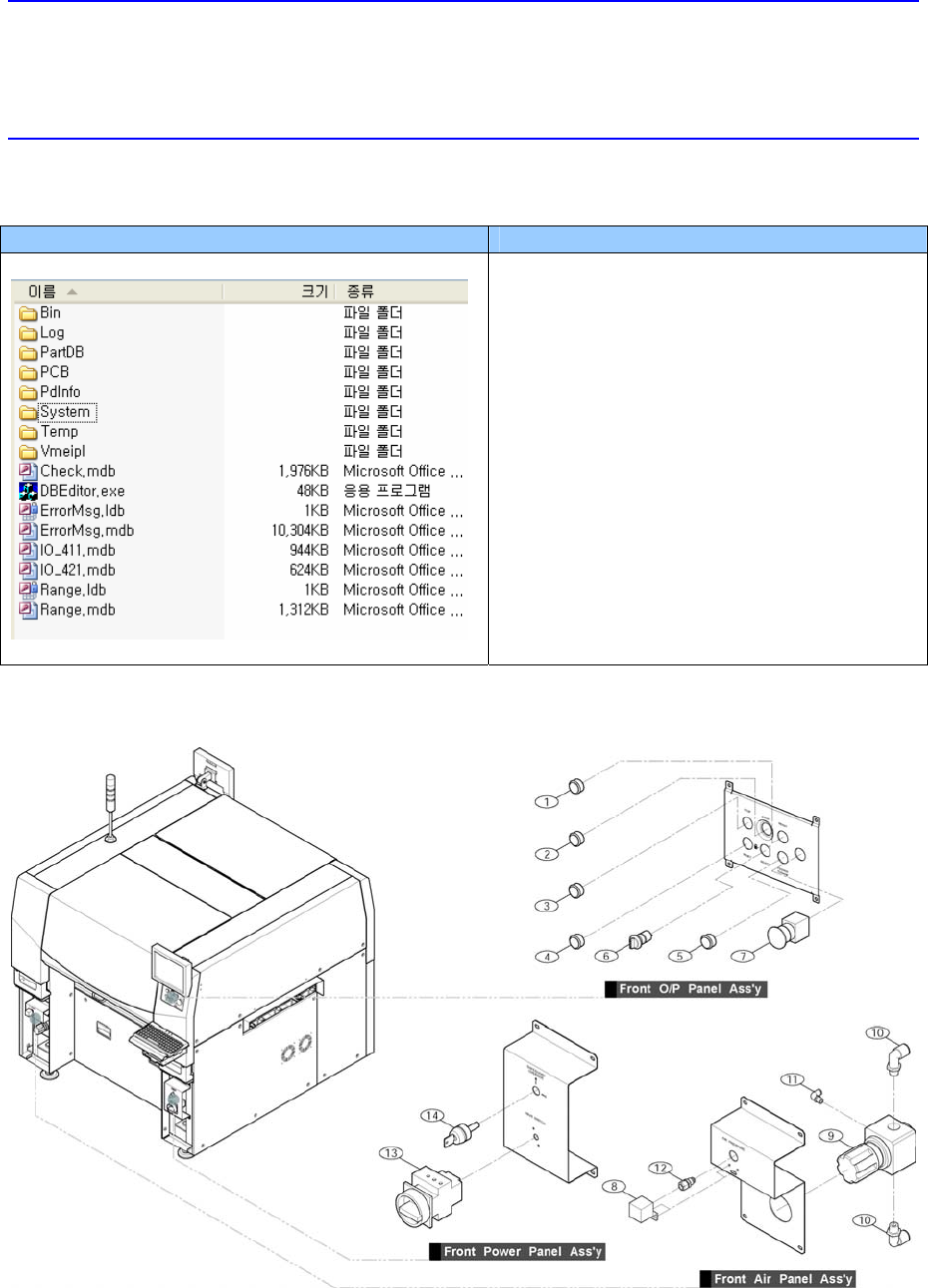

4.2. Required Materials for Function Panel Assembly
4.2.1. Front Function Panel Assembly
SW & Control Part
Chapter 1. Software
█ SM400 S/W file structure
Path Contents
C:₩SmartSM
SmartSM)
- DBEditor.exe: mdb(DB) edit file
- ErrorMsg.mdb: Error Code and its
message Database file
- Range.mdb: Item별 Min/Max/Default
Value
Database file
NO. PART NO. PART NAME Q’TY
TYPE REMARK
1 J3403085A READY SWITCH ASS'Y 1 61-1100.0(CLEAR) FRONT, REAR COMMON
J3403050A ILLUMINATED PUSHBUTTON ACTUATOR
1
61-1100.0
FRONT, REAR COMMON
J0601040A
LED(DC24V,YEL)
1
10-5312.3134
FRONT, REAR COMMON
J3403051A
FRONT BEZEL-SET
1
61-9933.0
FRONT, REAR COMMON
J3403065A
SWITCHING ELEMENT (2A)
1
61-8420.12
FRONT, REAR COMMON
J34091004A
LENS PLASTIC,CLEAR
1
61-9642.7
FRONT, REAR COMMON
2 J3403078A START SWITCH ASS'Y 1 61-1100.0(GREEN) FRONT, REAR COMMON
J3403050A ILLUMINATED PUSHBUTTON ACTUATOR
1
61-1100.0
FRONT, REAR COMMON
J0601042A
LED (DC24V,GREEN)
1 10-5312.3135 FRONT, REAR COMMON
J3403049A
SWITCHING ELEMENT
1
61-8410.12
FRONT, REAR COMMON
J3403051A
FRONT BEZEL-SET
1
61-9933.0
FRONT, REAR COMMON
J6739090A LENS PLASTIC,GREEN
1 61-9642.5 FRONT, REAR COMMON
3 J3403079A STOP SWITCH ASS'Y 1 61-1100.0(RED) FRONT, REAR COMMON
J3403050A ILLUMINATED PUSHBUTTON ACTUATOR
1
61-1100.0
FRONT, REAR COMMON
J0601041A
LED (DC24V, RED)
1 10-5312.3132 FRONT, REAR COMMON
J3403049A
SWITCHING ELEMENT
1
61-8410.12
FRONT, REAR COMMON
J3403051A
FRONT BEZEL-SET
1
61-9933.0
FRONT, REAR COMMON
J6739088A LENS PLASTIC,RED
1
61-9642.2
FRONT, REAR COMMON
4 J3403080A RESET SWITCH ASS'Y 1 61-1100.0(YEL) FRONT, REAR COMMON
J3403050A ILLUMINATED PUSHBUTTON ACTUATOR
1
61-1100.0
FRONT, REAR COMMON
J0601040A LED(DC24V,YEL)
1
10-5312.3134
FRONT, REAR COMMON
J3403049A
SWITCHING ELEMENT
1
61-8410.12
FRONT, REAR COMMON
SW & Control Part
Chapter 1. Software
█ SM400 S/W file structure
Path Contents
C:₩SmartSM
SmartSM)
- DBEditor.exe: mdb(DB) edit file
- ErrorMsg.mdb: Error Code and its
message Database file
- Range.mdb: Item별 Min/Max/Default
Value
Database file
NO. PART NO. PART NAME Q’TY
TYPE REMARK
J3403051A
FRONT BEZEL-SET
1
61-9933.0
FRONT, REAR COMMON
J3403064A
LENS PLASTIC,YELLOW 1 61-9642.4 FRONT, REAR COMMON
5 J3403086A FEEDER CHANGE SWITCH ASS'Y 1 61-1100.0(CLEAR) FRONT, REAR COMMON
J3403050A ILLUMINATED PUSHBUTTON ACTUATOR
1
61-1100.0
FRONT, REAR COMMON
J0601040A LED(DC24V,YEL)
1
10-5312.3134
FRONT, REAR COMMON
J3403049A
SWITCHING ELEMENT
1
61-8410.12
FRONT, REAR COMMON
J3403051A
FRONT BEZEL-SET
1
61-9933.0
FRONT, REAR COMMON
J34091004A
LENS PLASTIC,CLEAR
1
61-9642.7
FRONT, REAR COMMON
6 J3403081A SELECT SWITCH ASS'Y 1 61-8520.12(SELECT)
FRONT, REAR COMMON
J3403052A FRONT BEZEL-SET
1
61-9932.0
FRONT, REAR COMMON
J3403073A SWITCHING ELEMENT
1
61-8520.12
FRONT, REAR COMMON
J3403074A SELECT SWITCH
1
61-4810.0
FRONT, REAR COMMON
J3403075A LEVER
1
61-9028.50
FRONT, REAR COMMON
7 J3403082A EMERGENCY SWITCH ASS'Y 1 704.075.2(EM) FRONT, REAR COMMON
J3409020A
EMERGENCY S/W
1
704.075.2
FRONT, REAR COMMON
J3409021A
EM S/W (2B)
1
704.900.4
FRONT, REAR COMMON
8
J67101002A DIGITAL_GAGE
1
PS30-103R-N
9
J6709012A
REGULATOR
1
TAR4000-04
10
J1301187
ELBOW FITTING
2
PL12-04
11
J6711028A
ELBOW FITTING
1
KQ2L04-01
12
J6711147A
STRAIGHT FITTING
1
KQ2H04-M5
13
J3406005A
LOAD SWITCH
1
PI-25
