4.3.1.1. Required tools
Screw driver with “+” shaped tip and screw driver with “-” shaped tip
T Wrench or Hex Wrench
4.3.1.2. Power supply replacement procedure

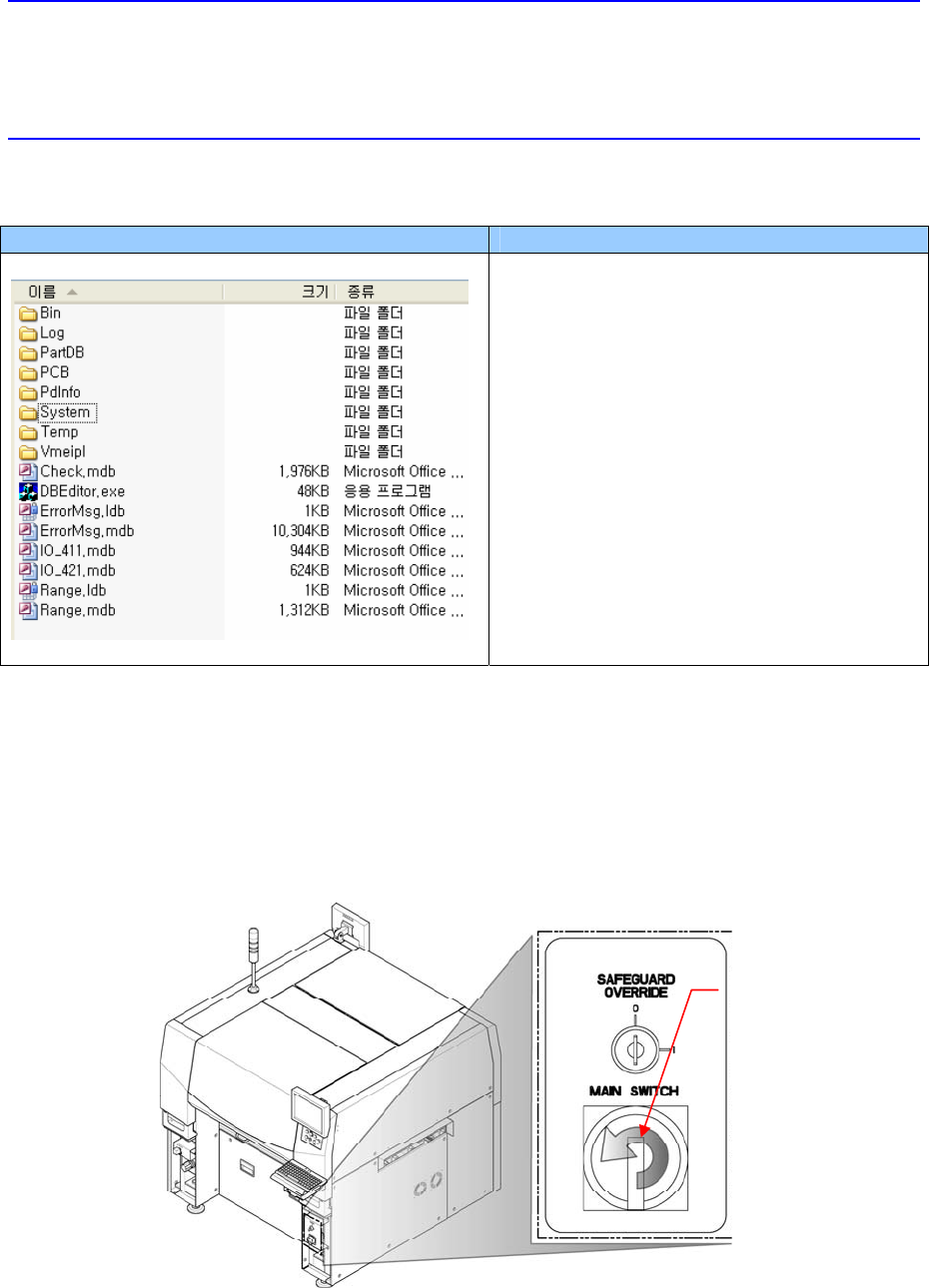

1. Turn Off the PC in normal way. Then turn off the main switch on the front side of the
machine.
Direction in which the
main switch is turned off
(counterclockwise)
SW & Control Part
Chapter 1. Software
█ SM400 S/W file structure
Path Contents
C:₩SmartSM
SmartSM)
- DBEditor.exe: mdb(DB) edit file
- ErrorMsg.mdb: Error Code and its
message Database file
- Range.mdb: Item별 Min/Max/Default
Value
Database file

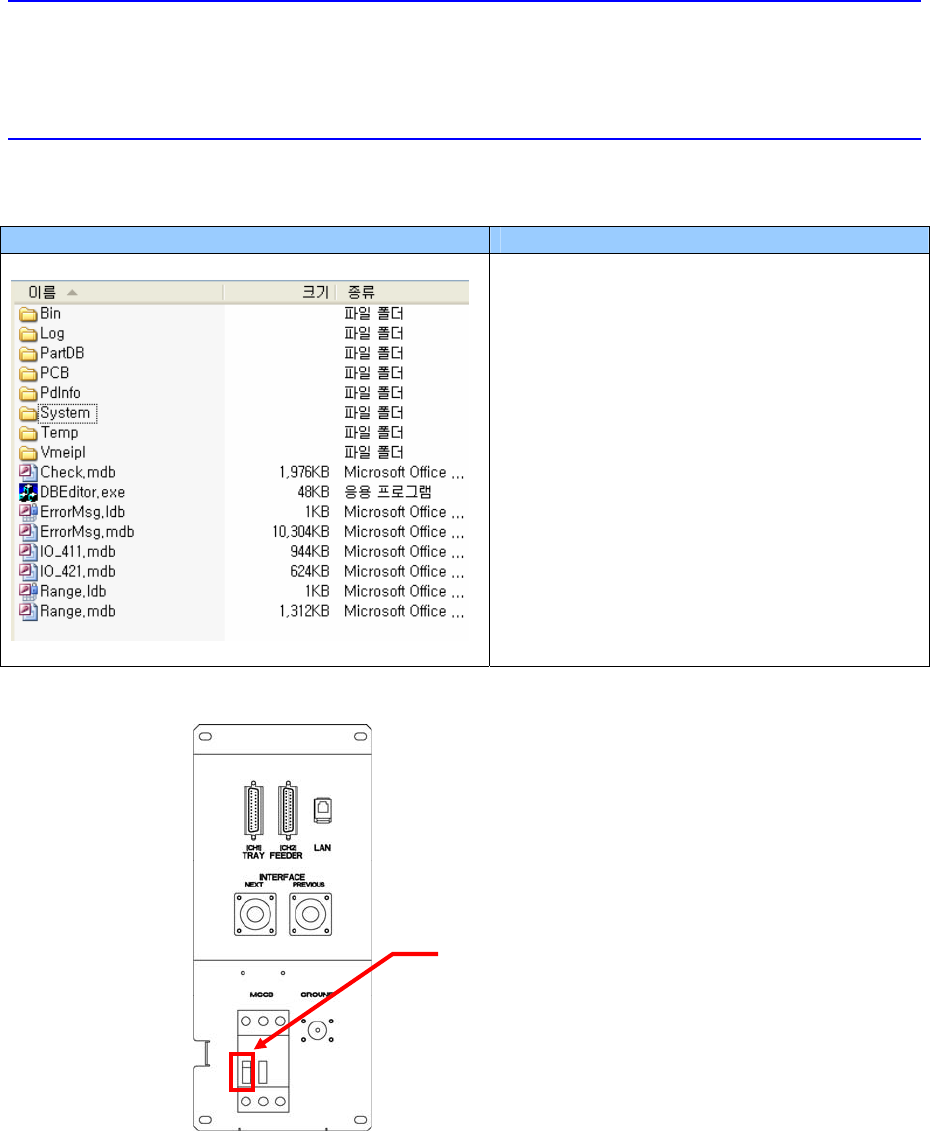

2. Turn off the power supply completely by turning off the MCB on the rear side of the
machine.
OFF
Main Circuit Breaker
SW & Control Part
Chapter 1. Software
█ SM400 S/W file structure
Path Contents
C:₩SmartSM
SmartSM)
- DBEditor.exe: mdb(DB) edit file
- ErrorMsg.mdb: Error Code and its
message Database file
- Range.mdb: Item별 Min/Max/Default
Value
Database file

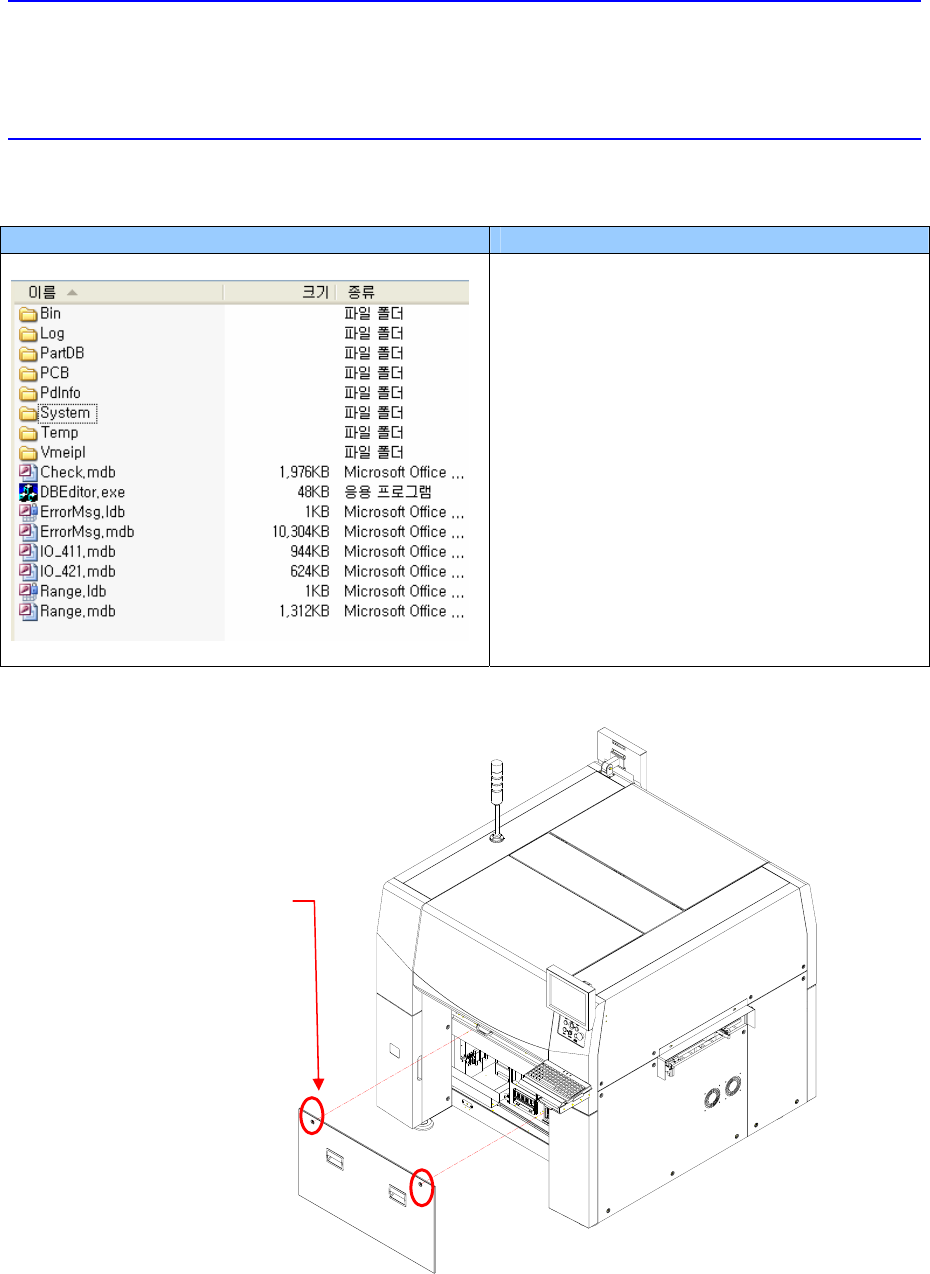

3. Remove the front cover of the machine using the “+” shape tipped screw driver.
Cover bolt positions (2
places).
