SW & Control Part Chapter 1. Sof tware █ SM400 S/W file structure Path Contents C:₩SmartSM SmartSM) - DBEditor.exe : mdb(DB) edit file - ErrorMsg.mdb : Error Code and its message Database file - Range.mdb : Item별 Min…
SW & Control Part
Chapter 1. Software
█ SM400 S/W file structure
Path Contents
C:₩SmartSM
SmartSM)
- DBEditor.exe: mdb(DB) edit file
- ErrorMsg.mdb: Error Code and its
message Database file
- Range.mdb: Item별 Min/Max/Default
Value
Database file

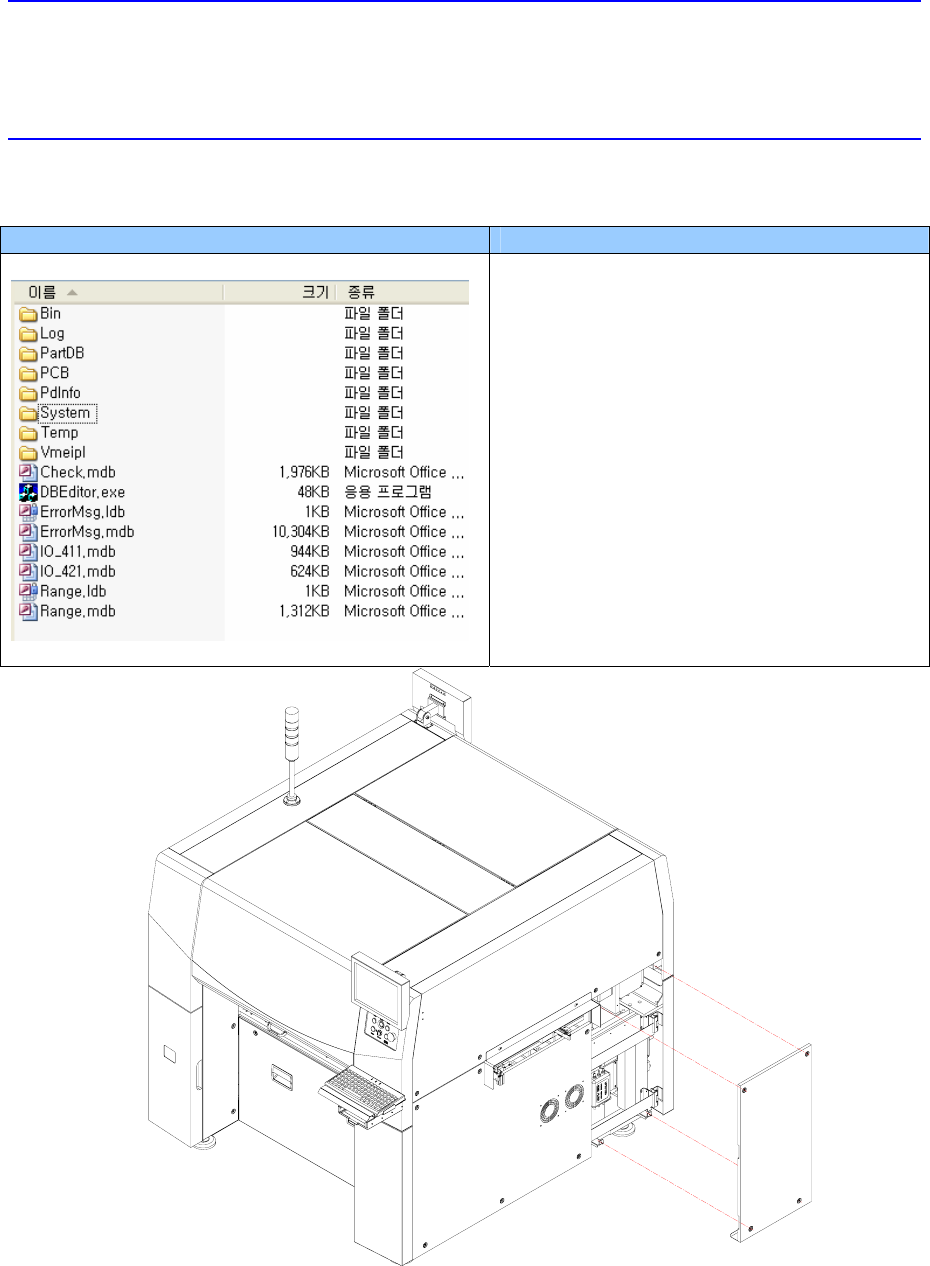

3. Unscrew the bolts (4 sets) of the cover at the right side of the machine by using a
screw driver with a ‘+’ shaped tip and remove the cover.
OFF
Main Circuit Breaker
SW & Control Part
Chapter 1. Software
█ SM400 S/W file structure
Path Contents
C:₩SmartSM
SmartSM)
- DBEditor.exe: mdb(DB) edit file
- ErrorMsg.mdb: Error Code and its
message Database file
- Range.mdb: Item별 Min/Max/Default
Value
Database file
4. Disconnect the cable connected to the noise filter.
SW & Control Part
Chapter 1. Software
█ SM400 S/W file structure
Path Contents
C:₩SmartSM
SmartSM)
- DBEditor.exe: mdb(DB) edit file
- ErrorMsg.mdb: Error Code and its
message Database file
- Range.mdb: Item별 Min/Max/Default
Value
Database file
5. Remove the defective noise filter and replace it with new one.
6. Assemble the Requirement Materialslist and Main Body Assembly Procedure
자재번호 품명 규격 수량 단위
J29011001A
NOISE FILTER UF20TBH 1 PC
J29011002A
NOISE FILTER PC UF55BS 1 PC
J6012501038
TRUSS SCREW M5*10 4 PC
J6012400850
TRUSS SCREW M4*8 2 PC
210-05
REAR POWER PANEL 본 체조립
J6012501038
TRUSS SCREW M5*10 4 PC
■소요부품LIST
Required Materials
PART NO. PART NAME TYPE
Q’TY
REMARK
