SW & Control Part
Chapter 1. Software
█ SM400 S/W file structure
Path Contents
C:₩SmartSM
SmartSM)
- DBEditor.exe: mdb(DB) edit file
- ErrorMsg.mdb: Error Code and its
message Database file
- Range.mdb: Item별 Min/Max/Default
Value
Database file

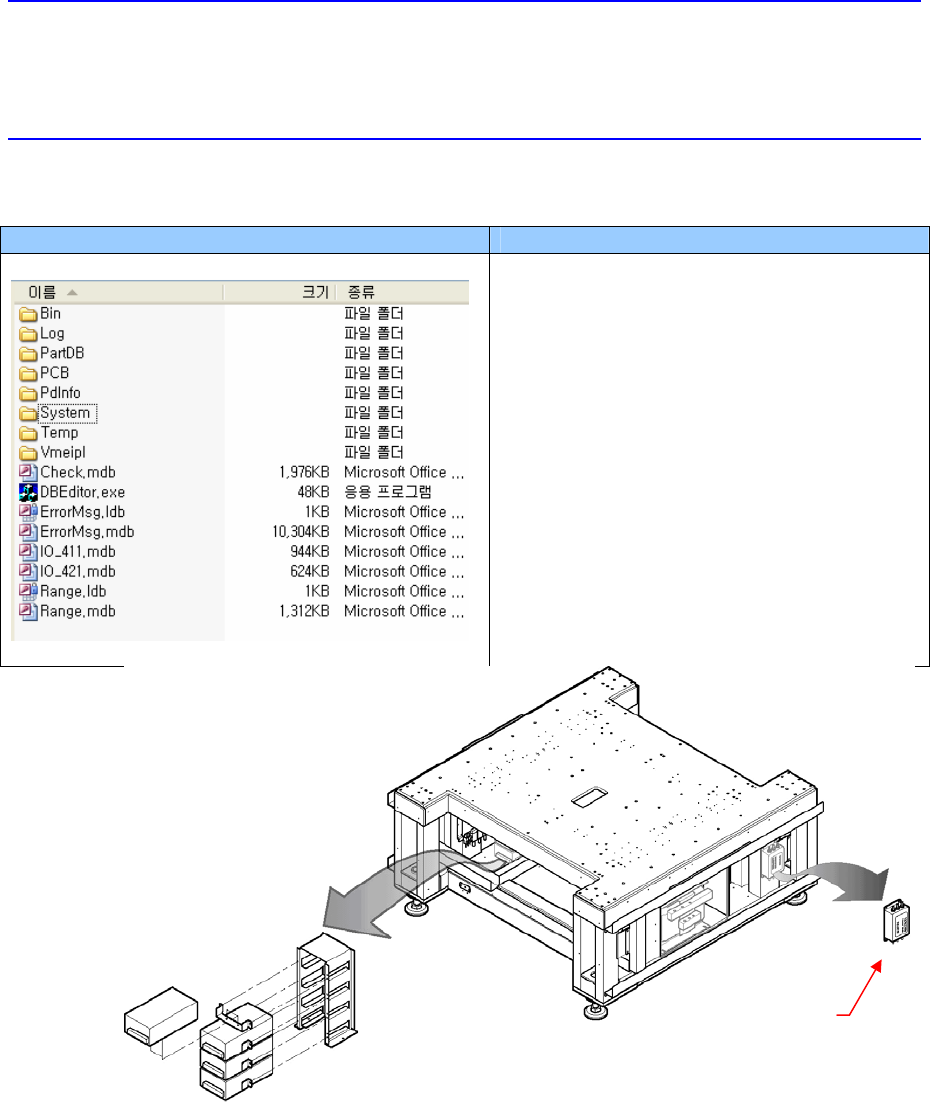

5. Remove the defective noise filter and replace it with new one.
6. Assemble the Requirement Materialslist and Main Body Assembly Procedure
자재번호 품명 규격 수량 단위
J29011001A
NOISE FILTER UF20TBH 1 PC
J29011002A
NOISE FILTER PC UF55BS 1 PC
J6012501038
TRUSS SCREW M5*10 4 PC
J6012400850
TRUSS SCREW M4*8 2 PC
210-05
REAR POWER PANEL 본 체조립
J6012501038
TRUSS SCREW M5*10 4 PC
■소요부품LIST
Required Materials
PART NO. PART NAME TYPE
Q’TY
REMARK
SW & Control Part
Chapter 1. Software
█ SM400 S/W file structure
Path Contents
C:₩SmartSM
SmartSM)
- DBEditor.exe: mdb(DB) edit file
- ErrorMsg.mdb: Error Code and its
message Database file
- Range.mdb: Item별 Min/Max/Default
Value
Database file
N
oise Filte
r
SW & Control Part
Chapter 1. Software
█ SM400 S/W file structure
Path Contents
C:₩SmartSM
SmartSM)
- DBEditor.exe: mdb(DB) edit file
- ErrorMsg.mdb: Error Code and its
message Database file
- Range.mdb: Item별 Min/Max/Default
Value
Database file

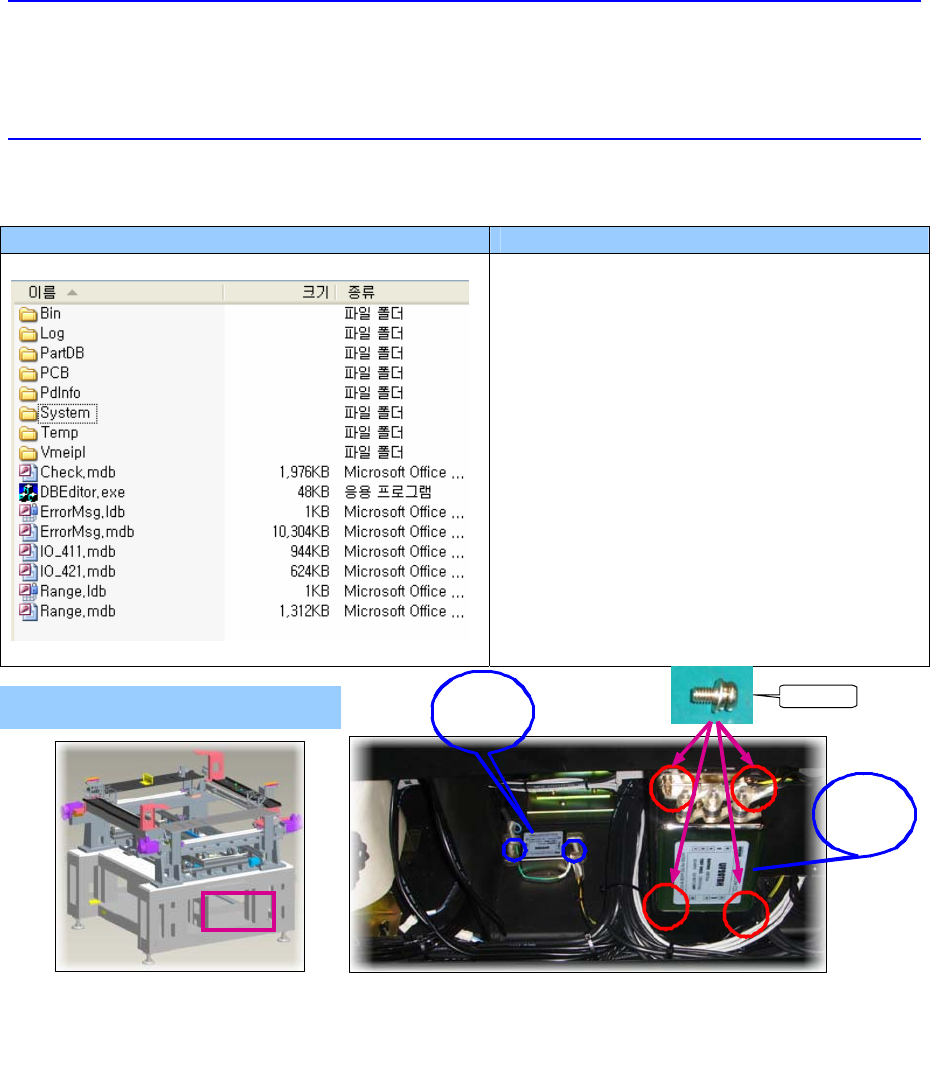

NOISE FILTER 본체조립
NOISE FILTER 위치
① NOISE FILTER 체결
J29011001A : UF20TBH - SCREW M5*10 4개소 체결
J29011002A : UF55BS - SCREW M4*8 2개소 체결
NF1
UF20TBH
NF2
UF55BS
M4*8
7. The assembling is performed in the reverse order of disassembling.
Assemble the Noise Filter to the main body
Location of Noise Filter
Secure the Noise Filter
Secure the Screw(M5-4sets)
Secure the Screw(M4-2sets)
