Main parts of work zone assy. 13 Lead screw synchronous belt Belt driving motor Stopper Width trimming motor (SM411) Specification Long When using dual lane When using single lane Remarks Max. PCB 610L*250W 610L*460W Min…

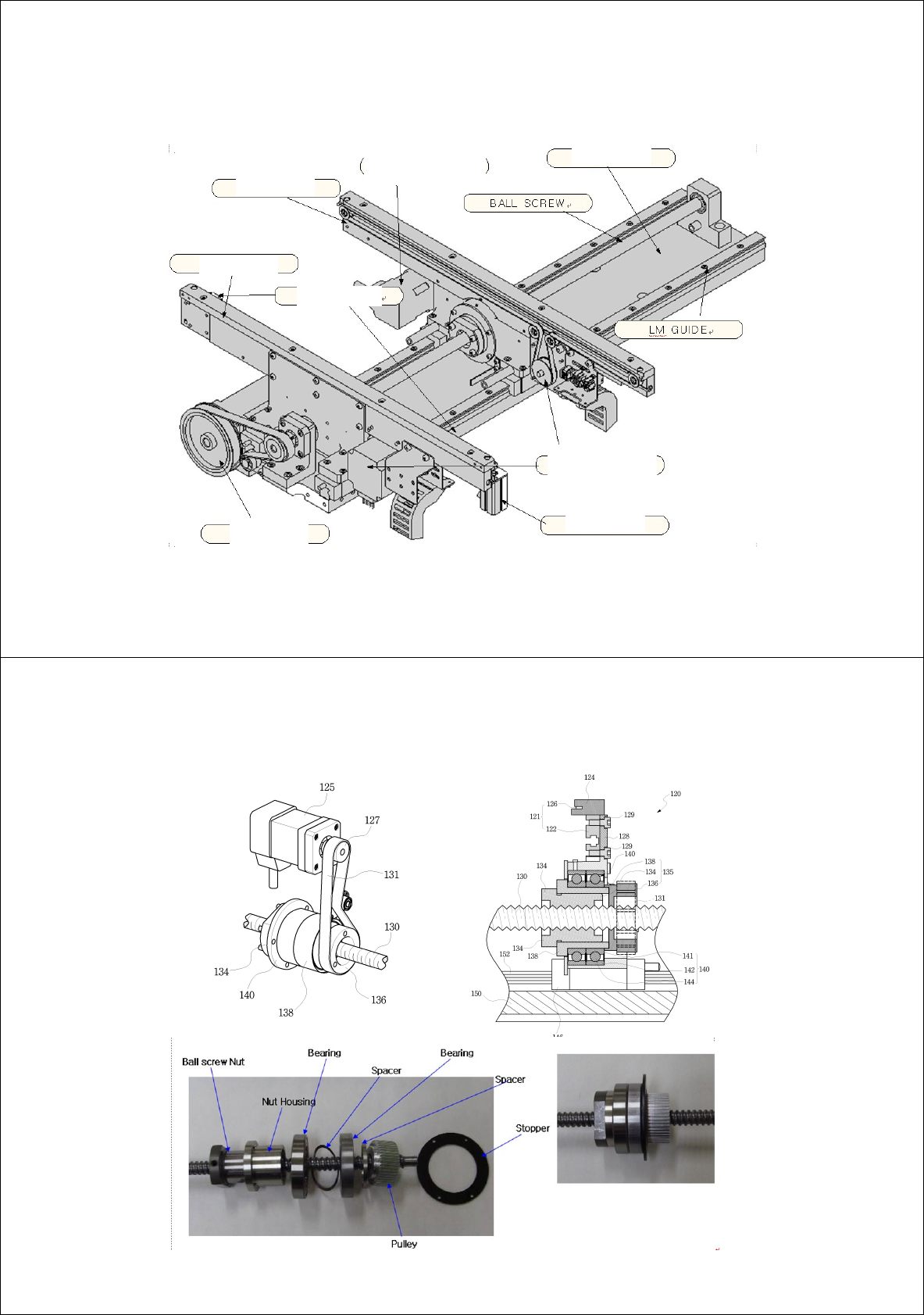

Entry and exit shuttle assy.
11
Rear rail
Front rail
PCB sensor
Shuttle base
Width trimming
driving part
Transfer belt
driving part
Shuttle
driving part
PCB stopper
(SM411)
Width trimming of shuttle and composition of
shuttle driving part’s ball screw
12
(SM411)

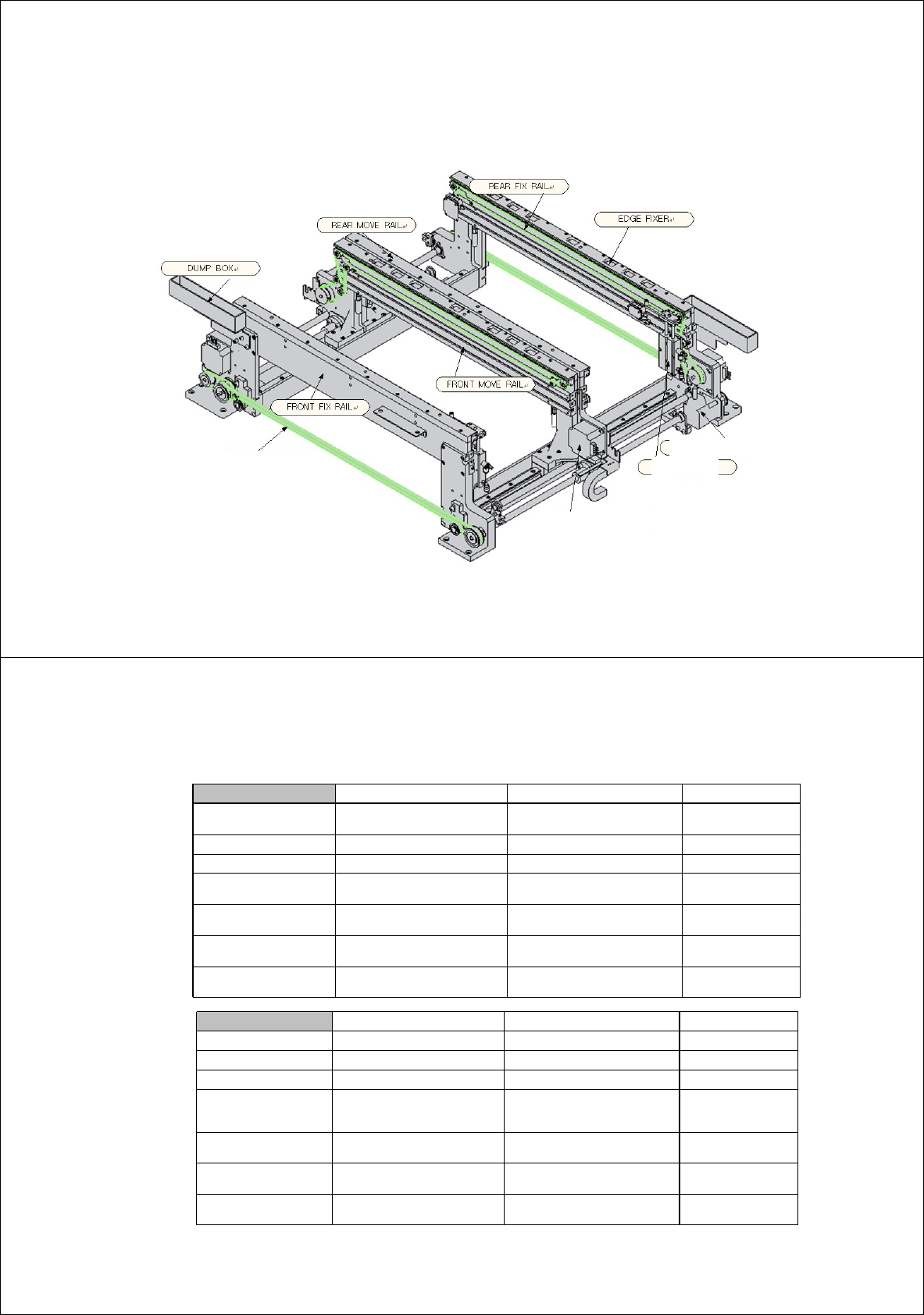

Main parts of work zone assy.
13
Lead screw
synchronous belt
Belt driving motor
Stopper
Width trimming motor
(SM411)
Specification
Long When using dual lane When using single lane Remarks
Max. PCB 610L*250W 610L*460W
Min. PCB 50L*40W 50L*40W
Transformable PCB load ~2Kg ~2Kg
Corresponding range of
PCB thickness
0.38~4.2mm 0.38~4.2mm
Size including PCB
bending
Part corresponding
clearance
Top 15mm, Bottom 25mm Top 15mm, Bottom 25mm
Max. design speed of belt 256~508 mm/sec 256~508 mm/sec
Variable according to
PCB weight
Position compensation
device
Edge fixer Edge fixer
Standard When using dual lane When using single lane Remarks
Max. PCB 460L*250W
510L*460W (Buffer unavailable)
460L*460W (Buffer available)
Min. PCB 50L*40W 50L*40W
Transformable PCB load ~2Kg ~2Kg
Corresponding range of
PCB thickness
0.38~4.2mm 0.38~4.2mm
Size including PCB
bending
Part corresponding
clearance
Top 15mm, Bottom 25mm
Top 15mm, Bottom 25mm
Max. design speed of belt 256~508 mm/sec 256~508 mm/sec
Variable according to
PCB weight
Position compensation
device
Edge fixer Edge fixer
14
(SM411)

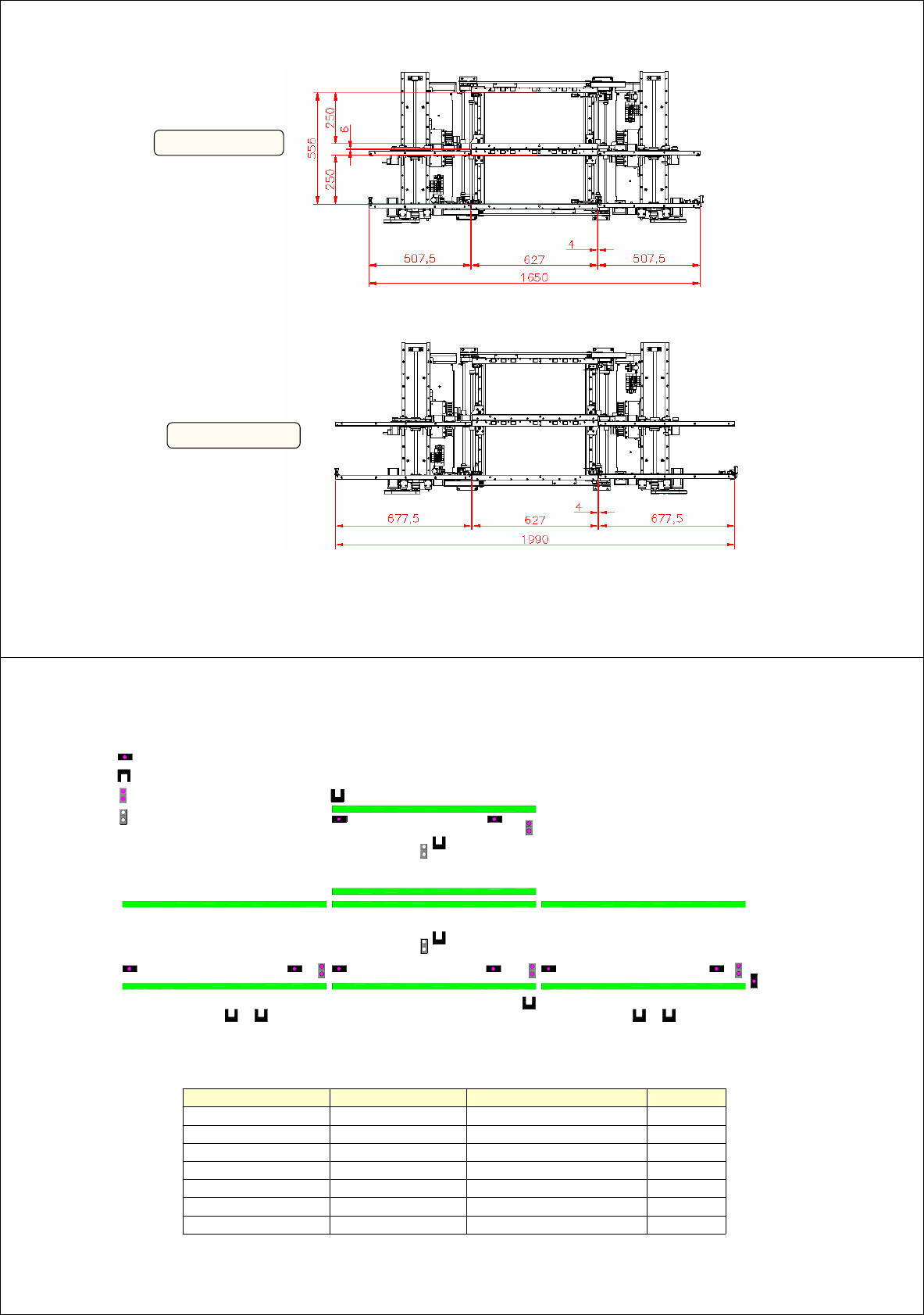

치수
Standard
Long option
15
(SM411)
센서 및 실린더 배치
ENTRY STP
: Cylinder without sensor
F-WORK STP
F-WRK SNS 1
F-WRK SNS 2 EXT SNS 2
EXT SNS 1
EXT STP
BD OUT SNS
R-WRK SNS 1
R-WRK SNS 2
R-WORK STP
F-WRK HOME SNS
R-WRK HOME SNS
BUT CYL
BUT CYL
BUT UP SNS
BUT UP SNS
ENT WIDTH HOME SNSENT STL HOME SNS EXT STL HOME SNS EXT WIDTH HOME SNS
: Cylinder & Up Down Sensor
: PCB감지 Sensor
: Home Sensor
LEGEND
ENT SNS 1
ENT SNS 2
Part name Standard
Function
Maker
PHOTOELECTRIC SENSOR BYD30-DDT PCB sensor of inlet and outlet shuttle AUTONICS
PHOTO SENSOR E3S-LS3N PCB sensor of work zone OMRON
PHOTO SENSOR EE-SX670A Home sensor of width related axis OMRON
PHOTO SENSOR EE-SX672A Home sensor of shuttle axis OMRON
CYLINDER CQ2B6-2-CJK2341 Edge fixer cylinder SMC
CYLINDER ADR10-30-W13L-R7038 PCB stopper cylinder of placement area TPC
CYLINDER AQ2A12-30D PCB stopper cylinder of shuttle area TPC
16
PCB sensor
