9. In the <Home Offset> edit box of the ‘System Axis Home & Limit Info.’ dialog box, input the value that was obtained after subtracting “180” from the mirror value in the ‘Position’ dialog box in the above fig…

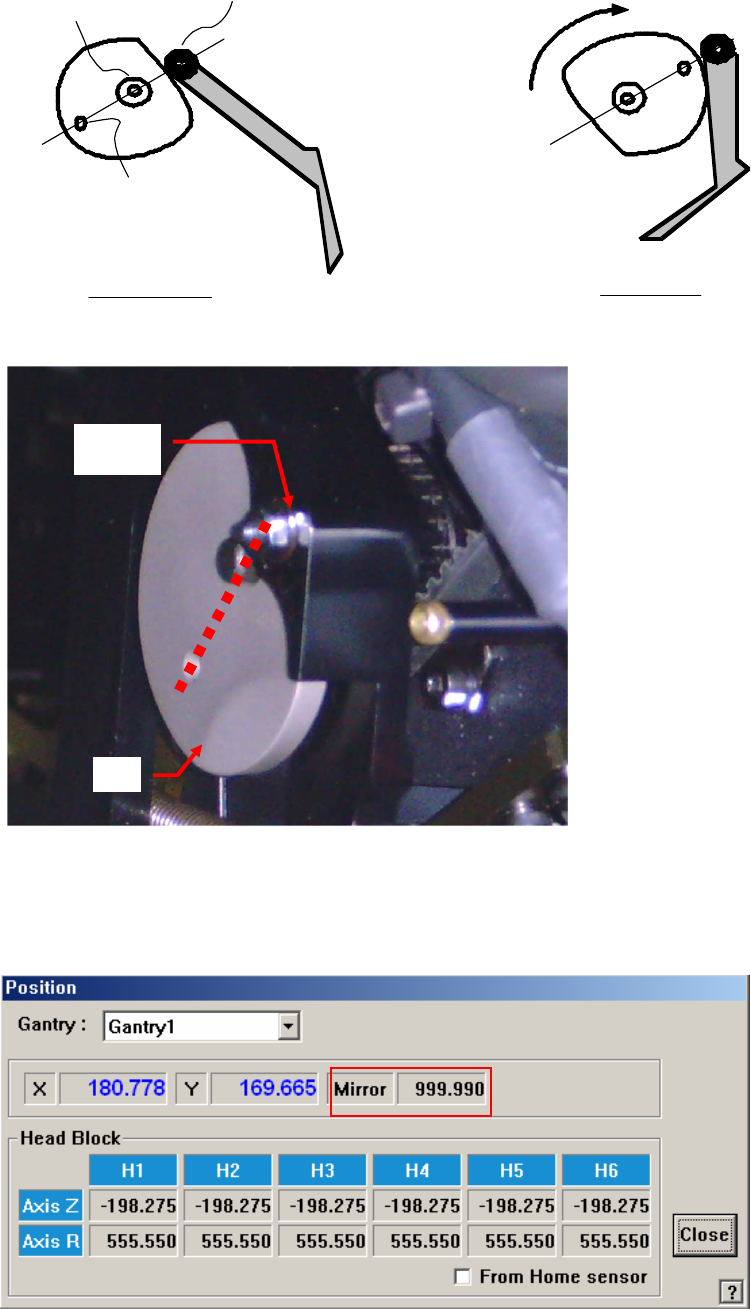

180˚Position
Home Position
Idler wheel
Driving axis
Mark
Swing Mirror
Cam
6. Check if the centers of the 3 circles are aligned by using a general ruler.
7. Ensure safety when performing visual checking. At this time, the
corresponding user must manipulate the machine.
8. Check the mirror data displayed in the ‘Current Position’ dialog box. Then,
measure and input the offset values as shown in the following figure.
Cam
Followe
r
Ca
m
9. In the <Home Offset> edit box of the ‘System Axis Home & Limit Info.’
dialog box, input the value that was obtained after subtracting “180” from the
mirror value in the ‘Position’ dialog box in the above figure.
10. After finishing the input, click the <Update> button to reflect the changed
value.
11. Then select “No (N)” when prompted by the screen asking whether to perform
the homing of the machine.
12. Perform homing of the machine by using the teaching box.
1
2
1.2. Calibration [F9]
Used to perform calibrations related with the XY Gantry, Conveyor and camera.
The order in which the calibration is performed and the calibration tool needed to
perform the corresponding calibration is as follows;
Axis Home Calibration
Skew Compensation
Fiducail Camera Scale Calibration
Common X-Y (1
st
)
Conveyor Calibration
X-XY Compensation – Calibration Bar
Common X-Y (2
nd
)
Thermal Mapping
Gantry Mapping
ANC Fiducial Mark Teaching
Head & Camera Calibration - CN040, LightFly Nozzle, LightFly Nozzle,
CNT20
Board Position
