manner as it was performed for Fly-Camera #1. 11. If the calibration procedure is completed for all fly-cameras normally , the result is displayed as shown in the following figure. Click the <Update> button to appl…
CNT20 nozzle that is seen in the ‘SMVision’ window can be seen clearly.
6. Then the message “Align Tool for Calibration! Then Click [Next]” appears.
Click the <Next> button..
7. Then the Z-axis of Head1 moves up to the ‘‘part-alignment height’’ and the

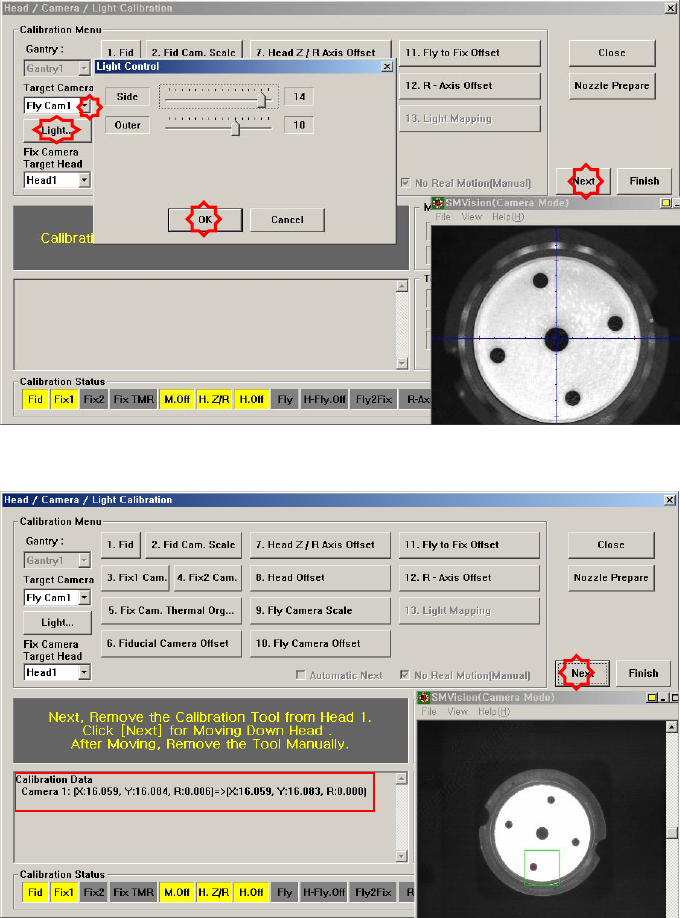

mirror is closed. After that, the message “Calibration is Prepared. To Calibrate,
Click [Next]” appears in the message box. At this time, select the ‘Fly Cam1’
in the <Target Camera> combo box. Click the <Light…> button and adjust the
brightness of the light in the ‘Light Control’ dialog box so that the fiducial
mark on the CNT 20 nozzle that is seen in the ‘SMvision’ window can be seen
clearly. Then click the <Next> button.
8. The calibration is performed automatically. If it is completed, the calibration
result is displayed as shown in the following figure. Click the <Next> button.
9. Then the message “Next, Remove the Calibration Tool From Head 1. Click
[Next] for Moving Down Head. After Moving, Remove the Tool Manually”
appears. Click the <Next> button to remove the calibration tool from the
nozzle-holder of Head #1 manually.
10. Form Fly-Camera #2 to Fly-Camera #6, perform calibration in the same
manner as it was performed for Fly-Camera #1.

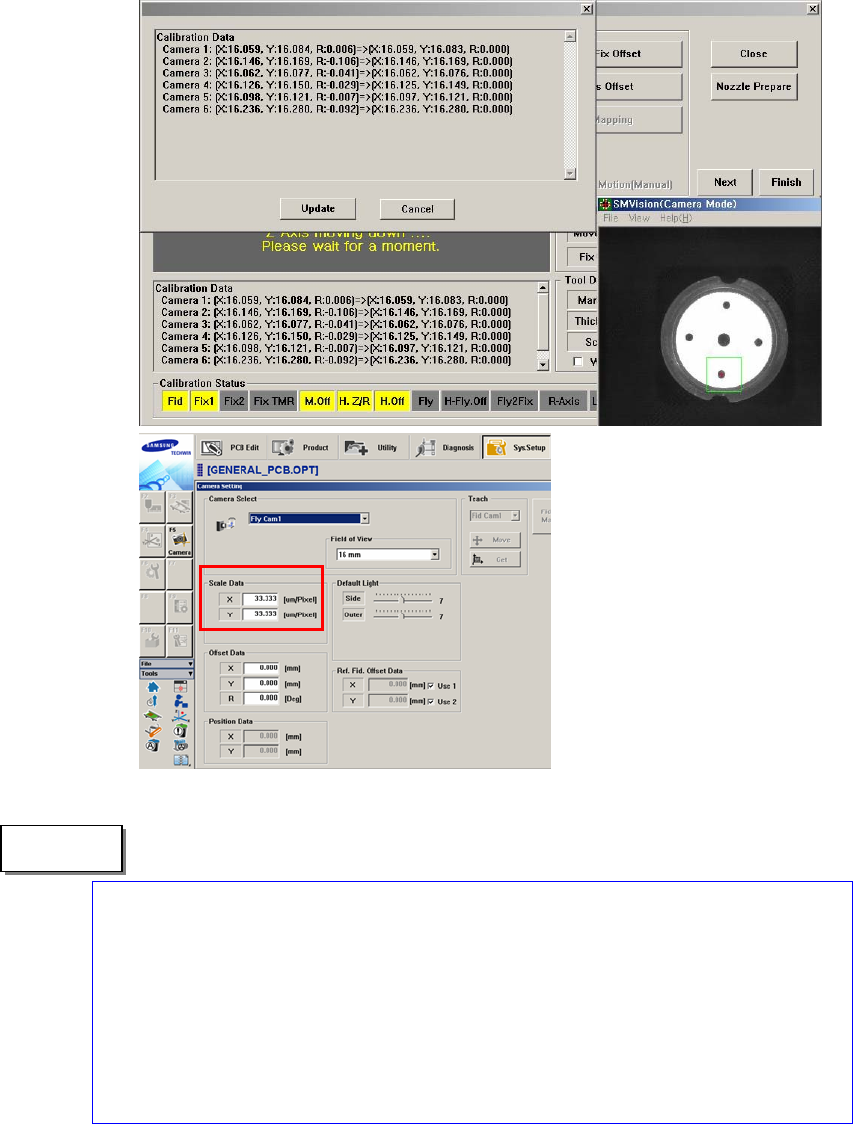

11. If the calibration procedure is completed for all fly-cameras normally, the
result is displayed as shown in the following figure. Click the <Update> button
to apply the calibration value..
The range of the reference values for the ‘fly-camera calibration’ is as follows:
FOV 16
ScaleX: 33.34~35.42 (μm/pixel)
ScaleY: 33.34~35.42 (μm/pixel)
FOV 25 (MEGA)
ScaleX: 15.39~16.35 (μm/pixel)
ScaleY: 15.39~16.35 (μm/pixel)
"Memo
1.2.10.6. Fly Camera Offset Calibration
The following is the procedure to calibrate the offset of the fly Camera..In order
to perform ‘Fly-Camera Offset Calibration’, the ‘Fly-Camera Scale Calibration’
and ‘Head Z-Offset Calibration’ must be performed first and the CNT20 nozzle
must be used.
The following is the procedure to calibrate the ‘Fly-Camera to Offset.
1. Click the <Nozzle Prepare> button and insert the CN400 nozzle into the No. 1
hole of the ANC manually.
If the <11. Fly Camera Offset > is clicked after selecting the <Automatic Next>
check box, calibration is performed for the selected gantry automatically.
If calibration is performed after selecting the <No Real Motion [Manual]>
check box, the nozzle is inserted into each head manually. Click the <Next>
button to move onto the next step.
If calibration is performed without selecting either the <Automatic> check box
or <Manual> check box, the nozzle is changed automatically for the currently
selected nozzle. Click the <Next> button to move onto the next step.

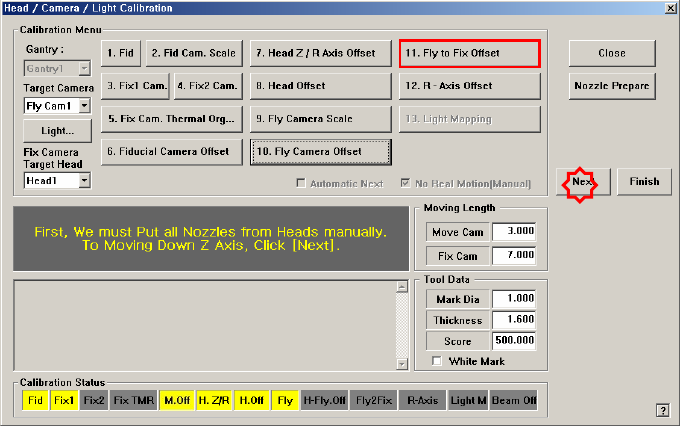

2. If the <11. Fly Camera Offset> button is selected, the message, “First, We
must Put all Nozzles from Heads manually. To Move down Z Axis, Click
[Next]” is displayed in the message window. Then click the <Next> button to
move down the Z-axis of the head in order to manually remove all the nozzles
installed on the head.
3. Then, after the head assembly moves to the designated position, move all Z-
axes down. At this time, remove all inserted nozzles manually.
4. “Then the message “Next Attach the Calibration Tool to Head 1. Click [Next]
for Moving Down Head. After Moving, Attach the Tool to head Manually”
appears. Click the <Next> button after inserting the calibration tool in the
CNT20 nozzle-holder of Head #1 manually.
5. The message “Up to Align Height and Mirror Close, Click [Next].” Appears,
Click [Next] button.
6. Next, Head 1 moves up to the align height of the Fly Camera and the mirror is
closed. Then the message, “Calibration is Prepared. To Calibrate, Click [Next]”
is displayed in the message window. At this time select the ‘Fly Cam1‘ in the
