AHB01ESPP • Sheet Composition *1 I/O Class Button Press one of the following buttons to change the contents (status indication) to be displayed in "*2". [ILB1] Button, [ILB2] Button, [ILB3] Button, [ILB4] Butto…
AHB01ESPP
7.1 "Input Check" Tab
When the "Input Check" tab is pressed in the "DVC. CHECK" window
(submenu), the "Input Check" tab sheet appears.
The "Input Check" tab sheet is composed of the following five tab sheets.
• "I/O Diag." Tab Sheet
• "I/O (Op)" Tab Sheet
• "Motor Cont (EB005)" Tab Sheet
• "Motor Cont (MCB)" Tab Sheet
• "HLS Connect" Tab Sheet
7.1.1 "I/O Diag." Tab
The corresponding tab sheet enables the operator to check the input/
output status of each sensor.
• Sheet Layout
When the "I/O Diag." tab is pressed in the "Input Check" tab sheet, the
following tab sheet appears.

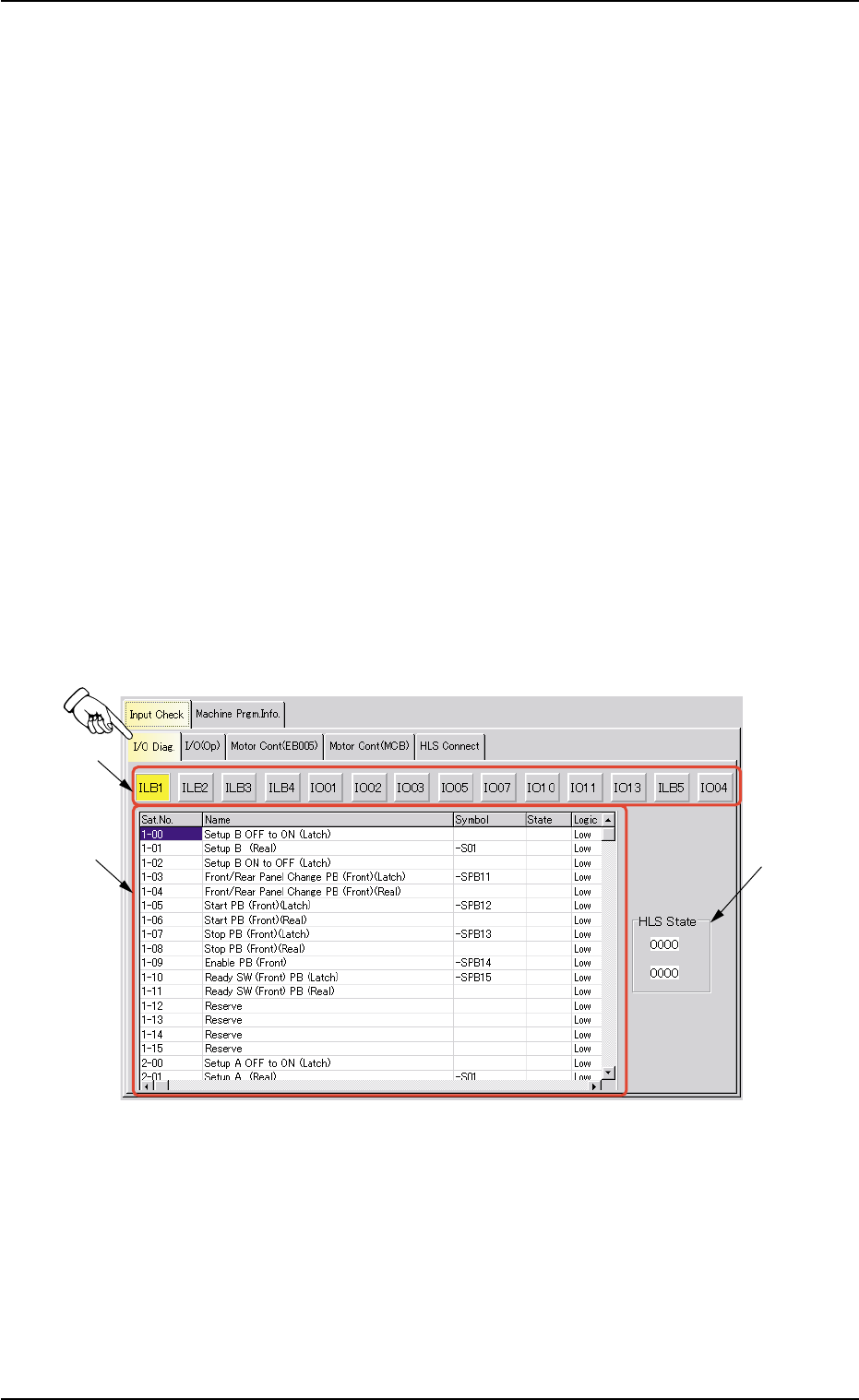

Fig. 2F134 "I/O Diag." Tab Sheet
0206-003 6-208
7.1 "Input Check" Tab
*1
*3
*2
AHB01ESPP
• Sheet Composition
*1 I/O Class Button
Press one of the following buttons to change the contents (status
indication) to be displayed in "*2".
[ILB1] Button, [ILB2] Button, [ILB3] Button, [ILB4] Button
[IO01] Button, [IO02] Button, [IO03] Button, [IO05] Button
[IO07] Button, [IO10] Button, [IO11] Button, [IO13] Button
[ILB5] Button, [IO04] Button
*2 Status Indication
The status of each section is indicated in this pane.
Sat. No. : Displayed are the satellite Nos.
Name : Displayed are the satellite names.
Symbol : Displayed are the satellite symbols.
State : Displayed are the satellite states.
Logic : Displayed are the satellite logical values.
*3 "HLS State" Group Box
HLS state is indicated in this group box.
0206-003 6-209
7.1 "Input Check" Tab
AHB01ESPP
7.1.2 "I/O (Op)" Tab
The corresponding tab sheet enables the operator to check the input/
output status of each sensor (option).
• Sheet Layout
When the "I/O (Op)" tab is pressed in the "Input Check" tab sheet, the
following tab sheet appears.

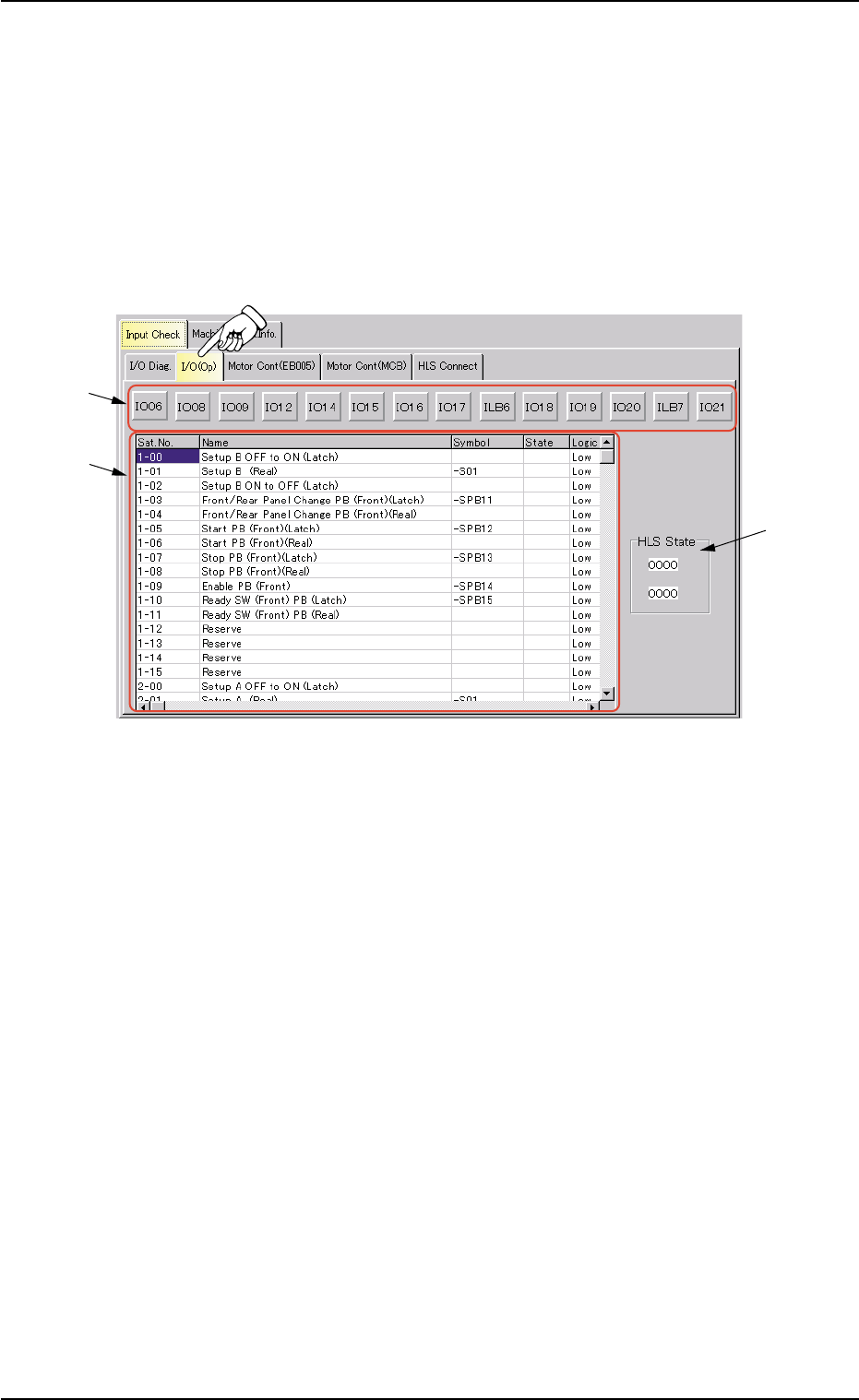

Fig. 2F135 "I/O (Op)" Tab Sheet
• Sheet Composition
*1 I/O Class Button
Press one of the following buttons to change the contents (status
indication) to be displayed in "*2".
[IO06] Button, [IO08] Button, [IO09] Button, [IO12] Button
[IO14] Button, [IO15] Button, [IO16] Button, [IO17] Button
[ILB6] Button, [IO18] Button, [IO19] Button, [IO20] Button
[ILB7] Button, [IO21] Button
0206-003 6-210
7.1 "Input Check" Tab
*1
*2
*3
