2.3.2 Data Entry with "TenKey" Window

Operation Procedure

(1) When the [TenKey] button on the main menu bar is pressed, a

"TenKey" window appears.

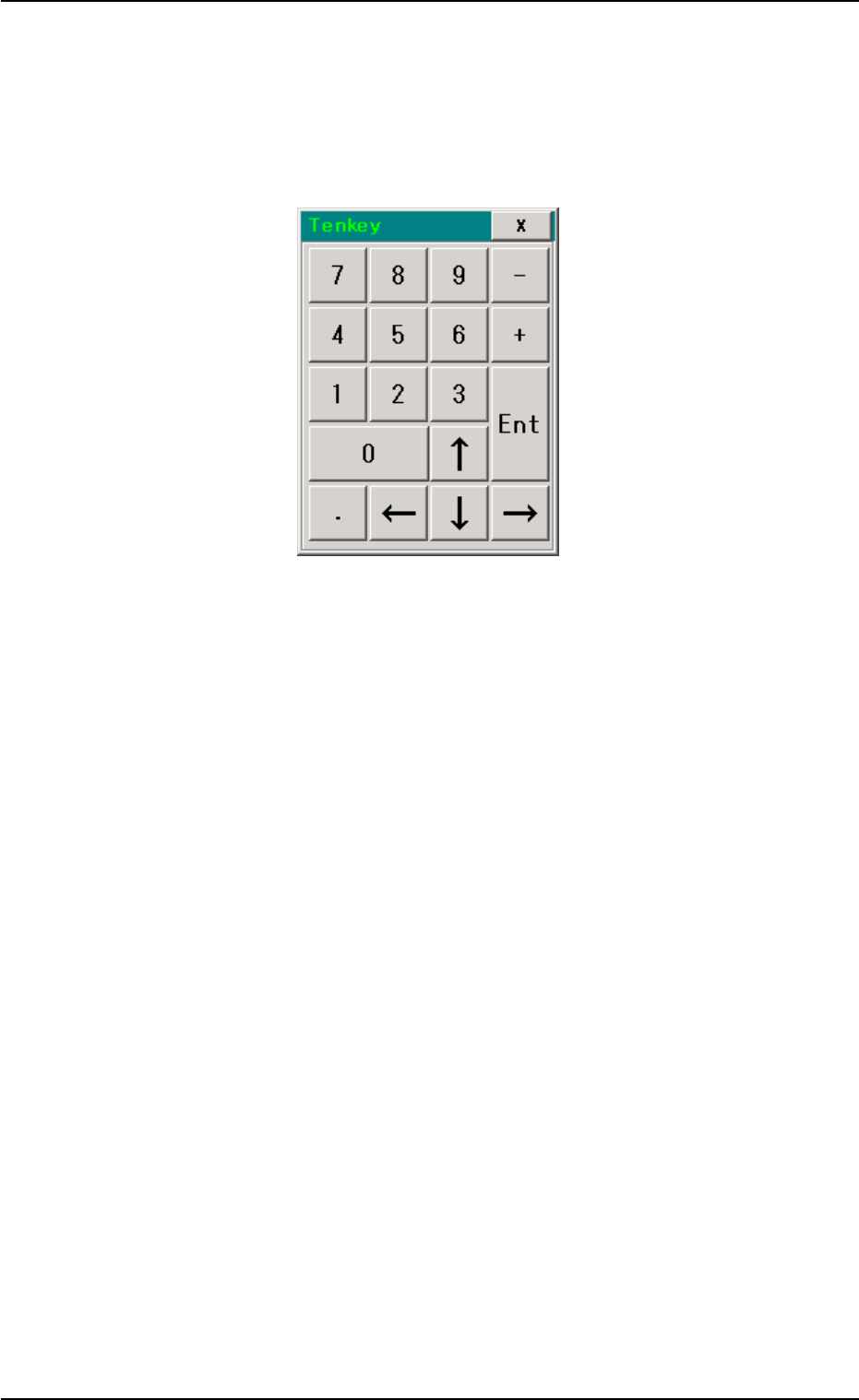

Fig. 2D17 "TenKey" Window

(2) Pressing a text box in which a numerical value should be entered

makes a cursor appear in the box, indicating that a parameter should

be entered.

(3) When a value is specified using the ten-key window, the value ap-

pears in the box.

(4) When the [Ent] button is pressed after confirmation to the entered

value, the "TenKey" window disappears.

01 12-002 4-20

2.3 Data Entry

AHB01ESPP

2.3.3 Data Entry with Keyboard and Pointing Device

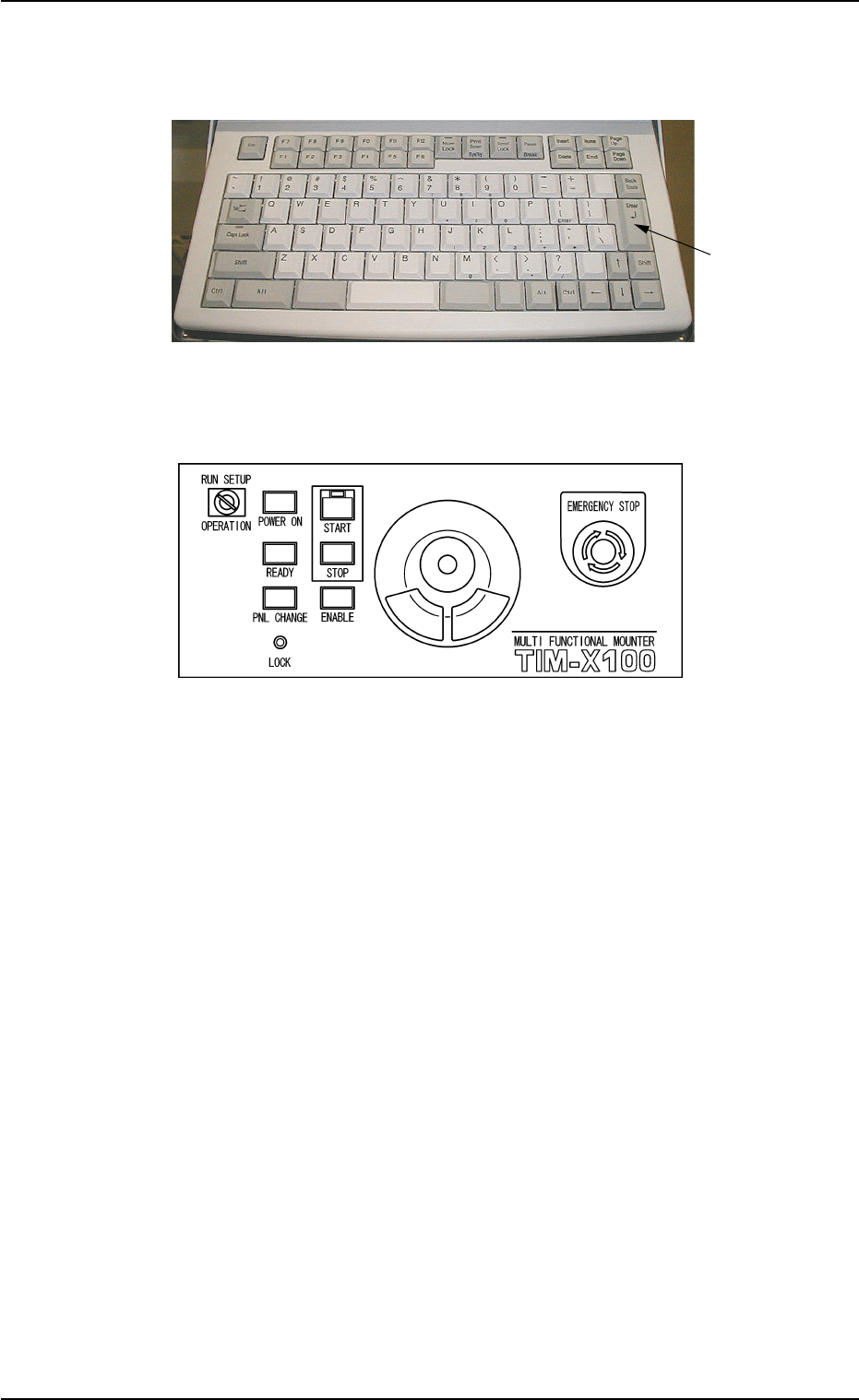

Fig. 2D18-1 Keyboard

Fig. 2D18-2 Pointing Device

Operation Procedure

(1) The pointing device on the operation panel can be used to enter a

numerical value or a string of characters in a text box. When you

click a text box, a cursor appears in the box, indicating that a param-

eter should be entered.

(2) When a value is entered with the keyboard, it appears in the se-

lected text box.

(3) Confirm the entered value and press the [Enter] key.

0308-003 4-21

2.3 Data Entry

[Enter] Key

AHB01ESPP

2.4 Activation of Machine

When one of the control buttons (the [ALL] button (entitled "ZERO") or

the [ON] button (entitled "MOVE") is pressed, the [ENABLE] button on

the operation panel illuminates for two seconds.

When the [ENABLE] button is pressed with the lamp kept "ON", the

machine is activated according to the function related to the control but-

ton.

01 12-002 4-22

2.4 Activation of Machine
