AHB01ESPP
6.1 "Device Err" Tab
The corresponding tab sheet enables the operator to check the date &
time of error occurrence, error IDs, error description, error codes, etc.
• Sheet Layout
When the "Device Err" tab is pressed in the "RECALL" window
(submenu), the following tab sheet appears inside the window.
Fig. 2E25 "Device Err" Tab Sheet
• Sheet Composition
*1 Error Information
The following items are displayed with respect to device error.
Data Cnt : Displayed in the text box is the number of device er-
rors retained in the current memory area per maxi-
mum retainable errors. The numerator shows the
number of retained errors and the denominator the
maximum number of retainable errors in memory.
Date : Displayed is the date of error occurrence.
Time : Displayed is the time of error occurrence.
Item : Displayed are the types (classification) of errors.
Description: Displayed is the description of errors.
Info. ID : Displayed is the error IDs.
Fdr. No. : Displayed are the feeder Nos.
6.1 "Device Err" Tab
0308-004 5-28
*1
*2
*3
*4
AHB01ESPP
U:Displayed are the unit Nos.
P:Displayed are the P-Nos. of the placement data (P-
data).
O:Displayed are the O-Nos. of the placement data (O-
data).
Head : Displayed are the head Nos.
Nozzle : Displayed are the nozzle Nos.
Camera : Displayed are the camera Nos.
Stocker : Displayed are the stocker Nos. (3 digits) where the
nozzles on the head are removed.
1 1 0
Nozzle Stocker Address (1 to 10)
Nozzle Stocker (1 to 4)
1: Stocker A1 (Option)
2: Stocker A2 (Option)
3: Stocker B1
4: Stocker B2
Tray : Displayed are the tray step Nos.
Block : Displayed are the tray block Nos.
ID : Displayed are the component IDs.
Dt : Displayed are the codes that classify the errors in
detail.
*2 [Delete] Button
When this button is pressed, the following dialog box opens for con-
firmation to deletion.
Fig. 2E26 "Confirmation to Deleting" Dialog Box
When the [YES] button is pressed, the device error data is deleted.
When the [NO] button is pressed, the dialog box closes without de-
leting the device error data.
*3 [Back] Button
When this button is pressed, the previous list of errors (previous
details) is displayed.
*4 [Next] Button
When this button is pressed, the next list of errors (next details) is
displayed.
0308-004 5-29
6.1 "Device Err" Tab
AHB01ESPP
6.2 "Handling Err" Tab
The corresponding tab sheet enables the operator to check the error-
caused feeder Nos., the date & time, information IDs, and error descrip-
tion.
• Sheet Layout
When the "Handling Err" tab is pressed in the "RECALL" window
(submenu), the following tab sheet appears inside the window.

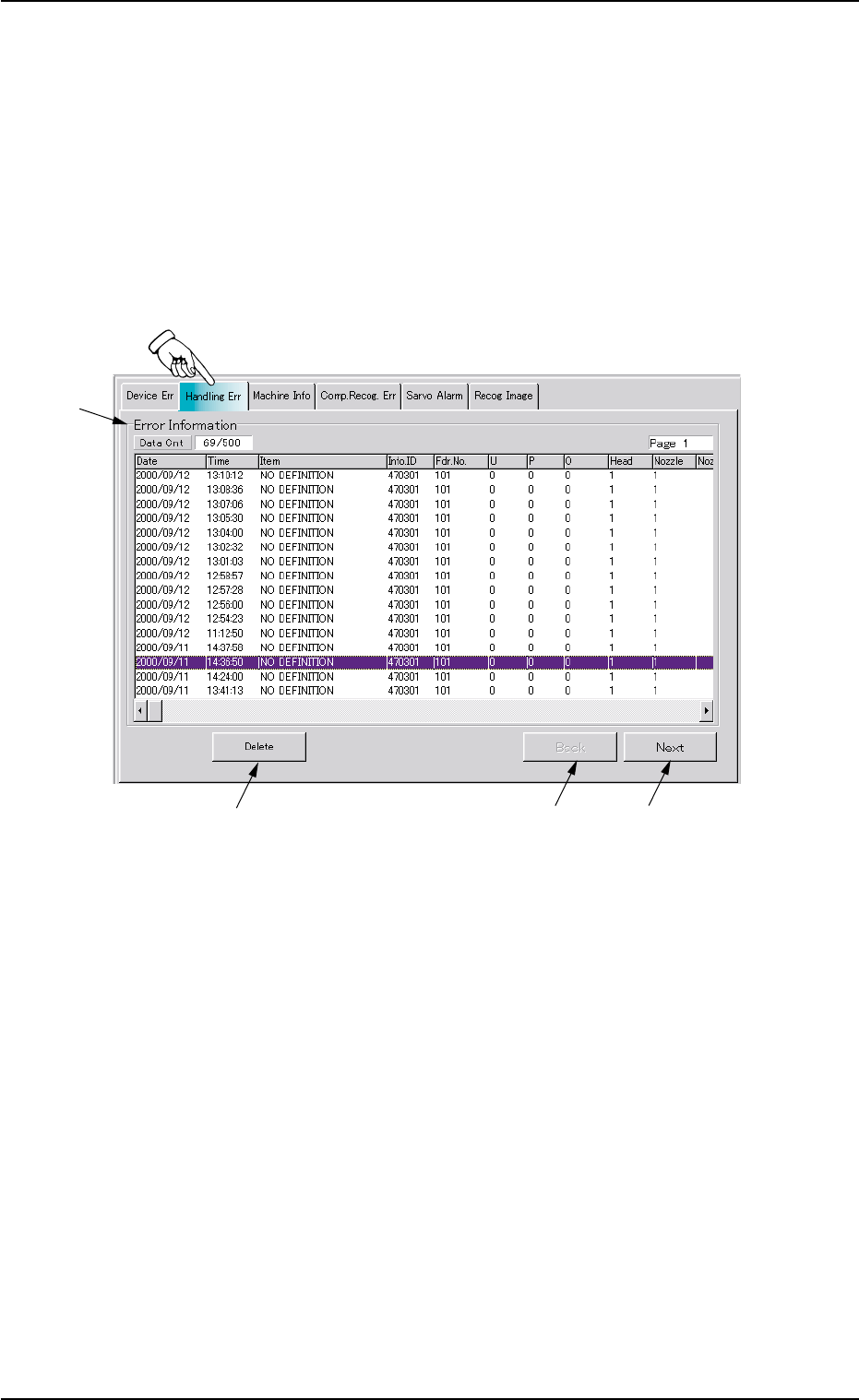

Fig. 2E27 "Handling Err" Tab Sheet
• Sheet Composition
*1 Error Information
The following items are displayed with respect to handling errors.
Data Cnt : Displayed in the text box are the number of handling
errors and the current display information Nos.
Date : Displayed is the date of handling error occurrence.
Time : Displayed is the time of handling error occurrence.
Item : Displayed are the types (classification) of handling er-
rors.
Info. ID : Displayed are the error IDs.
Fdr. No. : Displayed are the feeder Nos.
0308-004 5-30
6.2 "Handling Err" Tab
*1
*2
*3
*4
