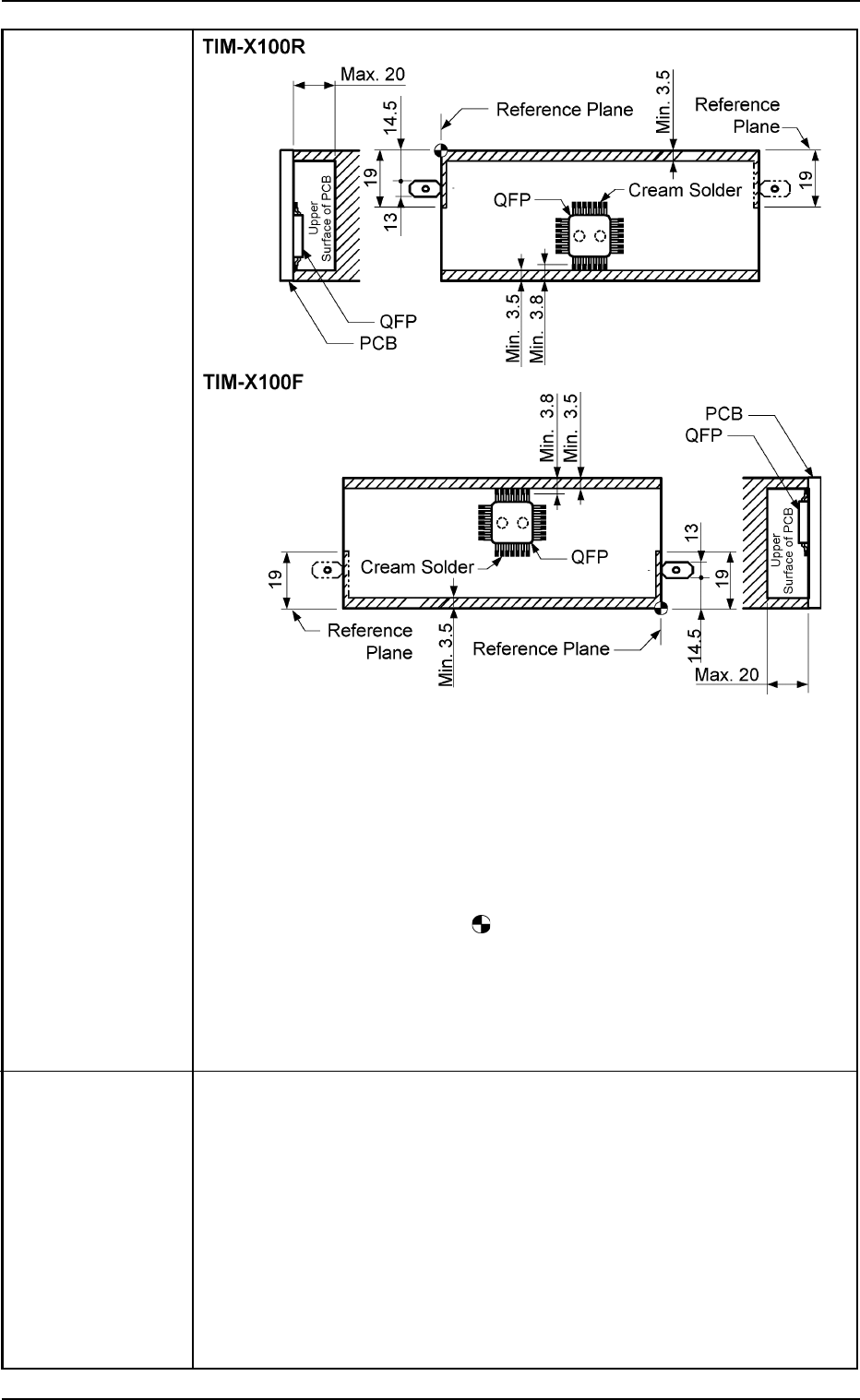

6. Component
Placeable
Range
Unit: mm
Notes: (a) The above figure shows that the vacuum nozzles are not pro-
truding from the outer shapes of components.
Consult our marketing department or sales agency for de-
tails.
(b) Components cannot be placed in the shadowed areas.
(c) Components cannot be placed in the range (0.5 mm) around
the opening such as a hole.
(d) The center of the
mark is the reference point.
The reference point and plane differ depending on the con-
tents of the specifications. There is no change in the distance
between the reference point and the P.C.B. stopper.
Consult our marketing department or sales agency for de-
tails.
7. Placement Time Chip-Type Components: Approx. 0.6 sec/pc. (Highest Speed)
IC (SOP/QFP) : Approx. 0.6 sec/pc. (Highest Speed)
BGA/CSP/FC : Approx. 0.6 sec/pc. (Highest Speed)
Notes: (a) P.C.B. transition time is not included in the placement time
under optimum conditions.
(b) When the accuracy of component placement is "±0.04
mm", the placement time becomes "0.77 seconds per
component".
(c) The placement time changes depending on feeder types
and requirements for component placement. Consult our
marketing department or sales agency for details.
2. Specifications
0206-002 1-7 AHB01ESPP
8. Vacuum Nozzle Approx. 1.5 sec/point (under optimum conditions)
Change Time
9. P.C.B. Transition Approx. 4.0 seconds (under optimum conditions)
Time
10. Unit of X/Y 0.01 mm (Designation of Placement Coordinates)
Beam (Resolution: 0.001 mm/pulse)
Movement
11. Placement 0° to 359°59' (1' pitch)
Direction and (Resolution of Rotation: 0.006°/pulse)
Unit
12. Placement Chip-Type Components : ±0.07 mm
Accuracy IC (SOP, QFP, PLCC) : ±0.04 mm
BGA/CSP : ±0.04 mm
13. Applicable
• Tape Feeders
Feeders
• Stick Feeders (Vibratory Type)
Note: Feeders can be installed on only Feeder Bases #3 and #4.
(Standard Specifications).
• Multi-Layer Tray Feeders (Option)
Note: Feeders can be installed on only Feeder Base #2. (Standard
Specifications).
14. Feeder Feeders can be installed on "1 to 4" positions as shown in the figure
Allocation below.
Consult our marketing department or sales agency for feeder installation
and combination.
Note: Stick feeders (vibratory) can be installed on only Feeder Bases #3
and #4 (Standard Specifications). Installation on a feeder base other
than Feeder Bases #3 and #4 is optional.
2. Specifications
Rear Side of Machine
Front Side of Machine
Feeder Base #3
Feeder Base #1
432
to 401
Feeder Base #2
(Space for Option)
Feeder Base #4
332
to 301
101
to 132
0206-002 1-8 AHB01ESPP
15. Applicable (1) Applicable Components
Components Size : 1.0 × 0.5 to 55 × 55 (100 × 26) mm
0.6 × 0.3 mm (Option)
Thickness : Max. 20 mm
Lead Pitch : 0.3 mm or more
Ball Size : φ0.2 mm or more
Ball Pitch : 0.3 mm or more
Connector : Max. 100 × 26 × 20 mm
Note: Some components may not be used due to the mechanical
characteristics and the shapes, etc. Consult our marketing
department or sales agency for details.
Applicable Components (Reference)
• Rectangular Components
Resistors, Laminated Capacitors, Coils, Chip Ceramic Filters,
and other similar-shaped components
• Leaded Components
Mini-Mold Transistors, Mini-Power Transistors, Filters, LEDs,
Diodes, Coils, and other similar-shaped components
• Deformed Components
Tantalum Capacitors, Semi-Fixed Variable Resistors, Aluminum
Electrolytic Capacitors, Trimmer Capacitors, and other similar-
shaped components
• Cylindrical Components
Resistors, Capacitors, Diodes, and other similar-shaped com-
ponents
• ICs
Mini-Flat ICs, Plastic Chip Carrier with Leads, and other similar-
shaped components
• Others
BGA, CSP, and other similar-shaped components
(2) Packaging Standards
JIS or EIAJ Standards or its equivalent
• Paper Tapes (Width: 8 mm)
• Embossed Tapes (Width: 8 to 72 mm)
• Adhesive Tapes (Width: 32 mm)
• Reel Outer Diameter: φ382 mm or less
• Stick Feeder: 3.5 to 16 × 14 to 33 × 270 to 600 mm
• Tray Feeder: 100 to 230 × 100 to 360 mm
Notes: (a) Some taping sizes are limited.
Some tapings cannot be used to the mechanical charac-
teristics. Consult our marketing department or sales
agency for details.
(b) Feeders
Use the tape and vibratory stick feeder prepared for the
TIM-X series.
The tape feeders for the other machines cannot be
used.
As for the vibratory stick feeders, those for the TIM-5000
series can be used. In this case, it is required to mount
their attachments (SA-5060) and confirm that the feed-
ers can work normally.
Consult our marketing department or sales agency for
details.
2. Specifications
