4. "UNIT ADJ." Window (Submenu)
• Window Layout
When the [UNIT ADJ.] button on the submenu bar is pressed, the fol-
lowing window opens. (Operation Sequence: [MAINT.] Button Æ [UNIT
ADJ.] Button on Submenu Bar Æ "UNIT ADJ." Window).

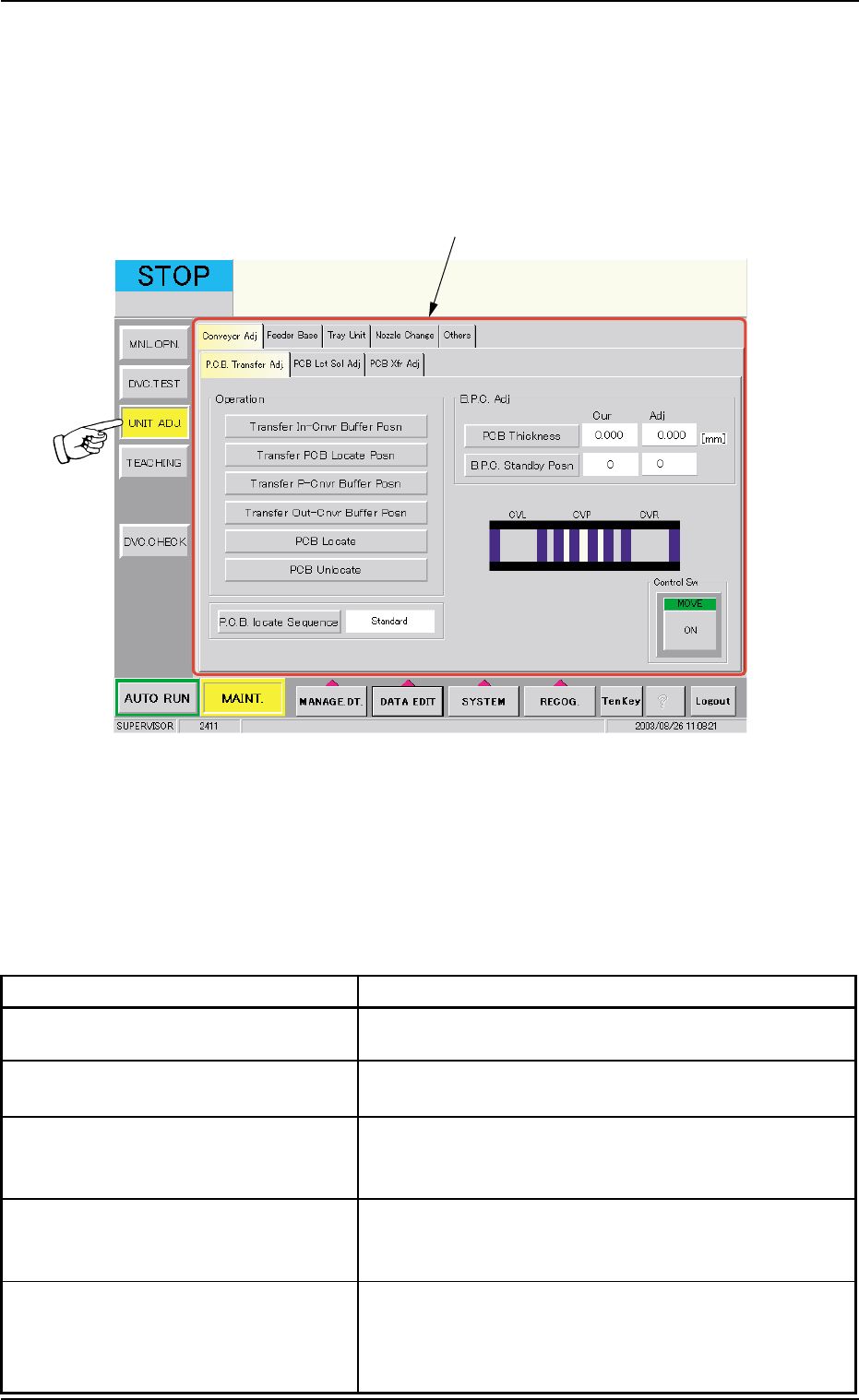

Fig. 2F41 "UNIT ADJ." Window (Submenu)
• Window Composition
*1 Tabs and Tab Sheets
The "UNIT ADJ." window (submenu) is provided with the following 5
tabs. When a tab is pressed, the corresponding tab sheet appears
inside the window.
Table 2F5
Tabs Description
Conveyor Adj The corresponding tab sheet enables the operator to
activate the conveyor motors.
Feeder Base The corresponding tab sheet enables the operator to
conduct a performance test of the feeder bases.
Tray Unit This is an optional function.
Refer to the instruction manual of the multi-layer tray
feeders for details.
Nozzle Change The corresponding tab sheet enables the operator to
open or close the nozzle stockers, attach the vacuum
nozzles, and perform a cycle of storage operation.
Others The corresponding tab sheet enables the operator to
perform the other adjustment operations. The tab sheet
makes it possible to adjust the touch screen and up-
date the nozzle type data.
4. "UNIT ADJ." Window (Submenu)
0308-004 6-52
AHB01ESPP
4.1 "Conveyor Adj" Tab
The corresponding tab sheet enables the operator to activate the con-
veyor motors.
• Sheet Layout
When the "Conveyor Adj" tab is pressed in the "UNIT ADJ." window
(submenu), the following tab sheet appears.
Fig. 2F42 "Conveyor Adj" Tab Sheet
• Sheet Composition
*1 Tabs and Tab Sheets
The "Conveyor Adj" tab sheet is provided with the following 3 tabs.
When a tab is pressed, the corresponding tab sheet appears inside
the window.
Table 2F6
Tabs Description
P.C.B. Transfer Adj. The corresponding tab sheet enables the operator to
conduct a performance test according to the data speci-
fied in the "Xfr Prmtr Adj" tab sheet.
PCB Lct Sol Adj The corresponding tab sheet enables the operator to
activate the P.C.B. locate solenoid.
PCB Xfr Adj The corresponding tab sheet enables the operator to
activate the conveyor motors.
0308-004 6-53
4.1 "Conveyor Adj" Tab
*1
AHB01ESPP
4.1.1 "P.C.B. Transfer Adj." Tab
The corresponding tab sheet enables the operator to change the setting
of the conveyor timer and conduct a performance test.
Parameters can be specified for each conveyor in the "Xfr Prmtr Adj"
tab sheet.
• Sheet Layout
When the "P.C.B. Transfer Adj." tab is pressed in the "Conveyor Adj" tab
sheet, the following tab sheet appears.
Fig. 2F43 "P.C.B. Transfer Adj." Tab Sheet
• Sheet Composition
*1 "Operation" Group Box
The following buttons are provided in this group box.
[Transfer In-Cnvr Buffer Posn] Button
When the [ENABLE] button on the operation panel is pressed
in 2 seconds after this button is selected and the [ON] button
(entitled "MOVE") is pressed, the P.C.B. is transferred to the
input conveyor buffering position.
[Transfer PCB Locate Posn] Button
When the [ENABLE] button on the operation panel is pressed
in 2 seconds after this button is selected and the [ON] button
(entitled "MOVE") is pressed, the P.C.B. is transferred to the
P.C.B. locate position.
0308-004 6-54
4.1 "Conveyor Adj" Tab
*1
*2
*3
*6
