AHB01ESPP *6 [Edit Data] Button When pressed, this button makes it possible to correct the param- eters for the selected component ID. *7 [Delete T est ID] Button When pressed, this button makes it possible to delete the…
AHB01ESPP
5.2.4.2 "Test ID Set" Sheet
••
••
• Sheet Layout
When the [Modify] button is pressed in the "Comp Library" tab sheet, the
following sheet appears.
Fig. 2F85
••
••
• Sheet Composition
*1 [All] and [Search] Buttons
When the [Search] button is pressed, this button makes it possible
to search a test ID among the registered ones.
When the [All] button is pressed, all test IDs appear.
*2 Test ID List
Listed are the registered test IDs.
*3 [Comp Library] Button
When pressed, this button makes it possible to register a compo-
nent ID (selected from the "Test ID List (XXXX)" list box) as a test ID.
*4 [Return] Button
When this button is pressed, the "Comp Library" tab sheet appears.
*5 [Select] Button
When pressed, this button makes it possible to select the data to be
taught from the "Test ID List (XXXX)" list box.
5.2 Library Teaching
0308-004 6-119
*1
*2
*3
*4
*5
*6
*7
*8
*9
*10
AHB01ESPP
*6 [Edit Data] Button
When pressed, this button makes it possible to correct the param-
eters for the selected component ID.
*7 [Delete Test ID] Button
When pressed, this button makes it possible to delete the test ID
(selected from the "Test ID List (XXXX)" list box).
*8 [Entry Comp ID] Button
When pressed, this button makes it possible to register the test ID
(selected from the "Test ID List (XXXX)" list box) in the component
library.
*9 [Entry Test ID] Button
When pressed, this button makes it possible to register the compo-
nent ID (selected in the "Component Library" selection window) in
the "Test ID List (XXXX)" list box.
Operation Procedure
(1) Select the component ID to be tested from the "Test ID List (XXXX)"
list box.
(2) Press the [Select] button.
The library data for the selected component ID is regarded as the
data to be set initially.
5.2 Library Teaching
0206-003 6-120
AHB01ESPP
5.2.5 "Teach Library (New)" Sheet
••
••
• Sheet Layout
When the [Set] button is pressed in the "Set Initial Data (New)" sheet,
the following sheet appears inside the tab sheet.

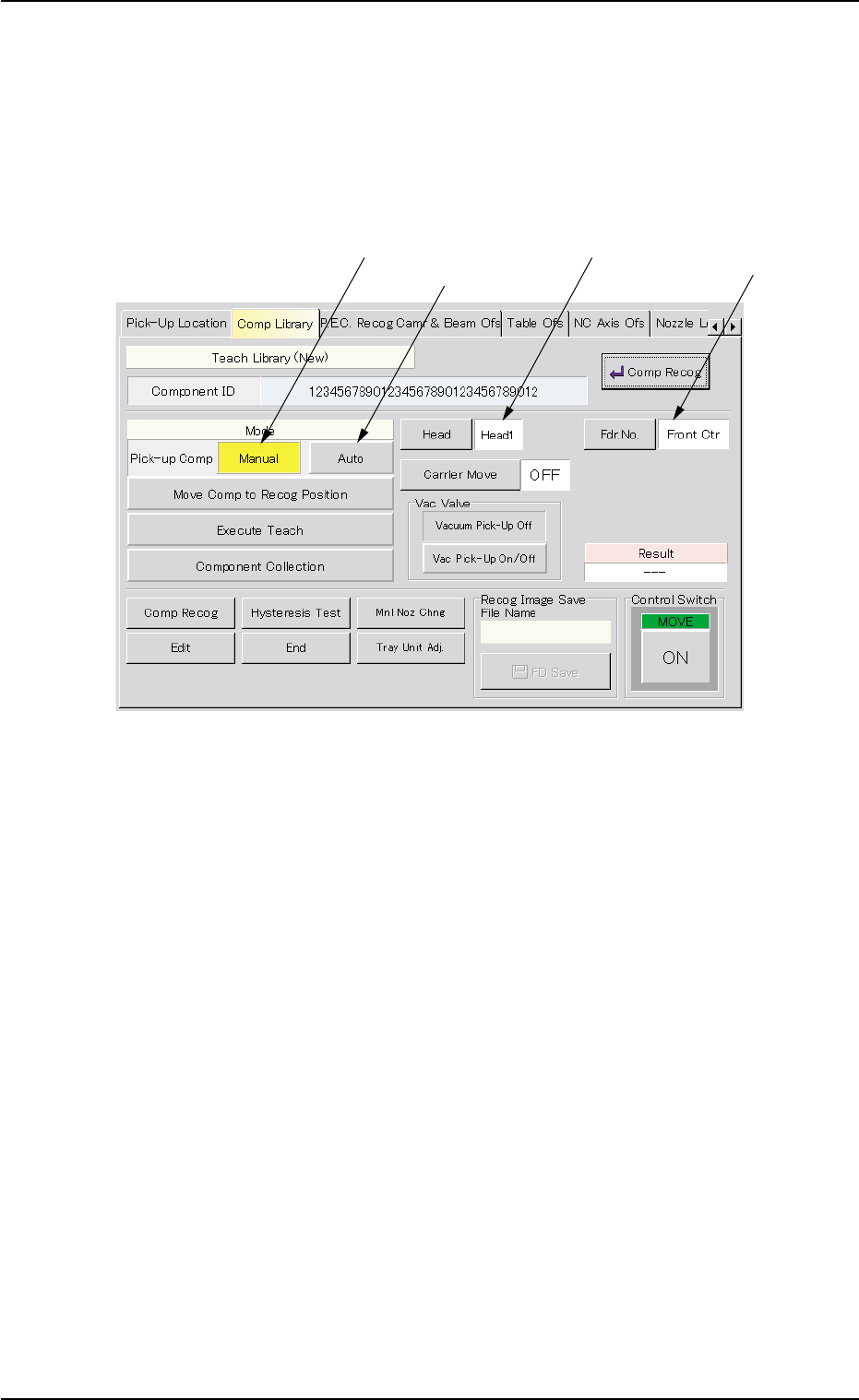

Fig. 2F86 Sheet for Execution of Teaching Function (Component Pick-Up)
5.2.5.1 Component Pick-Up
The component to be taught must be picked up from the selected feeder.
••
••
• Automatic Operation
Operation Procedure
(1) Attach a nozzle, using the "Nozzle Change" sheet.
Attach the nozzle selected in the component library for the compo-
nent to be taught.
(2) Set a parameter in the "Fdr. No." text box.
Refer to the placement feeder location data or manually enter a pa-
rameter.
(3) Press the [Auto] button (beside the label "Pick-up Comp").
5.2 Library Teaching
0206-003 6-121
Manual Component
Attachment
Component Pickup
from Feeder
Designation of
Head No.
Designation of
Feeder No.
