40. Applicable Components (Reference) (1) T aped Components • T apes and Reels: JIS/EIAJ or its equivalent T ape Width: 8 mm T able 2A3 T ape Width: 12 mm T able 2A4 T ape Width: 16 mm T able 2A5 T ape Width: 24 mm T abl…
2. Specifications
(3) Limit of Closest Distance to Obstacle
• The closest distances between an obstacle (See each sectional view) and the vacuum
nozzle or the component shall be 0.5 mm or more. The upper surface of the P.C.B. is the
reference plane.
Sectional View of Fixed Chute Section Sectional View of Movable Chute Section
Top View of P.C.B. Stopper Section
Sectional View of P.C.B. Stopper Section
Unit: mm
0206-003 1-19 AHB01ESPP
40. Applicable Components (Reference)
(1) Taped Components
• Tapes and Reels: JIS/EIAJ or its equivalent
Tape Width: 8 mm Table 2A3
Tape Width: 12 mm Table 2A4
Tape Width: 16 mm Table 2A5
Tape Width: 24 mm Table 2A6
2. Specifications
0206-003 1-20 AHB01ESPP

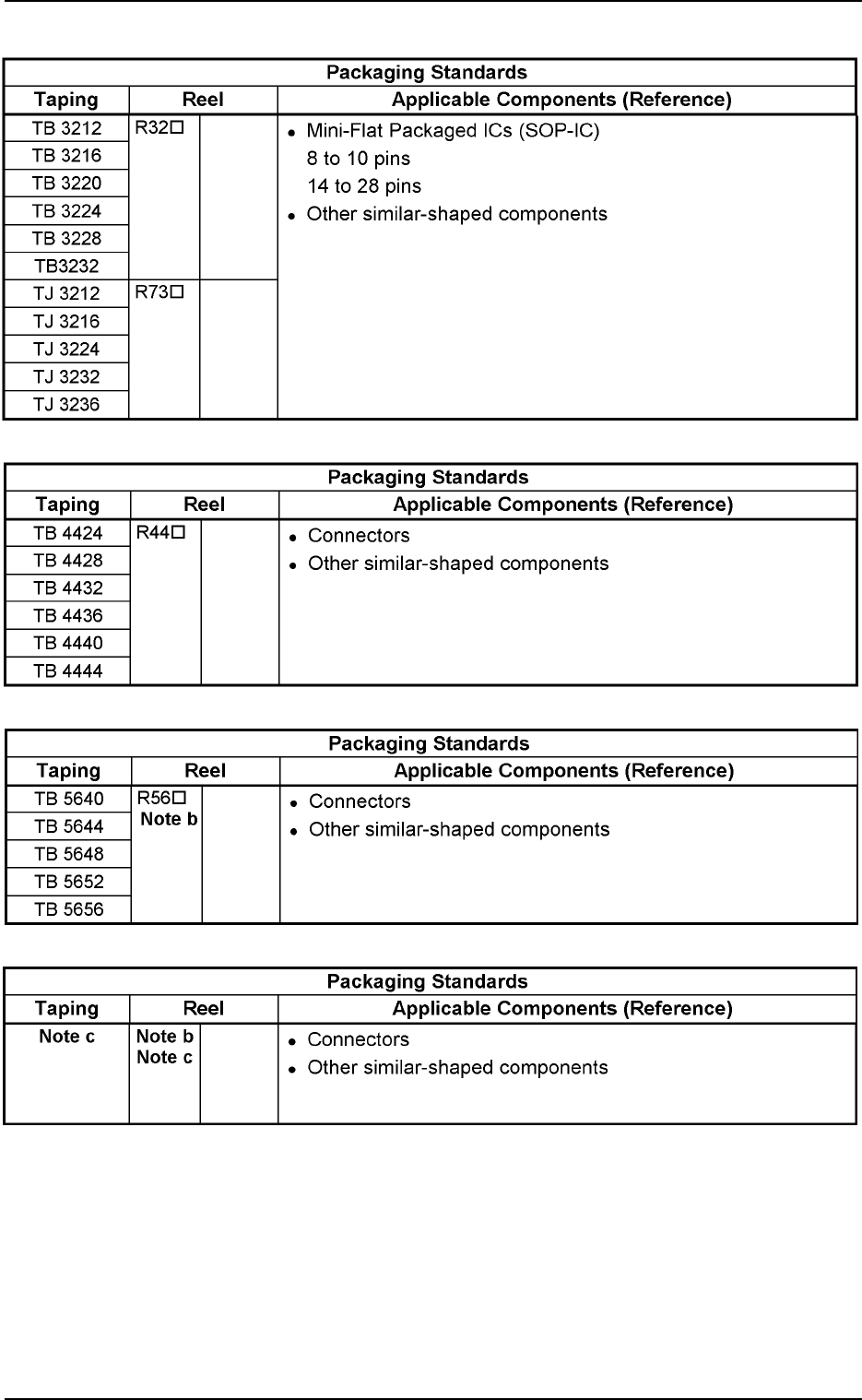

Tape Width: 32 mm Table 2A7
Tape Width: 44 mm Table 2A8
Tape Width: 56 mm Table 2A9
Tape Width: 72 mm Table 2A10
Notes: (a) Some components cannot be used due to the mechani-
cal characteristics and shapes, etc. Consult our mar-
keting department for details.
(b) Use a tape which will fit the reel’s outer diameter of
Max. φ382 mm or less.
(c) The 72 mm tapes are on-specification products (prod-
ucts made in compliance with our standard).
Consult our marketing department or sales agency for
details.
2. Specifications
0206-003 1-21 AHB01ESPP
