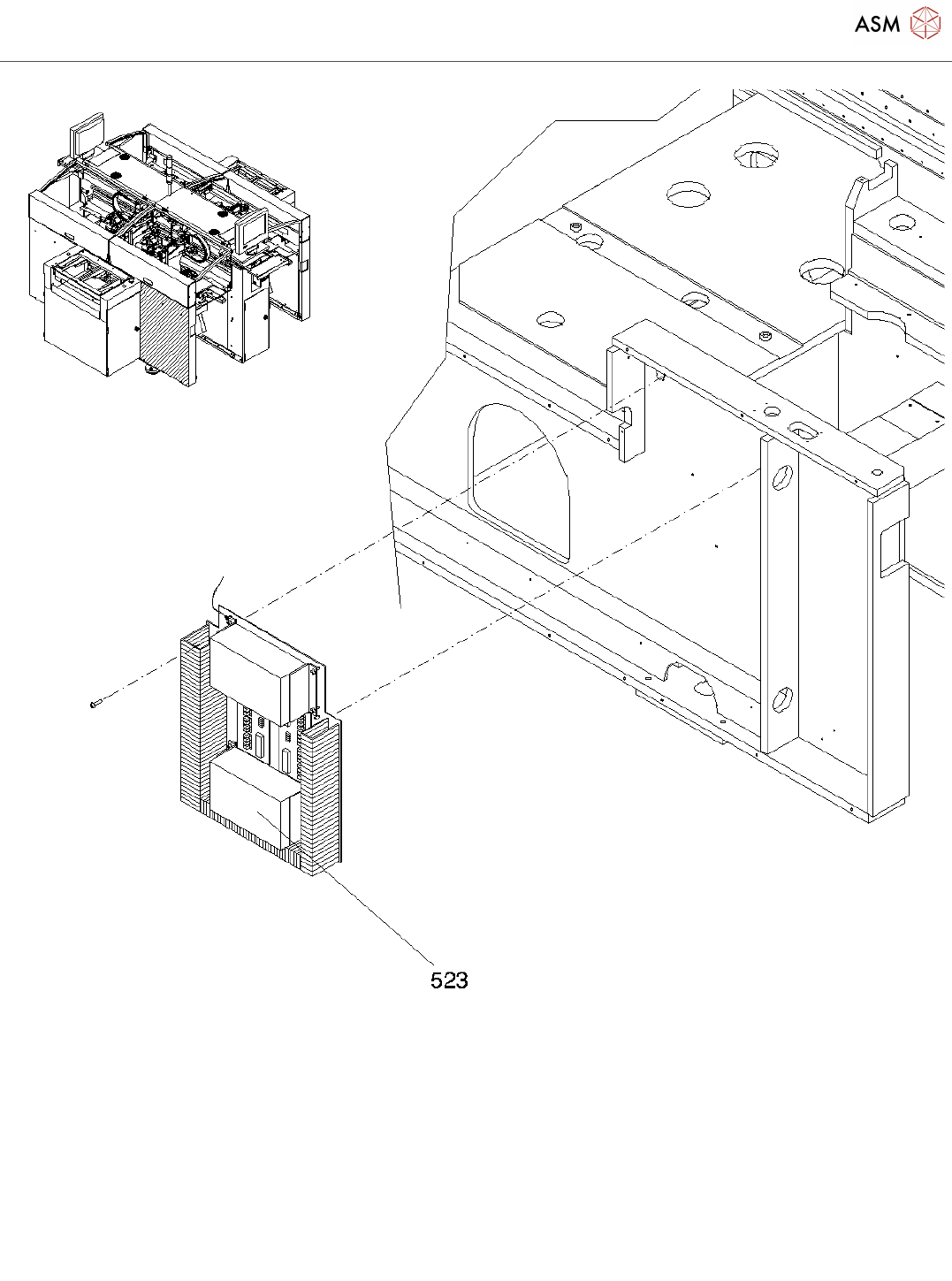

Dual conveyor, fixed rail left
Page 39 / 59 24.11.2021
Dual conveyor, fixed rail left
Page 40 / 59 24.11.2021
Dual conveyor, fixed rail left
Page 41 / 59 24.11.2021
Pos. Item no. Description Part marking
1 00119045-02 DUAL CONVEY. FIXED CONVEY.SIDE
LEFT HS50
2 00353433-01 BASIC ASSEMBLY MOUNTING PLATE
DUAL CONVEYOR HS50
3 00329743-02 ASSEMBLY PLATE PCB HANDLING
S50
4 00329747-01 LIFTING GUIDE CPL. PCB-HANDLING
S50
5 00331258-01 GUIDE TUBE LIFTING TABLE SPARE PART
6 02100530-01 SHAFT SEALING RING G20X28X4 SPARE PART
7 00317351S01 SEEGER V-RING JV 28 SPARE PART
8 00302288-01 LINEAR BALL BEARING 20*28*30
KH2030
*
9 00327922S01 LIFTINGDRIVE DRIVE-UNIT SPARE PART
10 00327927-01 MOTOR MOUNT
11 00327923-01 ADJUSTMENT PART F.
TRANSMISSION LEVER
12 00327932-01 TRANSMISSION LEVER
13 00327925-01 CAM BODY
14 00327926-01 BEARING AXIS
15 00302077-01 YOKE TYPE TRACK ROLLER
(D5/D16/B12)
16 24000053-01 BALL-BEARING WEAR PART
17 00327929S01 SWITCHING ROLL WITH LEAD TAPE SPARE PART
18 00818081-01 REINFORCEMENT PLATE
F.PROX.SWITCH 27X8MM
19 00327924-01 CLAMPING FLANGE
20 00095119-01 HEXAGON SOCKET HEAD CAP
SCREW
21 00845020-01 HEXAGON SOCKET HEAD CAP
SCREW
22 00845026-01 HEXAGON SOCKET HEAD CAP
SCREW M4 X 12-8.8
23 00307148-01 ANNULAR SPRING SPARE
24 00308055-01 WASHER
25 00619841-01 PARALLEL PIN 3M5 X 8-ST
26 00335214S02 MOTOR LIFTING TABLE 1 SPARE PART
27 00335215S01 MOTOR FOR LIFTING TABLE 2
28 00335216S01 MOTOR FOR LIFTING TABLE 3
