Overview of Technical Data
Machine Alignment Capability
> 2.0 C
mk
@ +/- 12.5µm, (±6 Sigma)
System Alignment Capability
> 2.0 C
mk
@ +/- 15µm, (±6 Sigma)
Wet Print Capability
> 2.0 C
pk
@ +/- 20µm, (±6 Sigma)
Core Cycle Time
8.0 secs (With APC)
Operating System
Windows 10 IoT Enterprise
Squeegee Pressure Mechanism
Software controlled, motorised with closed loop
feedback
Under Stencil Cleaning
Typhoon high speed cleaner, fully programmable with
wet/dry/vacuum wipe with external solvent tank.

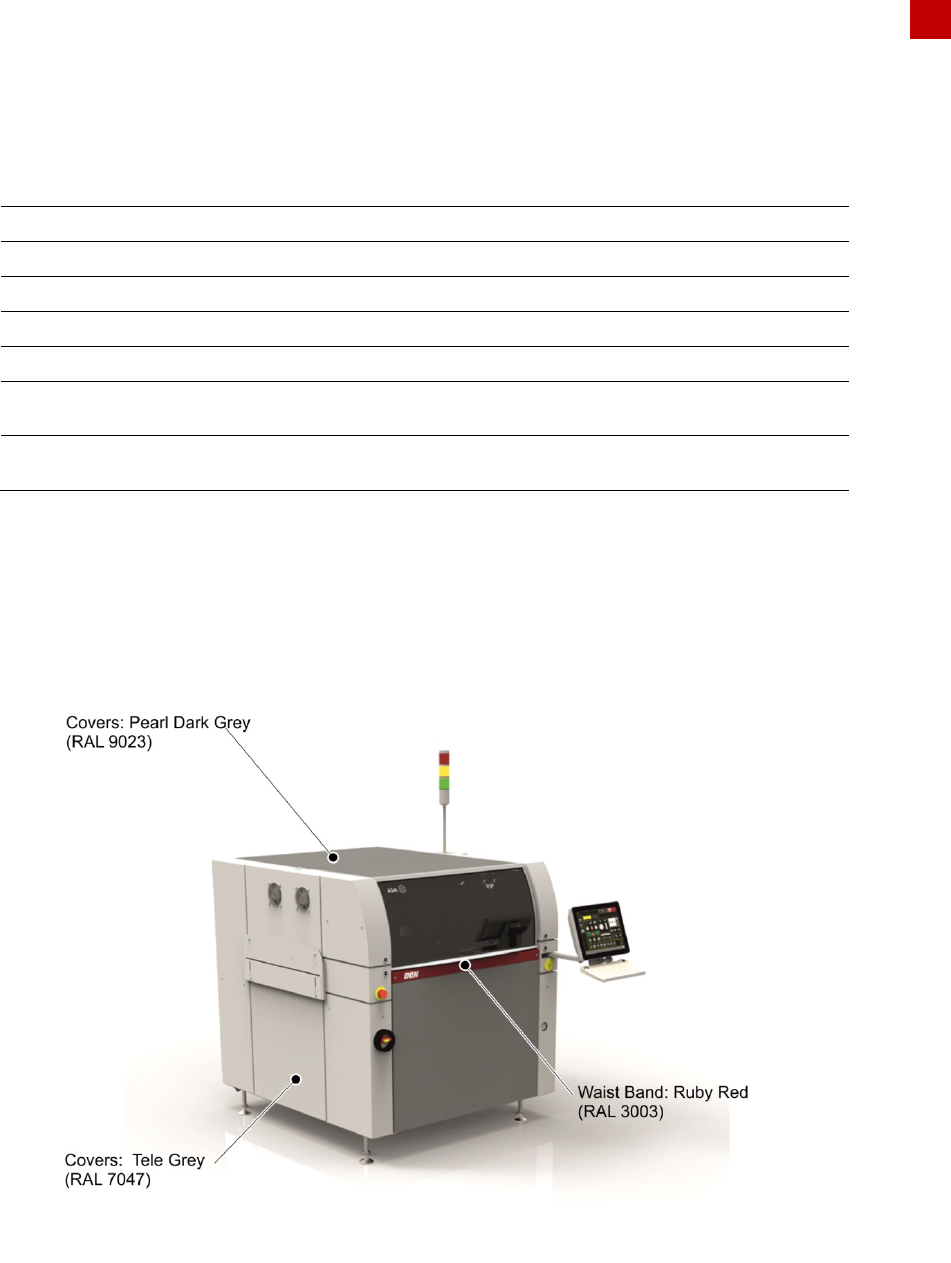

Machine colours for DEK NeoHorizon 01iX Continental
5
DEK NeoHorizon 01iX Continental
Machine Description
DEK NeoHorizon 01iX
Continental platform –
More reliability and
efficiency for future-
proof printing
The DEK NeoHorizon
01iX Continental shines
with more than new
design. It’s modular
interior is much improved
and highly reliable.
Whether in high-mix
contract manufacturing or
high-volume applications
with high throughput
requirements – the DEK
NeoHorizon 01iX
Continental is the right
printing platform.
Benchmark for accuracy
The DEK NeoHorizon
01iX Continental platform
is based on an
exceptionally stable frame
design. With its torsional
rigidity and high intrinsic
resonance frequency, the
machine’s frame provides
the foundation for
longevity and long-lasting
accuracy. With its
advanced controllers and
bus systems, the DEK
NeoHorizon 01iX
Continental achieves a
system alignment
capability of ±15µm @ 2
Cmk (6 Sigma).
The frame provides lots of
space and the bus system
a wide range of interfaces
for basic components like
precision drives, digital
camera modules and high
precision guides and
slides, as well as for many
productivity-enhancing
options: the DEK
Productivity Tools.
State-of-the-art
software: DEK Instinctiv
With its touchscreen,
keyboard and trackball
operation, graphical
interfaces, multiple
languages and integrated
video-based help, the
DEK Instinctiv software
supports the easy, quick
and error-free operation of
the NeoHorizon 01iX
Continental printer.
With ISCAN (Intelligent
Scalable Area Network),
the new configuration can
be scanned with just a
few clicks and additional
performance is available.
And thanks to its
interfaces, the DEK
NeoHorizon 01iX
Continental can fine-tune
its printing process based
on data imported from
modern SPI systems.
The right configuration
for every job
High-speed production,
high-mix runs of small
lots, pin-in-paste, ultra-
fine apertures for super-
small components,
stepped stencils, PCBs
with unusual substrates,
many different paste
types – no matter what
the production
requirements are and
what processes are being
used: the DEK
NeoHorizon 01iX
Continental platform
always accommodates
the right configuration for
the printing process.
B2B setup: Flexible on
two tracks
The DEK NeoHorizon
Back-to-Back setup
makes for a uniquely
flexible dual-track
solution. Both units
remain separately
controllable, can be split
up again at any time and
use the full-size printing
area.
Faster cleaning, more
throughput
The DEK NeoHorizon
01iX Continental offers
selectable versions of the
new DEK Typhoon high-
speed under stencil
cleaning system featuring
the new optional plenum
inserts Hard Top – for
standard cleaning, Poly
Blade for cleaning
irregular undersides.
6
DEK NeoHorizon 01iX Continental
Machine Standard Configuration
Standard Configuration
Specification
Machine Alignment Capability
> 2.0 C
mk
@ +/- 12.5µm, (±6 Sigma)
System Alignment Capability
> 2.0 C
mk
@ +/- 15µm, (±6 Sigma)*
Wet Print Capability
> 2.0 C
pk
@ +/- 20µm, (±6 Sigma)
Core Cycle Time
8.0 secs** (APC)
Maximum Print Area
510mm (X) x 508.5mm (Y)
Printer Construction
One piece optimised welded frame
ISCAN
TM
Machine Control
Motion control using CAN BUS network
Operating System
Windows 10 IoT Enterprise
Operator Interface
Colour TFT touch screen display, keyboard and
trackball with DEK Instinctiv
TM
software. Machine
mountable on either left or right hand side.
Camera
HawkEye® 750 digital camera, using IEEE 1394
interface. Multi-channel. LED lighting. FOV 11.3mm x
8.7mm (split between two views).
Camera Positioning
Rotary motors and encoders with 4 micron resolution
Squeegee Pressure Mechanism
Software controlled, motorised with closed loop
feedback
Stencil Positioning
Automatic loading incorporating squeegee drip tray
Stencil Alignment
Motorised via actuators X, Y, and Theta
Under Stencil Cleaning
Typhoon high speed cleaner, fully programmable with
wet/dry/vacuum wipe with external solvent tank
Vacuum Assist for Under Stencil
Cleaning
On board vacuum unit 35 litres/sec airflow
Squeegee
Clamped double trailing edge squeegee (1 set
included)
Tooling Deviation Monitor
Verification of tooling setup via squeegee pressure
feedback
Machine Interface
Upline and downline FMI included
Connectivity
RJ-45LAN (networking) and USB2/3 interface available
Tri Colour Beacon
Programmable with audible alarm
ESD Compatibility
Compliant with EN/IEC 61340-5-1, EN/IEC 61340-5-2,
ANSI/ESD SP10.1, ANSI/ESD S20.20
Temperature & Humidity Sensor
Monitoring of the process environment
Documentation
Hard copy manuals comprising: Operator, Installation,
Electrical Drawings. On board technical manuals and
tutorials supporting operator functions. DVD containing
manuals and tutorials.
* System Alignment Capability is certified by a 3
rd
party software QC Calc and undertaken by applying
board loading/unloading, board clamping, camera/rising table movement and print process.
Accuracy and Repeatability qualifications are certified by CeTaQ and AVS to deliver highly confident
wet print process.
** Measured using the ASM defined Core Cycle Time test parameters, for details contact the Product
Manager
