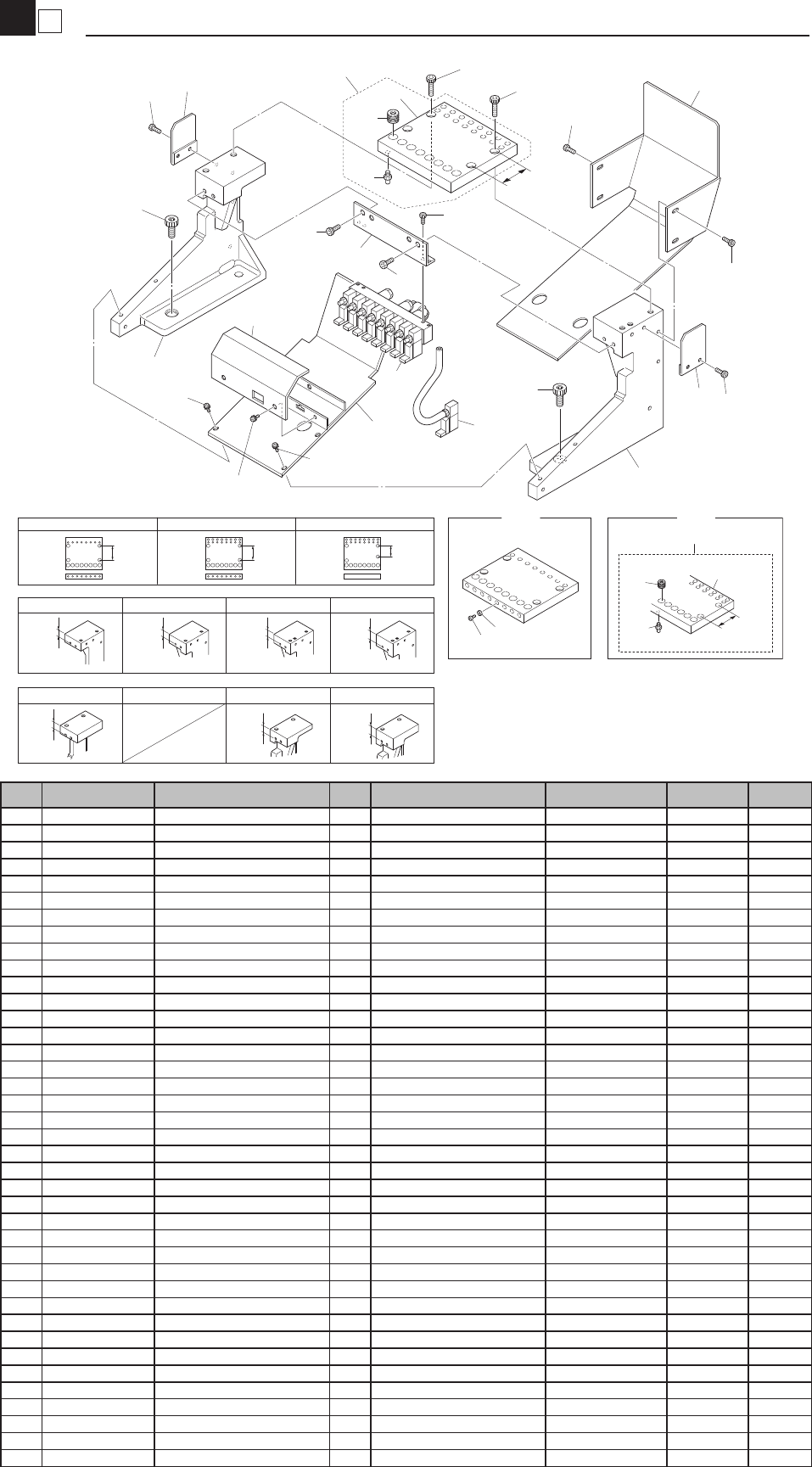

3 3 Feeder Holder Assy .(Type B) Feeder KM0-080410 Fig D Fig E Fig F Fig G 16mm 16mm 16mm 20mm Fig H Fig I Fig J 16mm 16mm 20mm 38 mm 50 mm 9 16 1 15 26 15 16 16 6 16 8 16 1 1 16 9 4 3 27 25 25 5 7 17 17 2 21 28 50mm Fig…
2
3
Feeder Holder Assy.(Type C)
Feeder
KM0-080410
Fig D Fig E Fig F Fig G
16mm
16mm
16mm
20mm
Fig H
Fig I Fig J
16mm
16mm
20mm
50mm
38mm
1
27
14
25
26
14
15
9
15
15
7
6
16
8
15
2
24
5
11
15
16
16
3
15
9
4
24
20
50mm
Fig A Fig B Fig C
50mm
38mm
18
19
11
20
27
1
OLDOLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KG2-M3401-C1X PLATE C,FEEDER 1 Fig A
1-1 KG2-M3401-C2X PLATE C,FEEDER 1 Fig B (1997/9/5) M790020 OK
1-2 KG2-M3401-C3X PLATE C,FEEDER 1 Fig C (2005/2/14) MB20042 NG
2 KM0-M3402-C0X GUIDE C-1, TAPE 1
3 KG2-M3403-C0X GUIDE C-2,TAPE 1
3-1 KG2-M3403-C1X GUIDE C-2,TAPE 1 (1998/6/30) M860108 OK
4 KL0-M3405-01X STAND 1 1
4-1 KM0-M3405-00X STAND 1 1 Fig D (1996/8/9) M670063 OK
4-2 KM0-M3405-01X STAND 1 1 Fig E (1996/12/3) M6Y0002 OK
4-3 KM0-M3405-02X STAND 1 1 Fig F (2004/4/20) M440062 OK
4-4 KM0-M3405-03X STAND 1 1 Fig G (2004/11/1) MA00129 NG
5 KL0-M3406-01X STAND 2 1
5-1 KM0-M3406-00X STAND 2 1 Fig H (1996/8/9) M670063 OK
5-2 KM0-M3406-01X STAND 2 1 Fig I (1996/12/3) M6Y0002 OK
5-3 KM0-M3406-02X STAND 2 1 Fig J (2004/11/1) MA00129 NG
6 KM0-M3408-C0X BRACKET C, VALVE 1
7 KL0-M3409-C1X COVER C, VALVE 1
8 KM0-M3410-C0X VALVE ASSY, C 1
9 KM0-M3417-00X GUIDE, 4 2
11 $BF4BU JOINT 8
14 91317-06020 BOLT, HEX. SOCKET HEAD 4
15 91317-04010 BOLT HEX.SOCKET HEAD 12
16 90990-12J005 SCREW BINDING HEAD 6
18 98907-03004 SCREW BINDING HEAD 8
18-1 Delete (2005/2/14) MB20042
19 KM0-M3416-00X GASKET 8
19-1 Delete (2005/2/14) MB20042
20 KG2-M3407-A0X AIR JOINT 8
24 91317-08020 BOLT, HEX. SOCKET HEAD 4
25 91317-03006 BOLT, HEX. SOCKET HEAD 4
26 KM0-M3410-41X VALVE KIT 1 SPARE PARTS
27 KM5-M34B0-00X FEEDER PLATE ASSY. 1 (1997/3/3) M730005 OK
27-1 KM5-M34B0-01X FEEDER PLATE ASSY. 1 (2004/4/20) M440062 NG
3
3
Feeder Holder Assy.(Type B)
Feeder
KM0-080410
Fig D Fig E Fig F Fig G
16mm
16mm
16mm
20mm
Fig H
Fig I Fig J
16mm
16mm
20mm
38mm
50mm
9
16
1
15
26
15
16
16
6
16
8
16
11
16
9
4
3
27
25
25
5
7
17
17
2
21
28
50mm
Fig A Fig B Fig C
50mm
38mm
19
20
OLD
11
21
28
1
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KG2-M3401-B1X PLATE B,FEEDER 1 Fig A
1-1 KG2-M3401-B2X PLATE B,FEEDER 1 Fig B (1997/9/5) M790020 OK
1-2 KG2-M3401-B3X PLATE B,FEEDER 1 Fig C (2005/2/14) MB20042 NG
2 KG2-M3403-B0X GUIDE B-2,TAPE 1
2-1 KG2-M3403-B1X GUIDE B-2,TAPE 1 (1998/6/30) OK
3 KM0-M3402-B0X GUIDE B-1, TAPE 1
4 KL0-M3405-01X STAND 1 1
4-1 KM0-M3405-00X STAND 1 1 Fig D (1996/8/9) M670063 OK
4-2 KM0-M3405-01X STAND 1 1 Fig E (1996/12/3) M6Y0002 OK
4-3 KM0-M3405-02X STAND 1 1 Fig F (2004/4/20) M440062 OK
4-4 KM0-M3405-03X STAND 1 1 Fig G (2004/11/1) MA00129 NG
5 KL0-M3406-01X STAND 2 1
5-1 KM0-M3406-00X STAND 2 1 Fig H (1996/8/9) M670063 OK
5-2 KM0-M3406-01X STAND 2 1 Fig I (1996/12/3) M6Y0002 OK
5-3 KM0-M3406-02X STAND 2 1 Fig J (2004/11/1) MA00129 NG
6 KM0-M3408-B0X BRACKET B, VALVE 1
7 KL0-M3409-B1X COVER B, VALVE 1
8 KM0-M3410-B0X VALVE ASSY, B 1
9 KM0-M3417-00X GUIDE, 4 2
11 $BF4BU JOINT 16
15 91317-06020 BOLT, HEX. SOCKET HEAD 4
16 91317-04010 BOLT HEX.SOCKET HEAD 12
17 90990-12J005 SCREW BINDING HEAD 6
19 98907-03004 SCREW BINDING HEAD 16
19-1 Delete (2005/2/14) MB20042
20 KM0-M3416-00X GASKET 16
20-1 Delete (2005/2/14) MB20042
21 KG2-M3407-A0X AIR JOINT 16
25 91317-08020 BOLT, HEX. SOCKET HEAD 4
26 91317-03006 BOLT, HEX. SOCKET HEAD 4
27 KM0-M3410-41X VALVE KIT 1 SPARE PARTS
28 KM8-M34B0-00X FEEDER PLATE ASSY. 1 (1997/3/27) M730234 OK
28-1 KM8-M34B0-01X FEEDER PLATE ASSY. 1 (2004/4/20) M440062 NG
1
4
X-Axis
X-Axis
KM0-080527
48
51
52
51
50
37
4
15
13
14
10
12
54
11
3
28
29
18
17
56
56
62
63
62
63
16
27
22
23
68
68
26
21
25
53
53
64
49
8
53
66
30
67
5
7
2
29
61
28
1
23
31
20
32
36
34
65
60
19
35
33
60
65
6
18
9
41
45
40
47
39
38
38
46
43
44
42
48
OLD
OLD
OLD
5
24
24
59
55
58
53
57
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KM0-M2211-00X FRAME, X AXIS 1
2 KM0-M2213-30X PLATE A, X AXIS 1
3 KM0-M2214-30X PLATE B, X AXIS 1
4 KH4-M2611-00X COUPLING Y-AXIS 1
4-1 KM0-M2220-00X COUPLING,X-AXIS 1 (1998/4/17) M840059 OK
5 KM0-M2231-00X SPACER R, NUT 1
5-1 KV7-M2231-00X SPACER R, NUT 3 (2003/2/11) M320049 OK
6 KM0-M2232-00X SPACER L, NUT 2
6-1 Delete (2003/2/11) M320049
7 KM0-M2233-00X SPACER R2, NUT 1
7-1 KV7-M2233-00X SPACER R2, NUT 1 (2003/2/11) M320049 OK
8 KM0-M2236-00X PLATE A 1
8-1 KM0-M2236-01X PLATE A 1 (2003/3/6) M330016 OK
9 KM0-M2239-00X BRACKET 1 2
9-1 KM0-M2239-01X BRACKET 1 2 (1999/1/26) M910171 OK
10 KM0-M2241-00X HOLDER,MOTOR X AXIS 1
10-1 KM0-M2241-01X HOLDER,MOTOR X AXIS 1 (2008/4/16) ME30234 OK
11 KG7-M2242-10X HOLDER BRG X AXIS 1
12 KG7-M2244-00X HOLDER, BRG 1
13 KM0-M2261-00X HOLDER, HEAD 1
14 KG7-M2271-00X SCREW, BALL X AXIS 1
15 90K50-871C4X AC SERVO MOTOR 1
15-1 90K53-87134X AC SERVO MOTOR 1 (1998/11/3) M8X0009 OK
15-2 90K55-87134X AC SERVO MOTOR 1 (2000/8/28) M080110 OK
16 KM0-M655A-00X SENSOR, 1-1 1
17 KM0-M655E-00X SENSOR, 1-2 1
18 K47-M2276-S0X X AXIS GUIDE SET 1
18-1 K47-M2276-S0X X-AXIS GUIDE SET 1
19 KM0-M2267-00X GUIDE 1
19-1 KM0-M2267-10X GUIDE 1 (1998/3/13) M830028 NG
19-2 KM0-M2267-10X CABLE, DUCT 1 (1998/4/2) M840005 OK
19-3 KM0-M2267-20X CABLE,DUCT 1 PISCO (1999/1/26) M910171 OK
20 K94-M220A-00X TAPE, X AXIS 1
21 K94-M220A-10X TAPE, X AXIS 1
22 KM0-M2282-00X DOG, ORG 1
23 KM0-M2283-00X DOG, 2nd LIMIT 2
24 KG2-M2604-00X SUPPORT UNIT 1
25 KH4-M227B-00X PLATE 1
25-1 KM0-M226B-00X PLATE 1 (1996/11/15) M600063 OK
26 KM0-M2252-00X STOPPER 1
27 KM0-M2291-00X BRACKET, SENSOR 1
28 KM0-M2251-00X NYLOCK BOLT 10 M8X22L
28-1 90990-01J024 BOLT,HEX.SOCKET HEAD 10 (2007/10/29) MD00030 OK
28-2 90990-01J179 BOLT,HEX.SOCKET HEAD 10 (2020/1/24) MT10096 OK
29 KM0-M2251-10X NYLOCK BOLT 4 M8X20L
29-1 90990-09J003 SCREW,FLAT HEAD 4 (2007/11/9) MD00082 OK
30 KM0-M226A-00X COVER, CABLE 1
31 KM0-M223A-00X SEAL CONNECTOR 1
32 KM8-M2267-20X COVER,RUNNER FLEX 1
32-1 KM8-M221A-A0X COVER,DUCT ASSY. 1 (2000/4/27) M040128 OK
33 KM0-M2267-C0X BRACKET1,DUCT 1
34 KM0-M2267-D0X BRACKET2,DUCT 1
35 KM0-M2267-E0X BRACKET3,DUCT 1
36 KM8-M220A-20X TAPE,X DUCT 1
37 KM8-M220B-20X TAPE,X DUCT 1
38 KV7-M2663-00X NYLOCK BOLT 16 M5X16
38-1 90990-01J030 BOLT,HEX.SOCKET HEAD 16 (2007/10/29) MD00030 OK
39 KM7-M2648-00X BLOCK,STOPPER 1
39-1 KM7-M2648-R0X BLOCK,STOPPER 1 (2000/10/18) M000098 OK
40 KM7-M2649-00X BLOCK,DAMPER 1
40-1 KM7-M2649-A0X BLOCK,DAMPER 1 (2000/10/18) M000098 OK
41 KM7-M2650-00X DAMPER,STOPPER 1
41-1 KM7-M2649-B0X DAMPER,STOPPER 1 (2000/10/18) M000098 OK
42 KM7-M2648-01X BLOCK,STOPPER 1
42-1 KM7-M2648-L0X BLOCK,STOPPER 1 (2000/10/18) M000098 OK
43 KM7-M2649-01X BLOCK,DAMPER 1
43-1 KM7-M2650-A0X BLOCK,DAMPER 1 (2000/10/18) M000098 OK
43-2 KM7-M2650-A1X BLOCK,DAMPER 1 (2002/1/7) M1Y0143 OK
44 KM7-M2650-01X DAMPER,STOPPER 1
44-1 KM7-M2650-B0X DAMPER,STOPPER 1 (2000/10/18) M000098 OK
45
98707-04014 SCREW FLAT HEAD 1
46
98707-04020 SCREW FLAT HEAD 1
47
91317-05035 BOLT,HEX.S.H. 1
48 91317-05020 BOLT,HEX.S.H. 2
49 KM0-M2267-F1X PLARAIL CHAINS 1
50 KM0-M2648-00X DAMPER 1
50-1 Delete (2000/10/17) M000076
51 KM0-M2650-00X SHOULDER BOLT 2
51-1 Delete (2000/10/17) M000076
52 KM0-M2648-00X DAMPER 1 D=36MM
52-1 KM0-M2648-70X DAMPER 1 D=36MM (1999/1/27) M910102 OK
52-3 KM0-M2648-71X DAMPER 1 D=36MM (1999/6/9) M960036 OK
52-4 Delete (2000/10/17) M000076
53 91317-04010 BOLT HEX.SOCKET HEAD 28
54 91317-04012 BOLT HEX.SOCKET HEAD 4
55 91317-04014 BOLT HEX.SOCKET HEAD 4
56 91317-04016 BOLT HEX.SOCKET HEAD 30
57 91317-05016 BOLT HEX.SOCKET HEAD 2
58 91317-05025 BOLT HEX.SOCKET HEAD 4
59 91317-05030 BOLT HEX.SOCKET HEAD 2
60 91317-06012 BOLT HEX.SOCKET HEAD 4
61 91317-06016 BOLT HEX.SOCKET HEAD 6
62 98907-03010 SCREW BINDING HEAD 2
63 92907-03200 WASHER PLAIN 2
64 92907-04200 WASHER PLAIN 4
65 92907-06200 WASHER PLAIN 6
66 95301-06600 NUT.HEXAGON 2
67 91317-04006 BOLT HEX.SOCKET HEAD 4
68 98907-04008 SCREW BINDING HEAD 4
