KM0_YVL88_PL - 第13页
1 6 Main Conveyor (Standard / New T ype) Conveyor KM0-080527 1 32 31 36 35 42 9 10 51 1 1 2 37 33 40 50 38 1 42 43 47 22 42 42 46 44 45 42 15 27 5 27 4 21 27 4 48 8 6 52 12 14 7 21 23 41 19 52 42 42 29 12 15 3 1 1 10 9 3…
1
5
Y-Axis Assy.
Y-Axis
KM0-080527
2
1
10
18
12
19
13
26
3
27
8
14
15
9
10
11
16
17
27
23
7
24
OLD
22
20
5
25
26
4
6
21
4
29
28
31
30
31
29
28
30
31
31
31
29
28
30
31
31
29
28
30
31
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KM0-M2611-01X FRAME R, Y AXIS 1
1-1 KM0-M2611-02X FRAME R,Y AXIS 1 (1997/8/20) M780062 OK
2 KM0-M2612-01X FRAME L, Y AXIS 1
2-1 KM0-M2612-02X FRAME L,Y AXIS 1 (1997/9/3) M790017 OK
3 KG7-M2271-00X SCREW BALL X AXIS 1
3-1 KM0-M2671-00X SCREW BALL 1 (1996/5/9) M610032
3-2 KM0-M2671-01X SCREW BALL 1 (1997/5/8) M750002 OK
3-3 KM8-M2671-00X SCREW BALL 1 (1997/7/23) M770090 OK
3-4 KM8-M2671-01X SCREW BALL 1 (1997/12/8) M7Y0012 OK
3-5
KM8-M2671-00X SCREW BALL 1 (1999/2/4) M920040 OK
4 KG2-M2604-00X SUPPORT UNIT 1
5 KM0-M2641-00X HOLDER MOTOR, Y AXIS 1
6 KM0-M2642-00X HOLDER BRG. Y AXIS 1
7 KM0-M2648-00X DAMPER 2
7-1 Delete (1997/1/10) M6X1028
8
KM0-M2666-00X HOLDER NUT Y AXIS 1
8-1 KM0-M2666-01X HOLDER NUT Y AXIS 1 (1996/5/9) M640021 NG
9 KM0-M2682-00X DOG ORG 1
9-1 KM0-M2682-01X DOG ORG 1 (1996/8/29) M670089 OK
10 KM0-M2683-00X DOG 2ND LIMIT 2
10-1 KM0-M2683-01X DOG 2ND LIMIT 2 (1996/8/29) M670089 OK
11 KM0-M2691-00X BRACKET SENSOR 1
11-1 KM0-M2691-01X BRACKET SENSOR 1 (1996/8/29) M670089 OK
12 KM0-M2694-00X BRACKET A, GUIDE 1
13 KM0-M2695-00X BRACKET B, GUIDE 1
14 KM0-M26F1-00X FRAME 1 1
14-1 KM8-M26F1-00X FRAME 1 1 (1997/3/20) M730188 OK
15 KM0-M26F2-00X FRAME 2 1
15-1 KM8-M26F2-00X FRAME 2 1 (1997/3/20) M730188 OK
16 KM0-M655A-00X SENSOR, 1-1 1 GXL-8FUB(FOR 2ND LIMIT)
17 KM0-M655E-00X SENSOR, 1-2 1 GXL-8FUIB(FOR ORG.)
18 KM0-M260A-00X TAPE, Y AXIS 1 NBR T3
19 KM0-M2678-00X GUIDE 1
19-1 KM0-M2678-10X GUIDE 1 (1998/3/13) M830029 NG
20 90K50-871C4Y AC SERVO MOTOR 1
20-1 90K53-87134Y AC SERVO MOTOR 1 (1998/11/3) M8X0009 OK
20-2 90K55-87134Y AC SERVO MOTOR 1 (2000/8/28) M080110 OK
21 KG7-M2643-00X HOLDER, BRG. 1
22 KM0-M2676-30X GUIDE, Y AXIS 1 LS201120AL2-P6Z3
22-1 Delete (1998/12/25) M8Y0096
23 KM0-M2677-30X GUIDE, Y AXIS 1 LS201120AL2-P6Z1
23-1 Delete (1998/12/25) M8Y0096
24 KM0-M2650-00X SHOULDER, BOLT 2
24-1 Delete (1997/2/27) M720130
25 KM0-M2672-00X COUPLING Y- AXIS 1
25-1 KM5-M2611-00X COUPLING,Y-AXIS 1 LCD (1998/4/17) M840059 OK
26 KM0-M2651-00X NYLOCK BOLT 20 M10X50L
26-1 90990-01J025 BOLT,HEX.SOCKET HEAD 20 (2007/10/29) MD00030 OK
27 KM0-M2676-S0X Y-AXIS GUIDE SET 1 (1998/12/25) M8Y0096
28 KM7-M2651-00X BLOCK STOPPER 4 (1997/7/16) M770051
29 KM7-M2652-00X BRACKET STOPPER 2 4 (1997/7/16) M770051
30 KV7-M2651-00X DAMPER STOPPER 2 4 (1997/7/16) M770051
31 91317-05016 BOLT HEX. SOCKET HEAD 8 (1997/7/16) M770051
1
6
Main Conveyor (Standard / New Type)
Conveyor
KM0-080527
1
32
31
36
35
42
9
10
51
11
2
37
33
40
50
38
1
42
43
47
22
42
42
46
44
45
42
15
27
5
27
4
21
27
4
48
8
6
52
12
14
7
21
23
41
19
52
42
42
29
12
15
3
11
10
9
34
20
13
48
42
41
19
23
24
25
25
25
25
42
24
7
6
21
26
26
22
42
15
21
18
18
47
15
17
42
16
28
30
39
55
54
10
10
2
3
OLD
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KG7-M9101-00X PLATE 1 2
2 KG7-M9102-00X PLATE 2 1
2-1 KU0-M9102-00X PLATE 2 1 (1997/2/15) M710073 NG
3 KG7-M9103-00X PLATE 3 1
3-1 KU0-M9103-00X PLATE 3 1 (1997/2/15) M710073 NG
4 KH5-M9104-51X PLATE 4 2
5 KG7-M9105-00X BRACKET, SPLINE 1
6 KG7-M9106-00X PLATE 6 2
7 KG7-M9107-00X SHAFT GUIDE W 2
7-1 KG7-M9107-A0X SHAFT GUIDE W ASSY 2 (1998/6/18) M860009 OK
8 KG7-M9108-00X BRACKET, COLLAR 1
9 KG7-M9110-00X COLLAR W 2
9-1 KG7-M9110-01X COLLAR,W 2 (1997/10/23) M700092 OK
9-2 90990-41J006 COLLAR 2 (2008/4/15) ME20075 OK
10 KG7-M9118-00X PLATE BRG 2
10-1 KU0-M9118-00X PLATE BRG. 2 (1997/2/15) M710073 NG
11 KG7-M9119-00X BRG 6200ZZ 2
11-1 90933-01J200 BEARING 2 (2001/6/29) M160195 OK
12 91317-05020 BOLT HEX. S.H 2
13 KG7-M9121-00X FRAME,CONVEYOR FIXED 1
14 KG7-M9122-00X FRAME,CONVEYOR MOVI. 1
15 KG7-M9123-00X GUIDE 1 4
16 KG7-M9124-00X PLATE 1, GUIDE 1
17 KG7-M9125-00X PLATE 2 GUIDE 1
17-1 KG7-M9125-01X PLATE 2 GUIDE 1 (1996/6/12) M660021 OK
18 KG7-M9126-00X SET COLLAR 2 W390
19 KG7-M912A-00X BRACKET, SENSOR 2
20 KG7-M9127-00X STOPPER, LOCATE PIN 1
21 KG7-M9128-00X DAMPER, W 4
22 KM0-M9129-00X BELT 1,CONVEYOR 2
22-1 KG7-M9129-00X BELT1,CONVEYOR 2 (2000/4/25) M040140 OK
23 KG2-M9144-01X BRACKET 3, SENSOR 2
24 KG7-M9133-00X PLATE, LOCATE PIN 2
25 KG7-M9135-00X PLATE, EDGE 2 4
26 KG7-M9136-00X PLATE, EDGE 3 2
27 KH2-M9121-00X BEARING 3 SFB38-10C
28 KM7-M91B2-00X BRACKET, SENSOR 1
29 KH4-M4886-00X MOTOR ASSY 6 1
30 KM0-M655F-10X SENSOR,1-3 1
31 KM0-M9182-00X PLATE, GUIDE 1
32 KG7-M9183-00X BRACKET, BELT 1
33 KG7-M9185-00X HOUSING SHAFT 1
33-1 KM0-M9185-00X HOUSING SHAFT 1 (1996/6/8) M630039 OK
34 KG7-M9187-00X PULLEY 2, LOCATE 1
35 KG7-M9188-00X BELT 1 73474X6-HTD II
36 KG7-M9189-00X GUIDE 1
36-1 KM0-M9189-00X GUIDE 1 L=500mm (1997/1/28) M6X0053 NG
36-2 KM8-M9189-00X GUIDE 1 L=580mm (1998/6/9) M860027 OK
37 KG7-M9190-00X HANDLE 1 HAK-40XR8-N
38 KU0-M9191-00X SHAFT 1
39 KG7-M9192-00X PLATE, IDLER 1
40 KG7-M9193-00X LEVER CLAMP 1
40-1 KM0-M9193-00X LEVER CLAMP 1 (1996/6/8 M630039 OK
41 KH4-M655F-20X SENSOR,1-3 2 φ15
42 KG2-M9102-00X PULLEY CONVEYOR 12
42-1 KV1-M9140-A0X PULLEY,CONV. ASSY 12 (2000/7/21) M070148 OK
43 KM0-M9103-00X SPLINE 1 1
43-1 KG2-M9103-00X SPLINE 1 1 (1998/4/8) M840028 OK
44 KG2-M9104-00X PULLEY 1 MOTORR 1
44-1 Delete (1997/7/10) M770047
45 KG2-M9105-00X PULLEY 1, SPLINE 1
46 KG2-M9108-00X COLLAR, CONVEYOR 1
47 KG2-M9113-00X GUIDE EDGE 1 2
47-1 KG2-M9113-01X GUIDE,EDGE 1 2 (2000/7/17) M070114 OK
48 KG2-M9114-00X GUIDE EDGE 2 2
48-1 KG2-M9114-01X GUIDE,EDGE 2 2 (2000/7/17) M070114 OK
49
50 99009-15400 CIR, CLIP 1
51 KU0-M9194-00X WASHER 1
51-1 90990-28J068 WASHER,PLAIN 1 (2007/12/18) MDX0125 OK
52 KV7-M9140-00X PULLEY,CONVEYOR 2
52-1 KV7-M9140-A0X PULLEY,CONV. ASSY 2 (2000/7/21) M070148 OK
54 92907-05600 WASHER PLAIN 1
55 95307-05600 NUT HEXAGON 2
2
6

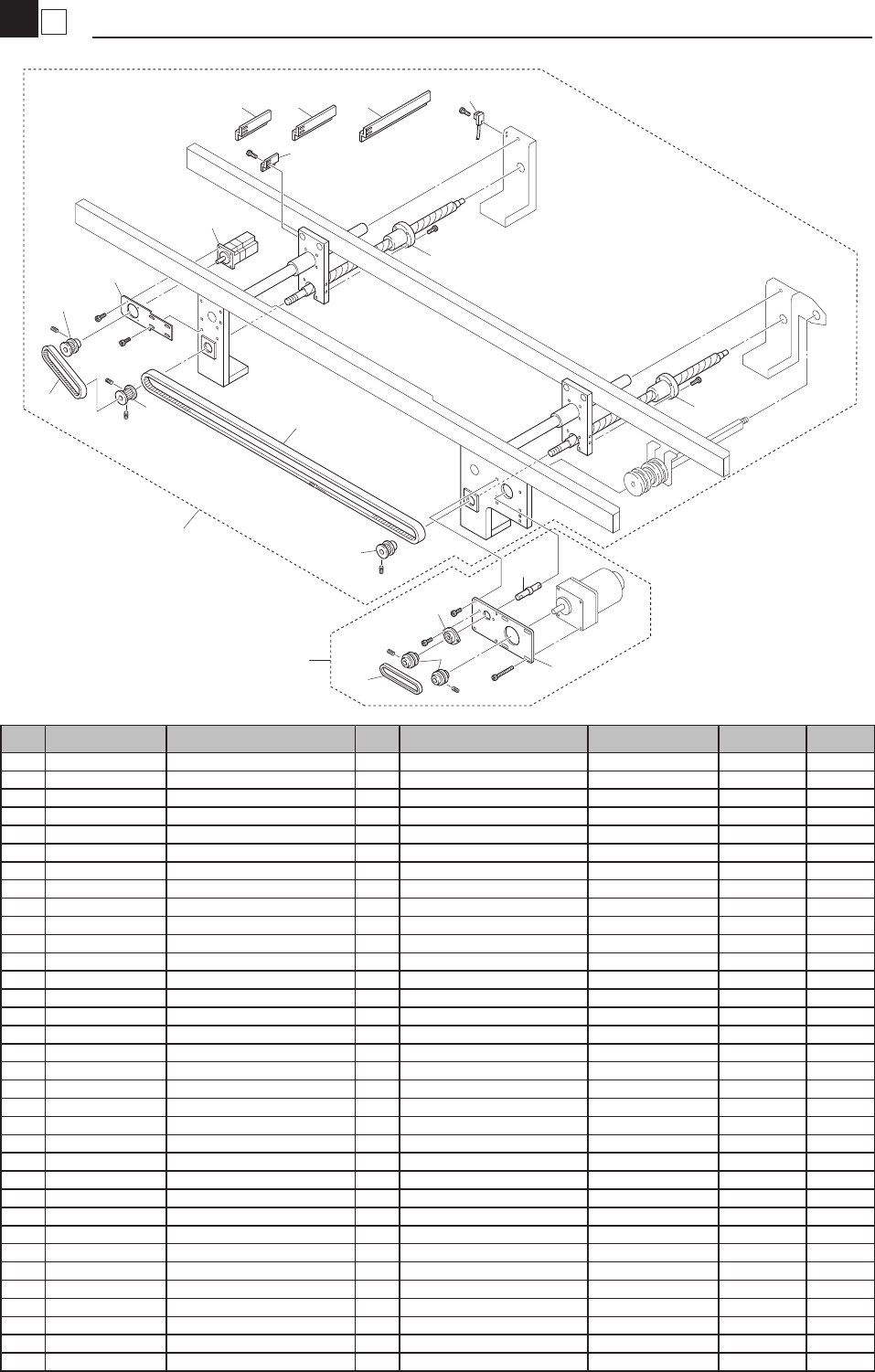

Auto Width Conveyor (Option)
Conveyor
KM0-1011
3
6
4
5
2
1
19
16
8
14
10
11
9
7
12
20
18
13
13
21
15
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KM0-M9190-00X BRKT., CONV. MOTOR ASSY. 1
2 KM0-M9145-00X BRKT., CONV. MOTOR 1
3 KM7-M9103-00X SPLINE 1 1
4 KH2-M9105-10X PULLEY MOTOR 2 3GTP30
4-1 KH2-M9105-11X PULLEY,MOTOR 2 P30-3GT (2001/6/5) M160031 OK
5 KH2-M9110-00X BELT PULLEY MOTOR 1
5-1 KH2-M9110-10X BELT PULLEY MOTOR 1 (1996/11/28) M6X0005
6 KH2-M9121-00X BEARING 1 SFB38-10
7 KM0-M91B0-00X AUTO WIDTH ADJ. 1
8 KG7-M9111-01X PULLEY 1 2
8-1 KG7-M9111-01X PULLEY 1 1 (1998/11/24) M8X0099 OK
9 KG7-M9112-00X PULLEY 2 W AXIS 1
9-1 KG7-M9112-01X PULLEY 2 1 (1998/7/21) M870046 OK
10 KG7-M9113-00X PULLEY 3 MOTOR W AXI 1
10-1 KG7-M9113-01X PULLEY 3 1 (1998/7/21) M870046 OK
11 KG7-M9114-00X BELT, MOTOR W AXIS 1 73092X9 HD II
12 KG7-M9115-00X BELT, W AXIS 1 73560X9 HD II
13 KG7-M9132-00X BALL SCREW W 2
13-1 KM0-M9132-00X BALL SCREW W 2 (1996/10/15) M600028
13-2 KM0-M9A00-00X BALL SCREW W 2 (2010/7/28) MG70132 OK
14 KM0-M9141-20X BRACKET, MOTOR W 1
15 KM0-M911F-00X SENSOR, ORG 1
16 90K55-4W036W AC SERVO MOTOR 1
17
18 KG7-M9117-00X DOG, ORIGIN W SEL W=407
19 KG7-M9117-01X DOG, ORIGIN W SEL W=350
20 KG7-M9117-02X DOG, ORIGIN W SEL W=330
21 KG7-M9117-03X DOG, ORIGIN W SEL W=250
22 92A08-04306 SET SCREW 4 M4X6
22-1 90152-04J06 SCREW,SET 4 M4X6 (2001/8/29) M180133 OK
22-2 92A08-04306 SET SCREW 4 M4X6 (2001/8/30) M180140 OK
23 KG7-M9110-01X COLLAR W 1
23-1 90990-41J006 COLLAR 1 (2008/4/15) ME20075 OK
24 KM0-M9147-00X SPACER PULLER 1 (1996/11/28) M6X0004
