1 12 Feeder Floating Detection (Front) Feeder Floating KM0-080527 3 3 8 6 7 4 5 1 2 2 2 OLD 4 1 OLD No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KM0-M3901-01X BRACKET SENSOR2 1 1-1 KV7-M…
1
11

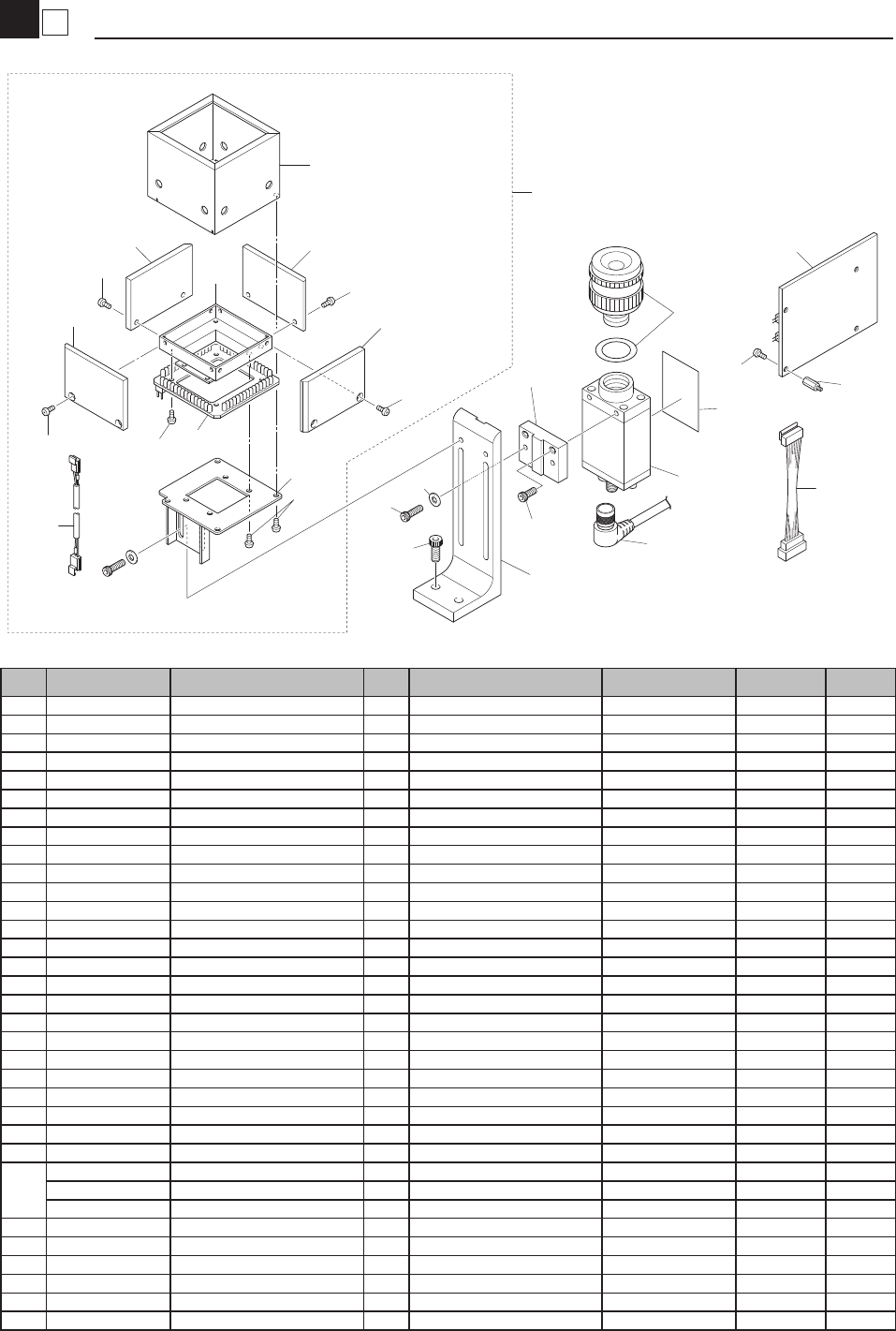

Front Light 1 Unit
Single Vision Camera
KM0-080527
7
5
1
3
6
6
11
11
9
10
4
11
11
8
6
2
12
6
11
11
28
29
27
26
20
23
22
25
24
21
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KH4-M669T-02X HARNESS 9-12 1
2 KH4-M6474-12X LED DRIVER 1, ASSY. 1
3 90561-03J14 SPACER 2 4 SQ-M3-14L
3-1 91C00-03214 SPACER 4 M3X14L (1996/8/8)
3-2 91C00-03210 SPACER 4 M3X14L (1999/10/26) M900105 OK
3-3 90563-03J100 SPACER BOLT 4 (2001/9/1) M180147 OK
4 98503-03004 SCREW PAN HEAD (+-) 4
4-1 98504-03004 SCREW,PAN HEAD (+) 4 (2001/11/27) M1X0090 OK
4-2 98502-03004 SCREW PAN HEAD 4 (2006/1/13) MBY0160 OK
5 KG7-M72C0-00X FORE LIGHT ASSY. 1
6 KG7-M72C1-00X DIFFUSER 4
7 KG7-M72C2-00X HOUSING, LIGHT 1 1
8 KG7-M72C3-00X HOUSING, LIGHT 2 1
9 KG7-M72C4-00X HOUSING, LIGHT 3 1
10 KG7-M72A5-00X FORE LIGHT BOARD ASSY. 1
11 98503-03006 SCREW PAN HEAD 16
11-1 98504-03006 SCREW PAN HEAD 16 (2001/11/27) M1X0090 OK
11-2 98502-03006 SCREW PAN HEAD 16 (2006/1/13) MBY0160 OK
12 KH4-M669U-00X HARNESS, 9-13 1 IO, LAMP
20 KG7-M7201-10X BRACKET CAMERA 1
21 KG7-M7203-00X HOLDER CAMERA 1
22 KG9-M7210-00X CCD CAMERA 1 XC-75, SONY
22-1 KG9-M7210-10X CCD CAMERA 1 (1998/9/3) M880078 OK
23 KG2-M66F3-10X HARNESS 12-3 1
23-1 KM7-M66F0-00X C.CABLE ASSY 1 L5M (1997/10/17) M700058 OK
24
KG9-M72B0-11X LENS ASSY 1 1 45 P=0.5mm
KG9-M72B0-21X LENS ASSY 2 1 32 P=0.3mm
KG9-M72B0-31X LENS ASSY 3 1 54 P=0.5mm
25 KV7-M7165-00X SEAL DON'T TOUCH 1
26 91317-03010 BOLT, H.S.H. 2 M3x10
27 91317-03014 BOLT, H.S.H. 2 M3x14
28 91317-06015 BOLT, H.S.H. 2 M6x15
28-1 91317-06014 BOLT HEX.SOCKET HEAD 2 (2008/2/1) ME10057 OK
29 92906-03200 WASHER 2 M3
1
12
Feeder Floating Detection (Front)
Feeder Floating
KM0-080527
3
3
8
6
7
4
5
1
2
2
2
OLD
4
1
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KM0-M3901-01X BRACKET SENSOR2 1
1-1 KV7-M3901-00X BRACKET SENSOR2 2 (1999/1/12) M910040 NG
2 KG7-M3906-00X BRACKET 6 2
3 KM0-M3905-00X BRACKET2,SENSOR 1
3-1 KV7-M3905-20X BRACKET 2,SENSOR 1 (1999/7/20) M970059 NG
4 KV7-M3910-00X BRACKET SENSOR 1 1
4-1 KV7-M3910-01X BRACKET SENSOR,1 1 (1999/8/4) M980020 OK
5 KG9-M3455-10X SENSOR S 1
6 KH5-M3456-A0X SENSOR R 1
7 KG2-M3903-00X SEAL, CAUTION 1
8 KV7-M3907-00X BRACKET 3,SENSOR 1 (1999/7/20) M970059
2
12
Feeder Floating Detection (Rear)
Feeder Floating
KM0-080527
9
7
OLD
4
6
5
1
2
8
3
4
5
1
OLD
3
7
4
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KM0-M3901-01X BRACKET SENSOR2 1
1-1 KV7-M3901-00X BRACKET SENSOR2 1 (1999/1/12) M910040 NG
1-2 KV7-M3901-10X BRACKET SENSOR2 1 (1999/2/18) M920142 OK
2 KG7-M3906-00X BRACKET 6 2
3 KM0-M3905-00X BRACKET2,SENSOR 1
3-1 KV7-M3905-10X BRACKET2,SENSOR 1 (1999/1/12) M910040 NG
3-2 KV7-M3905-30X BRACKET 2,SENSOR 1 (1999/7/20) M970059 OK
4 KM0-M3904-00X PLATE EXTENSION 2
4-1 KM0-M3904-01X PLATE EXTENSION 2 (1999/1/12) M910040 NG
4-2 KM0-M3904-02X PLATE, EXTENTION 2 (1999/8/4) M980020 OK
5 KV7-M3910-00X BRACKET SENSOR 1 1
5-1 KV7-M3910-01X BRACKET SENSOR,1 1 (1999/8/4) M980020 OK
6 KG9-M3455-10X SENSOR S 1
7 KH5-M3456-A0X SENSOR R 1
8 KG2-M3903-00X SEAL, CAUTION 1
9 KV7-M3907-00X BRACKET 3,SENSOR 1 (1999/7/20) M970059
