KM0_YVL88_PL - 第27页
2 13 Controller Cable Control KM0-080527 DRIVER 1 SERVO 1 SERVO 2 VISION DRIVER 2 SYSTEM 5 26 8 1 23 18 17 19 16 3 2 21 7 6 27 4 29 9 13 12 28 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. …
1
13
Control Box
Control
KM0-080527
5
6
2
4
8
9
3
7
1
DRIVER
1
SERVO
1
SERVO
2
VISION
DRIVER
2
SERVO
2
VISION
DRIVER
2
SYSTEM
SYSTEM
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KJ1-M4510-02X MOTHER BOARD ASSEMBLY 1
2 KJ0-M5880-11X POWER 282 V 1
3 KJ0-M4200-02X SYSTEM UNIT ASSEMBLY 1
4 KJ1-M53E2-10X TRANSFORMER 1 ASSEMBLY 1
5 KJ1-M4185-10X FAN MOTOR ASSEMBLY 2
6 KJ1-M5303-00X SW POWER DC 5 1
7 KG7-M441H-B1X VISION BOARD ASSEMBLY Sel.
8 KJ0-M5810-A2X DRIVER BOARD ASSY 1
8-1 KJ0-M5810-A4X DRIVER BOARD ASSY 1 (2000/5/18) M050021 OK
8-2 KJ0-M5810-A5X DRIVER BOARD ASSY 1 (2007/1/12) MCY0115 NG
9 KJ0-M5840-A2X SERVO BOARD ASSEMBLY 1
2
13
Controller Cable
Control
KM0-080527
DRIVER
1
SERVO
1
SERVO
2
VISION
DRIVER
2
SYSTEM
5
26
8
1
23
18 17
19
16
3
2
21 7
6
27
4
29
9
13
12
28
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KK1-M665F-00X HNS 5-3 [J21] 1
2 KG7-M664A-01X HNS 4-1 : J101 1
2-1 KG7-M664A-02X HNS,4-1(CMN,I/O R) 1 (1999/9/18) M990052 OK
3 KG7-M664E-01X HNS,4-2 1
3-1 KG7-M664E-02X HNS,4-2(CMN,I/O L) 1 (1999/9/18) M990052 OK
4 KG2-M664H-00X HNS 4-5 (CMN1) [J107] 1
5 KH4-M664L-03X HNS 4-8 (FDD) [J110] 1
6 KH4-M664M-00X HNS 4-9 (KEY BOARD) [J111] 1
7 KH4-M664N-01X HNS,SERIAL2 1
7-1 KH4-M664N-02X HNS,SERIAL2 1 (2005/3/28) MB30100 OK
7-2 KH4-M664N-A0X HNS,SERIAL2 ASSY 1 (2005/4/7) MB40001 OK
8 KM0-M665A-00X HNS 5-1 (PI1) [J121] 1
9 KM0-M665E-00X HNS 5-2 (PI2) [J122] 1
12 KM0-M666A-00X HNS 6-1 (MO1) [J141] 1
13 KM0-M666E-00X HNS 6-2 (MO2) [J142] 1
16 KM0-M667E-00X HNS 7-2 (P24EMG INTE 1
16-1 KM0-M667E-01X HNS,7-2 (P24EMG INTE 1 (1998/11/9) M8X0015 OK
17 KL0-M66F0-20X HNS 12-3 (CAMERA 1) [J502] 1
18 KG2-M66F3-20X HNS 12-3 (CAMERA 4) [J503] 1
19 KG2-M66F3-10X HNS 12-3 (CAMERA 2) [J504] 1
21 KG7-M66F6-00X HNS 12-6 (V.OUT) 1
21-1 KG7-M66F6-01X HNS,12-6 (V.OUT) 1 (1997/12/4) M7Y0017 OK
23 KH4-M66F5-01X HNS 12-5 (VGA) [J508] 1
26 KJ9-M661H-20X HNS 1-5 (PI3) [J692] 1 YTF31A
26 KH2-M661F-10X HNS 1-3 (PI3) [J692] 1 YTF100A
27 KH2-M661G-10X HNS 1-4 (PI4) [J693] 1 YTF100A
28,29 KH2-M661H-10X HNS 1-5 (MO3, MO4) [J694] 1 YTF100A
27 KJ9-M661K-20X HNS 1-7 (PI4) [J693] 1 YTF31A
28 KJ9-M661F-20X HNS 1-3 (MO3) [J694] 1 YTF31A
29 KJ9-M661G-20X HNS 1-4 (MO4) [J695] 1 YTF31A
1
14
Monitor, etc.
Exterior, etc
KM0-080527
9
10
1
4
3
5
2
7
6
8

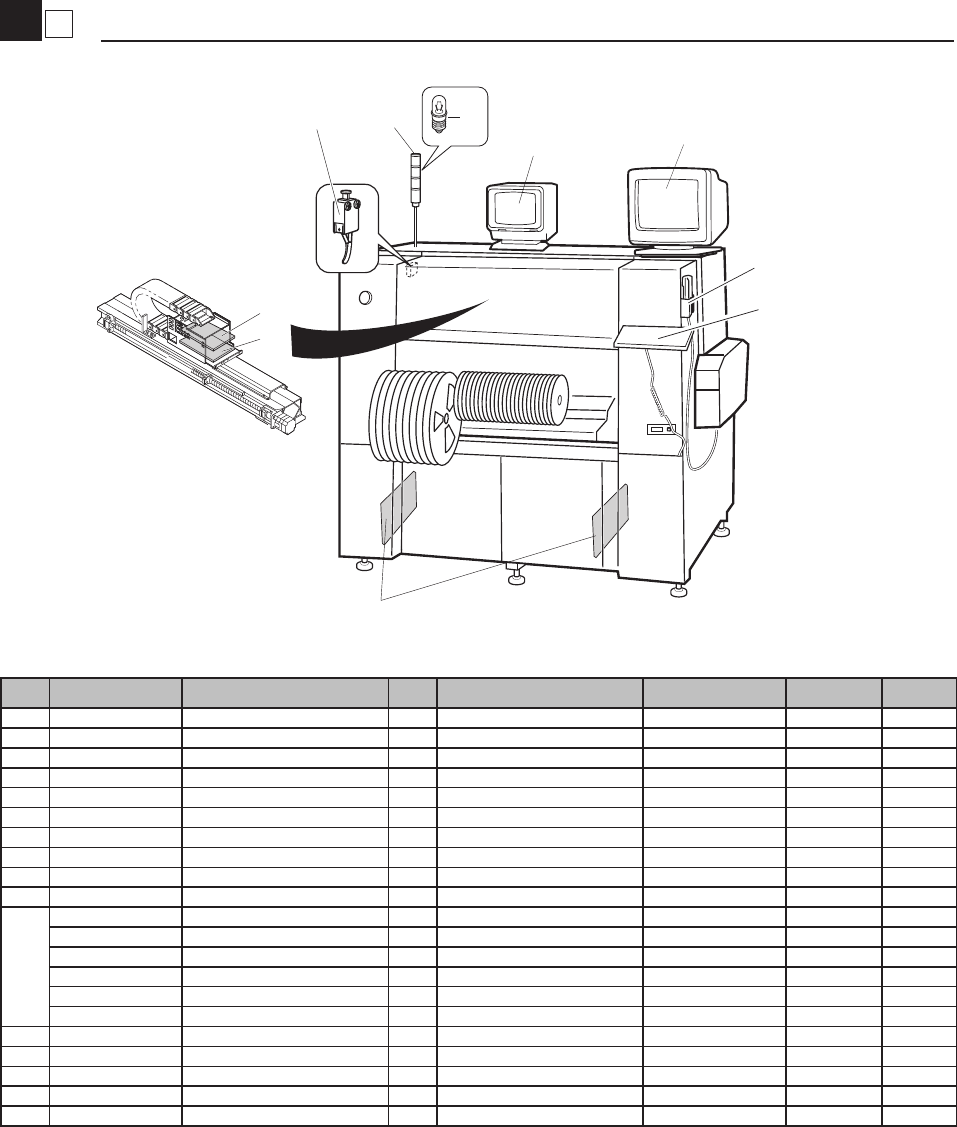

No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KH4-M5109-01X MONITOR 15COLOR" 1
1-1 KM8-M5119-00X MONI.15COLOR ASSY" 1 (1997/12/3) M7Y0005 OK
2 K44-M5111-A0X CRT 2 ASSY 1
2-1 KH1-M5111-A1X CRT2 ASSY 1 (2002/3/5) M230003 NG
2-2 KH1-M5111-B0X CRT 2 ASSY 1 (2005/7/19) MB60128 OK
3 KW3-M5150-10X KEYBOARD E 1
3-1 KW3-M5150-11X KEYBOARD E 1 (2003/9/26) M390112 OK
3-2 KW3-M5150-60X KEYBOARD E 1 (2005/12/5) MBX0153 OK
4 KH1-M5180-20X PROG,UNIT ASSY 1 YPU NEW
5 KH4-M668R-00X HNS,COVER SW 2
6
KG2-M4899-10X LIGHT,1 ASSY 1 L=300 STD
KG2-M4899-20X LIGHT,1 ASSY 1 L=400
KG2-M4899-30X LIGHT,1 ASSY 1 L=500
KG2-M4899-40X LIGHT,1 ASSY 1 L=600
KG2-M4899-50X LIGHT,1 ASSY 1 L=700
KG2-M4899-60X LIGHT,1 ASSY 1
7 K46-M4889-00X BULB 1 1 SPARE
8 KG2-M4580-00X I/O BOARD CONV ASSY 2
8-1 KM5-M4580-02X I/O CONV UNIT ASSY 2 (2001/3/23) M130142 OK
9 KG7-M4570-01X I/O BOARD LAM ASSY 1
10 KG7-M4547-10X LAM I/F BOARD ASSY 1
