157 Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TDM-3500E-2 0209-001 8-14 1 630 067 9007 B O X 1 687FB-02V-002 2 630 000 3963 CONNECTOR 2 CN303,CN304 687FB-02D-013 3 4 1 1 0 3 4 7 20 8 SCR FL T 3X8 6 M3X6 FL T…
MODEL TDM-3500E-2
0209-001
156
電気制御部 ELECTRICAL SECTION

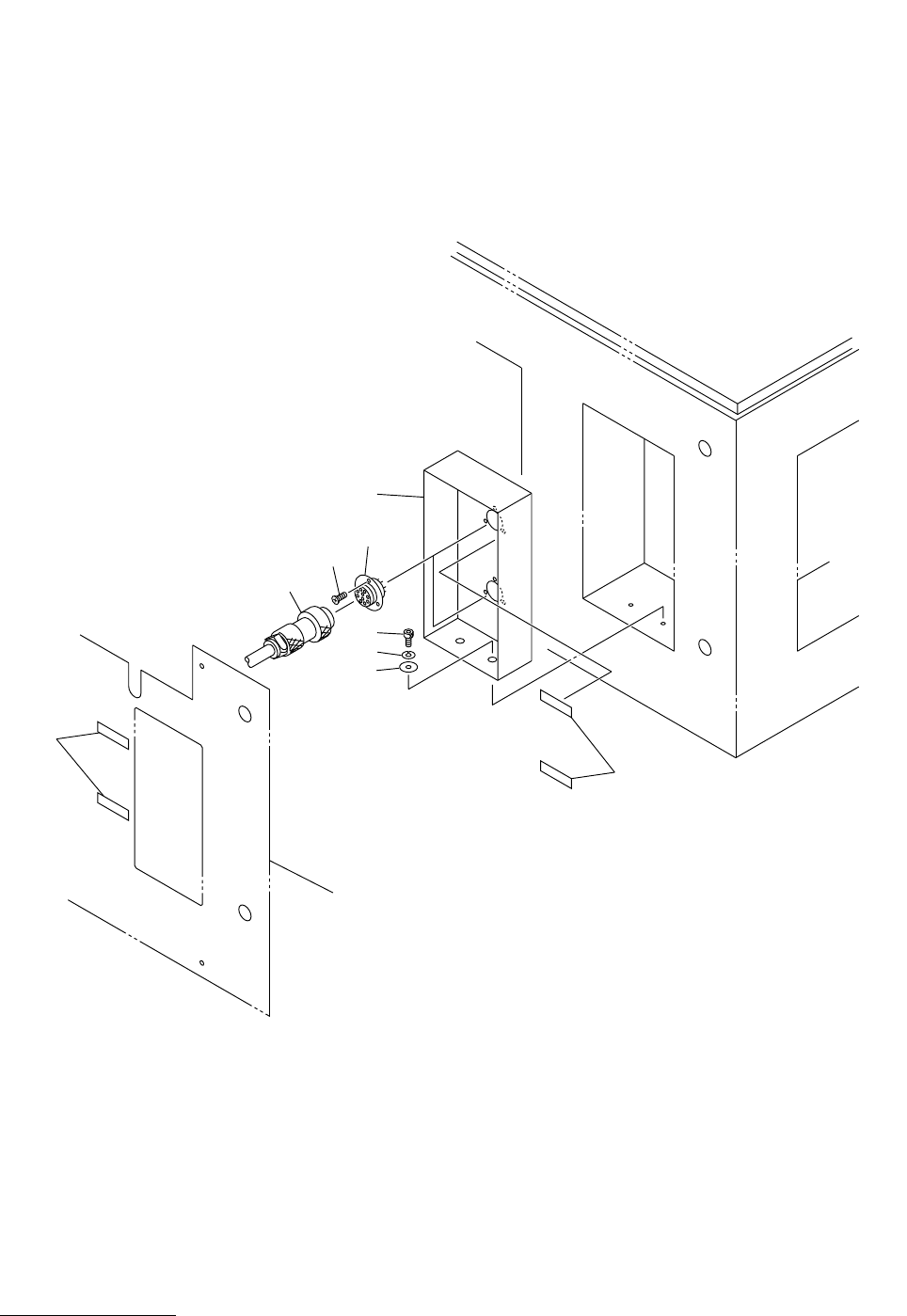

Fig. 8-14 コネクタボックス Connecter Box
12
20
20
3
2
4
5
6
1
Fig.8-14
TDM-3500E-2
See Fig.9-2
Key No.8
157
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3500E-2
0209-001
8-14
1 630 067 9007 BOX 1 687FB-02V-002
2 630 000 3963 CONNECTOR 2 CN303,CN304 687FB-02D-013
3 411 034 7208 SCR FLT 3X8 6 M3X6 FLT
4 630 001 0220 WASHER 2 BW5
5 411 141 6705 WASHER SPR 5 2 SW5
6 630 000 7756 BOLT,HEX-SCT 2 M5X12
12 630 000 3970 CONNECTOR 2 687FB-02D-014
20 630 068 7668 NAME PLATE,PARTS 1 687M--02D-016
MODEL TDM-3500E-2
0209-001
158
電気制御部 ELECTRICAL SECTION
Fig. 8-15 L コンベア部 L Conveyor Section
1
2
3
4
5
Fig.8-15
TDM-3500E-2
See Fig.1-1
Key No.2
See Fig.4-1
Key No.2
7
8
9
21
22
23
24
57
91
92
92
54
55
29
28
27
26
57
52
53
53-1
26-1
.
52-3
52-2
52-1
