MODEL TDM-3500E-2 0209-001 158 電気制御部 ELECTRICAL SECTION Fig. 8-15 L コンベア部 L Conveyor Section 1 2 3 4 5 Fig.8-15 TDM-3500E-2 See Fig.1-1 Key No.2 See Fig.4-1 Key No.2 7 8 9 21 22 23 24 57 91 92 92 54 55 29 28 27 26 57 52 …
157
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3500E-2
0209-001
8-14
1 630 067 9007 BOX 1 687FB-02V-002
2 630 000 3963 CONNECTOR 2 CN303,CN304 687FB-02D-013
3 411 034 7208 SCR FLT 3X8 6 M3X6 FLT
4 630 001 0220 WASHER 2 BW5
5 411 141 6705 WASHER SPR 5 2 SW5
6 630 000 7756 BOLT,HEX-SCT 2 M5X12
12 630 000 3970 CONNECTOR 2 687FB-02D-014
20 630 068 7668 NAME PLATE,PARTS 1 687M--02D-016
MODEL TDM-3500E-2
0209-001
158
電気制御部 ELECTRICAL SECTION

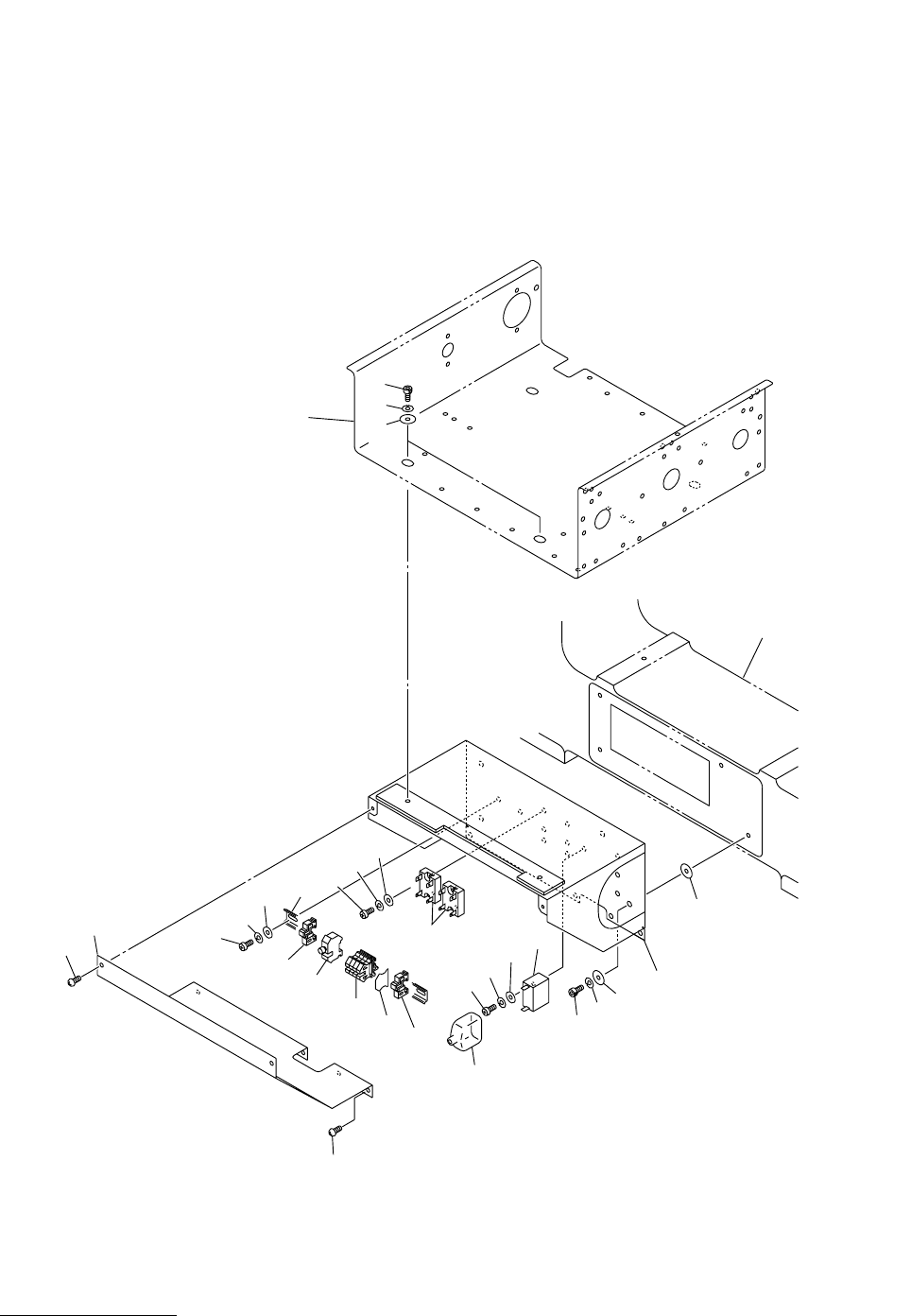

Fig. 8-15 L コンベア部 L Conveyor Section
1
2
3
4
5
Fig.8-15
TDM-3500E-2
See Fig.1-1
Key No.2
See Fig.4-1
Key No.2
7
8
9
21
22
23
24
57
91
92
92
54
55
29
28
27
26
57
52
53
53-1
26-1
.
52-3
52-2
52-1
159
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3500E-2
0209-001
8-15
1 630 001 0220 WASHER 4 687G--02H-027
2 630 067 1339 BRACKET(TB) 1 687G--02B-045
3 630 001 0220 WASHER 4 BW5
4 411 141 6705 WASHER SPR 5 4 SW5
5 630 000 7770 BOLT,HEX-SCT 4 M5X20
7 630 001 0237 WASHER 2 BW6
8 411 141 3001 WASHER SPR 6 2 SW6
9 630 000 7886 BOLT,HEX-SCT 2 M6X16
21 630 099 1345 RELAY 2 SSR1,SSR2 687FD-02D-001
22 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
23 411 008 1706 WASHER SPR 4 4 SW4 F
24 411 042 3001 SCR PAN 4X10 4 M4X10 PAN
27 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
28 411 008 1706 WASHER SPR 4 2 SW4 F
29 411 113 1400 SCR PAN 4X6 2 M4X6 PAN
52 630 094 4389 RAIL,WIRING 1
52 -1 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
52 -2 411 008 1706 WASHER SPR 4 2 SW4 F
52 -3 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
53 630 083 5496 FUSE HOLDER 1 687FD-02D-009
53 -1 423 025 1904 FUSE 250V 1.6A 1 F107 687FD-02D-008
54 630 049 3801 TERMINAL 4 687FD-02D-006
55 630 049 3733 ACCESSORY,WIRING 1 687FD-02D-003
57 630 049 3672 BRACKET,WIRING 2 687FD-02D-005
91 630 067 1346 COVER(TB) 1 687G--02B-046
92 411 051 1708 SCR TRS 4X6 6 M4X6 TRS
