MODEL TDM-3500E-2 0210-001 164 カバー部 COVER SECTION Fig. 9-2 本体カバー Body Cover Fig.9-2 TDM-3500E-2 1 5 3 4 2 6 8 9 7 9 8-1 7-1 10 12 11 12 12 12 12 11-1 11-2 11-3 9
163
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3500E-2
0209-001
9-1
1 630 067 5474 STAY 1 687R--02B-027
2 630 001 0237 WASHER 2 BW6
3 411 141 3001 WASHER SPR 6 2 SW6
4 630 000 7916 BOLT,HEX-SCT 2 M6X30
6 630 058 4899 BRACKET 1 687R--02B-028
7 630 058 4844 BRACKET 2 687R--02B-024
8 411 141 4107 WASHER V 5X10X1 6 FW5
9 411 141 6705 WASHER SPR 5 6 SW5
10 630 000 7749 BOLT,HEX-SCT 6 M5X10
11 630 067 7379 COVER 1 687R--02B-026
12 630 064 8751 BRACKET 1 687R--02B-036
13 630 001 0220 WASHER 6 BW5
14 411 141 6705 WASHER SPR 5 6 SW5
15 630 000 7756 BOLT,HEX-SCT 6 M5X12
16 630 001 0220 WASHER 2 BW5
17 411 141 6705 WASHER SPR 5 2 SW5
18 630 000 7756 BOLT,HEX-SCT 2 M5X12
19 411 141 4107 WASHER V 5X10X1 2 FW5
20 411 141 6705 WASHER SPR 5 2 SW5
21 630 000 7749 BOLT,HEX-SCT 2 M5X10
30 630 030 0031 MECH PARTS(BRACKET) 8 687R--02H-008
31 411 141 4107 WASHER V 5X10X1 16 FW5
32 411 141 6705 WASHER SPR 5 16 SW5
33 630 000 7763 BOLT,HEX-SCT 16 M5X16
34 630 067 7362 COVER 1 687R--02B-025
35 411 113 9109 SCR TRS 5X10 6 M5X10 TRS
41 630 038 9698 COLLAR 2 687R--02B-023
42 630 028 9909 MECH PARTS(URETHANES) 2 687R--02H-004
43 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
44 411 141 3001 WASHER SPR 6 2 SW6
45 630 000 7916 BOLT,HEX-SCT 2 M6X30
MODEL TDM-3500E-2
0210-001
164
カバー部 COVER SECTION

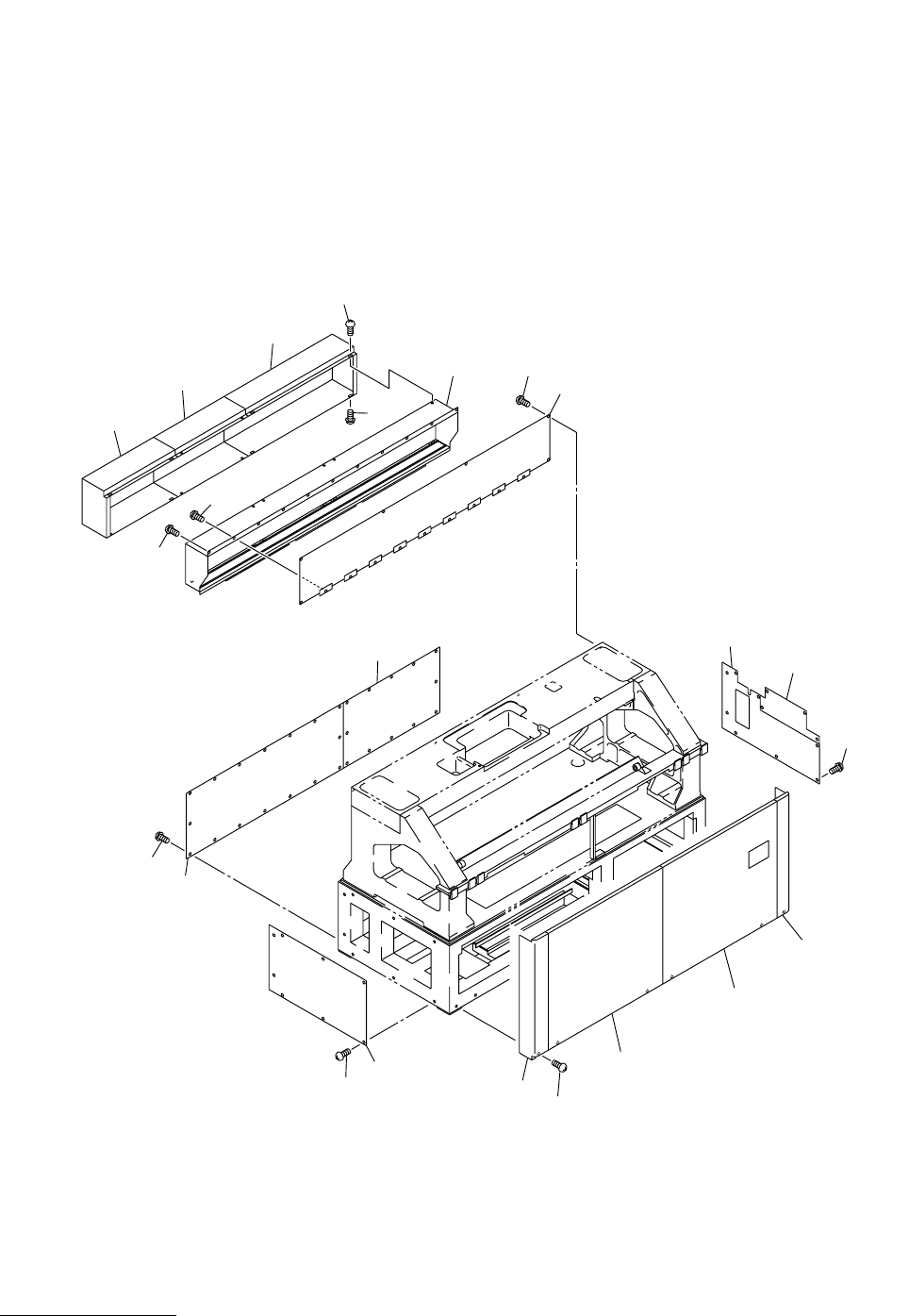

Fig. 9-2 本体カバー Body Cover
Fig.9-2
TDM-3500E-2
1
5
3
4
2
6
8
9
7
9
8-1
7-1
10
12
11
12
12
12
12
11-1
11-2
11-3
9
165
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3500E-2
0209-001
9-2
1 630 041 9498 COVER 1 687R--02B-029
2 630 041 9504 COVER 1 687R--02B-032
3 630 067 7386 COVER 1 687R--02B-030
4 630 067 7393 COVER 1 687R--02B-031
5 411 113 9109 SCR TRS 5X10 6 M5X10 TRS
6 630 067 7416 COVER 1 687R--02B-034
7 630 070 6369 COVER 1 687R--02B-054
7 -1 630 070 6314 COVER 2 687R--02B-035
8 630 067 7409 COVER 1 687R--02B-033
8 -1 630 067 7478 COVER 1 687R--02B-046
9 411 113 9109 SCR TRS 5X10 44 M5X10 TRS
10 630 070 6345 COVER 1 687R--02B-043
11 630 070 6352 COVER 1 687R--02B-044
11 -1 630 067 7492 COVER 1 687R--02B-055
11 -2 630 067 7508 COVER 1 687R--02B-056
12 411 113 9109 SCR TRS 5X10 37 M5X10 TRS
