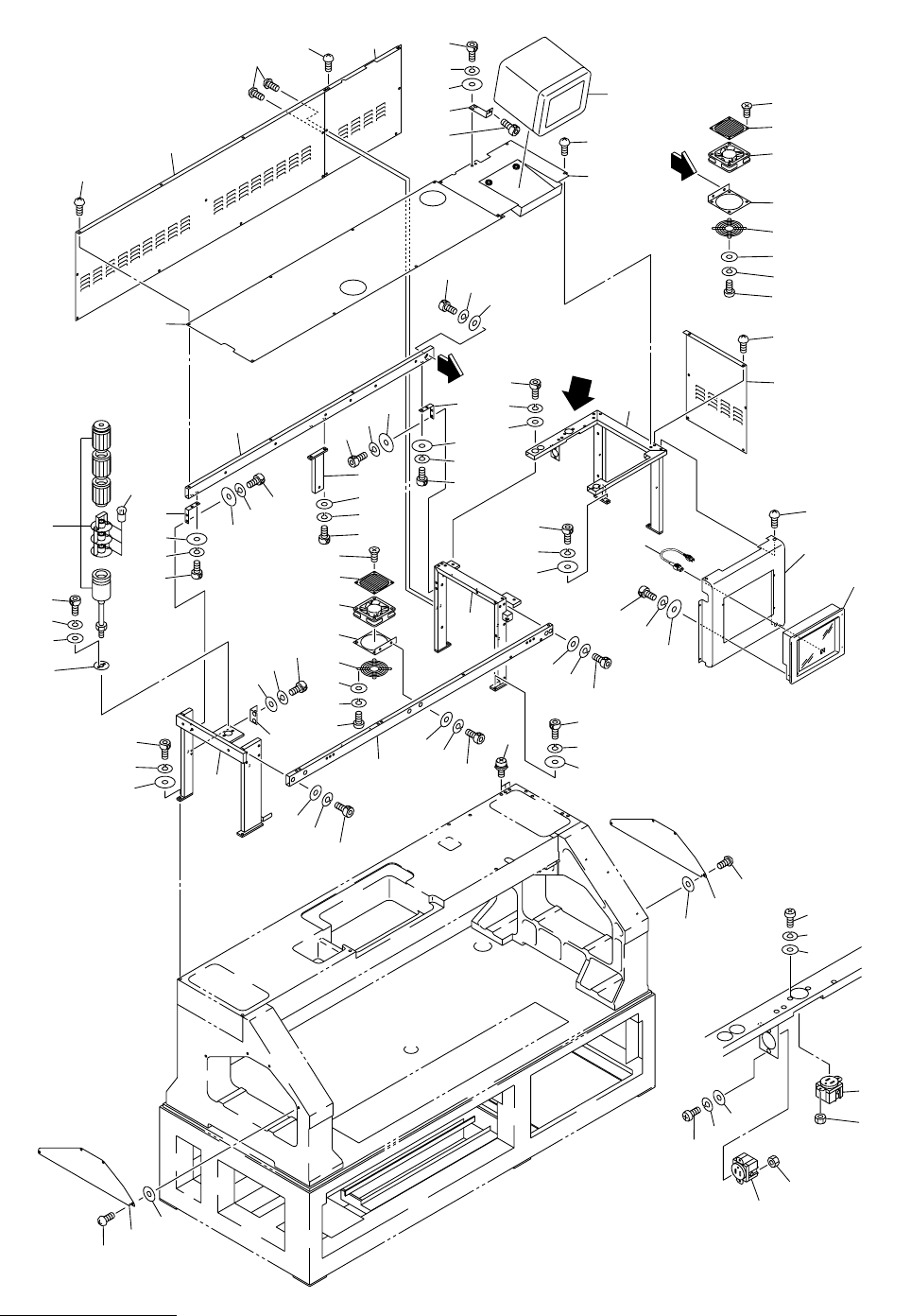

MODEL TDM-3500E-2 0210-001 166 カバー部 COVER SECTION Fig. 9-3 上部カバー Upper Cover 55 55-1 55-6 Fig.9-3 TDM-3500E-2 1 2 10 11 12 3 4 5 6 7 8 9 13 16 17 18 19 47 46 61 62 63 66 67 68 69 48 49 67 66 10 11 12 67 68 69 68 69 69 68…
165
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3500E-2
0209-001
9-2
1 630 041 9498 COVER 1 687R--02B-029
2 630 041 9504 COVER 1 687R--02B-032
3 630 067 7386 COVER 1 687R--02B-030
4 630 067 7393 COVER 1 687R--02B-031
5 411 113 9109 SCR TRS 5X10 6 M5X10 TRS
6 630 067 7416 COVER 1 687R--02B-034
7 630 070 6369 COVER 1 687R--02B-054
7 -1 630 070 6314 COVER 2 687R--02B-035
8 630 067 7409 COVER 1 687R--02B-033
8 -1 630 067 7478 COVER 1 687R--02B-046
9 411 113 9109 SCR TRS 5X10 44 M5X10 TRS
10 630 070 6345 COVER 1 687R--02B-043
11 630 070 6352 COVER 1 687R--02B-044
11 -1 630 067 7492 COVER 1 687R--02B-055
11 -2 630 067 7508 COVER 1 687R--02B-056
12 411 113 9109 SCR TRS 5X10 37 M5X10 TRS
MODEL TDM-3500E-2
0210-001
166
カバー部 COVER SECTION
Fig. 9-3 上部カバー Upper Cover
55
55-1
55-6
Fig.9-3
TDM-3500E-2
1
2
10
11
12
3
4
5
6
7
8
9
13
16
17
18
19
47
46
61
62
63
66
67
68
69
48
49
67
66
10
11
12
67
68
69
68
69
69
68
67
31
36
37
39
40
41
42
43
51
52
53
54
56
56
56
56
55-2
55-3
55-4
57
58-1
58
57
58-1
58
56
38
15
14
13
9
16
17
18
19
33
34
35
32
32-1
14
15
71
72
73
1-2
1-1
1-3
1-4
3
4
5
61
62
63
5
4
3
A
A
90
84
83
82
81
85
B
84
83
82
81
85
DETAIL "B"
167
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3500E-2
0210-001
9-3
1 630 069 1207 FRAME(L) 1 687R--02B-001
1 -1 630 069 5618 FRAME(C) 1 687R--02B-050
1 -2 630 069 6097 FRAME(FRONT) 1 687R--02B-051
1 -3 630 067 7270 FRAME(REAR) 1 687R--02B-052
1 -4 630 070 6376 SUPPORT 1 687R--02B-058
2 630 070 6291 FRAME(R) 1 687R--02B-002
3 630 001 0220 WASHER 6 BW5
4 411 141 6705 WASHER SPR 5 6 SW5
5 630 000 7770 BOLT,HEX-SCT 6 M5X20
6 411 141 4107 WASHER V 5X10X1 2 FW5
7 411 141 6705 WASHER SPR 5 2 SW5
8 630 000 7749 BOLT,HEX-SCT 2 M5X10
9 630 058 5735 BRACKET 2 687R--02B-006
10 411 141 4107 WASHER V 5X10X1 4 FW5
11 411 141 6705 WASHER SPR 5 4 SW5
12 630 000 7732 BOLT,HEX-SCT 4 M5X8
13 630 062 8258 MOTOR,DC 2 FAN1,FAN2,MDS1225-24
687FB-02D-021
14 630 000 0986 ACCESSORY,MOT-M 2 687FB-02D-034
15 630 000 9439 MACHINE SCREW 4 M4X50 FLT
15 -1 411 054 8506 NUT HEX 4 4 M4 F
16 630 071 6542 ACCESSORY,MOT-M 2 687FB-02D-035
17 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
18 411 008 1706 WASHER SPR 4 4 SW4 F
19 411 042 3001 SCR PAN 4X10 4 M4X10 PAN
31 630 035 2658 BRACKET 1 687H--02D-030
32 630 056 2125 PILOT LAMP 1 687H--02D-011
32 -1 630 000 1983 LAMP 3 RL,YL,GL
33 411 141 4107 WASHER V 5X10X1 2 FW5
34 411 141 6705 WASHER SPR 5 2 SW5
35 630 000 7756 BOLT,HEX-SCT 2 M5X12
36 630 067 7294 BRACKET 1 687R--02B-011
37 411 113 9109 SCR TRS 5X10 4 M5X10 TRS
38 630 045 8060 UNIT,DISPLAY 1 CRT2,10-VMB300 687DB-02D-001
39 630 067 7300 BRACKET 1 687R--02B-014
40 630 000 7497 BOLT,HEX-SCT 1 M3X4
41 630 001 0220 WASHER 2 BW5
42 411 141 6705 WASHER SPR 5 2 SW5
43 630 000 7756 BOLT,HEX-SCT 2 M5X12
46 630 070 6383 SUPPORT 1 687R--21B-059
47 411 141 4107 WASHER V 5X10X1 2 FW5
48 411 141 6705 WASHER SPR 5 2 SW5
49 630 000 7756 BOLT,HEX-SCT 2 M5X12
51 630 067 7331 COVER 1 687R--02B-015
52 630 070 6338 COVER 1 687R--02B-042
53 630 070 6321 COVER 1 687R--02B-041
54 630 070 6307 COVER 1 687R--02B-012
55 630 088 1424 COVER 1 687R--02B-013
55 -1 630 117 2064 UNIT,DISPLAY 1 #UT3-E1AE-D-N 687DB-02D-002
55 -2 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
