MODEL TDM-3500E-2
0209-001
70
XYテーブル部 XY TABLE SECTION

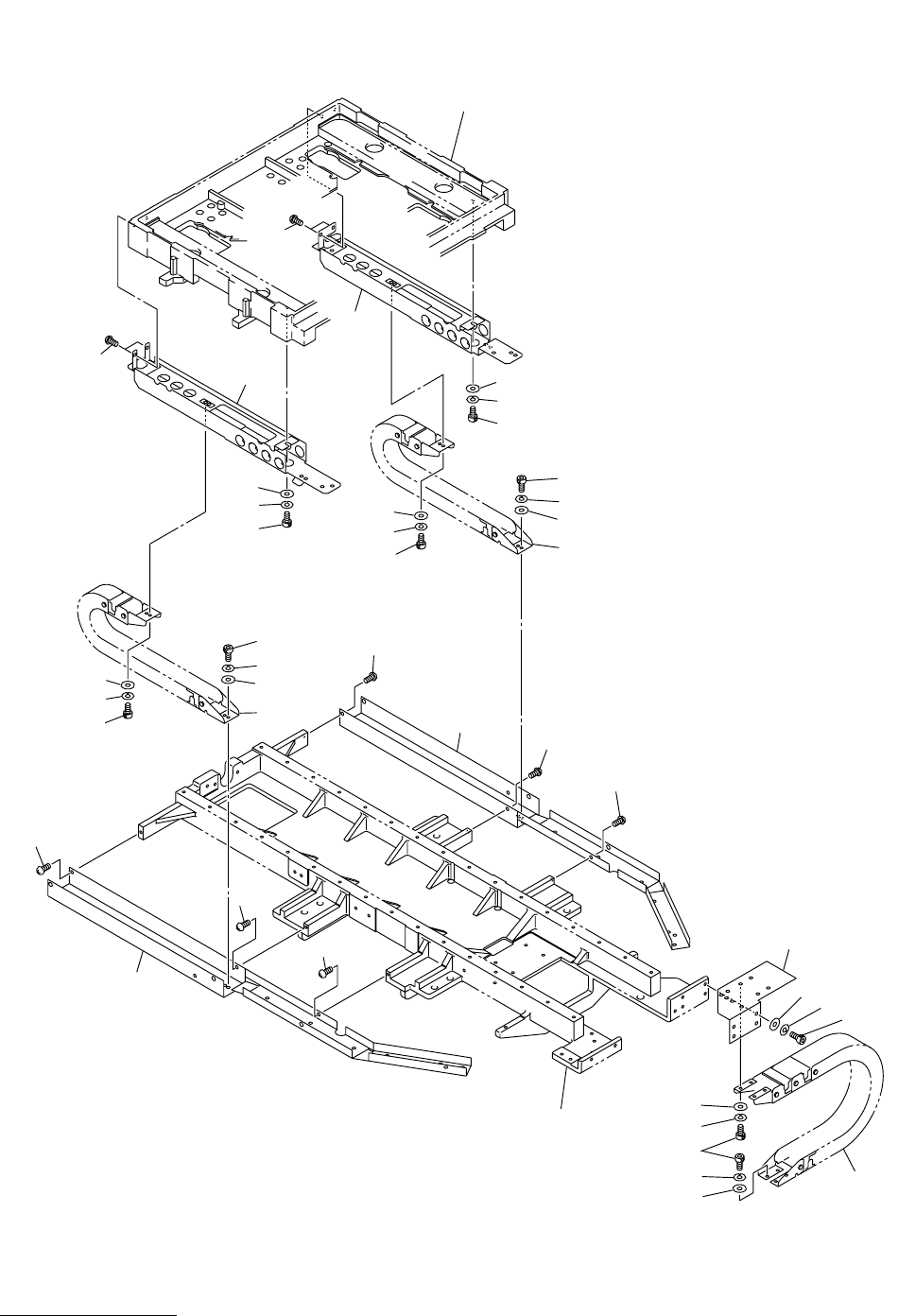

Fig. 3-9 配線支持部 Wiring Supporter
1
2
2
2
10
11
12
13
10
26
27
28
27
26
21
25
22
23
24
11
12
13
11
12
13
11
12
13
2
2
2
3
3-1
1-1
4
5
6
4
5
6
9
9
See Fig.3-3
Key No.1
See Fig.3-2
Key No.1
Fig.3-9
TDM-3500E-2
71
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3500E-2
0209-001
3-9
1 630 066 1392 BRACKET 1 687J--02B-064
1 -1 630 066 1385 BRACKET 1 687J--02B-063
2 411 051 1708 SCR TRS 4X6 8 M4X6 TRS
3 630 066 0708 PLATE 1 687J--02B-056
3 -1 630 066 0715 PLATE 1 687J--02B-057
4 411 141 4008 WASHER V 4X9X0.8 2 FW4
5 411 141 2905 WASHER SPR 4 2 SW4
6 630 000 7626 BOLT,HEX-SCT 2 M4X10
9 411 051 2804 SCR TRS 4X8 8 M4X8 TRS
10 630 064 6498 MECH PARTS(CABLEVEYOR) 2 687J--02H-131
11 411 141 3902 WASHER V 3X7X0.5 4 FW3
12 411 141 2806 WASHER SPR 3 4 SW3
13 630 000 7503 BOLT,HEX-SCT 4 M3X6
21 630 066 1224 BRACKET 1 687J--02B-022
22 411 141 4107 WASHER V 5X10X1 4 FW5
23 411 141 6705 WASHER SPR 5 4 SW5
24 630 000 7763 BOLT,HEX-SCT 4 M5X16
25 630 064 6351 MECH PARTS 1 687J--02H-026
26 411 141 4107 WASHER V 5X10X1 8 FW5
27 411 141 6705 WASHER SPR 5 8 SW5
28 630 000 7732 BOLT,HEX-SCT 8 M5X8
MODEL TDM-3500E-2
0209-001
72
XYテーブル部 XY TABLE SECTION

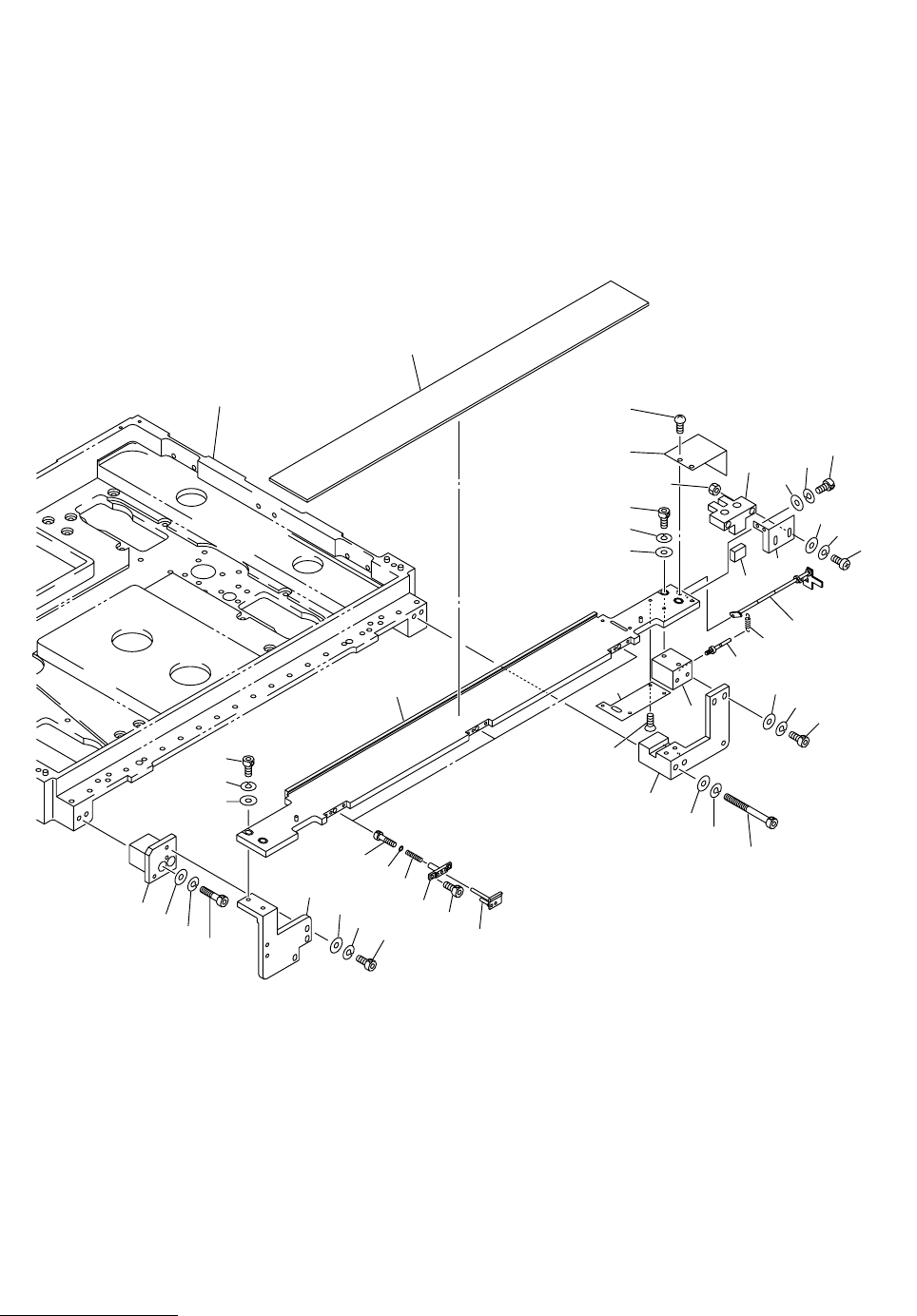

Fig. 3-10 部品認識板 Components Recognition Plate
1
3
4
5
6
7
8
9
11
12
13
14
16
45
44
43
41
46
42
16-1
19
18
17
19
18
17
25
37
36
26
28
29
30
31
33
34
35
27
32
22
23
24
21
3
4
5-1
2
See Fig.3-3
Key No.1
Fig.3-10
TDM-3500E-2
