MODEL TDM-3500E-2 0209-001 90 R コンベア部 R CONVEYOR SECTION Fig. 5-1 コンベア Conveyor Fig.5-1 TDM-3500E-2 27 19 18 21 21 28 29 30 27-2 27 64 63 62 61 45 28 29 30 B C D A 60 59 58 8-1 9 56 54 13 12 11 16 15 14 38 38 10 53-1 53-…
MODEL TDM-3500E-2
0209-001
89

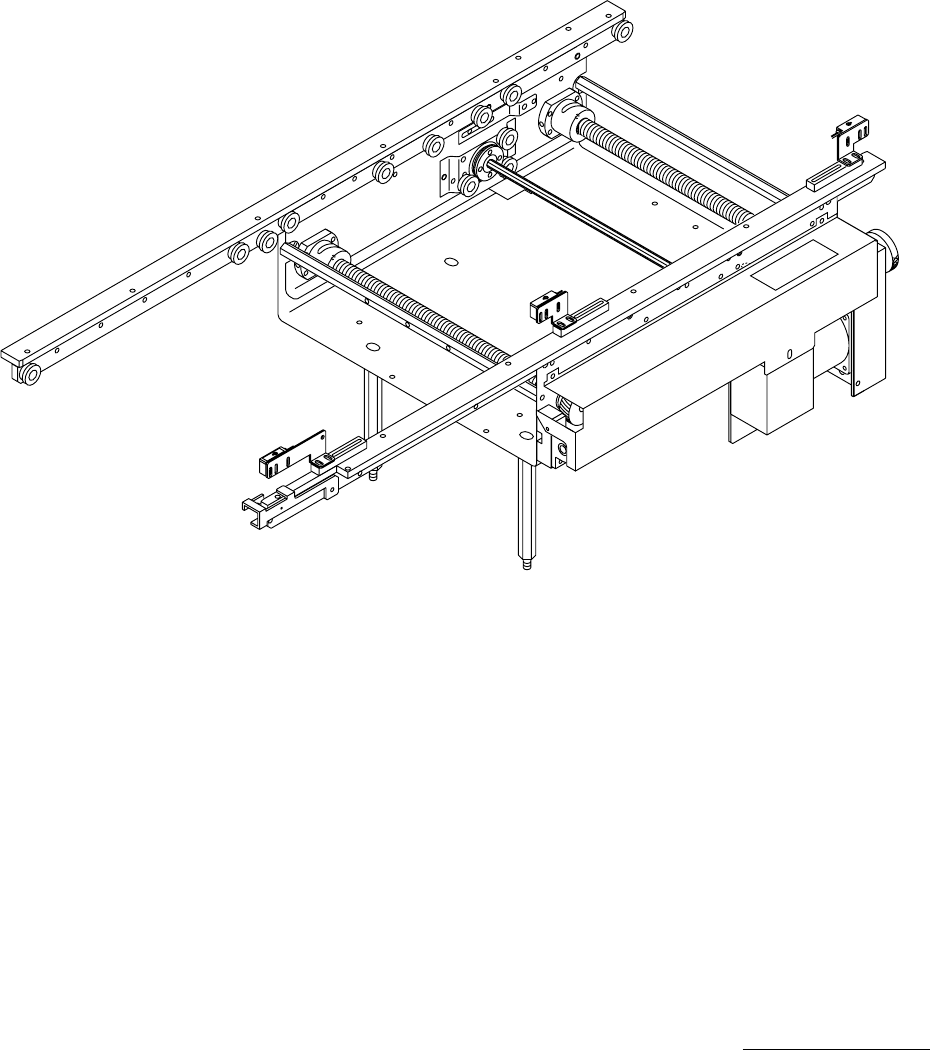

Fig. 5 R コンベア部 R CONVEYOR SECTION
MODEL TDM-3500E-2
0209-001
90
R コンベア部 R CONVEYOR SECTION

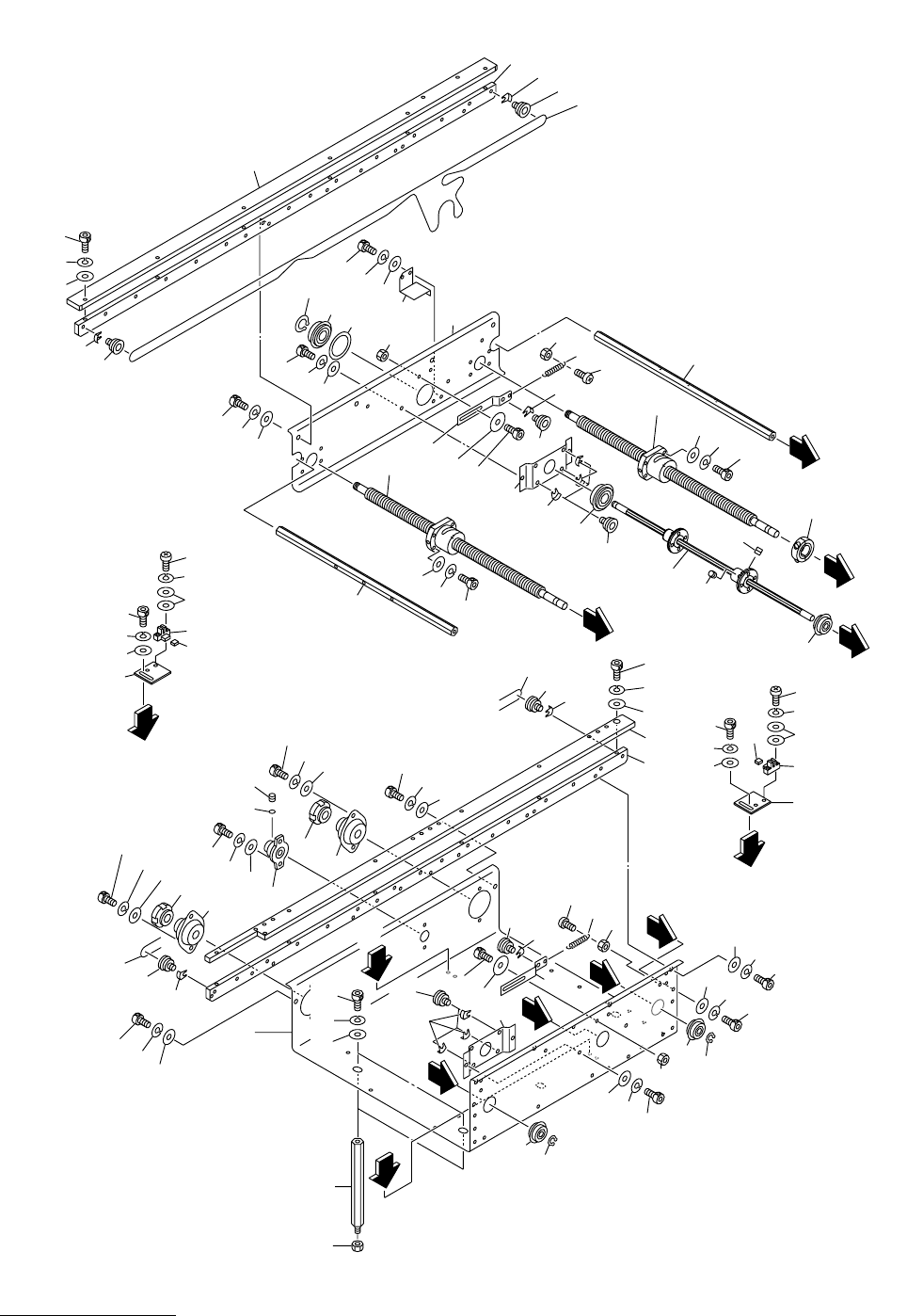

Fig. 5-1 コンベア Conveyor
Fig.5-1
TDM-3500E-2
27
19
18
21
21
28
29
30
27-2
27
64
63
62
61
45
28
29
30
B
C
D
A
60
59
58
8-1
9
56
54
13
12
11
16
15
14
38
38
10
53-1
53-1
53-1
53
53
7
20
18
17
44
43
42
53
53-1
46
53
53-1
48
47
74
73
72
75
76
71
79
78
77
A
B
C
D
F
60
59
58
57
8
54
53
53
53-1
33
37
34
35
36
33
54
53
53-1
53-1
39
40
41
39
40
41
41
40
39
44
43
53
53-1
42
47
48
46
16
45
15
14
37
34
35
36
4
25
24
23
22
5
6
3
93
92
91
26-1
26
31
32
31
2
1
1-1
32
F
71
72
73
74
75
76
79
78
77
E
E
91
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3500E-2
0209-001
5-1
1 630 067 1438 STAY 2 687H--02B-055
1 -1 411 141 1106 NUT HEX 10 2 M10
2 630 067 8925 BASE(CONVEYOR R) 1 687H--02B-001
3 630 053 4092 PLATE 1 687H--02B-004
4 411 141 4107 WASHER V 5X10X1 2 FW5
5 411 141 6705 WASHER SPR 5 2 SW5
6 630 000 7749 BOLT,HEX-SCT 2 M5X10
7 630 001 1548 BEARING,RADIAL 1 687H--02H-022
8 630 067 1278 PLATE(MAE) 1 687H--02B-012
8 -1 630 067 1261 PLATE(OKU) 1 687H--02B-011
9 630 069 1245 PLATE,LOCATE 1 687H--02B-003
10 630 053 4115 PLATE,LOCATE 1 687H--02B-006
11 411 141 4107 WASHER V 5X10X1 2 FW5
12 411 141 6705 WASHER SPR 5 2 SW5
13 630 000 7749 BOLT,HEX-SCT 2 M5X10
14 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
15 411 141 3001 WASHER SPR 6 4 SW6
16 630 000 7886 BOLT,HEX-SCT 4 M6X16
17 630 030 5913 COLLAR 1 687H--02B-007
18 630 001 1531 BEARING,RADIAL 2 687H--02H-021
19 630 065 4264 GUIDE,SLIDE 1 687H--02H-024
20 411 000 7805 RING C 20 1 687H--02H-023
21 630 000 8883 SET SCREW 2 M3X4 SET
22 630 008 5303 BEARING,UNIT 1 687H--02H-020
23 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
24 411 141 3001 WASHER SPR 6 2 SW6
25 630 000 7879 BOLT,HEX-SCT 2 M6X12
26 630 000 8920 SET SCREW 1 M4X6 SET
26 -1 630 053 5419 COLLAR 1 687H--02B-025
27 630 065 4295 BALL SCREW 2 687H--02H-010
27 -2 630 035 6618 MECH PARTS (SET COLLARS) 1 687H--02H-046
28 411 141 4008 WASHER V 4X9X0.8 8 FW4
29 411 141 2905 WASHER SPR 4 8 SW4
30 630 000 7657 BOLT,HEX-SCT 8 M4X16
31 630 001 1432 BEARING,RADIAL 2 687H--02H-009
32 411 000 7300 RING C 12 2 687H--02H-004
33 630 031 0566 BEARING,UNIT 2 687H--02H-012
34 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
35 411 141 3001 WASHER SPR 6 4 SW6
36 630 000 7879 BOLT,HEX-SCT 4 M6X12
37 630 031 0573 NUT 2 687H--02H-013
38 630 067 4675 STAY 2 687H--02B-008
39 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
40 411 141 3001 WASHER SPR 6 4 SW6
41 630 000 7886 BOLT,HEX-SCT 4 M6X16
42 630 053 0636 PLATE 2 687H--02B-005
43 630 001 0220 WASHER 2 687H--02H-027
44 630 000 7763 BOLT,HEX-SCT 2 M5X16
45 411 141 0604 NUT HEX 5 2 M5-3
46 411 118 8503 NUT HEX 5 2 M5 F
