SIPLACE BulkFeeder X / Operating Manual 05/2017 Edition
5
1 Introduction
This manual provides technical information and describes how to configure and operate the
SIPLACE® BulkFeeder X.
With the SIPLACE BulkFeeder X a new feeding system is offered for all small components that are
used in high quantities in a high-volume production environment. Instead of feeding the
components out of a tape and reel packaging, the components are filled into a cartridge and
transported and separated onto a glass plate from which they are picked up contactlessly.
The following main advantages apply for the SIPLACE BulkFeeder X:
● The adjustment to different component sizes (0402, 0201 and 01005) is done via software only.
● The vibration system cannot only transport the components in any direction, it can even flip
components.
● Filling the cartridge is easier than splicing or setting up a new reel and the feeder is able to hold
much larger component quantities than a tape feeder ever can.
● Less downtime of the machine or line.
● Component packaging costs are supposed to be lower when using the bulk feeder system
instead of tape and reel.
● Waste materials will be significantly reduced down to almost no waste.
1.1 Safety Instructions
DANGER
Nonobservance of these safety instructions may cause injury to personnel and
damage to the machine!
Please observe the safety instructions in the user manual of the relevant machine for
►
all work!
SIPLACE BulkFeeder X / Operating Manual 05/2017 Edition
6
1.1.1 Conventions for the Use of Safety Instructions
This manual contains notes that must be observed to guarantee your personal safety and to avoid
damage to equipment. These notes are highlighted by warning triangles and are indicated as
follows according to the level of risk:
DANGER
Definition
For the purposes of this manual, this indicates that fatal or severe injuries or
considerable damage to property will occur if this hazard warning is not observed.
WARNING
Definition
For the purposes of this manual, this indicates that fatal or severe injuries or
considerable damage to equipment may occur if these warning instructions are not
followed.
CAUTION
Definition
For the purposes of this manual, this indicates that minor injuries or damage to property
may occur if this caution is not observed.
NOTICE
Definition
For the purposes of this manual, this note provides information about the product or
indicates a part of the manual that requires particular attention.
SIPLACE BulkFeeder X / Operating Manual 05/2017 Edition
7
1.2 Operational Safety
1.2.1 Warning Labels
High temperatures around the camera
CAUTION
Hot surface warning
The camera may be hot. Be careful when touching the BulkFeeder X.
1.2.2 Feeder Handling

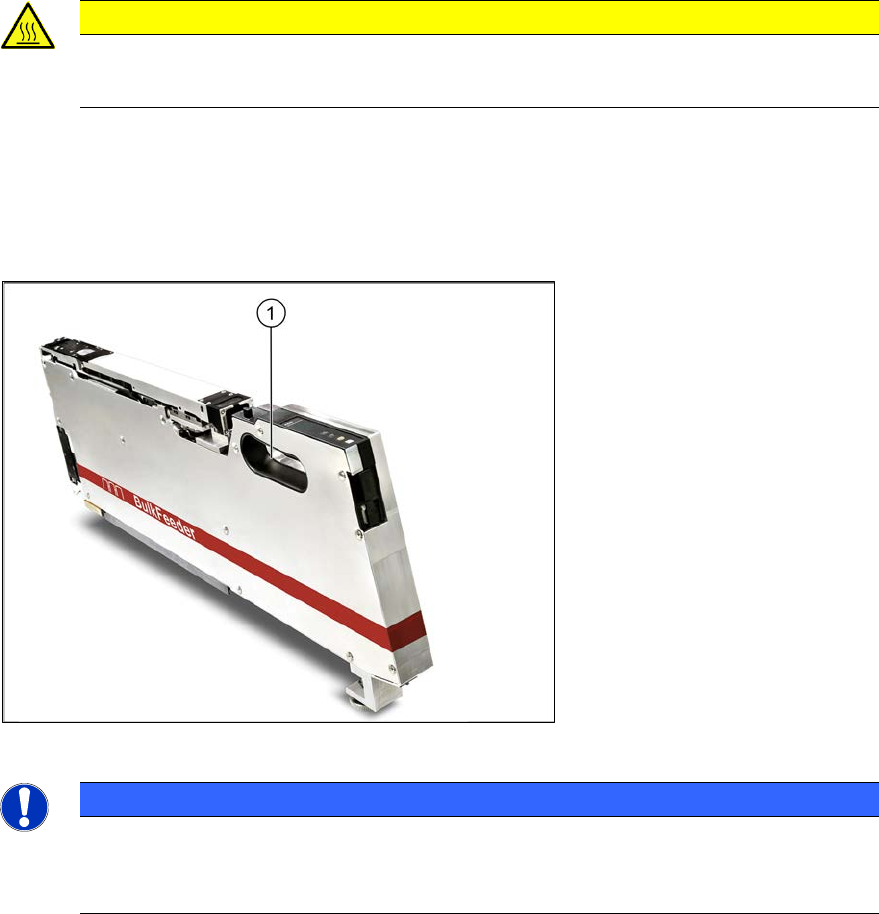

Base Unit
Carry the Base Unit in the handle (1). ►
NOTICE
Only move the Base Unit with installed Cartridge.
As the weight is nearly 6.5 kg, it may be necessary to carry the Base Unit with both
hands.
Pick the Base Unit in the handle with one hand and at the front side (close to the EDIF and ►
front centering pin) with the other hand.
Do not touch the gap on the side panels where the camera is installed. The camera might get ►
out of place.
Treat the Base Unit carefully. ►
The Base Unit is equipped with a small foot on the side of the 3rd track. Thus, it can be put down
standing on the table. However, due to the small support base it is safer to lay it down on the side
on a smooth surface.
Do NOT throw, drop or overbalance the Base Unit.
