A-6
A2
X フレーム ASSY 右
X frame assy - Right
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
51 EZ4-705-584-11 SPACER (SQ-10) ｽﾍﾟ-ｻ (SQ-10) 4
52 EZ4-706-151-11 CLAMP (KR5G5)
ﾊｲｾﾝﾄﾞﾒ (KR5G5)
1
53 EZ4-761-803-11 NUT, FINE U (TREATMENT HAVE) ﾌｱｲﾝ U ﾅﾂﾄ (ｼﾖﾘ ｱﾘ) (FU00SS) 1
54 EZ7-623-208-22 SW 3,TYPE 2
SW 3,TYPE 2
2
55 EZ7-623-210-22 SW 4,TYPE 2 SW 4,TYPE 2 8
56 EZ7-624-198-21 STOP RING 10, TYPE C
C ｶﾞﾀ ﾄﾒﾜ 10 (ｼﾞｸ ﾖｳ)
1
57 EZ7-682-160-01 SCREW +P 4X6 +P 4X6 1
58 EZ7-682-954-01 SCREW +PSW 3X25
+PSW 3X25
4
59 EZ7-683-403-04 BOLT,HEXAGON SOCKET 3X6 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6 9
60 EZ7-683-404-04 BOLT,HEXAGON SOCKET 3X8
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X8
26
61 EZ7-683-406-04 BOLT,HEXAGON SOCKET 3X12 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X12 12
62 EZ7-683-411-04 BOLT,HEXAGON SOCKET 3X25
6 ｶｸ ｱﾅ ﾂｷ ﾎﾞﾙﾄ 3X25
4
63 EZ7-683-419-04 BOLT HEXAGON SOCKET 4X8 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X8 12
64 EZ7-683-420-04 BOLT,HEXAGON SOCKET 4X10
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X10
4
65 EZ7-683-421-04 BOLT,HEXAGON SOCKET 4X12 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X12 8
66 EZ7-683-423-04 BOLT,HEXAGON SOCKET 4X16
6 ｶｸｱﾅﾂｷ ﾎﾞﾙﾄ 4X16
24
67 EZ7-683-427-04 BOLT,HEXAGON SOCKET 4X25 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X25 4
68 EZ7-683-436-04 BOLT,HEXAGON SOCKET 5X12
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X12
4
69 EZ7-683-437-04 BOLT,HEXAGON SOCKET 5X14 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X14 3
70 EZ7-683-440-04 BOLT,HEXAGON SOCKET 5X20
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X20
4
71 EZ7-683-442-04 BOLT,HEXAGON SOCKET 5X25 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X25 6
72 EZ7-683-444-04 BOLT,HEXAGON SOCKET 5X30
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X30
4
73 EZ7-688-004-11 W 4, MIDDLE W 4, MIDDLE 4
74 EZ7-688-005-11 W 5, MIDDLE
W 5, MIDDLE
10
75 EZ4-455-213-11 PULLEY COVER X AXIS (R) ﾌﾟ-ﾘ- ｶﾊﾞ- X ｼﾞｸ (R) 1
76 EZ4-471-955-11 CABLE CLAMP UPPER (RZ-L)
ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ UPPER (RZ-L)
1
77 EZ4-471-954-11 CABLE CLAMP UPPER (RZ-R) ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ UPPER (RZ-R) 1
78 EZ4-455-282-01 CLAMP S Z, CABLE
ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ S Z
1
79 EZ4-455-281-01 CLAMP L Z, CABLE ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ L Z 1
80 EZ4-471-956-11 CABLE CLAMP BRACKET (RZ)
ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ ﾌﾞﾗｹﾂﾄ (RZ)
1
81 EZ4-455-280-11 PLATE Z, SENSOR (R) ｾﾝｻ- ﾌﾟﾚ-ﾄ Z (R) 1
82 EZ1-492-214-11 SENSOR, LASER (ZX2-LD50 0.5M)
ﾚ-ｻﾞ- ｾﾝｻ (ZX2-LD50 0.5M)
1
83 EZ4-453-818-01 BOLT (CBSTSR3-5) ﾁﾖｳ ｺﾞｸ ﾃｲﾄｳ ﾎﾞﾙﾄ (CBSTSR3-5) 8
84 EZ7-683-402-04 BOLT,HEXAGON SOCKET 3X5
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X5
18
85 EZ7-682-154-01 SCREW +P 3X25 +P 3X25 2
A-7
A3

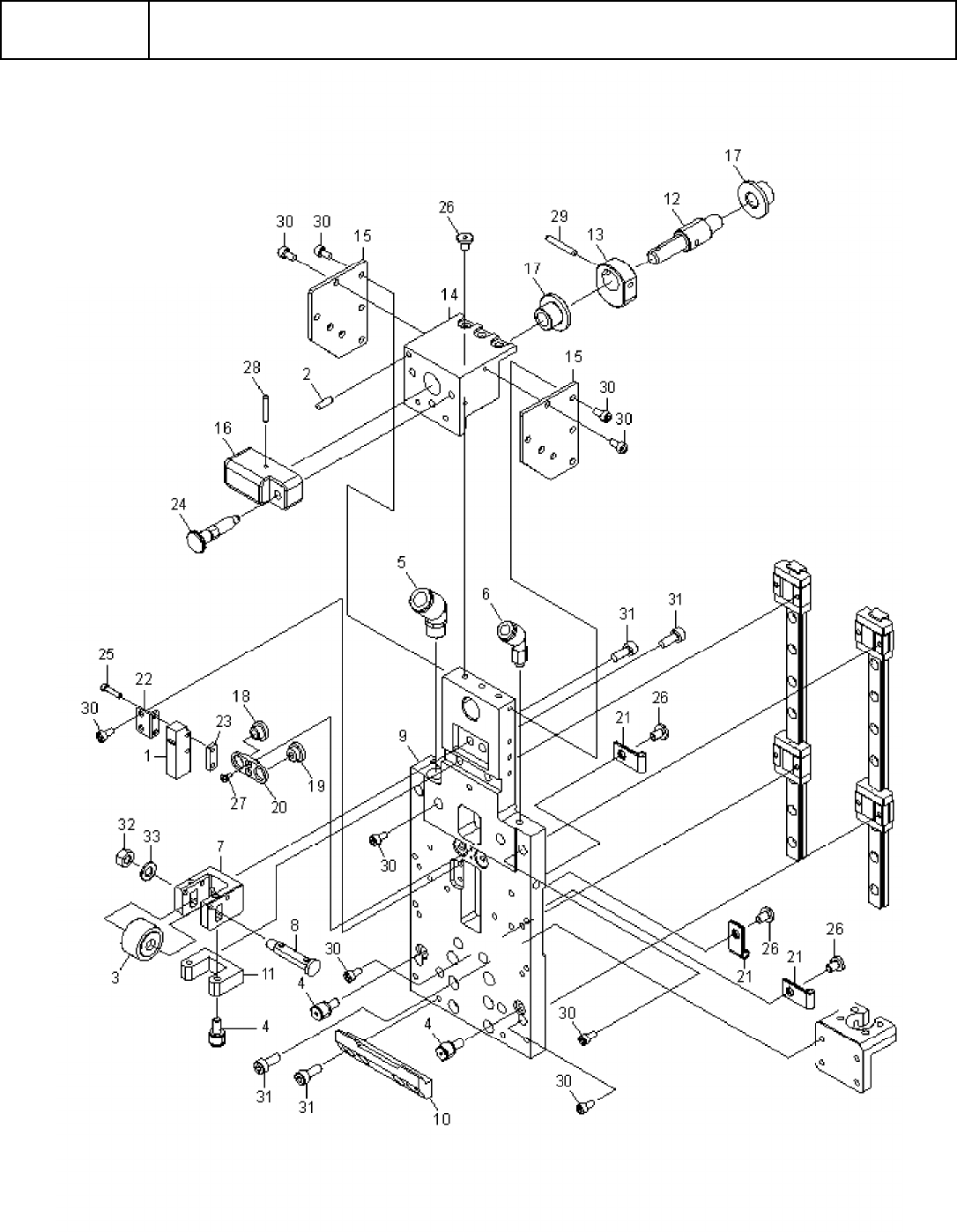

XYZ フレーム-2
XYZ frame - 2
