A-96 A 4 0 カッターユニ ット Cutter unit 2 3 3 4 5 6 7 7 6 8 8 9 9 1 0 1 0 1 1 1 1 1 2 1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0 2 0 2 2 2 3 A A 2 1 2 3 2 2 2 3 2 2 2 3 2 1 2 3 2 1 2 3 2 4 2 4 2 4 2 4 2 4 2 5 2 6 2 7 2 7 2 8 2 9 2 9 3 0 3…
A-95
A39-2
台車本体 -2
Trolley unit - 2
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
109 401-58881 SHOOT_NI ｼｭｰﾄ_Ni (1)
110 401-51345 SHOOT_SUPPORT ｼｭｰﾄｻﾎﾟｰﾄ (1)
111 SM-3030552-TN SCREW M3 L=5 ﾏﾙﾈｼﾞ M3 L=5 (2)
112 401-58883 TAPE_GUIDE_PLATE
ﾃｰﾌﾟｶﾞｲﾄﾞﾌﾟﾚｰﾄ
(1)
113 401-58885 TAPE_GUIDE_CHAIN
ﾃｰﾌﾟｶﾞｲﾄﾞﾁｪｰﾝ
(2)
114 SM-6020602-TN SCREW M2 L=6
ﾛｯｶｸｱﾅﾎﾞﾙﾄ M2 L=6
(4)
115 NM-6020001-SC NUT M2 ﾛﾂｶｸﾅﾂﾄ M2 1 ｼﾕ (6)
116 401-58882 TAPE_GUIDE_CHAIN_BR ﾃｰﾌﾟｶﾞｲﾄﾞﾁｪｰﾝﾌﾞﾗｹｯﾄ (1)
117 401-58884 TAPE_GUDE_FIX_PLATE ﾃｰﾌﾟｶﾞｲﾄﾞﾌｨｸｽﾌﾟﾚｰﾄ (1)
118 SL-6030692-TN SCREW M3 L=6
座金付き六角穴ボルト M3 L=6
(2)
119 NM-6030003-SC NUT M3
ﾛﾂｶｸﾅﾂﾄ M3
(4)
120 WP-0320501-SC WASHER M3
ﾋﾗｻﾞｶﾞﾈ M3
(4)
121 WS-0310002-KN SPRING WASHER M3 ﾊﾞﾈｻﾞｶﾞﾈ 3.1X5.9X0.7 (4)
122 SM-3040652-TN SCREW M4 L=6 ﾏﾙﾈｼﾞ M4 L=6 2
123 SM-3030552-TN SCREW M3 L=5 ﾏﾙﾈｼﾞ M3 L=5 2
124 401-43537 SUPPORT_BAR
ｻﾎﾟｰﾄﾊﾞｰ
1
125 SM-3040552-TN SCREW M4 L=5
ﾏﾙﾈｼﾞ M4 L=5
2
126 401-43538 DISPOSAL_DUCT_BRACKET
ﾃﾞｨｽﾎﾟｰｻﾞﾙﾀﾞｸﾄﾌﾞﾗｹｯﾄ
2
127 SM-6040802-TN SCREW M4X0.7 L=8 ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M4X0.7 L=8 8
128 401-43539 STAND_COVER_TOP ｽﾀﾝﾄﾞｶﾊﾞｰﾄｯﾌﾟ 1
129 SM-1040801-SC SCREW M4X0.7 L=8 ｻﾗｺﾈｼﾞ M4X0.7 L=8 4
130 EZ4-453-863-01 DISPOSAL DUCT
ﾊｲｷ ﾀﾞｸﾄ
1
131 401-54185 CUTTER_UNIT
ｶｯﾀｰﾕﾆｯﾄ
1
132 401-69472 IFS-NX CAN CART ASM (RX-7)
IFS-NX CAN 台車組 (RX-7)
1 OPTION
133 401-69045 BANK ID PCB ASM ﾊﾞﾝｸ ID 基板組 (1)
134 SL-4030691-SC SCREW M3 L=6 座金付きなべ小ねじ M3 L=6 (1)
135 HX-0029400-00 FIXED BASE ｺﾃｲ ﾍﾞｰｽ (1)
136 HX-0023300-00 CABLE BAND
ｿｸｾﾝ ﾊﾞﾝﾄﾞ
(3)
137 401-69297 IFS PCB BOX
IFS ｷﾊﾞﾝ ﾎﾞｯｸｽ
(1)
138 401-69298 IFS PCB COVER
IFS ｷﾊﾞﾝ ｶﾊﾞｰ
(1)
139 SL-4030691-SC SCREW M3 L=6 座金付きなべ小ねじ M3 L=6 (3)
140 SL-4040891-SC SCREW M4 L=8 ｻﾞｶﾞﾈﾂｷ ﾅﾍﾞｺﾈｼﾞ M4 L=8 (4)
A-96
A40

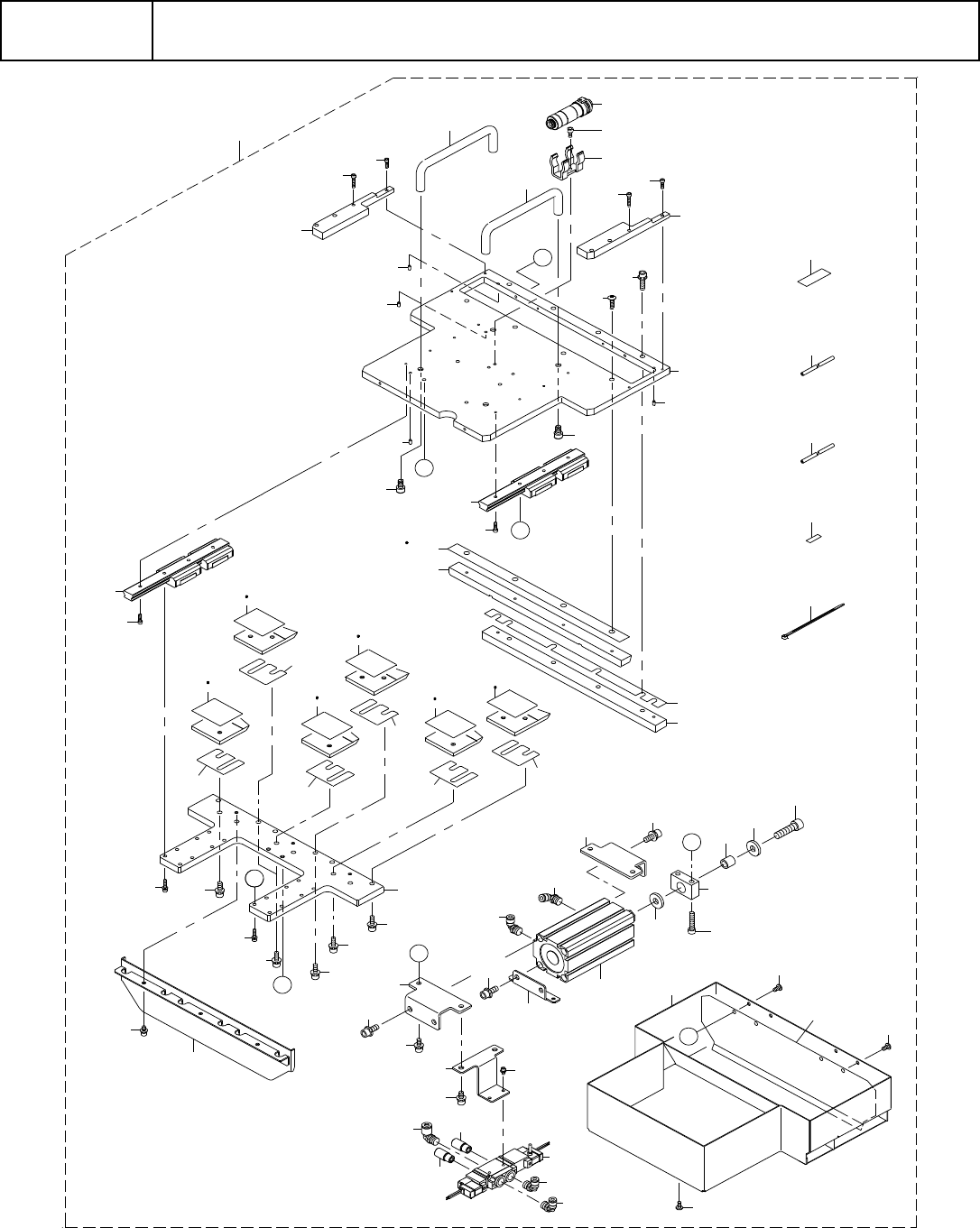

カッターユニット
Cutter unit
2
3
3
4
5
6
7
7
6
8
8
9
9
1 0
1 0
1 1
1 1
1 2
1 3
1 4
1 5
1 6 1 7
1 8
1 9
2 0
2 0
2 2 2 3
A
A
2 1 2 3
2 2 2 3
2 2 2 3
2 1 2 3
2 1 2 3
2 4
2 4
2 4
2 4
2 4
2 5
2 6
2 7
2 7
2 8
2 9
2 9
3 0
3 1
3 2
3 3
3 3
3 4
3 4
3 5
3 5
3 6
3 5
3 5
3 8
3 7
3 9
4 0
4 1
4 1
4 2
4 3
B
B
4 4
4 5
4 6
4 7
4 8
4 7
4 9
5 0
5 1
5 2
5 3
5 4
5 4
5 4
5 4
5 4
5 4
C
C
4 6
1
3
3
4 6
D
D
A-97
A40
カッターユニット
Cutter unit
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 401-54185 CUTTER_UNIT ｶｯﾀｰﾕﾆｯﾄ 1
2 401-51138 BASE(CUTTER) ﾍﾞ-ｽ (ｶｯﾀｰﾕﾆｯﾄ) (1)
3 PH-0300062-C0 PARALLEL PIN TYPE B 3X6 平行ﾋﾟﾝ B 種 3X6 (4)
4 401-60819 BASE_SUPPORT_L
ﾍﾞｰｽｻﾎﾟｰﾄ L
(1)
5 401-60820 BASE_SUPPORT_R
ﾍﾞｰｽｻﾎﾟｰﾄ R
(1)
6 SM-6031002-TN SCREW M3 L=10
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M3 L=10
(2)
7 SM-6031602-TN SCREW M3 L=16 ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M3 L=16 (2)
8 EZ3-215-222-01 HANDLE(A-1042-C-4) SHAFT ﾏﾙﾎﾞｳ ﾄﾂﾃ(A-1042-C-4) (2)
9 EZ7-683-452-04 BOLT HEXAGON SOCKET 6X10 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 6X10 (4)
10 EZ4-453-559-01 LM GUIDE(SRS15MUUE)
LM ｶﾞｲﾄﾞ(SRS15MUUE)
(2)
11 SM-6031002-TN SCREW M3 L=10
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M3 L=10
(8)
12 401-51154 SHIM_UPPER_EDGE
ｼﾑ(ｳﾜﾊﾞ)
(3)
13 401-51139 UPPER_EDGE ｳﾜﾊﾞ (1)
14 SL-6052092-TN SCREW M5 L=20 座金付き六角穴ボルト M5 L=20 (4)
15 401-51144 GUIDE_LOWER_EDGE ｼﾀﾊﾞｶﾞｲﾄﾞ (1)
16 401-61183 LOWER_EDGE_GUIDE_SHIM_100
ｼﾀﾊﾞｶﾞｲﾄﾞｼﾑ 100
(1)
17 401-61184 LOWER_EDGE_GUIDE_SHIM_50
ｼﾀﾊﾞｶﾞｲﾄﾞｼﾑ 50
(2)
18 401-51153 TAPPING_SCREW_4X16
ﾀｯﾋﾟﾝﾈｼﾞ 4×16
(4)
19 401-51140 SLIDE_BASE_LOWER_EDGE ｽﾗｲﾄﾞﾍﾞ-ｽ (ｼﾀﾊﾞ) (1)
20 SL-6031492-TN SCREW M3 L=14 座金付き六角穴ボルト M3 L=14 (16)
21 401-51141 LOWER_EDGE_A ｼﾀﾊﾞ A (3)
22 401-51142 LOWER_EDGE_B
ｼﾀﾊﾞ B
(3)
23 401-62481 PLATE_T0.2_CD
ﾌﾟﾚｰﾄＴ0.2_CD
(6)
24 SL-6051692-TN SCREW M5 L=16
座金付き六角穴ボルト M5 L=16
(12)
25 401-51150 COVER_LOWER_EDGE ｶﾊﾞｰ(ｼﾀﾊﾞ) (1)
26 SL-6040892-TN SCREW M4 L=8 座金付き六角穴ボルト M4 L=8 (3)
27 401-51145 CYLINDER_BRACKET ｼﾘﾝﾀﾞﾌﾞﾗｹｯﾄ (2)
28 401-51148 SV_BRACKET
SV ﾌﾞﾗｹｯﾄ
(1)
29 SL-6051292-TN SCREW M5 L=12
座金付き六角穴ボルト M5 L=12
(4)
30 401-46767 SOLENOID VALVE ASSY (CUTTER)
ｿﾚﾉｲﾄﾞ ﾊﾞﾙﾌﾞ 組 (CUTTER)
(1)
31 SL-6030692-TN SCREW M3 L=6 座金付き六角穴ボルト M3 L=6 (2)
32 EZ4-476-170-01 AIR CYLINDER(RDQA40-60) ｸｳｱﾂ ｼﾘﾝﾀﾞ(RDQA40-60) (1)
33 SL-6061692-TN SCREW M6 L=16 ｻﾞｶﾞﾈﾂｷﾛｯｶｸｱﾅﾎﾞﾙﾄ M6 L=16 (4)
34 EZ4-426-151-01 SILENCER(AN10-01)
ｻｲﾚﾝｻ(AN10-01)
(2)
35 EZ4-447-092-01 UNION (KQ2L04-01NS) ELBOW
ｴﾙﾎﾞ ﾕﾆｵﾝ (KQ2L04-01NS)
(4)
36 EZ4-447-092-11 UNION(KQ2L06-01NS) ELBOW
ｴﾙﾎﾞ ﾕﾆｵﾝ(KQ2L06-01NS)
(1)
37 401-51152 COVER_SUPPORT ｶﾊﾞｰｻﾎﾟｰﾄ (1)
38 SL-6061692-TN PARALLEL PIN TYPE B 3X6 平行ﾋﾟﾝ B 種 3X6 (2)
39 401-51143 CONNECTION_BLOCK ｺﾈｸｼｮﾝﾌﾞﾛｯｸ (1)
40 SM-6052502-TN SCREW
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ
(2)
41 401-51147 WASHER 6-20
ｻﾞｶﾞﾈ
(2)
42 401-51146 COLLAR
ｶﾗｰ
(1)
43 SM-6083002-TN SCREW M8 L=30 ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M8 L=30 (1)
44 401-51151 COVER_CUTTER ｶﾊﾞｰ(ｶｯﾀｰﾕﾆｯﾄ) (1)
45 401-60822 TAPE_GUARD_VE ﾃｰﾌﾟｶﾞｰﾄﾞ VE (1)
46 SM-0040801-SC SCREW M4X8
トラスネジ M4X8
(4)
47 EZ4-453-560-01 FILTER(FSL200-66-B) INLINE
ｲﾝﾗｲﾝ ﾌｲﾙﾀ(FSL200-66-B)
(1)
48 SM-6040802-TN SCREW M4X0.7 L=8
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M4X0.7 L=8
(2)
49 EZ4-457-931-11 TAPE(40) FIXED ｺﾃｲ ﾃ-ﾌﾟ(40) (1)
50 EZ7-630-003-47 TUBE(TU0425B-100-X3) ﾎﾟﾘｳﾚﾀﾝﾁﾕ-ﾌﾞ(TU0425B-100-X3) (0.445)
51 EZ7-632-385-50 TUBE POLYURETHAN (TU0604B) ﾎﾟﾘｳﾚﾀﾝ ﾁﾕ-ﾌﾞ (TU0604B) 4X6X3M (0.24)
52 EZ4-722-956-01 LABEL(SILVER) BLANK
ﾌﾞﾗﾝｸ ﾗﾍﾞﾙ ｷﾞﾝ(TTC82YS-10)
(3)
53 EZ4-716-434-11 TIE INSULOCK(AB100 BLACK)
ｲﾝｼﾕﾛﾂｸ ﾀｲ(AB100 ｸﾛ)
(1)
54 401-58937 LOWER_EDGE_SHIM_CD
ｼﾀﾊﾞｼﾑ CD
(6)
